BA683GS08 datasheet, PDF - EEWORLD Datasheet

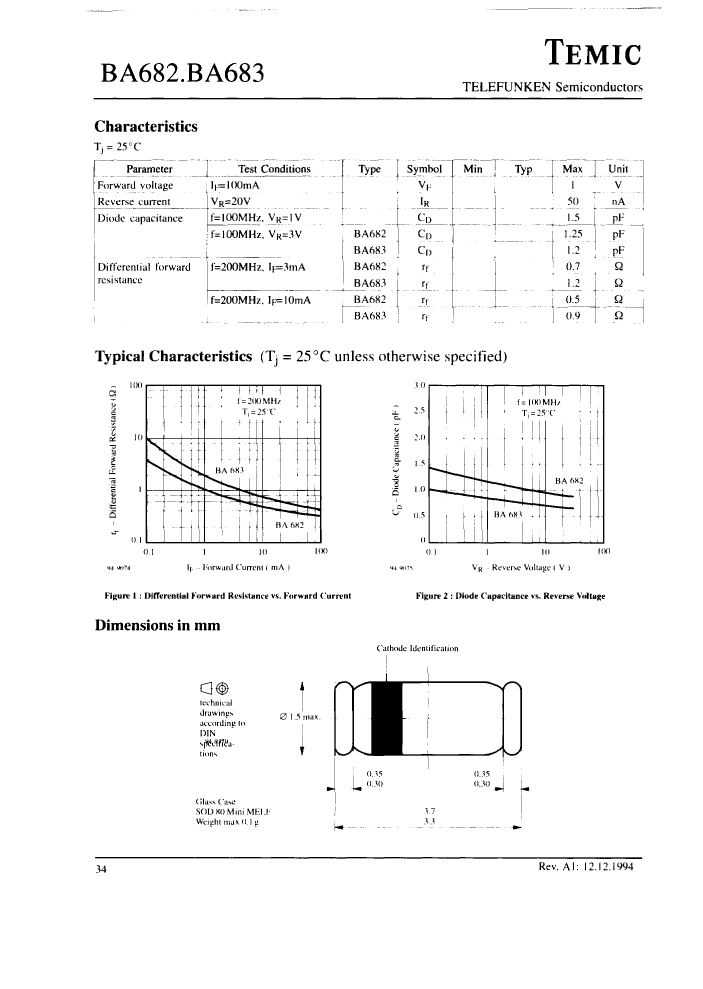

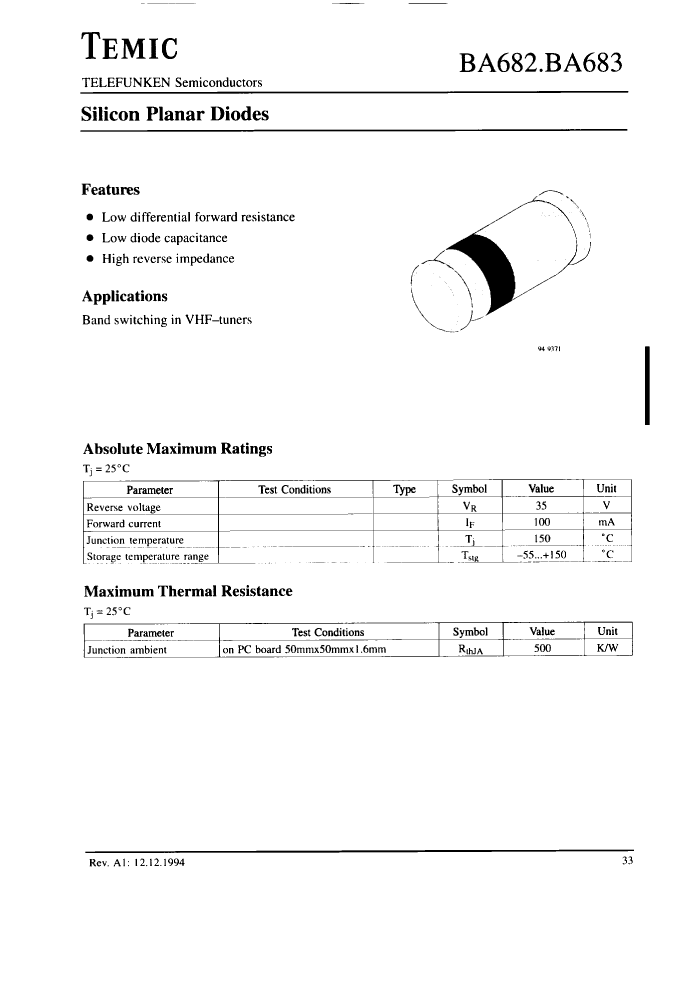

BA683GS08: DescriptionMixer Diode, Very High Frequency, Silicon,; CategoryDiscrete semiconductor diode; File Size43KB，2 Pages; ManufacturerTEMIC; Websitehttp://www.temic.de/

Download Datasheet Parametric Compare View All

BA683GS08 Overview

Mixer Diode, Very High Frequency, Silicon,

Parameter Name	Attribute value
Maker	TEMIC
Reach Compliance Code	unknown
Minimum breakdown voltage	35 V
Shell connection	ISOLATED
Configuration	SINGLE
Maximum diode capacitance	1.5 pF
Diode component materials	SILICON
Diode type	MIXER DIODE
Maximum forward voltage (VF)	1 V
frequency band	VERY HIGH FREQUENCY
JESD-30 code	O-LELF-R2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Maximum output current	100 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum reverse current	0.05 µA
surface mount	YES
Terminal form	WRAP AROUND
Terminal location	END
Base Number Matches	1

	BA683GS08	BA682GS18	BA682GS08	BA683GS18
Description	Mixer Diode, Very High Frequency, Silicon,	Mixer Diode, Very High Frequency, Silicon,	Mixer Diode, Very High Frequency, Silicon,	Mixer Diode, Very High Frequency, Silicon,
Reach Compliance Code	unknown	unknown	unknown	unknown
Minimum breakdown voltage	35 V	35 V	35 V	35 V
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum diode capacitance	1.5 pF	1.5 pF	1.5 pF	1.5 pF
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	MIXER DIODE	MIXER DIODE	MIXER DIODE	MIXER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V
frequency band	VERY HIGH FREQUENCY	VERY HIGH FREQUENCY	VERY HIGH FREQUENCY	VERY HIGH FREQUENCY
JESD-30 code	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	100 A	100 A	100 A	100 A
Package body material	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	0.05 µA	0.05 µA	0.05 µA	0.05 µA
surface mount	YES	YES	YES	YES
Terminal form	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND
Terminal location	END	END	END	END
Base Number Matches	1	1	1	1
Maker	TEMIC	TEMIC	TEMIC	-
