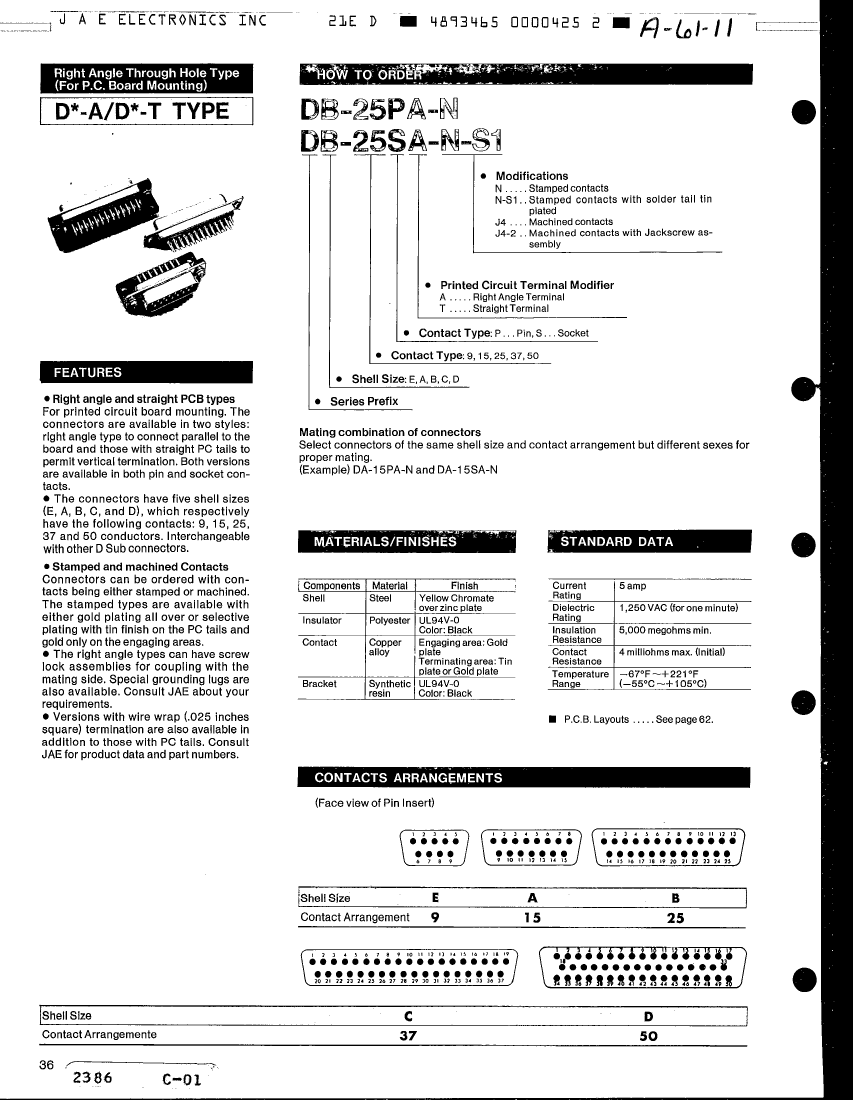

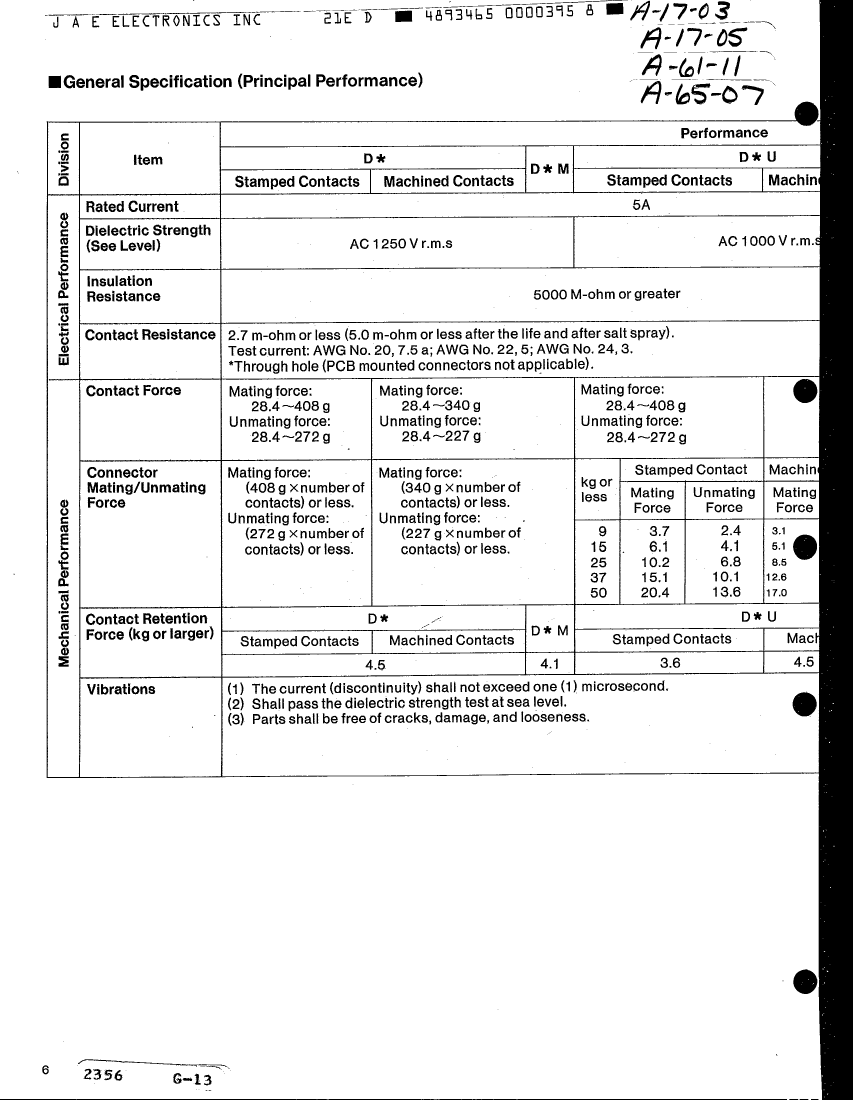

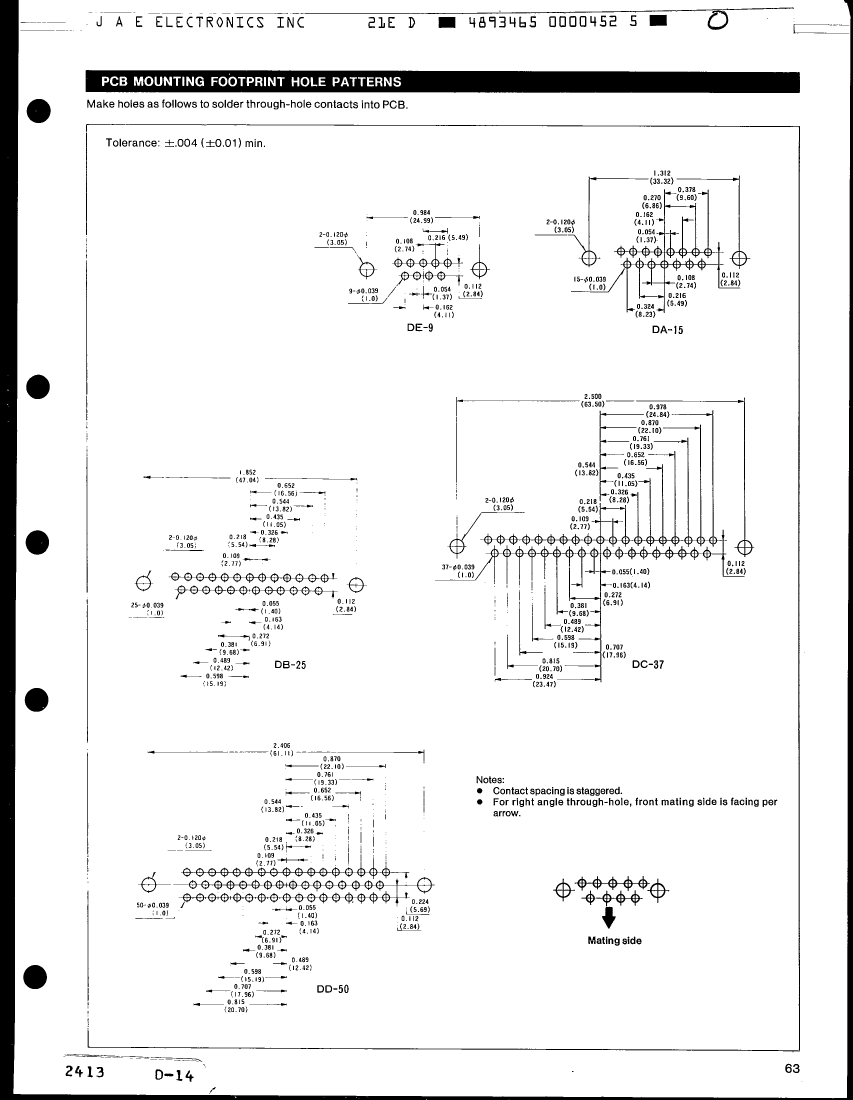

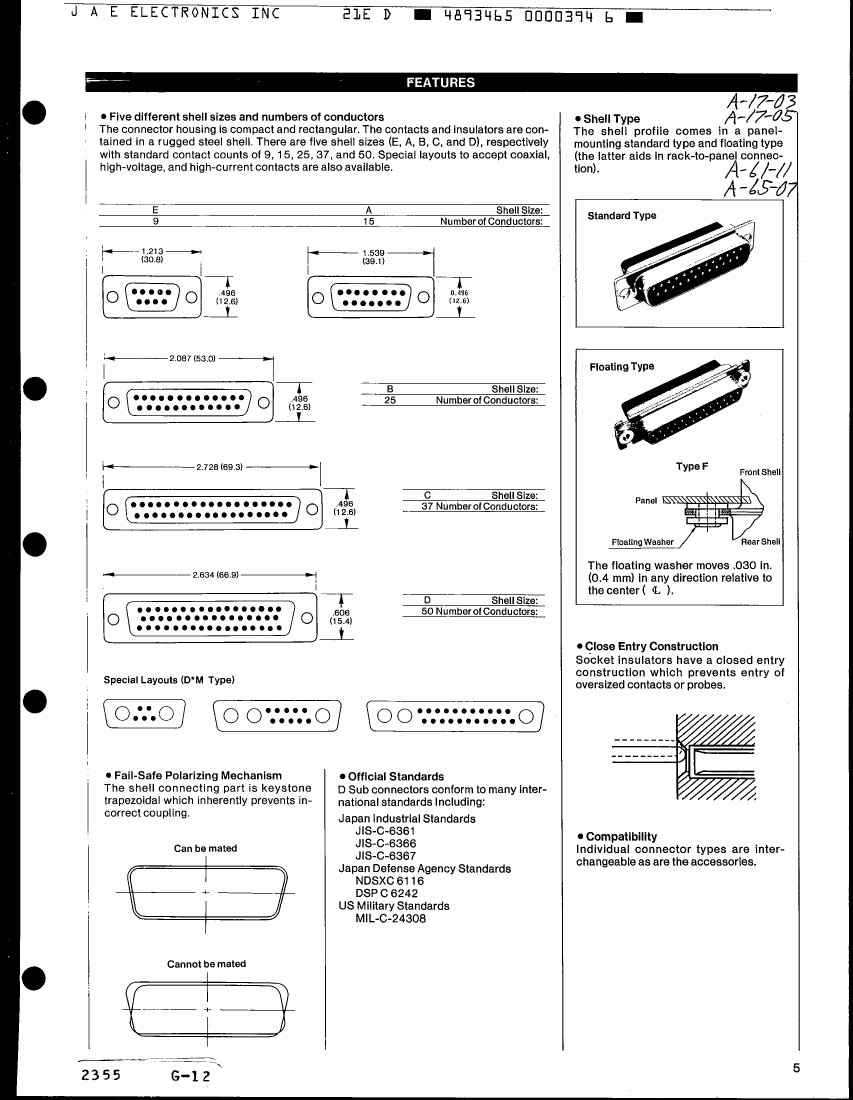

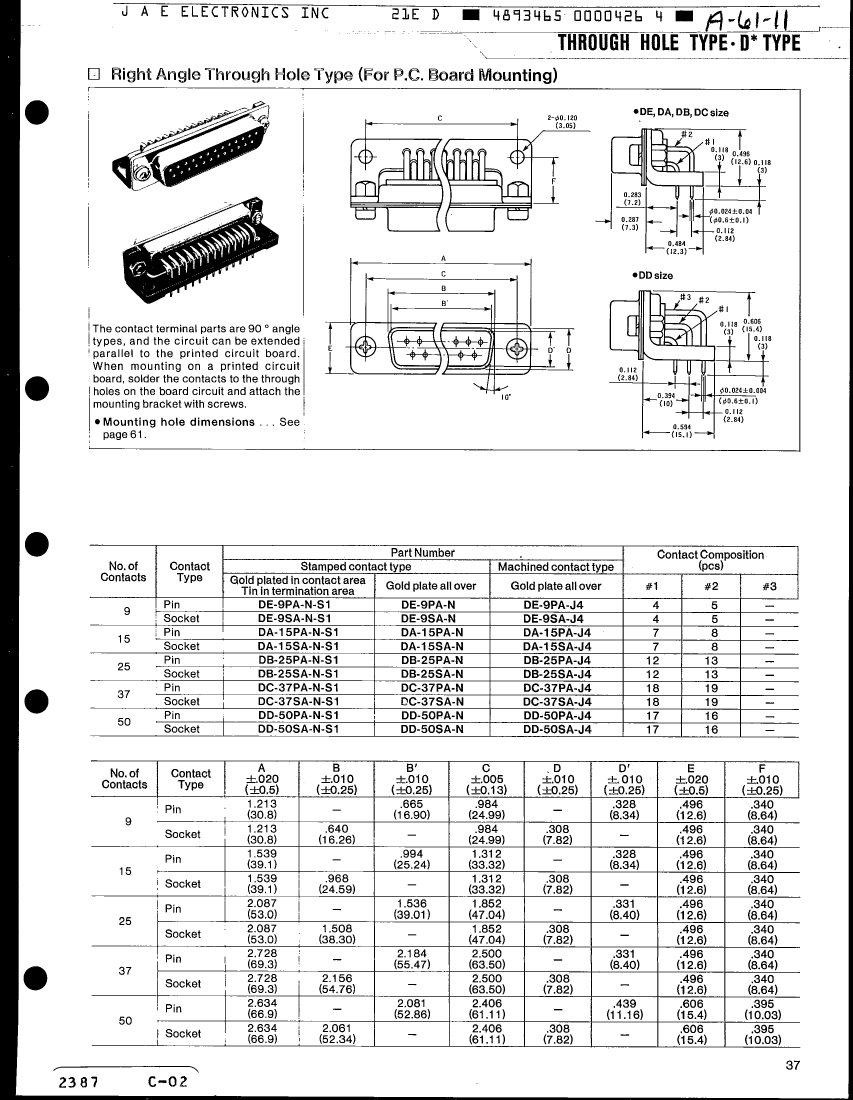

DB-25SA-N-S1

Description
D Type Connector, 25 Contact(s), Female, Solder Terminal, Plug
CategoryThe connector    The connector
File Size462KB,5 Pages
ManufacturerJapan Aviation Electronics Industry Limited
Environmental Compliance
Download Datasheet Parametric Compare View All

DB-25SA-N-S1 Overview

D Type Connector, 25 Contact(s), Female, Solder Terminal, Plug

DB-25SA-N-S1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerJapan Aviation Electronics Industry Limited
Reach Compliance Codeunknown
Other featuresSTAMPED CONTACT TYPE
body width0.496 inch
subject depth0.484 inch
body length2.087 inch
Body/casing typePLUG
Contact to complete cooperationAU
Contact completed and terminatedGOLD
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeSTAGGERED
Contact resistance4 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1250VAC V
maximum insertion force3.892 N
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialPOLYESTER
MIL complianceYES
Manufacturer's serial numberDB
Installation option 2SCREWLOCKS
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Rated current (signal)5 A
GuidelineUL
reliabilityMIL-C-24308
Shell surfaceZINC/YELLOW CHROMATE
Shell materialSTEEL
Terminal length0.118 inch
Terminal pitch2.8448 mm
Termination typeSOLDER
Total number of contacts25
Evacuation force-minimum value2.363 N
Base Number Matches1

DB-25SA-N-S1 Related Products

DB-25SA-N-S1 DB-25SA-N
Description D Type Connector, 25 Contact(s), Female, Solder Terminal, Plug D Type Connector, 25 Contact(s), Female, Solder Terminal, Plug
Is it Rohs certified? conform to conform to
Maker Japan Aviation Electronics Industry Limited Japan Aviation Electronics Industry Limited
Reach Compliance Code unknown unknown
Other features STAMPED CONTACT TYPE STAMPED CONTACT TYPE
body width 0.496 inch 0.496 inch
subject depth 0.484 inch 0.484 inch
body length 2.087 inch 2.087 inch
Body/casing type PLUG PLUG
Contact to complete cooperation AU AU
Contact completed and terminated GOLD GOLD
Contact point gender FEMALE FEMALE
Contact material COPPER ALLOY COPPER ALLOY
contact mode STAGGERED STAGGERED
Contact resistance 4 mΩ 4 mΩ
Contact style RND PIN-SKT RND PIN-SKT
Dielectric withstand voltage 1250VAC V 1250VAC V
maximum insertion force 3.892 N 3.892 N
Insulation resistance 5000000000 Ω 5000000000 Ω
Insulator color BLACK BLACK
insulator material POLYESTER POLYESTER
MIL compliance YES YES
Manufacturer's serial number DB DB
Installation option 2 SCREWLOCKS SCREWLOCKS
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
PCB row number 2 2
Number of rows loaded 2 2
Maximum operating temperature 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C
Rated current (signal) 5 A 5 A
Guideline UL UL
reliability MIL-C-24308 MIL-C-24308
Shell surface ZINC/YELLOW CHROMATE ZINC/YELLOW CHROMATE
Shell material STEEL STEEL
Terminal length 0.118 inch 0.118 inch
Terminal pitch 2.8448 mm 2.8448 mm
Termination type SOLDER SOLDER
Total number of contacts 25 25
Evacuation force-minimum value 2.363 N 2.363 N
Base Number Matches 1 1
