82
A

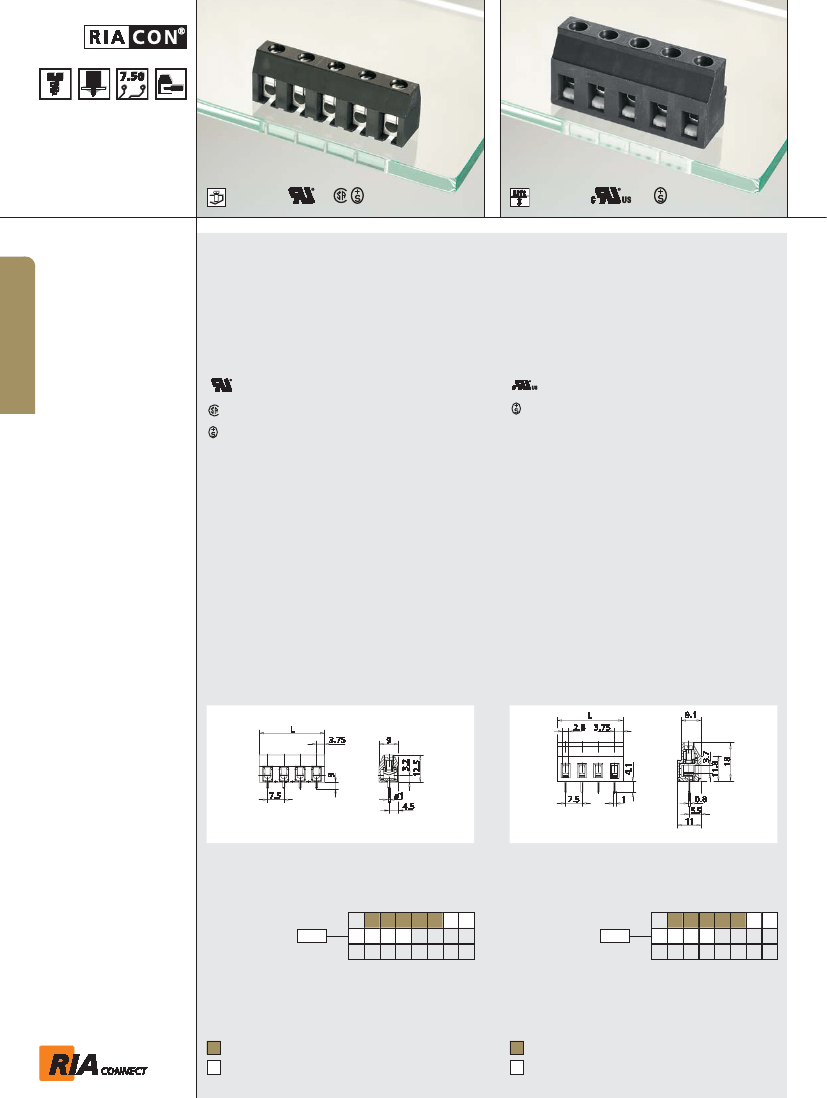

Type 171
Screw type terminal block, solderable, centerline
7.5 mm / 0.295 inches, horizontal wire entry, wire
protector
Type 175
Screw type terminal block, solderable, centerline
7.5 mm / 0.295 inches, horizontal wire entry, wire
protector
Technical Data
V / A / AWG
V / A / AWG
300 / 15 / 26 - 14
300 / 15 / 26 - 14
Technical Data
V / A / AWG
300 / 20 / 22 - 12
0.33 - 2.5 mm² 500 V / 4 kV / 16 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 6.5 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
500
1250 1250
Rated test voltage
4
8
6
Protection category according
to IEC 529
IP20
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
8 mm
Solder pin dimension
0.8 x 1.0 mm
Recommended pc board hole
dia.
Ø 1.4 mm
Solder pin length
4.1 mm
Pole size
2 - 12
Color
black
0.12 - 2.5 mm² 500 V / 6 kV / 16 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 5.8 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
400
1000 1000
Rated test voltage
4
8
6
Protection category according
to IEC 529
IP20
Tightening torque UL
4.4 lb-in max.
Min. insul. strip length
8 mm
Solder pin dimension
1 mm
Recommended pc board hole
dia.
Ø 1.3 mm
Solder pin length
3 mm
Pole size
2 - 12
Color
black
Dimensions in mm
1 mm = 0.0394 in.
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 7.5 mm / 0.295 inches
L = (pole size - 1) x centerline + 7.5 mm / 0.295 inches
Part numbers (P/N)
Type 171
centerline 7.5 mm / 0.295 inches
(information: page 56)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 175
(information: page 56)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12
centerline 7.5 mm / 0.295 inches
02 03 04 05 06 07 08
09 10 11 12
P/N
311711
P/N
311751
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
