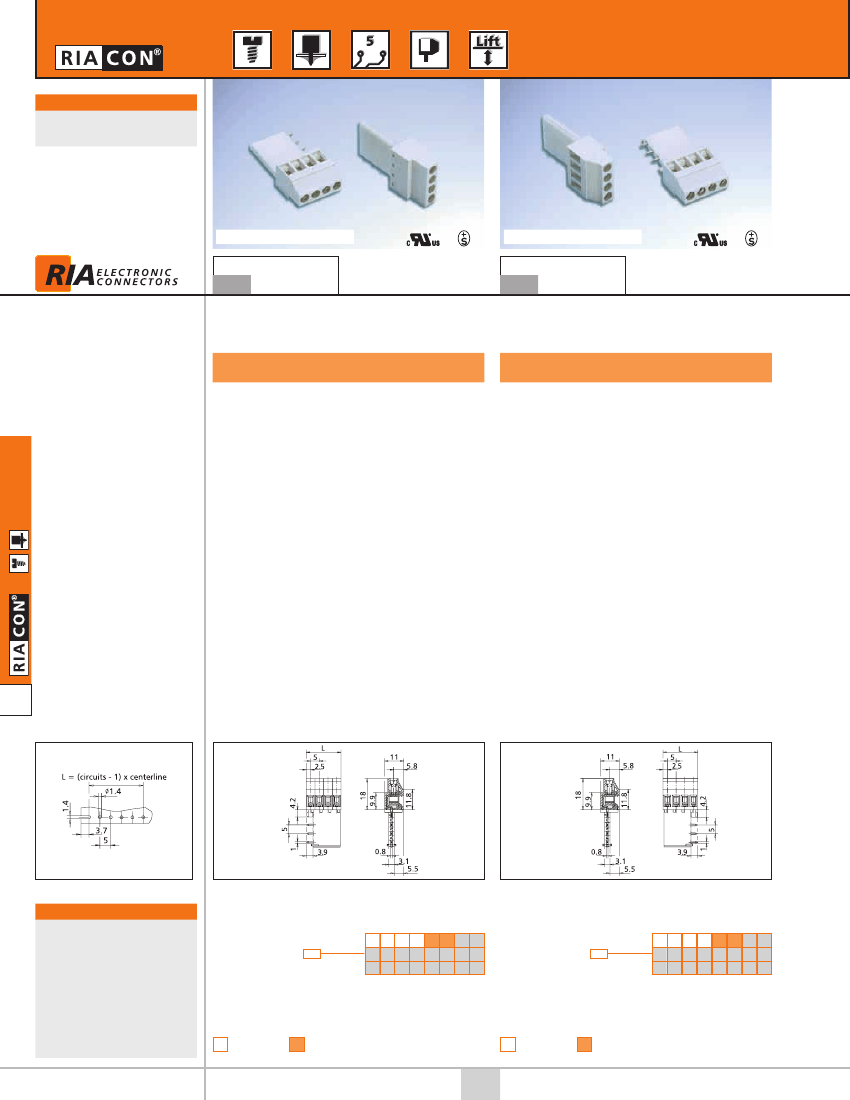

mm to inch
1 inch = 25.4 mm
1 mm = .040 inches
Designed to IEC 60664-1
Designed to IEC 60664-1
Type
371
with lift system
pins show rightangled
to the left
Type
372
with lift system
pins show rightangled
to the right
Electrical Data
Voltage
Current
Wire Range
Screw torque
Square pin
PCB hole diameter
Wire strip length
300 V
20 A
12 - 22 AWG
## (see note)
6 lb. - in
1 mm x .8 mm
1.4 mm
8 mm
Electrical Data
Voltage
Current
Wire Range
Screw torque
Square pin
PCB hole diameter
Wire strip length
300 V
20 A
12 - 22 AWG
## (see note)
6 lb. - in
1 mm x .8 mm
1.4 mm
8 mm
Mechanical Data
Housing
UL 94V-0
-40 °F to 189 °F
(-40 °C to 105 °C)
gray
brass, nickel over
copper plating
tin bronze, tin plated
M3, steel
nickel over copper plating
optional: stainless steel
- consult factory
2 to 6
Mechanical Data
Housing
UL 94V-0
-40 °F to 189 °F
(-40 °C to 105 °C)
gray
brass, nickel over
copper plating
tin bronze, tin plated
M3, steel
nickel over copper plating
optional: stainless steel
- consult factory
2 to 6
Color
Terminal
Lift system
Screw
Color
Terminal
Lift system
Screw
Pole sizes
Pole sizes
Additional material data - pages DA-3 to DA-5
Additional material data - pages DA-3 to DA-5
D
Drill pattern
Dimensions (mm)
Dimensions (mm)
L = (circuits - 1) x centerline + 5
L = (circuits - 1) x centerline + 5
Note for wire range
Additional wire sizes and/or
combinations of same size
wires as follows:
Part Numbers
Type 371
Complete the part number
by adding the pole size.
centerline 5 mm
Part Numbers
02 03 04 05 06
Type 372
Complete the part number
by adding the pole size.
centerline 5 mm
02 03 04 05 06
Part No.
313711
Part No.
313721
Type 371 and 372
##
2 No. 22-16 AWG
(Field-wiring);
2 No. 30-16 AWG or
1 No. 30-12 AWG
(Factory-wiring)
01 standard
08 Available on demand. Minimum order
quantity 3000 poles per item.
01 standard
08 Available on demand. Minimum order
quantity 3000 poles per item.
Subject to technical changes and printing errors.
RIA electronic, Inc.
430 Industrial Way West, Eatontown, NJ 07724
phone 1-888-722-5625
•
fax 732-389-9066
•
www.riaelectronic.com
DA-24
