BYW36 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYW36

BYW36: DescriptionRectifier Diode, Avalanche, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon, GLASS PACKAGE-2; CategoryDiscrete semiconductor diode; File Size142KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/

Download Datasheet Parametric View All

BYW36 Overview

Rectifier Diode, Avalanche, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon, GLASS PACKAGE-2

BYW36 Parametric

Parameter Name	Attribute value
Maker	Gulf Semiconductor
package instruction	E-LALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW LEAKAGE CURRENT
application	FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JESD-30 code	E-LALF-W2
Maximum non-repetitive peak forward current	40 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	2 A
Package body material	GLASS
Package shape	ELLIPTICAL
Package form	LONG FORM
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.2 µs
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

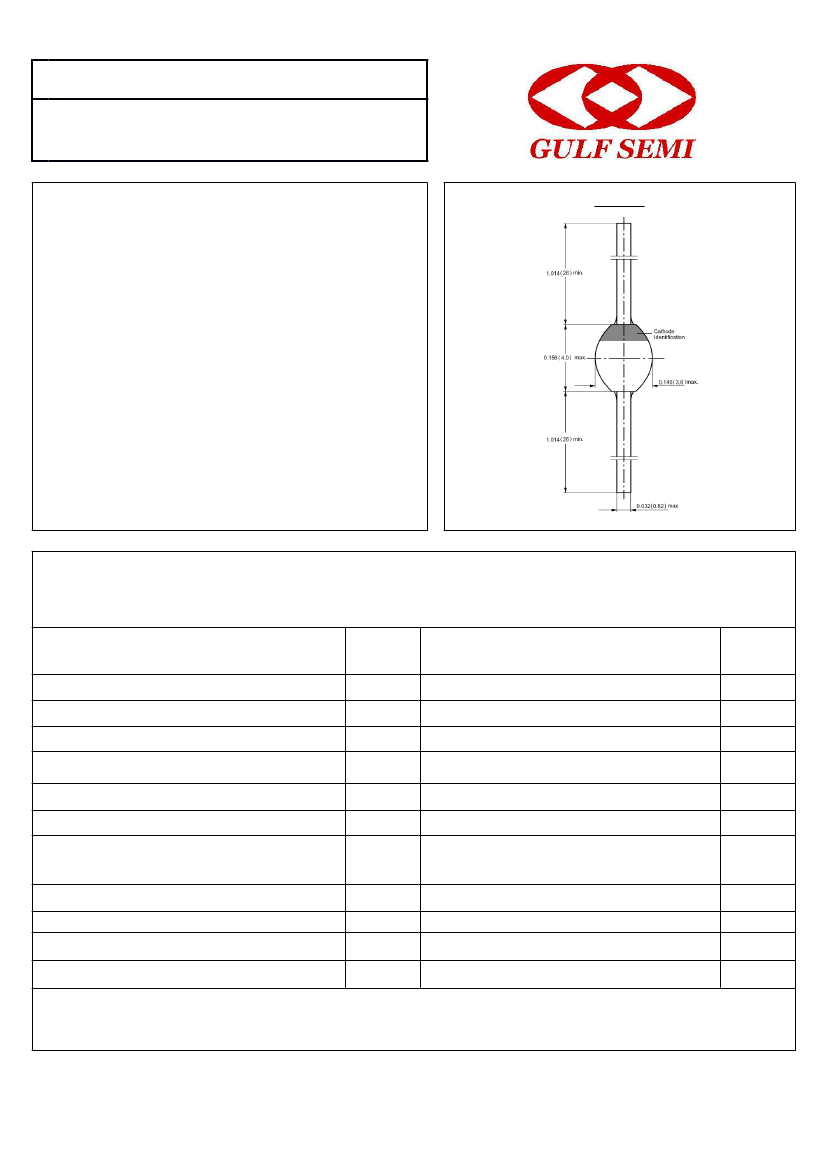

BYW36

SINTERED GLASS JUNCTION

FAST AVALANCHE RECTIFIER

VOLTAGE：600V

：

CURRENT: 2.0A

FEATURE

Glass passivated

High maximum operating temperature

Low leakage current

Excellent stability

Guaranteed avalanche energy absorption capability

SOD-57

MECHANICAL DATA

Case: SOD-57 sintered glass case

Terminal: Plated axial leads solderable per

MIL-STD 202E, method 208C

Polarity: color band denotes cathode end

Mounting position: any

Dimensions in inches and (millimeters)

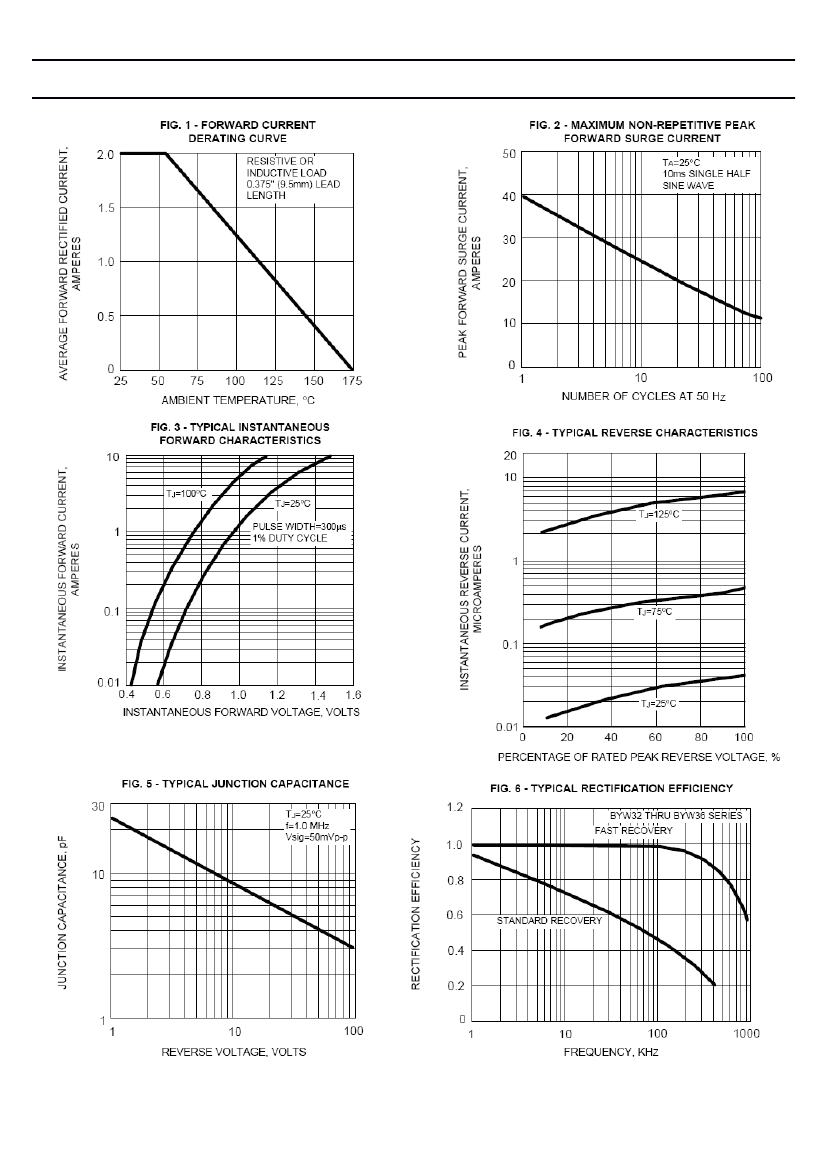

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated)

SYMBOL

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified

Current 3/8”lead length at Ta=55

°C

Peak Forward Surge Current at Tp=10ms half

sinewave

Maximum Forward Voltage at Forward Current 2A

Maximum full load Reverse Current

Full cycle average,0.375″(9.5mm)

lead length

Maximum Reverse Recovery Time

Tyoical Junction Capacitance

Typical Thermal Resistance

Storage and Operating Junction Temperature

Note:

Ta =25

°C

Ta =100

°C

(Note1)

(Note2)

(Note3)

BYW36

600

420

600

2.0

1.2

5.0

50.0

200

-65 to +175

units

µA

°C

RRM

RMS

FAV

FSM

Trr

th(ja)

Tstg, Tj

1. Reverse Recovery Condition If

=0.5A,

Ir =1.0A, Irr =0.25A

2. Measured at 1.0MHz and applied reverse voltage of 4.0 Volts

3. Thermal resistance from junction to ambient at 0.375″(9.5mm) lead length, P.C.B. mounred

Rev.A1

www.gulfsemi.com
