Part Number

Search

SN74LS373JD

Description
Bus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, CDIP20, CERAMIC, DIP-20
Categorylogic    logic
File Size249KB,6 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

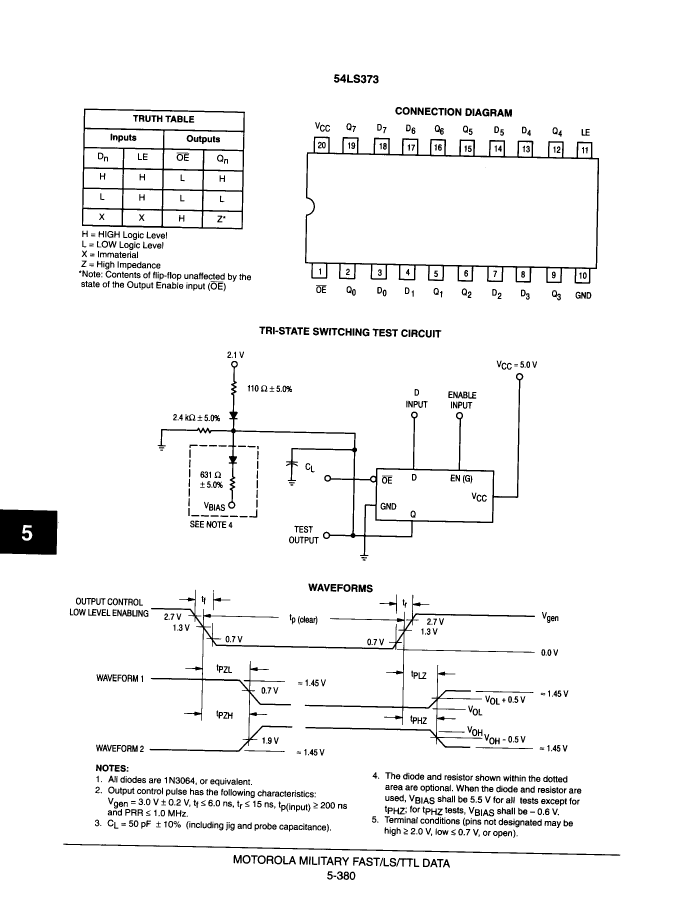

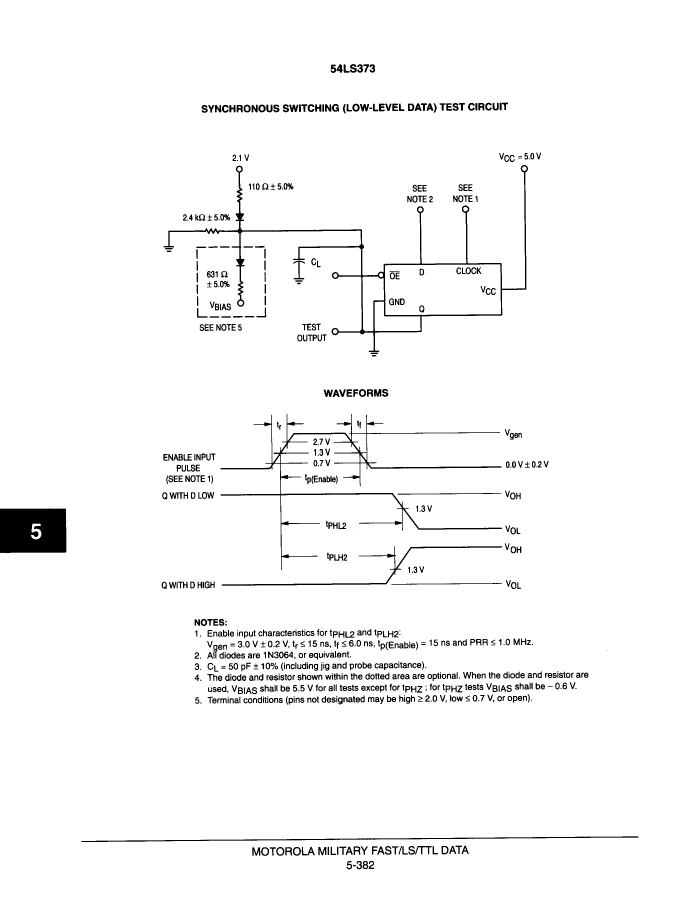

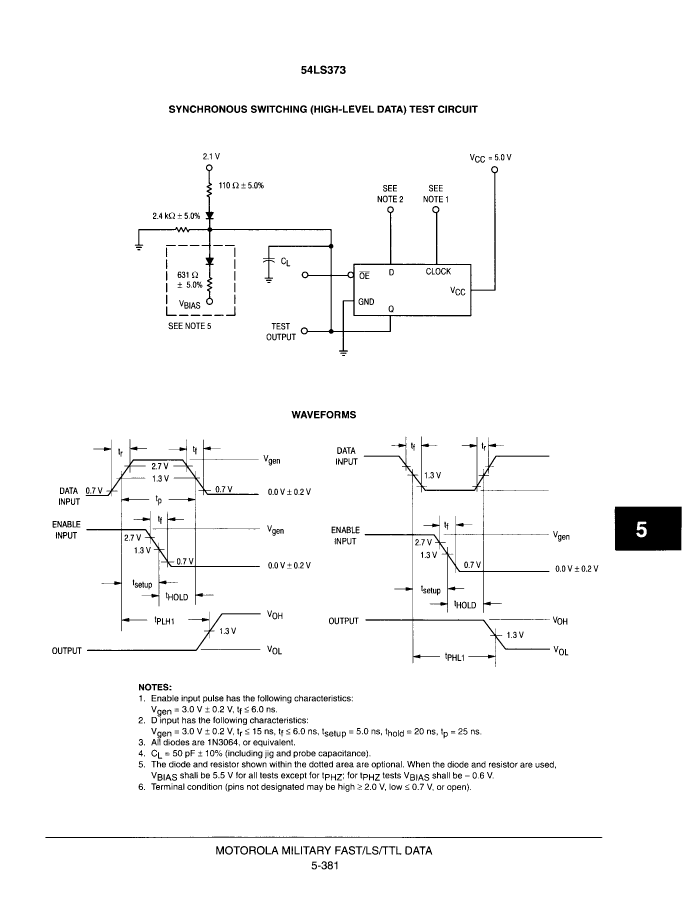

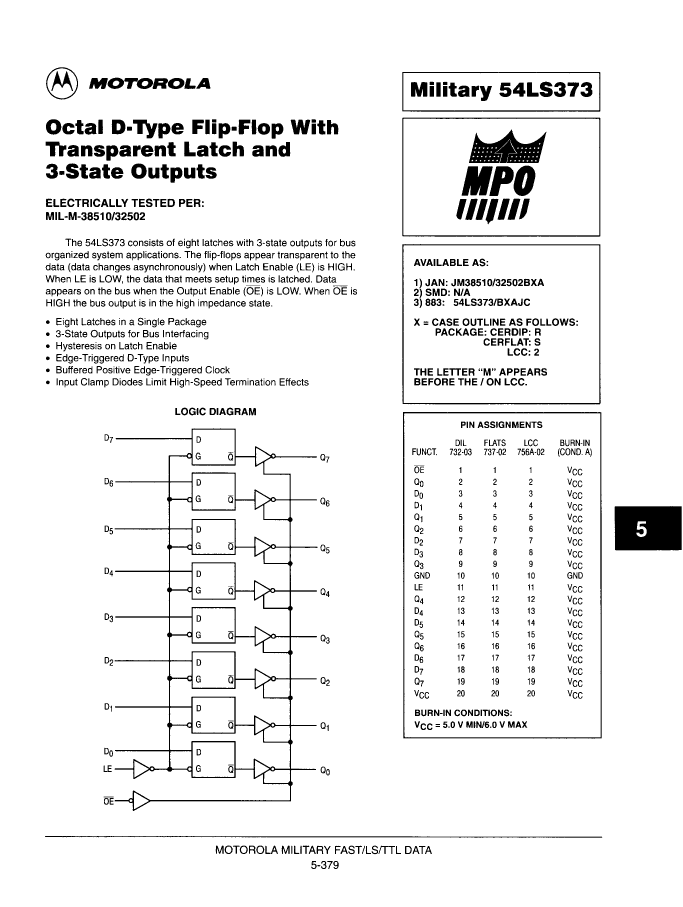

SN74LS373JD Overview

Bus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, CDIP20, CERAMIC, DIP-20

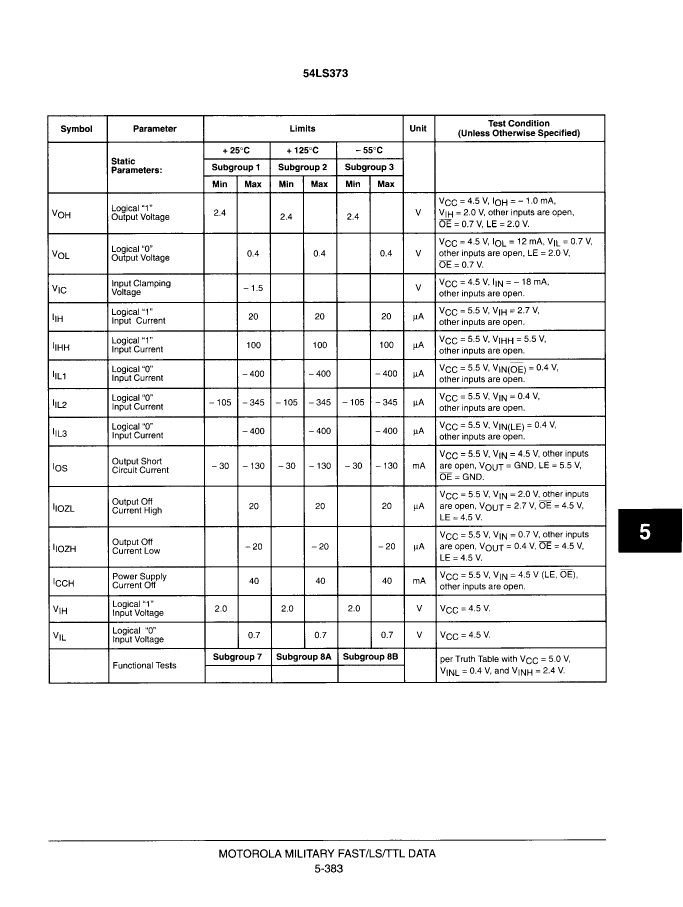

SN74LS373JD Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMotorola ( NXP )
Parts packaging codeDIP
package instructionDIP, DIP20,.3
Contacts20
Reach Compliance Codeunknown
seriesLS
JESD-30 codeR-CDIP-T20
JESD-609 codee0
length24.515 mm
Logic integrated circuit typeBUS DRIVER
Number of digits8
Number of functions1
Number of ports2
Number of terminals20
Maximum operating temperature70 °C
Minimum operating temperature
Output characteristics3-STATE
Output polarityTRUE
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDIP
Encapsulate equivalent codeDIP20,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
propagation delay (tpd)30 ns
Certification statusNot Qualified
Maximum seat height5.08 mm
Maximum supply voltage (Vsup)5.25 V
Minimum supply voltage (Vsup)4.75 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width7.62 mm
Base Number Matches1
