MC74AC132
MC74ACT132
Quad 2 Input NAND
Schmitt Trigger
The MC74AC/74ACT132 contains four 2-input NAND gates which are capable
of transforming slowly changing input signals into sharply defined, jitter-free output
signals. In addition, they have greater noise margin than conventional NAND gates.
Each circuit contains a 2-input Schmitt trigger. The Schmitt trigger uses positive
feedback to effectively speed-up slow input transitions, and provide different input
threshold voltages for positive and negative-going transitions. This hysteresis
between the positive-going and negative-going input threshold is determined by
resistor ratios and is essentially insensitive to temperature and supply voltage
variations.
•
Schmitt Trigger Inputs
•
Outputs Source/Sink 24 mA
• ′ACT132
Has TTL Compatible Inputs
PIN CONFIGURATION
VCC
14
13
12
11
10
9
8
D SUFFIX
CASE 751A-03
PLASTIC
N SUFFIX
CASE 646-06
PLASTIC
QUAD 2-INPUT
NAND
SCHMITT TRIGGER
1
2
3
4
5
6
7
GND
J Suffix — Case 632-08 (Ceramic)
N Suffix — Case 646-06 (Plastic)
D Suffix — Case 751A-03 (SOIC)
FUNCTION TABLE
Inputs
A
L
L
H
H
B
L
H
L
H
Output
Y
H
H
H
L
L = LOW Voltage Level
H = HIGH Voltage Level
FACT DATA
5-1
MC74AC132 MC74ACT132
RECOMMENDED OPERATING CONDITIONS
Symbol
VCC
Vin, Vout
Supply Voltage
DC Input Voltage, Output Voltage (Ref. to GND)
VCC @ 3.0 V
tr, tf
Input Rise and Fall Time (Note 1)
′AC
Devices except Schmitt Inputs
VCC @ 4.5 V
VCC @ 5.5 V
tr, tf
TJ
TA
IOH
IOL
Input Rise and Fall Time (Note 2)
′ACT
Devices except Schmitt Inputs
Junction Temperature (PDIP)
Operating Ambient Temperature Range
Output Current — High
Output Current — Low
–40
25
VCC @ 4.5 V
VCC @ 5.5 V
Parameter
′AC
′ACT
Min
2.0
4.5
0
150
40
25
10
ns/V
8.0
140
85
–24
24
°C
°C
mA
mA
ns/V
Typ
5.0
5.0
Max
6.0
5.5
VCC
V
Unit
V
1. Vin from 30% to 70% VCC; see individual Data Sheets for devices that differ from the typical input rise and fall times.
2. Vin from 0.8 V to 2.0 V; see individual Data Sheets for devices that differ from the typical input rise and fall times.
DC CHARACTERISTICS
74AC
Symbol
Parameter
VCC
(V)
TA = +25°C
Typ
VOH
Minimum High Level
Output Voltage
3.0
4.5
5.5
3.0
4.5
5.5
VOL
Maximum Low Level
Output Voltage
3.0
4.5
5.5
3.0
4.5
5.5
IIN
IOLD
IOHD
ICC
Maximum Input
Leakage Current
†Minimum Dynamic
Output Current
Maximum Quiescent
Supply Current
5.5
5.5
5.5
5.5
4.0
0.002
0.001
0.001
2.99
4.49
5.49
74AC
TA =
–40°C to +85°C
Unit
Conditions
Guaranteed Limits
2.9
4.4
5.4
2.56
3.86
4.86
0.1
0.1
0.1
0.36
0.36
0.36
±0.1
2.9
4.4
5.4
2.46
3.76
4.76
0.1
0.1
0.1
0.44
0.44
0.44
±1.0
75
–75
40
IOUT = –50
µA
V
*VIN = VIL or VIH
–12 mA
IOH
–24 mA
–24 mA
IOUT = 50
µA
V
*VIN = VIL or VIH
12 mA
IOL
24 mA
24 mA
VI = VCC, GND
VOLD = 1.65 V Max
VOHD = 3.85 V Min
VIN = VCC or GND
V
V
µA
mA
mA
µA
* All outputs loaded; thresholds on input associated with output under test.
† Maximum test duration 2.0 ms, one output loaded at a time.
Note: IIN and ICC @ 3.0 V are guaranteed to be less than or equal to the respective limit @ 5.5 V VCC.
FACT DATA
5-2
MC74AC132 MC74ACT132

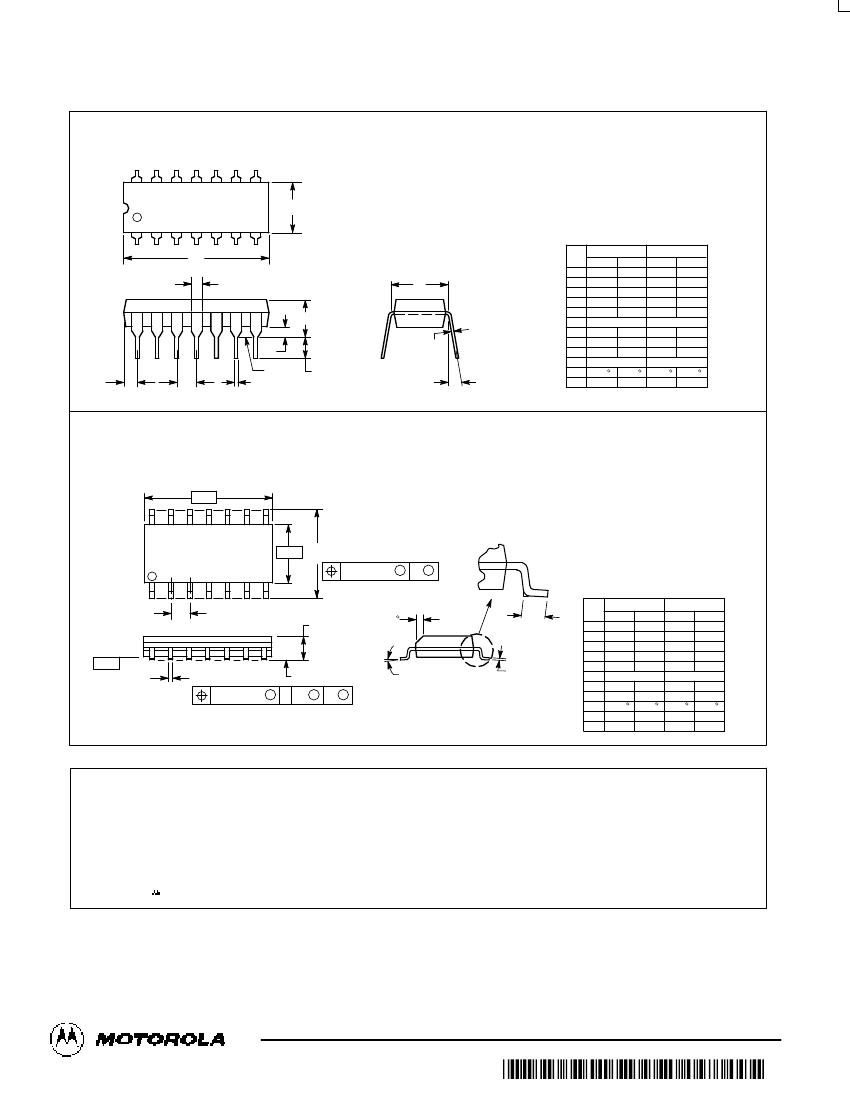

OUTLINE DIMENSIONS
N SUFFIX
PLASTIC DIP PACKAGE
CASE 646–06
ISSUE L
14
8
B
1
7
NOTES:
1. LEADS WITHIN 0.13 (0.005) RADIUS OF TRUE
POSITION AT SEATING PLANE AT MAXIMUM
MATERIAL CONDITION.
2. DIMENSION L TO CENTER OF LEADS WHEN
FORMED PARALLEL.
3. DIMENSION B DOES NOT INCLUDE MOLD
FLASH.
4. ROUNDED CORNERS OPTIONAL.
DIM
A
B
C
D
F
G
H
J
K
L
M
N
INCHES
MIN
MAX
0.715
0.770
0.240
0.260
0.145
0.185
0.015
0.021
0.040
0.070
0.100 BSC
0.052
0.095
0.008
0.015
0.115
0.135
0.300 BSC
0
_
10
_
0.015
0.039
MILLIMETERS
MIN
MAX
18.16
19.56
6.10
6.60
3.69
4.69
0.38
0.53
1.02
1.78
2.54 BSC
1.32
2.41
0.20
0.38
2.92
3.43
7.62 BSC
0
_
10
_
0.39
1.01
A
F
C
N
H
G
D
SEATING
PLANE
L
J
K
M
D SUFFIX
PLASTIC SOIC PACKAGE
CASE 751A–03
ISSUE F
–A–
14
8
–B–
1
7
P
7 PL
0.25 (0.010)
M
B
M
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ANSI Y14.5M, 1982.
2. CONTROLLING DIMENSION: MILLIMETER.
3. DIMENSIONS A AND B DO NOT INCLUDE
MOLD PROTRUSION.
4. MAXIMUM MOLD PROTRUSION 0.15 (0.006)
PER SIDE.
5. DIMENSION D DOES NOT INCLUDE DAMBAR
PROTRUSION. ALLOWABLE DAMBAR
PROTRUSION SHALL BE 0.127 (0.005) TOTAL
IN EXCESS OF THE D DIMENSION AT
MAXIMUM MATERIAL CONDITION.
G
C
R
X 45
_
F
–T–
SEATING
PLANE
D
14 PL
0.25 (0.010)
M
K
T B
S
M
A
S
J
DIM
A
B
C
D
F
G
J
K
M
P
R
MILLIMETERS
MIN
MAX
8.55
8.75
3.80
4.00
1.35
1.75
0.35
0.49
0.40
1.25
1.27 BSC
0.19
0.25
0.10
0.25
0
_
7
_
5.80
6.20
0.25
0.50
INCHES
MIN
MAX
0.337
0.344
0.150
0.157
0.054
0.068
0.014
0.019
0.016
0.049
0.050 BSC
0.008
0.009
0.004
0.009
0
_
7
_
0.228
0.244
0.010
0.019
Motorola reserves the right to make changes without further notice to any products herein. Motorola makes no warranty, representation or guarantee regarding
the suitability of its products for any particular purpose, nor does Motorola assume any liability arising out of the application or use of any product or circuit, and
specifically disclaims any and all liability, including without limitation consequential or incidental damages. “Typical” parameters can and do vary in different
applications. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. Motorola does
not convey any license under its patent rights nor the rights of others. Motorola products are not designed, intended, or authorized for use as components in
systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of
the Motorola product could create a situation where personal injury or death may occur. Should Buyer purchase or use Motorola products for any such
unintended or unauthorized application, Buyer shall indemnify and hold Motorola and its officers, employees, subsidiaries, affiliates, and distributors harmless
against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death
associated with such unintended or unauthorized use, even if such claim alleges that Motorola was negligent regarding the design or manufacture of the part.
Motorola and
are registered trademarks of Motorola, Inc. Motorola, Inc. is an Equal Opportunity/Affirmative Action Employer.
How to reach us:
USA/EUROPE:
Motorola Literature Distribution;
P.O. Box 20912; Phoenix, Arizona 85036. 1–800–441–2447
MFAX:
RMFAX0@email.sps.mot.com –TOUCHTONE (602) 244–6609
INTERNET:
http://Design–NET.com
JAPAN:
Nippon Motorola Ltd.; Tatsumi–SPD–JLDC, Toshikatsu Otsuki,
6F Seibu–Butsuryu–Center, 3–14–2 Tatsumi Koto–Ku, Tokyo 135, Japan. 03–3521–8315
HONG KONG:
Motorola Semiconductors H.K. Ltd.; 8B Tai Ping Industrial Park,
51 Ting Kok Road, Tai Po, N.T., Hong Kong. 852–26629298
◊
FACT DATA
5-5
