NOTES:
1. MATERIALS AND FINISHES:
BODY - ZINC DIE CAST, NICKEL PLATING
CONTACT - PHOSPHOR BRONZE, GOLD PLATING (.000003 THICK)
@ CONTACT AREA ONLY, TIN PLATING AT TAIL, NICKEL PLATED OVERALL
INSULATOR - POLYPROPYLENE
HOUSING - PBT 15% G.F. , BLACK
ROUND PIN - BRASS, TIN PLATING
GROUNDNG TERMINAL - STEEL, TIN PLATING
2. ELECTRICAL:
A. IMPEDANCE: 50 OHM
B. FREQUENCY RANGE: DC - 1 GHz
C. DIELECTRIC WITHSTANDING VOLTAGE: 1500 VRMS, MIN.
3. MECHANICAL:
A. DURABILITY: 500 CYCLES MIN.
B. TEMPERATURE RANGE: -55 $C TO 85 $C
4. PACKAGING:
A. PACKAGED IN PACKING TRAYS
B. QUANTITY PER TRAY: 40
5. SEPERATELY SUPPLIED MOUNTING HARDWARE TO BE TIGHTENED
TO 10 IN-LBS MIN/ 15 IN-LBS MAX
WHEN ASSMEBLED TO PANEL
BNC PER MIL-STD-348
THIRD ANGLE PROJ.
REV
REVISIONS
A
H
RELEASE TO MFG.
DESCRIPTION
UPDATED FORMAT AND NOMINAL ENVELOPE DIMENSIONS
10/2/12
3/15/90
DATE
49265
37099
ECO
APPR
EW
DR
SCALE
1.000
34.7 #
0.3
1/2"-28UNEF-THREAD
14.5 #
0.3
0.65 REF
1.7 REF
11.7
0.72 REF
15.6 #
0.3
12.83
7.42
PANEL CUTOUT
5.08
10.16
0.9 TYP(2)
2.54
12 #
0.3
3.2 #
3
4.1 #
0.3
8.9 #
0.3
2 TYP(2)
10.16
5.08
RECOMMENDED PCB LAYOUT
UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
<0.5mm
0.5 - 6mm
6 - 30mm
30 - 120mm
ANGLES
# 0.05mm
#
0.1mm
# 0.3mm
#
0.2mm
# $
1
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon requiest; and (3) arre
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the funishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implicatioin or otherwise in any manner licensing,
granting
rights to permitting such holder or any other sperson to manufacture, use or
sell any
product, process or design, patented or otherwsie, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
MATERIAL
SEE NOTE
DRAWN
ERIC WANKOFF
ENGINEER
D ROYCE
DATE
20-Jun-12
DATE
20-Jun-12
DATE
REFERENCE
CONFIGURATION LEVEL:
FINISH
CAD FILE
APPROVED
D ROYCE
TITLE

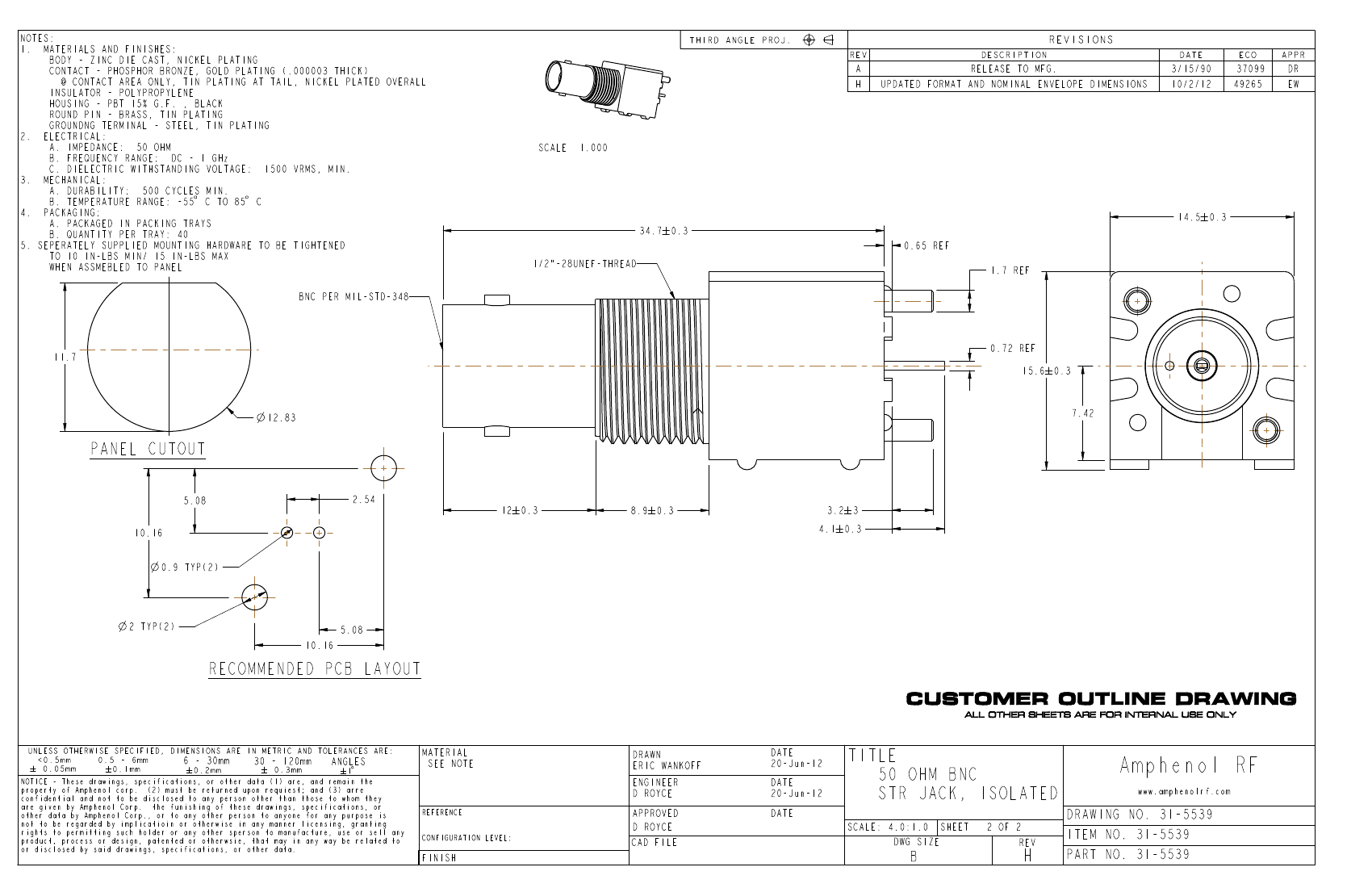

50 OHM BNC
STR JACK, ISOLATED
SCALE: 4.0:1.0
DWG SIZE
SHEET
2 OF 2
Amphenol RF
www.amphenolrf.com
DRAWING NO. 31-5539
ITEM NO. 31-5539
PART NO. 31-5539
B
REV
H
