LESHAN RADIO COMPANY, LTD.
General Purpose Transistors
FEATURE
Pb-Free Package is available.
PNP
LBCX17LT1G
LBCX18LT1G
NPN
LBCX19LT1G
LBCX20LT1G
Voltage and current are negative
for PNP transistors
ORDERING INFORMATION
Device
LBCX17LT1G
LBCX17LT3G
LBCX18LT1G
LBCX18LT3G
LBCX19LT1G
LBCX19LT3G
LBCX20LT1G
LBCX20LT3G
Package
SOT-23
SOT-23
SOT-23
SOT-23
SOT-23
SOT-23
SOT-23
SOT-23
Shipping
3000/Tape&Reel
10000/Tape&Reel
3000/Tape&Reel
1
3
10000/Tape&Reel
3000/Tape&Reel
10000/Tape&Reel
3000/Tape&Reel
10000/Tape&Reel
1
BASE
2
CASE 318–08, STYLE 6
SOT–23 (TO–236AB)
3
COLLECTOR
MAXIMUM RATINGS
Value
Rating
Symbol
LBCX17LT1G
LBCX19LT1G
45
50
5.0
500
LBCX18LT1G
LBCX20LT1G
25
30
5.0
500
Unit
2
EMITTER
Collector–Emitter Voltage
Collector–Base Voltage
Emitter–Base Voltage
Collector Current — Continuous
V
V
V
CEO
CBO
EBO
Vdc
Vdc
Vdc
mAdc
1
BASE
3
COLLECTOR
I
C
DEVICE MARKING
LBCX17LT1G= T1; LBCX18LT1G = T2; LBCX19LT1G = U1; LBCX20LT1G = U2
2
EMITTER
THERMAL CHARACTERISTICS
Characteristic
Total Device Dissipation FR– 5 Board, (1)
T
A
= 25°C
Derate above 25°C
Thermal Resistance, Junction to Ambient
Total Device Dissipation
Alumina Substrate, (2) T
A
= 25°C
Derate above 25°C
Thermal Resistance, Junction to Ambient
Junction and Storage Temperature
1. FR–5 = 1.0 x 0.75 x 0.062 in.
2. Alumina = 0.4 x 0.3 x 0.024 in. 99.5% alumina.
Symbol
P
D
Max
225
1.8
R
θJA
P
D
556
300
2.4
R
θJA
T
J
, T
stg
417
–55 to +150
Unit
mW
mW/°C
°C/W
mW
mW/°C
°C/W
°C
LBCX17/18/19/20LT1-1/3
LESHAN RADIO COMPANY, LTD.
PNP LBCX17LT1G LBCX18LT1G
NPN LBCX19LT1G LBCX20LT1G
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted)
Characteristic
Symbol
Min
Typ
Max
Unit
OFF CHARACTERISTICS
Collector–Emitter Breakdown Voltage
(I
C
= 10 mAdc, I
B
= 0)
BCX17, 19
BCX18, 20
Collector–Emitter Breakdown Voltage
(I
C
= 10
µAdc,
I
C
= 0)
BCX17, 19
BCX18, 20
Collector Cutoff Current
(V
CB
= 20 Vdc, I
E
= 0)
(V
CB
= 20 Vdc, I
E
= 0, T
A
= 150°C )
Emitter Cutoff Current
(V
EB
= 5.0 Vdc, I
C
= 0)
V
(BR)CEO
45
25
V
(BR)CES
50
30
I
CBO
—
—
I
EBO
—
—
—
—
100
5.0
10
nAdc
µAdc
µAdc
—
—
—
—
—
—
—
—
Vdc
Vdc
ON CHARACTERISTICS
DC Current Gain
( I
C
= 100 mAdc, V
CE
= 1.0 Vdc )
( I
C
= 300 mAdc, V
CE
= 1.0 Vdc )
( I
C
= 500 mAdc, V
CE
= 1.0 Vdc )
Collector–Emitter Saturation Voltage
( I
C
= 500mAdc, I
B
= 50mAdc )
Base–Emitter On Voltage
( I
C
= 500 mAdc, V
CE
= 1.0 Vdc )
V
CE(sat)
h
FE
100
70
40
—
—
—
—
—
600
—
—
0.62
Vdc
—
V
BE(on)
—
—
1.2
Vdc
LBCX17/18/19/20LT1-2/3
LESHAN RADIO COMPANY, LTD.
PNP LBCX17LT1G LBCX18LT1G
NPN LBCX19LT1G LBCX20LT1G
SOT-23
NOTES:
A
L
3
1
V
G
2
B S
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
DIM
A
B
C
D
G
H
J
K
L
S
V
INCHES
MIN
MAX
0.1102
0.1197
0.0472
0.0551
0.0350
0.0440
0.0150
0.0200
0.0701
0.0807
0.0005
0.0040
0.0034
0.0070
0.0140
0.0285
0.0350
0.0401
0.0830
0.1039
0.0177
0.0236
MILLIMETERS
MIN
MAX
2.80
3.04
1.20
1.40
0.89
1.11
0.37
0.50
1.78
2.04
0.013
0.100
0.085
0.177
0.35
0.69
0.89
1.02
2.10
2.64
0.45
0.60
C
D
H
K
J
0.037
0.95
0.037
0.95
0.079
2.0
0.035
0.9
0.031
0.8
inches
mm
LBCX17/18/19/20LT1-3/3
LESHAN RADIO COMPANY, LTD.
Tape & Reel and Packaging Specifications for
Small-Signal Transistors, FETs and Diodes
Embossed Tape and Reel is used to facilitate automatic pick and place equipment feed requirements. The tape is used as the
shipping container for various products and requires a minimum of handling. The antistatic/conductive tape provides a secure
cavity for the product when sealed with the “peel–back” cover tape.
• Two Reel Sizes Available (7"and 13",)
• SOT–23, SC–70/SOT–323,
• Used for Automatic Pick and Place Feed Systems
SC–89, SC–88/SOT–363, SC–88A/SOT–353,
• Minimizes Product Handling
SOD–323, SOD-523 in 8 mm Tape
• EIA 481, –1, –2
Use the standard device title and add the required suffix as listed in the option table below (Table 1). Note that the individual
reels have a finite number of devices depending on the type of product contained in the tape. Also note the minimum lot size is
one full reel for each line item, and orders are required to be in increments of the single reel quantity.
SOD-323
8 mm
SC-59, SC-70, SC-75,SOT-23
8 mm
SC-88, SOT-363
T1 Orientation
8 mm
SC-88A, SOT-353
T1 Orientation
8 mm
Direction of Feed
Typical Reel Orientations
Table 1. EMBOSSED TAPE AND REEL ORDERING INFORMATION
Tape Width
(mm)
8
8
8
SC–70/SOT–323
8
8
SC–89
8
SC–88/SOT-363
8
8
8
SC–88A/SOT-353
8
8
8
8
SOD-523
8
330
(13)
10,000 T3
4
4
4
4
330
178
330
178
330
178
330
178
(13)
(7)
(13)
(7)
(13)
(7)
(13)
(7)
10,000 T3
3,000 T1
10,000 T3
3,000 T1
10,000 T3
3,000 T1
10,000 T3
3,000 T1
4
4
4
Pitch
mm
Reel Size
mm(inch)
178
330
178
330
178
Devices Per Reel
and Minimum
Order Quantity
(7)
(13)
(7)
(13)
(7)
Device
Suffix
3,000 T1
10,000 T3
3,000 T1
10,000 T3
3,000 T1
Package
SOT–23
SOD-323
LESHAN RADIO COMPANY, LTD.
EMBOSSED TAPE AND REEL DATA FOR DISCRETES

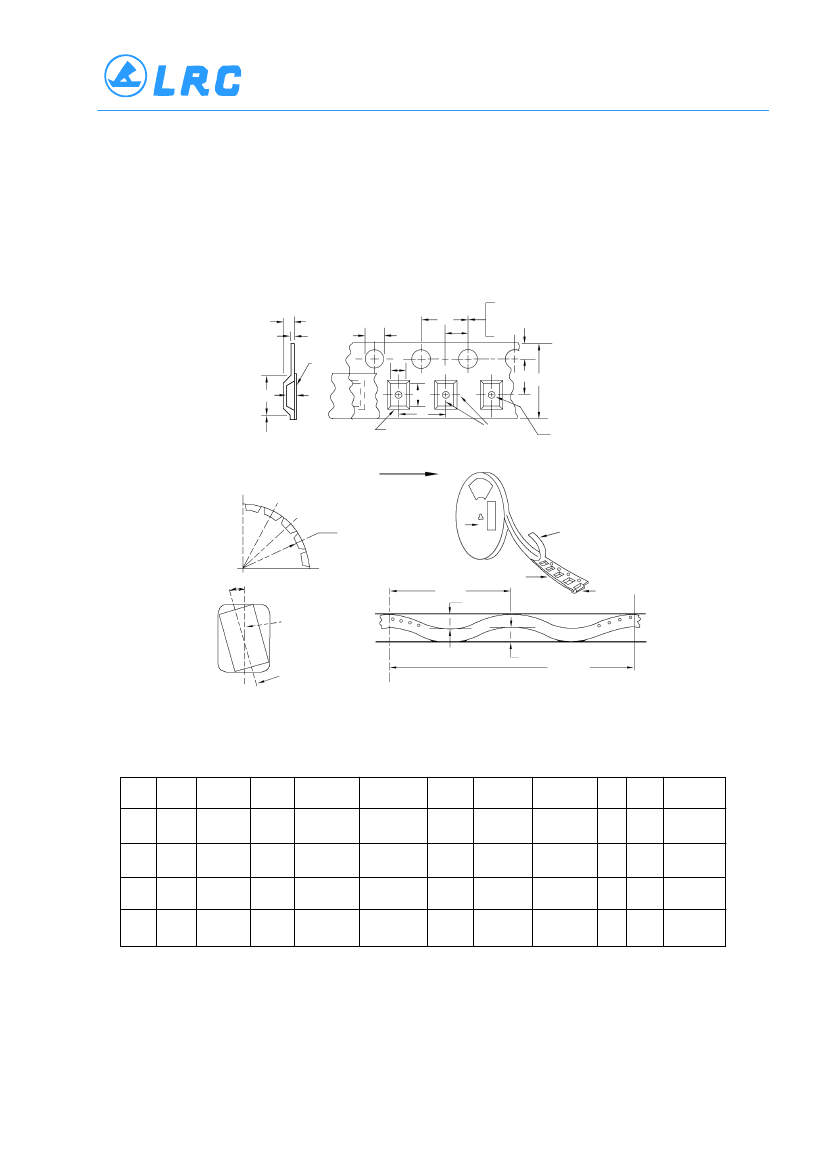

CARRIER TAPE SPECIFICATIONS
K
t
Top Cover
Tape
B
1
K
0
See
Note 1
D
P
0
P
2
10 Pitches Cumulative Tolerance on
Tape ± 0.2mm( ± 0.008’’ )
E
A
0
F
B
0
P
Embossment
Center Lines
of Cavity
D
1
For Components
2.0mm x 1.2mm and Larger
W
For Machine Reference Only
Including Draft and RADII
Concentric Around B
0
User Direction of Feed
10
o
R Min
Bar Code Label
Tape and Components
Shall Pass Around
Radius “R”
Embossed Carrier
Bending Radius
Without Damage
100 mm
(3.937 ’’)
Maximum Component Rotation
1 mm Max
Typical Component
Cavity Center Line
*Top Cover Tape
Thickness(t
1
)
0.10mm
(0.004’’ )Max.
Embossment
Tape
Typical Component
Center Line
1 mm(.039’’ ) Max
250 mm
(9.843’’)
Camber (Top View)
Allowable Camber To Be 1 mm/100 mm Nonaccumulative Over 250 mm
DIMENSIONS
Tape
Size
8mm
B
1
Max
4.55mm
D
1.5+0.1mm
D
1
1.0Min
(.039’’)
E
1.75 ± 0.1mm
(.069±.004)
F
3.5 ± 0.05mm
(.138±.002’’)
5.5 ± 0.05mm
(.217 ± .002’’)
7.5 ± 0.10mm
(.295 ± .004’’)
11.5 ± 0.1mm
(.453 ± .004’’)
K
P
0
P
2
2.0 ± 0.1mm
(.079 ± .002’’)
RMin TMax
25mm 0.6mm
(.98’’) (.024’’)
30mm
(1.18’’)
WMax
8.3mm
(.327’’)
12 ± .30mm
(.470 ± .012’’)
16.3mm
(.642’’)
24.3mm
(.957’’)
- 0.0
(.179’’)
8.2mm (.059+.004’’ 1.5mmMin
12mm
(.060’’)
- 0.0)
(.323’’)
16mm
24mm
12.1mm
(.476’’)
20.1mm
(.791’’)
2.4mm Max 4.0 ± 0.1mm
(.094’’)
(.157 ± .004’’)
6.4mm Max
(.252’’)
7.9mm Max
(.311’’)
11.9mmMax
(.468’’)
Metric dimensions govern - English are in parentheses for reference only.
NOTE 1: A
0
, B
0
, and K
0
are determined by component size. The clearance between the components and the cavity must be within
.05 mm min. to.50 mm max.,
NOTE 2: the component cannot rotate more than 10
o
within the determined cavity.
NOTE 3: If B
1
exceeds 4.2 mm (.165”) for 8 mm embossed tape, the tape may not feed through all tape feeders.
