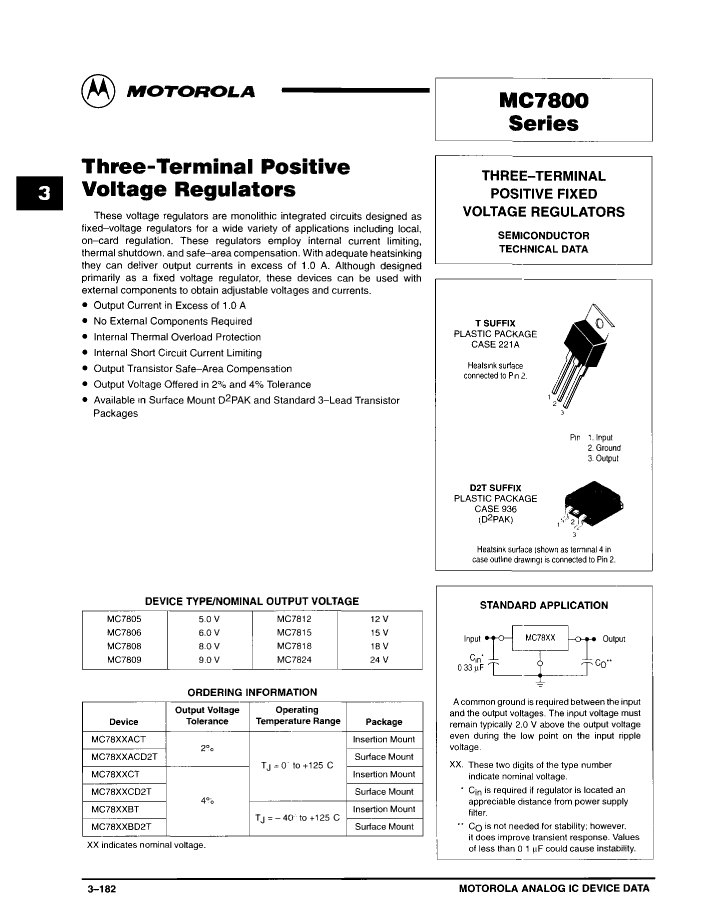

MC7805BD2TR4

Description
5V FIXED POSITIVE REGULATOR, PSSO2, PLASTIC, D2PAK-3
CategoryPower/power management    The power supply circuit
File Size500KB,15 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

MC7805BD2TR4 Online Shopping

Suppliers Part Number Price MOQ In stock
MC7805BD2TR4 - - View Buy Now

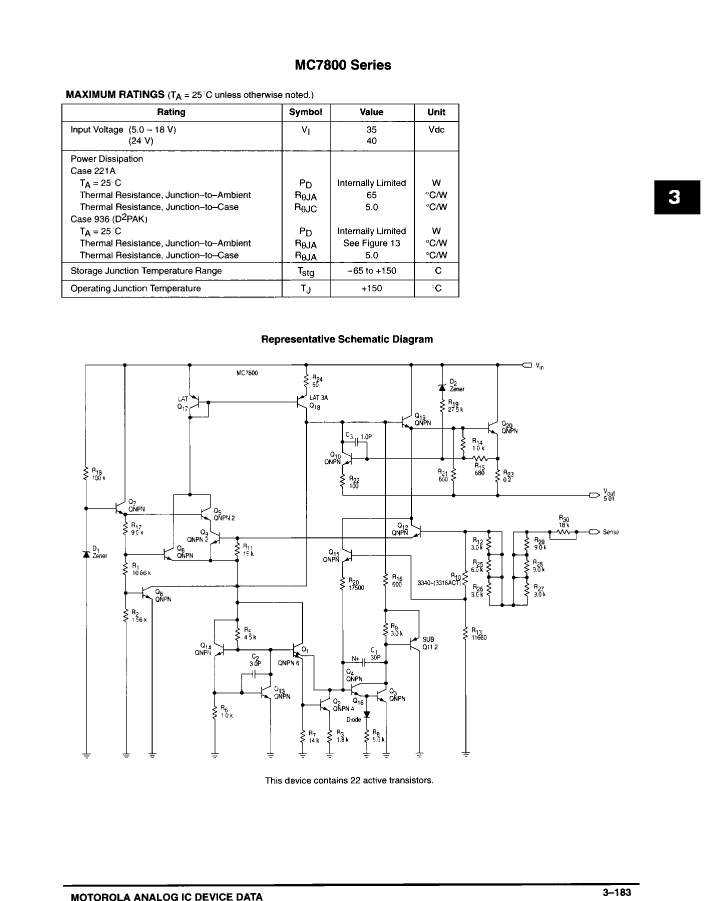

MC7805BD2TR4 Overview

5V FIXED POSITIVE REGULATOR, PSSO2, PLASTIC, D2PAK-3

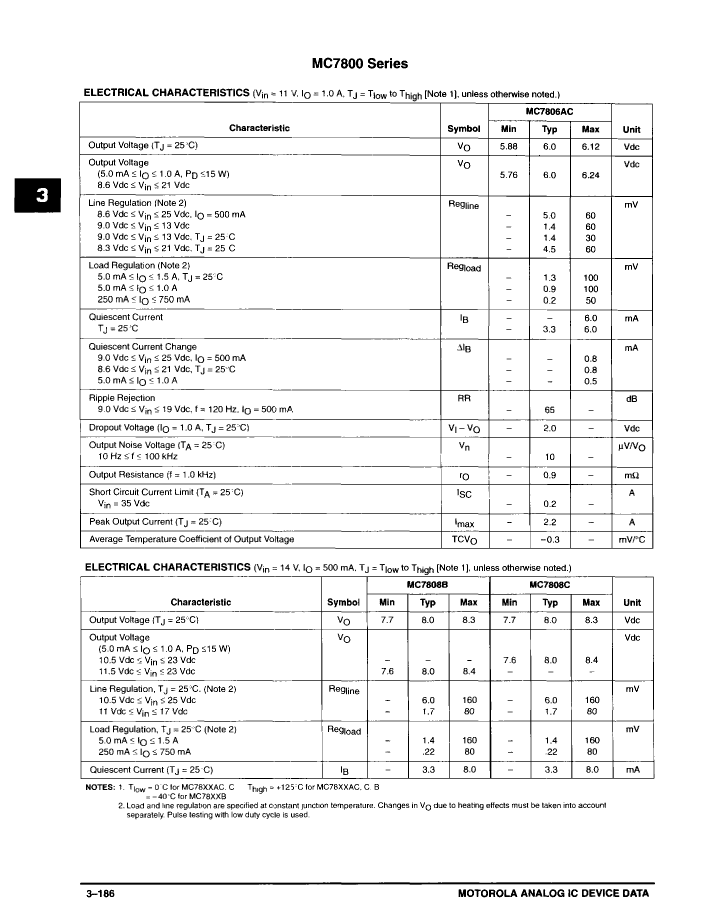

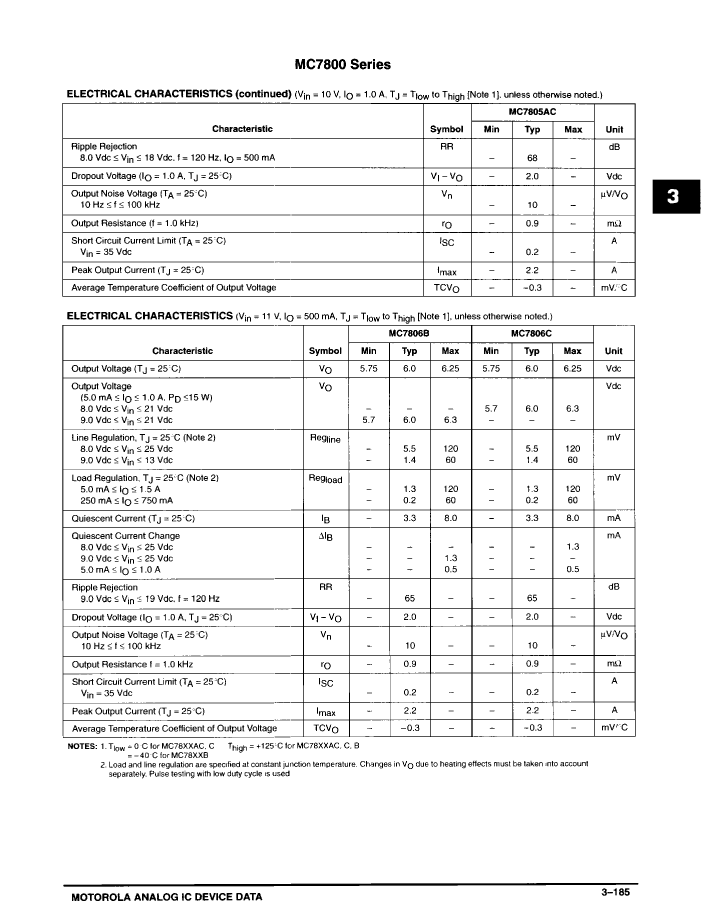

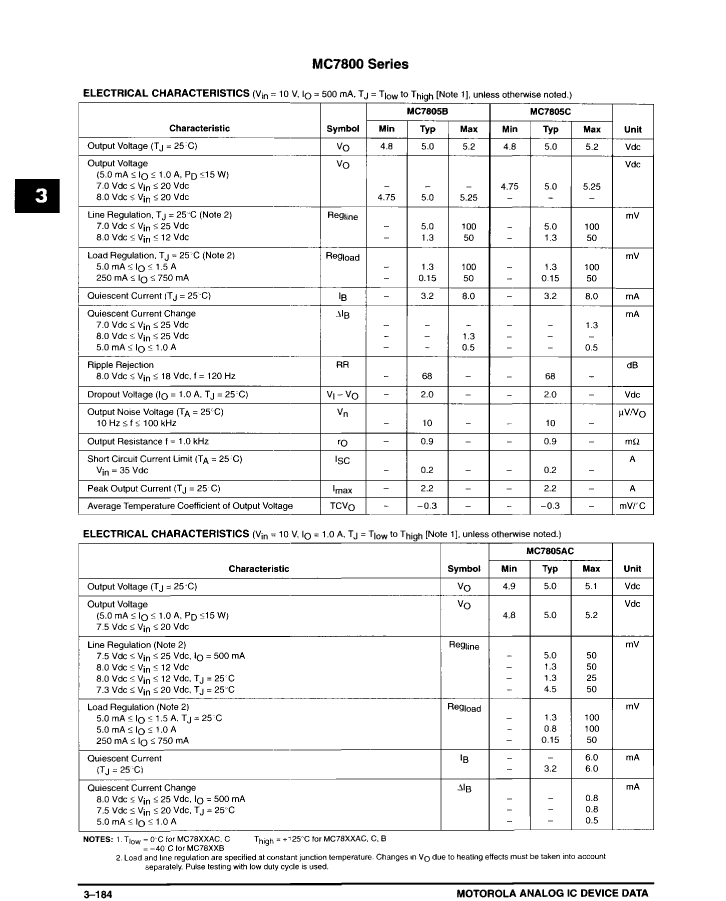

MC7805BD2TR4 Parametric

Parameter NameAttribute value
MakerMotorola ( NXP )
Parts packaging codeD2PAK
package instructionTO-263,
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
Maximum input voltage25 V
Minimum input voltage7 V
JESD-30 codeR-PSSO-G2
length10.02 mm
Number of functions1
Number of terminals2
Working temperatureTJ-Max125 °C
Working temperature TJ-Min-40 °C
Maximum output current 11 A
Maximum output voltage 15.25 V
Minimum output voltage 14.75 V
Nominal output voltage 15 V
Package body materialPLASTIC/EPOXY
encapsulated codeTO-263
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Certification statusNot Qualified
Regulator typeFIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height4.572 mm
surface mountYES
technologyBIPOLAR
Terminal formGULL WING
Terminal pitch2.54 mm
Terminal locationSINGLE
width9.1945 mm
Base Number Matches1
