54550268 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 54550268

Preview

54550268: DescriptionCombination Line Connector, 2 Contact(s), Female, Crimp Terminal,; CategoryThe connector The connector; File Size105KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

54550268 Overview

Combination Line Connector, 2 Contact(s), Female, Crimp Terminal,

54550268 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYAMIDE
Termination type	CRIMP
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

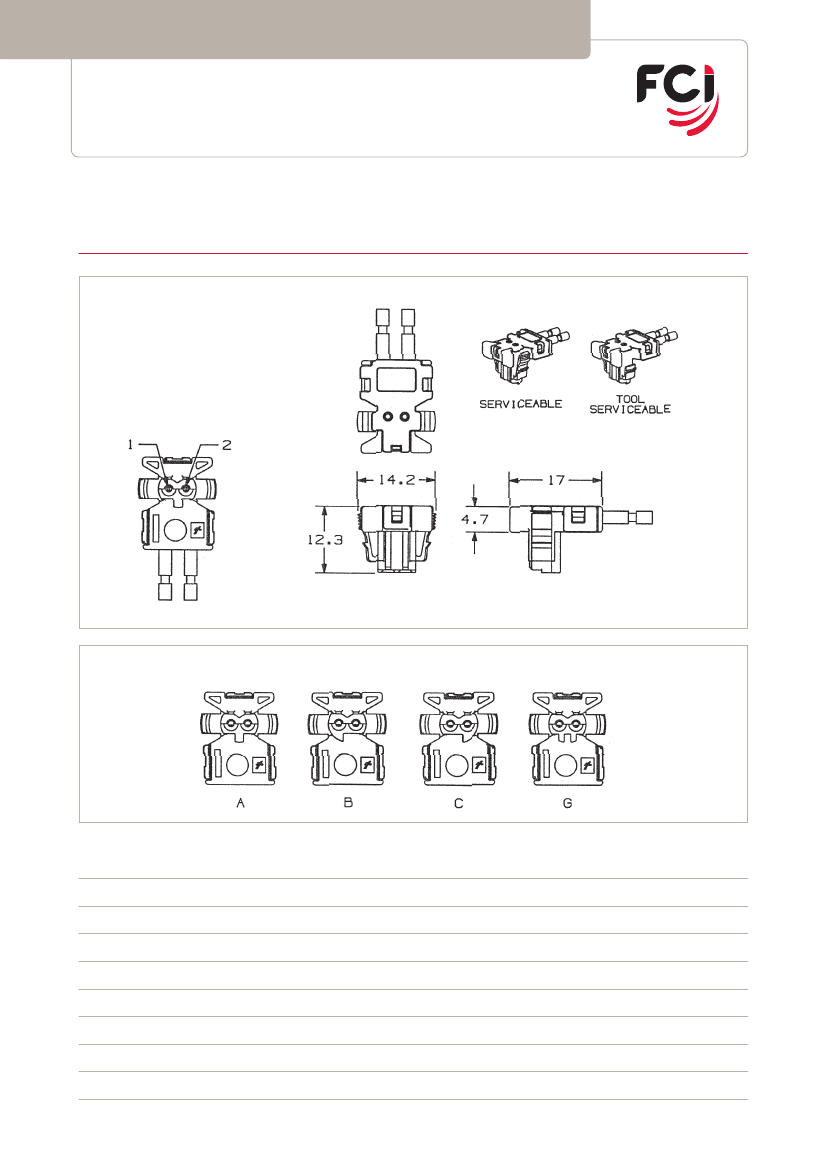

Safety Restraints Interconnection System

Ferrite initiator connectors

FFR90-3/FFT90-3

Right angle version with reversed locking legs

Features

Mating design:

•

Serviceable, reversed locking legs

(self locking) alternatively

•

Tool serviceable, reversed locking

legs (self locking)

Terminal system:

•

RCS (Round contact system),

one piece terminal for ferrite tubes,

Selectively gold plated, 2 contact

points

Termination technology:

•

Crimp version

Others:

•

Supplied with different cable lengths

Performance characteristics

•

Temperature range:

from -40°C to +85°C

Construction

•

Housing material:

PA

•

Acceptable wire range: 0.5 mm

2

,

AWG 20, AWG 18 for single leads

•

Contact resistance:

10 mΩ

(including terminal and 75 mm of wire)

•

Dielectric test:

•

Pull out force:

750 V / DC

> 160 N

•

EMI protection device: Ferrite tubes

Connector compatibility

•

Matable with: Ø 11 mm FCI retainer

Part Numbers

5 455 02 66

5 455 02 67

5 455 02 68

5 455 02 71

5 455 02 81

5 455 02 82

5 455 02 83

5 455 02 86

Interface

FCI

Type

Serviceable

Tool serviceable

Code

A

B

C

G

A

B

C

G

Colour

Black

Brown

Light Grey

Light Magenta

White

Pale Brown

Pastel Green

Purple

2.1

54550268 Related Products

	54550268	54550266	54550267	54550271	54550281	54550282	54550283	54550286
Description	Combination Line Connector, 2 Contact(s), Female, Crimp Terminal,	Combination Line Connector, 2 Contact(s), Female, Crimp Terminal,	Combination Line Connector, 2 Contact(s), Female, Crimp Terminal,	Combination Line Connector, 2 Contact(s), Female, Crimp Terminal	Combination Line Connector, 2 Contact(s), Female, Crimp Terminal	Combination Line Connector, 2 Contact(s), Female, Crimp Terminal	Combination Line Connector, 2 Contact(s), Female, Crimp Terminal	Combination Line Connector, 2 Contact(s), Female, Crimp Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	2	2	2	2	2	2	2	2
Base Number Matches	1	1	1	1	1	1	1	1
Manufacturer's serial number	-	-	-	5455	5455	5455	5455	5455
