54560213 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54560213

54560213: DescriptionCombination Line Connector, 2 Contact(s), Female, Crimp Terminal; CategoryThe connector The connector; File Size190KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

54560213 Overview

Combination Line Connector, 2 Contact(s), Female, Crimp Terminal

54560213 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	GOLD
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	54560
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYAMIDE
Termination type	CRIMP
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

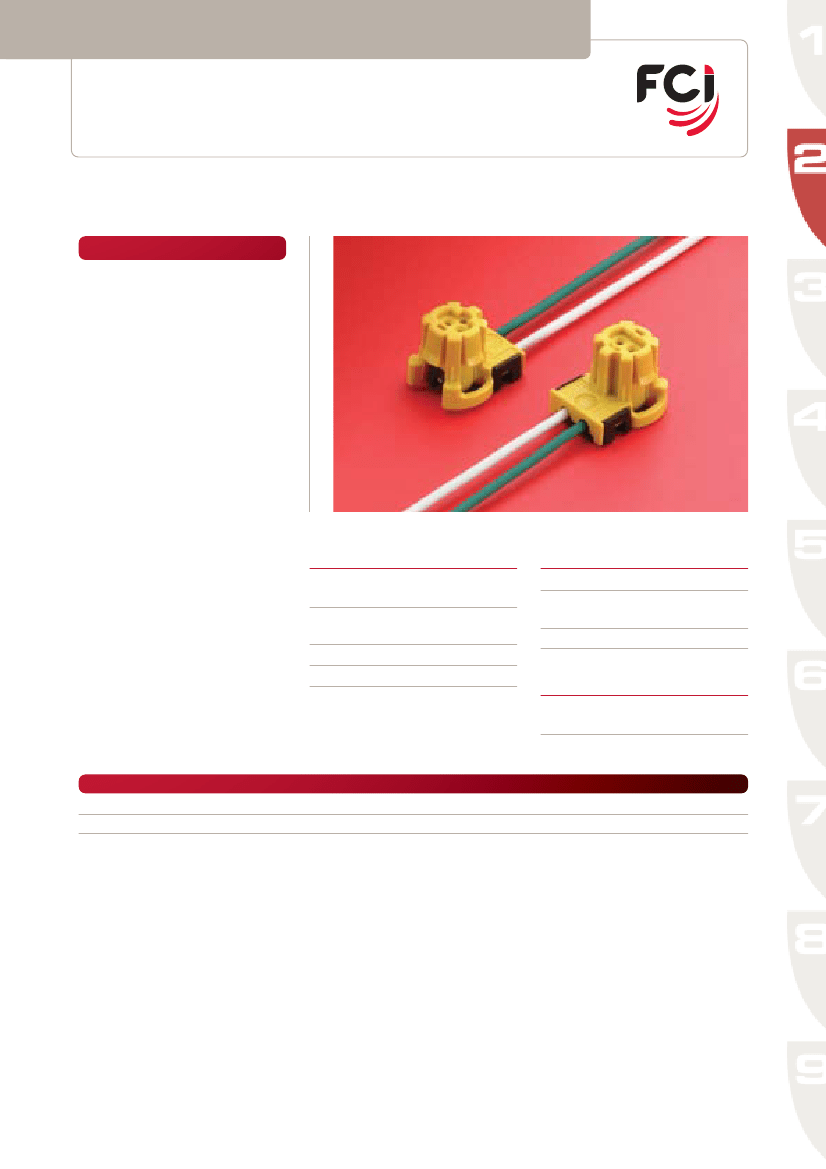

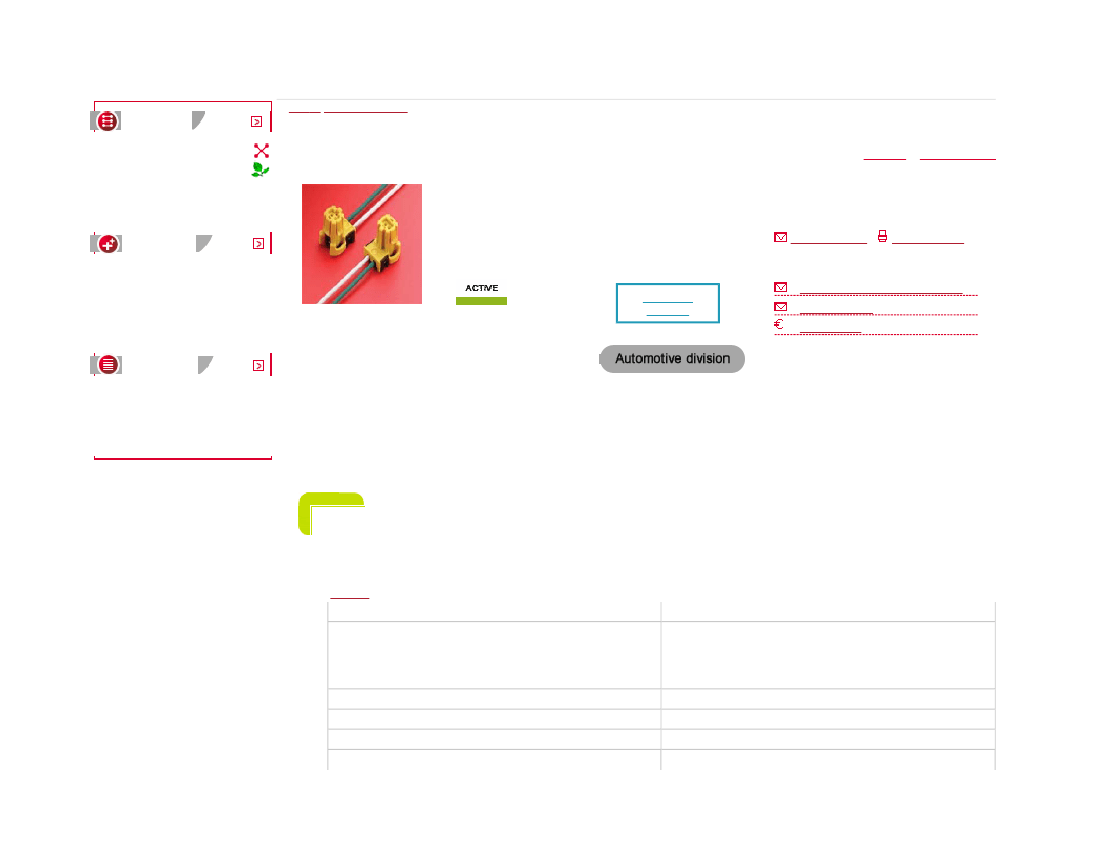

Safety Restraints Interconnection System

Ferrite initiator connectors

FUN90-3

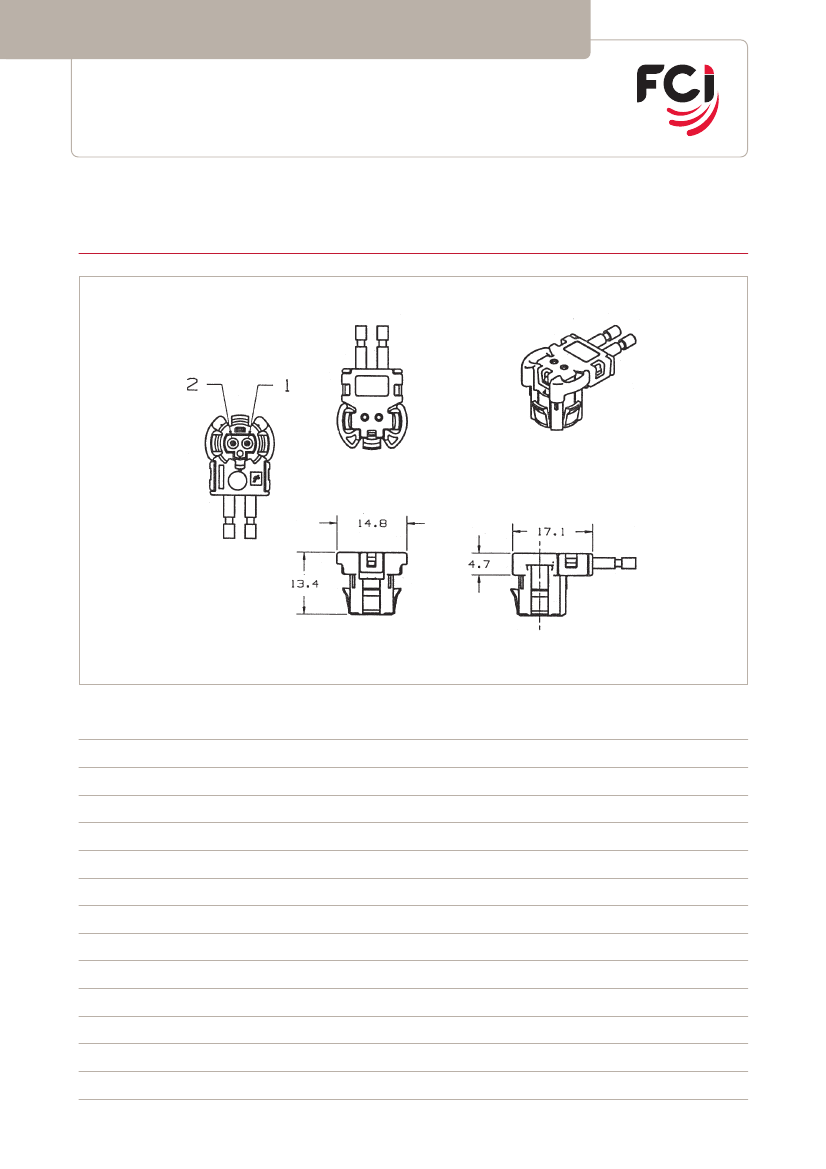

Right angle version - UC compatible

Features

Mating design:

•

Non-serviceable UC type locking

legs

Terminal system:

•

RCS (Round contact system), one

piece terminal for ferrite tubes,

selectively gold plated, 2 contact

points

Termination technology:

•

Crimp version

Others:

•

Supplied with different cable lengths

Performance characteristics

•

Temperature range:

from -40°C to +85°C

Construction

•

Housing material:

AWG 20, AWG 18

•

Acceptable wire range: AWG 22,

•

EMI protection device: Ferrite tubes

•

Contact resistance:

10 mΩ

(including terminal and 75 mm of wire)

•

Dielectric test:

•

Pull out force:

750 V / DC

> 160 N

Connector compatibility

•

Matable with: Ø 11 mm UC

interface

Part Numbers

5 456 02 11

5 456 02 13

Interface

Type

T (standard wire insulation)

TG (thick wire insulation)

Code

n.a.

Colour

Yellow

White

2.19

54560213 Related Products

	54560213	54560211
Description	Combination Line Connector, 2 Contact(s), Female, Crimp Terminal	Combination Line Connector, 2 Contact(s), Female, Crimp Terminal
Maker	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant
Connector type	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	GOLD	GOLD
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e4	e4
MIL compliance	NO	NO
Manufacturer's serial number	54560	54560
Mixed contacts	NO	NO
Installation type	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYAMIDE	POLYAMIDE
Termination type	CRIMP	CRIMP
Total number of contacts	2	2
Base Number Matches	1	1
