59P110-5

Description
RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug
CategoryThe connector    The connector
File Size69KB，1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

59P110-5 Overview

RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug

59P110-5 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codeunknown
Body/casing typePLUG
Connector typeRF MCX CONNECTOR
DIN complianceNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberMCX
Base Number Matches1

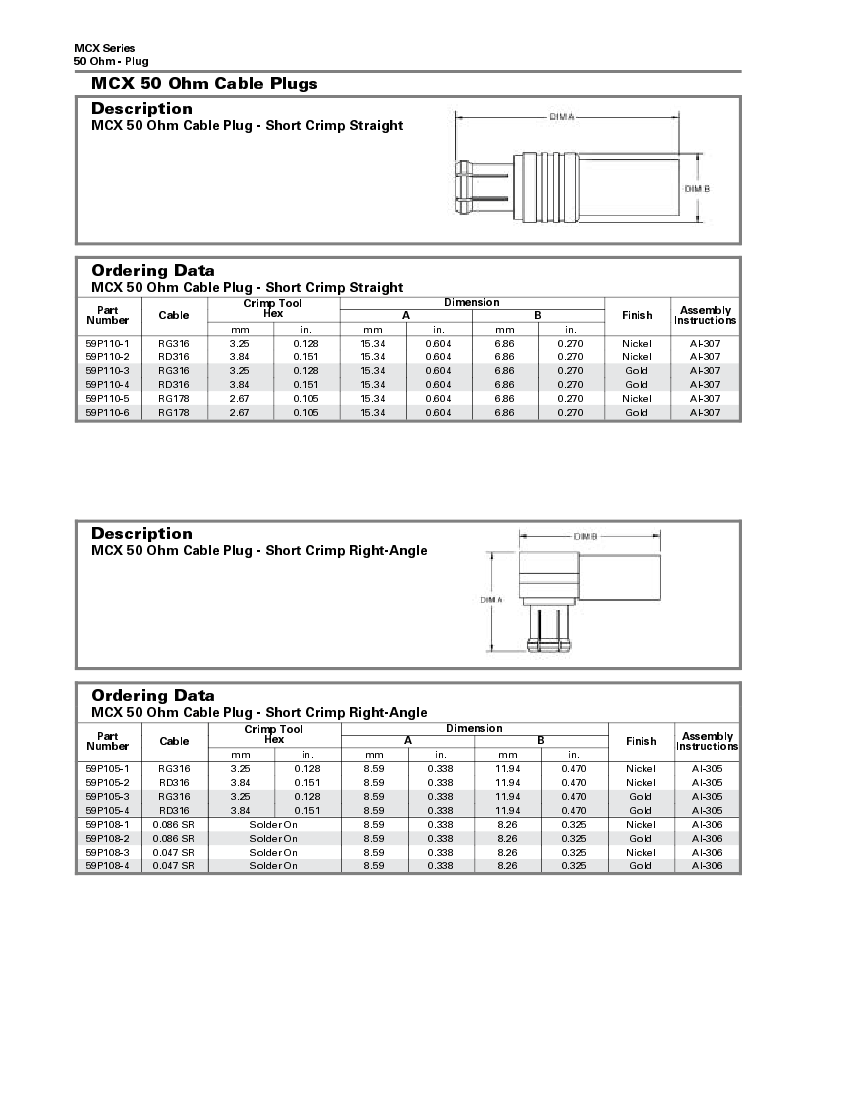

Preview

Download Datasheet
MCX Series
50 Ohm - Plug
MCX 50 Ohm Cable Plugs
Description
Plug - Short Crimp Straight
MCX 50 Ohm Cable
MCX Series
50 Ohm - Plug
RF/Coaxial
Ordering Data
Plug - Short Crimp Straight
MCX 50 Ohm Cable
59P110-1
59P110-2
59P110-3
59P110-4
59P110-5
59P110-6
Part
Number
Cable
RG316
RD316
RG316
RD316
RG178
RG178
mm
3.25
3.84
3.25
3.84
2.67
2.67
Crimp Tool
Hex
in.
0.128
0.151
0.128
0.151
0.105
0.105
mm
15.34
15.34
15.34
15.34
15.34
15.34
A
Dimension
in.
0.604
0.604
0.604
0.604
0.604
0.604
mm
6.86
6.86
6.86
6.86
6.86
6.86
B
in.
0.270
0.270
0.270
0.270
0.270
0.270
Finish
Nickel
Nickel
Gold
Gold
Nickel
Gold
Assembly
Instructions
AI-307
AI-307
AI-307
AI-307
AI-307
AI-307
Description
Plug - Short Crimp Right-Angle
MCX 50 Ohm Cable
Or ering
Data
Ordering
ata Plug - Short Crimp Right-Angle
MCX 50 Ohm Cable
59P105-1
59P105-2
59P105-3
59P105-4
59P108-1
59P108-2
59P108-3
59P108-4
Part
Number
Cable
RG316
RD316
RG316
RD316
0.086 SR
0.086 SR
0.047 SR
0.047 SR
mm
in.
3.25
0.128
3.84
0.151
3.25
0.128
3.84
0.151
Solder On
Solder On
Solder On
Solder On
Crimp Tool
Hex
mm
8.59
8.59
8.59
8.59
8.59
8.59
8.59
8.59
A
Dimension
in.
0.338
0.338
0.338
0.338
0.338
0.338
0.338
0.338
mm
11.94
11.94
11.94
11.94
8.26
8.26
8.26
8.26
B
in.
0.470
0.470
0.470
0.470
0.325
0.325
0.325
0.325
Finish
Nickel
Nickel
Gold
Gold
Nickel
Gold
Nickel
Gold
Assembly
Instructions
AI-305
AI-305
AI-305
AI-305
AI-306
AI-306
AI-306
AI-306
30-130
RF/Coaxial
