59P107-2: DescriptionRF MCX Connector, Plug; CategoryThe connector The connector; File Size89KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

59P107-2 Overview

RF MCX Connector, Plug

59P107-2 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	RF MCX CONNECTOR
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	MCX
Base Number Matches	1

Preview

Download Datasheet

View All

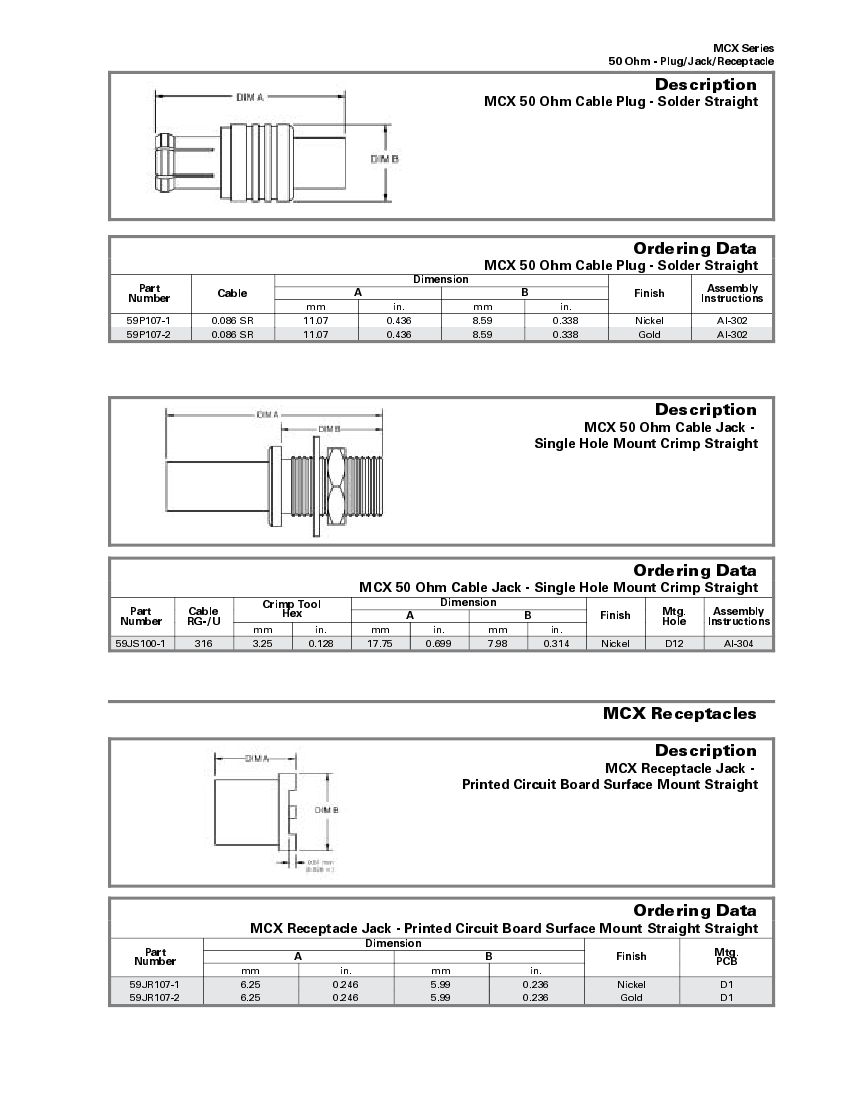

MCX 50 Ohm Cable

Ohm -

-

Plug/Jack/Receptacle

50

Plug Solder Straight

MCX Series

50 Ohm - Plug/Jack/Receptacle

RF/Coaxial

Description

MCX Series

59P107-1

59P107-2

Part

Number

Cable

0.086 SR

mm

11.07

A

Dimension

MCX 50 Ohm Cable Plug - Solder Straight

mm

8.59

B

Ordering

Data

Ordering

ata

Finish

in.

0.436

in.

0.338

Nickel

Gold

Assembly

Instructions

AI-302

MCX 50 Ohm Cable Jack -

Single Hole Mount Crimp Straight

Description

59JS100-1

Part

Number

Cable

RG-/U

316

mm

3.25

Crimp Tool

Hex

Ordering ata

Ordering Data

MCX 50 Ohm Cable Jack - Single Hole Mount Crimp Straight

mm

17.75

A

Dimension

in.

0.128

in.

0.699

mm

7.98

B

in.

0.314

Finish

Nickel

Mtg.

Hole

D12

Assembly

Instructions

AI-304

MCX Receptacle Jack -

Printed Circuit Board Surface Mount Straight

MCX Receptacles

Description

MCX Receptacle Jack - Printed Circuit Board Surface Mount Straight Straight

59JR107-1

59JR107-2

Part

Number

Ordering

Data

Ordering

ata

Mtg.

PCB

mm

6.25

A

Dimension

in.

0.246

mm

5.99

B

in.

0.236

Finish

Nickel

Gold

D1

RF/Coaxial

30-131

59P107-2 Related Products

	59P107-2	59P107-1	59JR107-2	59JR107-1	59JS100-1
Description	RF MCX Connector, Plug	RF MCX Connector, Plug	RF MCX Connector, Female, Board Mount, Surface Mount Terminal, Jack	RF MCX Connector, Female, Board Mount, Surface Mount Terminal, Jack	RF MCX Connector, Jack
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Body/casing type	PLUG	PLUG	RECEPTACLE	RECEPTACLE	JACK
Connector type	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR
DIN compliance	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	MCX	MCX	MCX	MCX	MCX
Base Number Matches	1	1	1	1	1

Recommended Resources

Soldering iron light reminder and temperature adjustment circuit

Current output circuit of DAC0832

Touch voltage regulator circuit

Micro heart rhythm tester circuit

Straight area transistor A measuring instrument circuit

Reference clock circuit using TC5036
