59JR108-1

Description
RF MCX Connector, Female, Board Mount, Surface Mount Terminal, Jack
CategoryThe connector    The connector
File Size59KB，1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

59JR108-1 Overview

RF MCX Connector, Female, Board Mount, Surface Mount Terminal, Jack

59JR108-1 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codeunknown
Body/casing typeRECEPTACLE
Connector typeRF MCX CONNECTOR
DIN complianceNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberMCX
Base Number Matches1

Preview

Download Datasheet

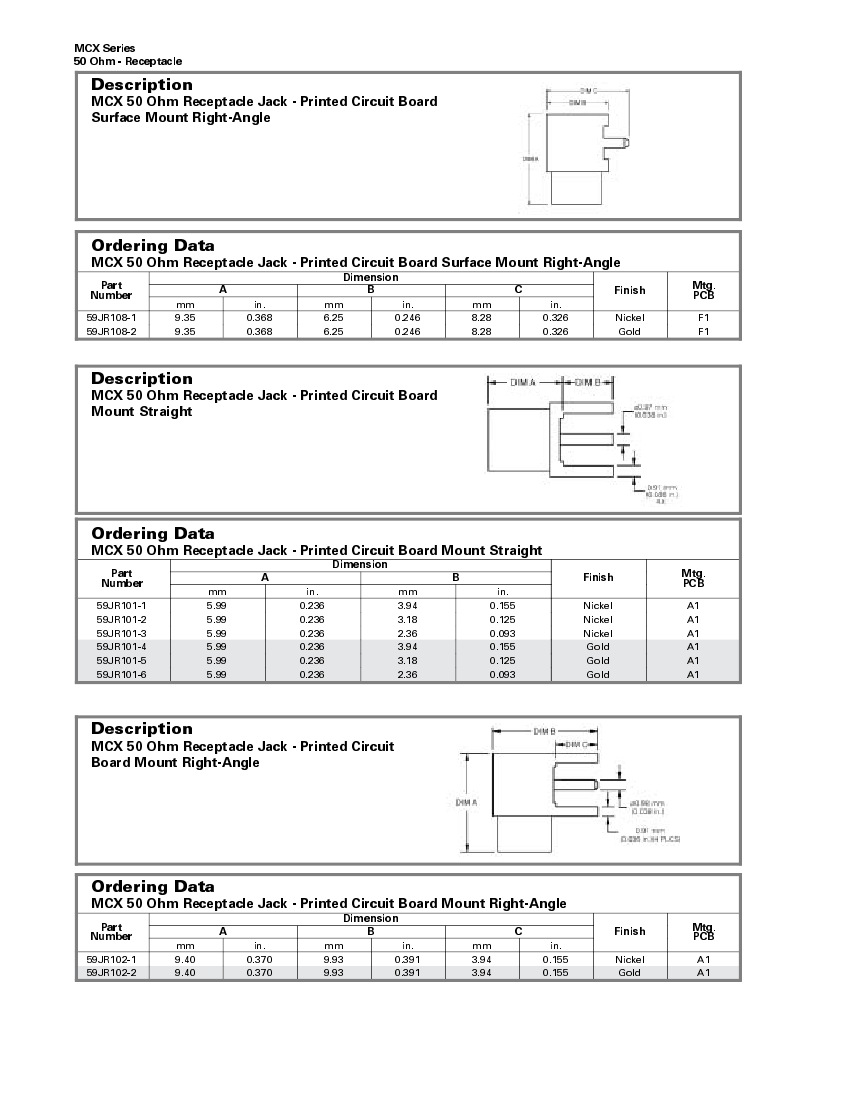

MCX Series
50 Ohm - Receptacle
Description
MCX 50 Ohm Receptacle Jack - Printed
Ohm -MCX Series
50
Circuit Board
Receptacle
Surface Mount Right-Angle
RF/Coaxial
Ordering Data
59JR108-1
59JR108-2
Part
Number
MCX 50 Ohm Receptacle Jack - Printed Circuit Board Surface Mount Right-Angle
mm
9.35
9.35
A
in.
0.368
0.368
mm
6.25
6.25
Dimension
B
in.
0.246
0.246
mm
8.28
8.28
C
in.
0.326
0.326
Finish
Nickel
Gold
Mtg.
PCB
F1
F1
Description
MCX 50 Ohm Receptacle Jack - Printed Circuit Board
Mount Straight
Ordering Data
59JR101-1
59JR101-2
59JR101-3
59JR101-4
59JR101-5
59JR101-6
Part
Number
MCX 50 Ohm Receptacle Jack - Printed Circuit Board Mount Straight
mm
5.99
5.99
5.99
5.99
5.99
5.99
A
Dimension
in.
0.236
0.236
0.236
0.236
0.236
0.236
mm
3.94
3.18
2.36
3.94
3.18
2.36
B
in.
0.155
0.125
0.093
0.155
0.125
0.093
Finish
Nickel
Nickel
Nickel
Gold
Gold
Gold
Mtg.
PCB
A1
A1
A1
A1
A1
A1
Description
MCX 50 Ohm Receptacle Jack - Printed Circuit
Board Mount Right-Angle
Ordering Data
59JR102-1
59JR102-2
Part
Number
MCX 50 Ohm Receptacle Jack - Printed Circuit Board Mount Right-Angle
mm
9.40
9.40
A
in.
0.370
0.370
mm
9.93
9.93
Dimension
B
in.
0.391
0.391
mm
3.94
3.94
C
in.
0.155
0.155
Finish
Nickel
Gold
Mtg.
PCB
A1
A1
30-132
RF/Coaxial

59JR108-1 Related Products

59JR108-1 59JR102-1 59JR102-2 59JR101-1 59JR101-2 59JR101-3 59JR101-4 59JR101-5 59JR101-6 59JR108-2
Description RF MCX Connector, Female, Board Mount, Surface Mount Terminal, Jack RF MCX Connector, Receptacle RF MCX Connector, Female, Board Mount, Solder Terminal, Jack RF MCX Connector, Female, Board Mount, Solder Terminal, Jack RF MCX Connector, Receptacle RF MCX Connector, Receptacle RF MCX Connector, Female, Board Mount, Solder Terminal, Jack RF MCX Connector, Receptacle RF MCX Connector, Female, Board Mount, Solder Terminal, Jack, RF MCX Connector, Female, Board Mount, Surface Mount Terminal, Jack
