LH1533AACTR

Description
Solid State Relay,
CategoryLED optoelectronic/LED    photoelectric
File Size373KB,3 Pages
ManufacturerVishay Telefunken (Vishay)
Websitehttp://www.vishay.com
Download Datasheet Parametric Compare View All

LH1533AACTR Online Shopping

Suppliers Part Number Price MOQ In stock
LH1533AACTR - - View Buy Now

LH1533AACTR Overview

Solid State Relay,

LH1533AACTR Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerVishay Telefunken (Vishay)
Reach Compliance Codeunknown
control voltage0.9 V
input typeDC
JESD-609 codee0
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output circuit typeMOSFET
total height3.8 mm
total length9.9 mm
Terminal surfaceTin/Lead (Sn/Pb)
Base Number Matches1
LH1533AB/AAC/AACTR
Dual 1 Form A
Solid State Relay
FEATURES
• Dual Channel (LH1550)
• Current Limit Protection
• l/O Isolation, 5300 V
RMS
• Typical
R
ON
37
• Load Voltage 350 V
• Load Current 90 mA
• High Surge Capability
• Linear, AC/DC Operation
• Clean Bounce Free Switching
• Low Power Consumption
• SMD Lead Available on Tape and Reel
AGENCY APPROVALS
UL – File No. E52744
CSA – Certification 093751
BSI/BABT Cert. No. 7980
VDE 0884 Approval
FIMKO Approval

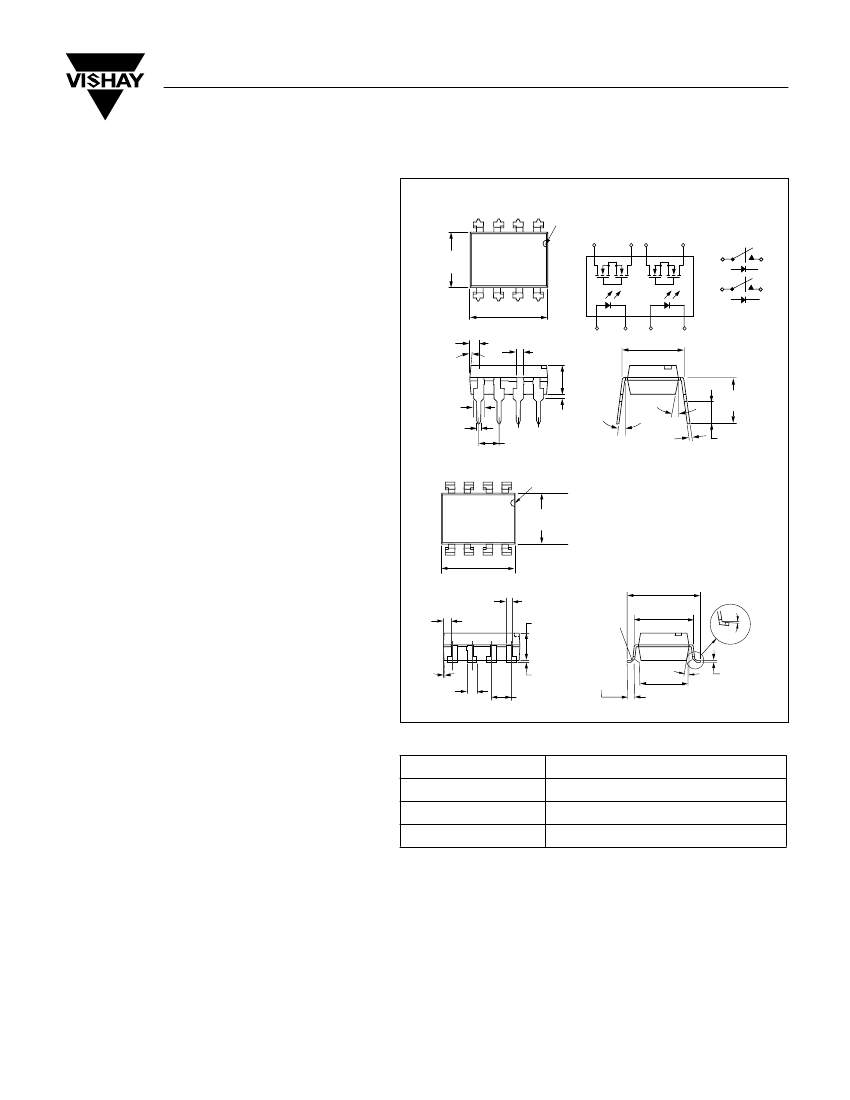

Package Dimensions in Inches (mm)
DIP
pin one ID
4
.268 (6.81)
.255 (6.48)
5
6
7
8
S2
S2'
3
2
1
S1
8
S1' S2
7
6
S2'
5
S1
S1'
.390 (9.91)
.379 (9.63)
.045 (1.14)
.030 (0.76)
4° typ.
.031 (0.79)
1
2
3
4
.300 (7.62)
typ.
.150 (3.81)
.130 (3.30)
.050 (1.27)
.022 (.56)
.018 (.46)
.035 (.89)
.020 (.51)
.100 (2.54) typ.
10°
3°–9°
.012 (.30)
.008 (.20)
.130 (3.30)
.110 (2.79)
.250 (6.35)
.230 (5.84)
SMD
Pin one I.D.
APPLICATIONS
• General Telecom Switching
– On/off Hook Control
– Ring Delay
– Dial Pulse
– Ground Start
– Ground Fault Protection
• Instrumentation
• Industrial Controls
DESCRIPTION
The LH1533 (Dual 1 Form A) relays are SPST normally
open switches that can replace electromechanical
relays in many applications. They are constructed using
a GaAIAs LED for actuation control and an integrated
monolithic die for the switch output. The die, fabricated
in a high-voltage dielectrically isolated technology is
comprised of a photodiode array, switch control cir-
cuitry, and MOSFET switches. In addition, the relays
employ current-limiting circuitry, enabling them to pass
FCC 68.302 and other regulatory surge requirements
when overvoltage protection is provided.
typ.
.050
(1.27)
typ.
.268 (6.81)
.255 (6.48)
.390 (9.91)
.379 (9.63)
.031 (.79)
typ.
.150 (3.81)
.130 (3.30)
.395 (10.03)
.375 (9.52)
.312 (7.80)
.298 (7.52)
.045 (1.14)
.030 (0.78)
Radius
3
°
to 7
°
.008 (.25)
.004 (.10) .040 (1.02)
.020 (.51)
.100 (2.54)
typ.
10°
.315
(8.00)
typ.
.010
(2.54)
typ.
Part Identification
Part Number
LH1533AB
LH1533AAC
LH1533AACTR
Description
8-pin DIP, Tubes
8-pin SMD, Gullwing, Tubes
8-pin SMD, Gullwing, Tape and Reel
Document Number: 83831
Revision 17-August-01
www.vishay.com
3–143

LH1533AACTR Related Products

LH1533AACTR LH1533AAC LH1533AB
Description Solid State Relay, Solid State Relay, Solid State Relay,
Is it Rohs certified? incompatible incompatible incompatible
Maker Vishay Telefunken (Vishay) Vishay Telefunken (Vishay) Vishay Telefunken (Vishay)
Reach Compliance Code unknown unknown unknown
control voltage 0.9 V 0.9 V 0.9 V
input type DC DC DC
JESD-609 code e0 e0 e0
Maximum operating temperature 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C
Output circuit type MOSFET MOSFET MOSFET
total height 3.8 mm 3.8 mm 3.8 mm
total length 9.9 mm 9.9 mm 9.9 mm
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Base Number Matches 1 1 -
