AJT04D8844-002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> AJT04D8844-002

AJT04D8844-002: DescriptionTelecom and Datacom Connector, 32 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size175KB，1 Pages; ManufacturerMETZ CONNECT; Websitehttp://www.metz-connect.com/

Download Datasheet Parametric Compare View All

AJT04D8844-002 Overview

Telecom and Datacom Connector, 32 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle,

AJT04D8844-002 Parametric

Parameter Name	Attribute value
Maker	METZ CONNECT
Reach Compliance Code	compliant
Other features	4 PORTS, 8 POSITIONS EACH
Board mount options	SPLIT BOARD LOCK
body width	0.535 inch
subject depth	0.841 inch
body length	2.331 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	50 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	750 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	22.24 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0
Evacuation force-minimum value	22.24 N
Base Number Matches	1

Preview

Download Datasheet

View All

• Shielded

• Multi Port

• Thru Hole

•

Side Entry

CAT 5

Low Profile

Shield Ground Back

8 Positions

Type

AJT04D

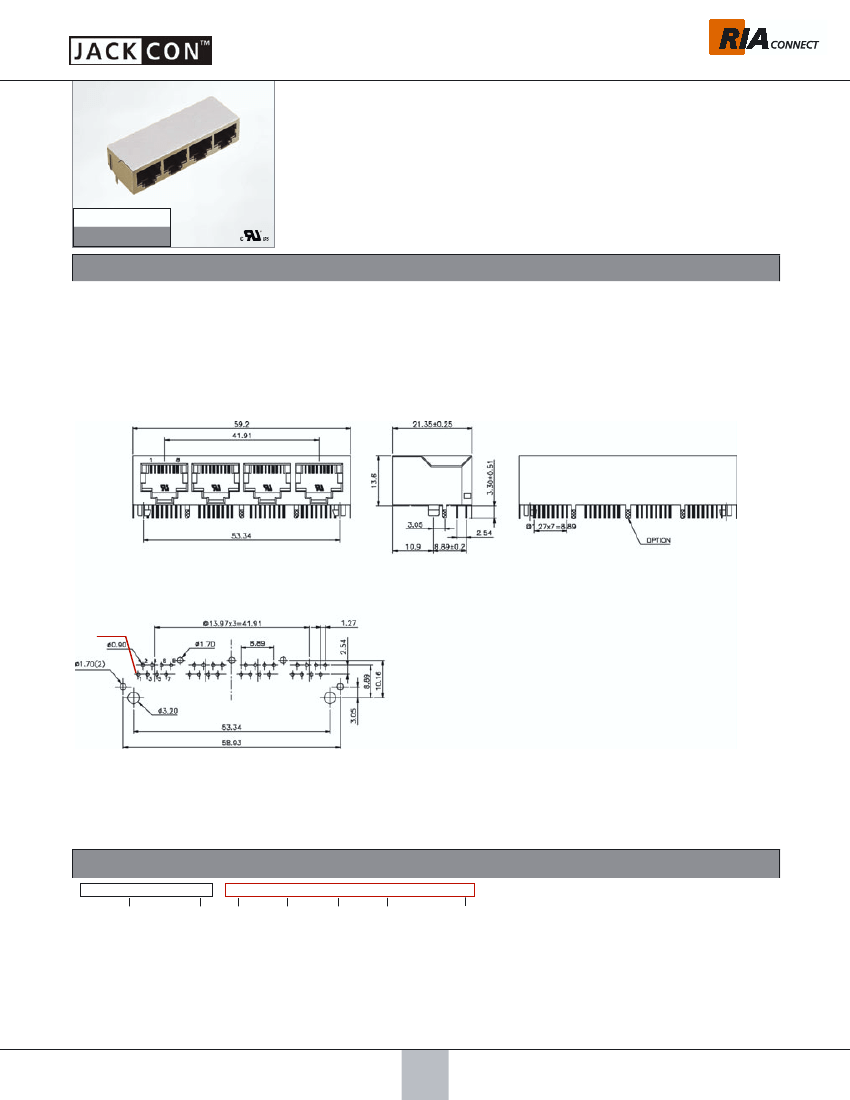

Technical Data

Housing:

Contact:

Glass filled Polyester UL94V-0.

0.35mm thickness Phosphor Bronze

For electrical specifications see page 4

Dimensions

(mm)

PC Board Layout - Component Side

Pin 1

Ordering Information

Type

Ports

4 - 0

Plating

3 = 30u”

4 = 50u”

Front Peg

1 = Front Peg 3.05

2 = Front Peg 3.05, with 3 Grounding Tabs

3 = Front Peg 3.05, with 5 Grounding Tabs

Style Positions Contacts

RIA CONNECT, Inc.

200 Tornillo Way, Tinton Falls, NJ 07712

phone:1-888-722-5625 • fax:732-389-9066 • www.riaconnect.com

Subject to technical changes and printing errors.

AJT04D8844-002 Related Products

	AJT04D8844-002	AJT04D8844-003
Description	Telecom and Datacom Connector, 32 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle,	Telecom and Datacom Connector, 32 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle,
Maker	METZ CONNECT	METZ CONNECT
Reach Compliance Code	compliant	compliant
Other features	4 PORTS, 8 POSITIONS EACH	4 PORTS, 8 POSITIONS EACH
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.535 inch	0.535 inch
subject depth	0.841 inch	0.841 inch
body length	2.331 inch	2.331 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	50 mΩ	50 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR
DIN compliance	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V
Durability	750 Cycles	750 Cycles
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	22.24 N	22.24 N
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
MIL compliance	NO	NO
Mixed contacts	NO	NO
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of ports	4	4
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED
Plating thickness	50u inch	50u inch
Rated current (signal)	1.5 A	1.5 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.13 inch	0.13 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	32	32
UL Flammability Code	94V-0	94V-0
Evacuation force-minimum value	22.24 N	22.24 N
Base Number Matches	1	1
