Part Number

Search

85967-104

Description
Board Connector, 192 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size133KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

85967-104 Overview

Board Connector, 192 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Receptacle

85967-104 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerAmphenol
Reach Compliance Codeunknown
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN LEAD (315)
Contact completed and terminatedTIN LEAD (315)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number85967
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded4
OptionsGENERAL PURPOSE
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts192
UL Flammability Code94V-0
Base Number Matches1

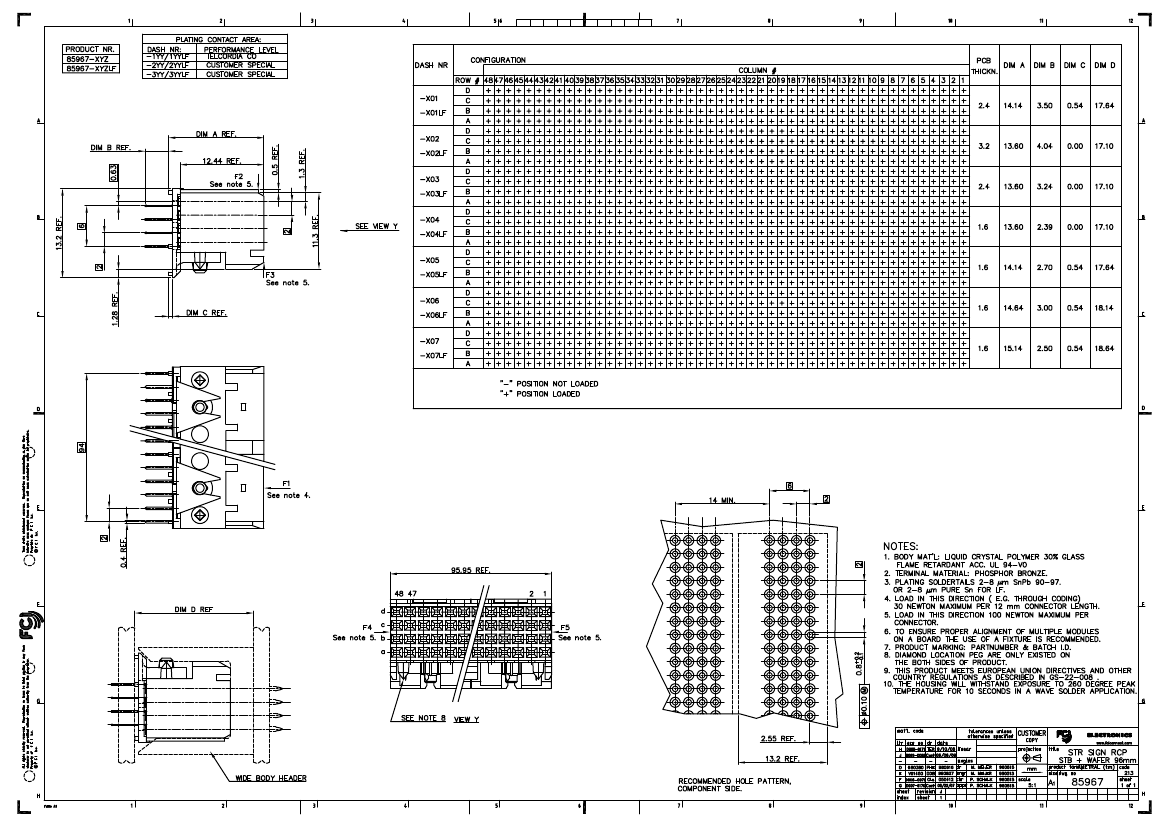

PDM: Rev:J
STATUS:
Released
Printed: May 19, 2011
.
