87918-136HLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87918-136HLF

87918-136HLF: DescriptionBoard Connector, 36 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size260KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

87918-136HLF Overview

Board Connector, 36 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE

87918-136HLF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL/NICKEL PALLADIUM GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (30) OVER NICKEL/NICKEL PALLADIUM GOLD (30) OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	87918
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36
UL Flammability Code	94V-0
Base Number Matches	1

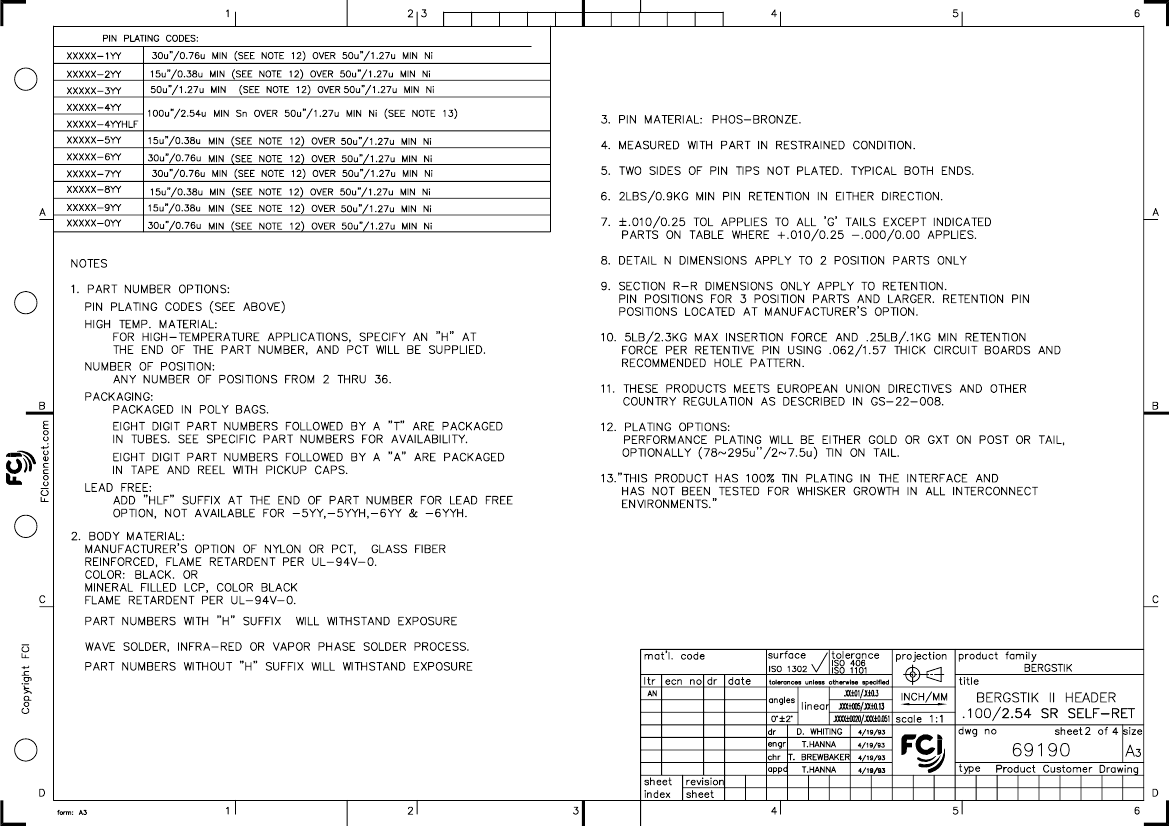

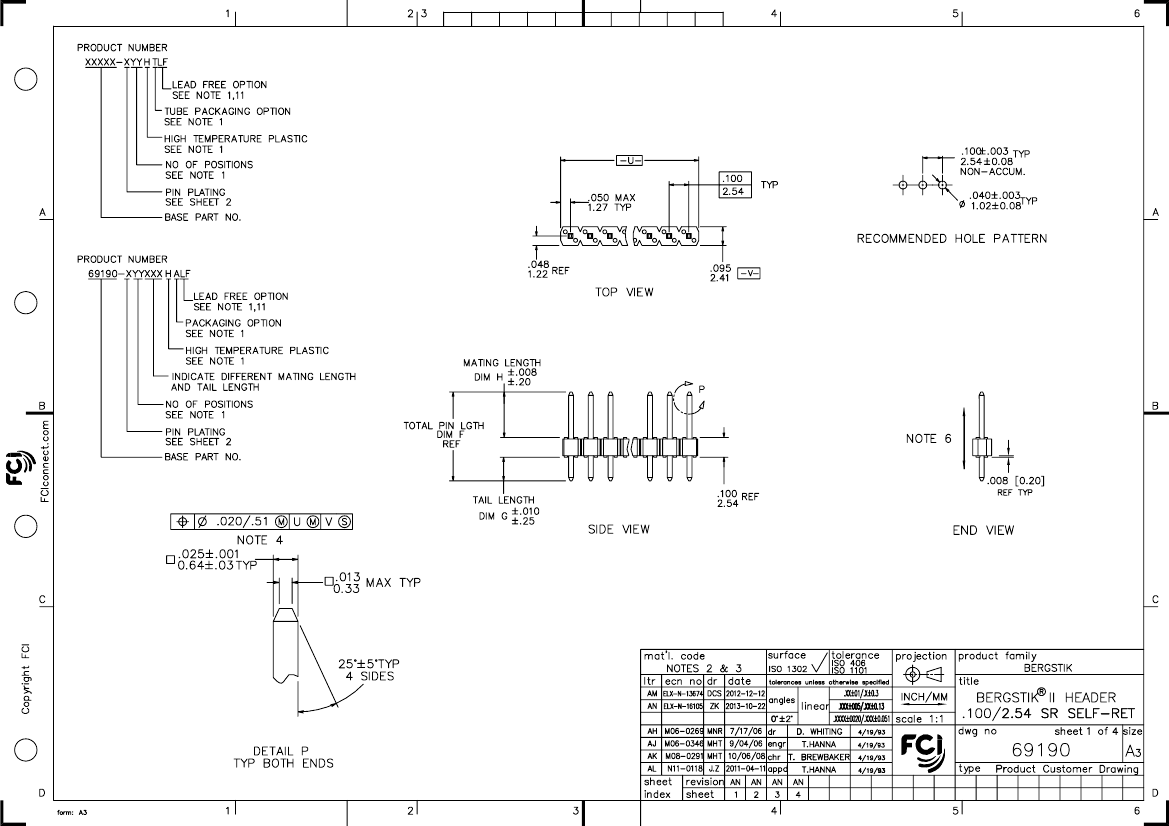

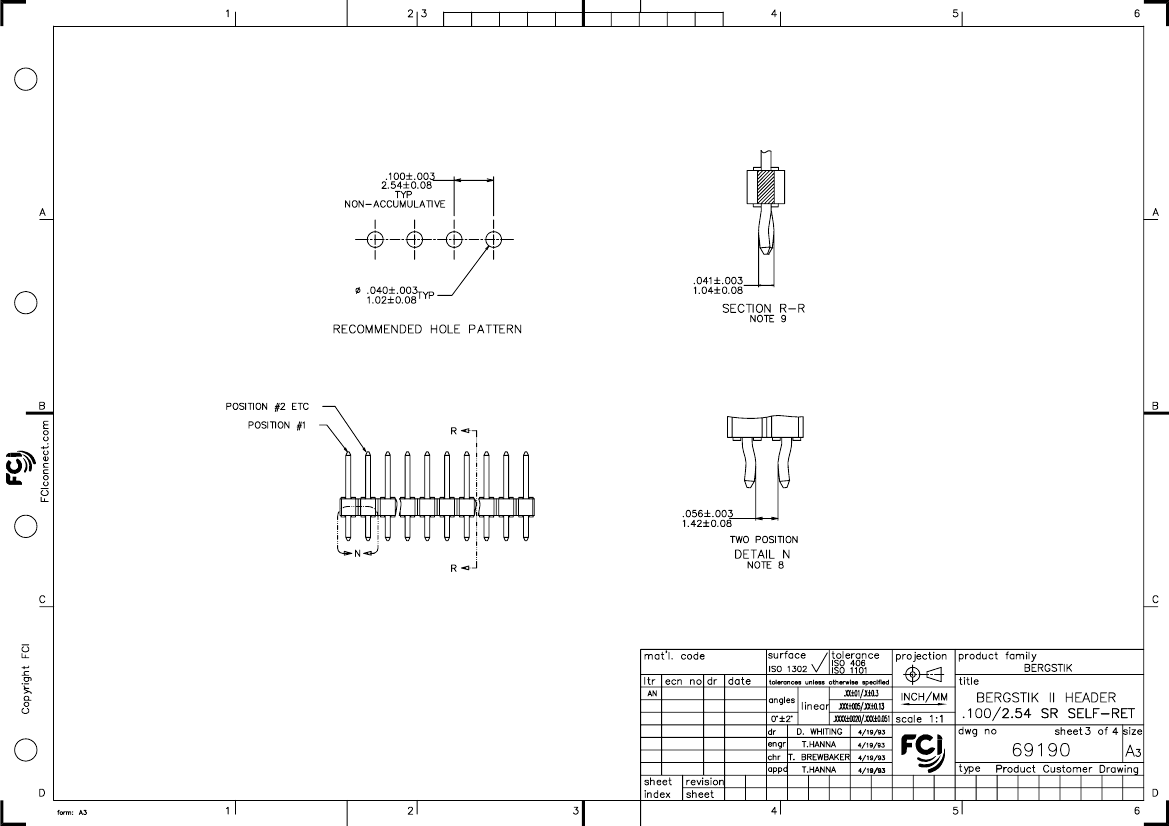

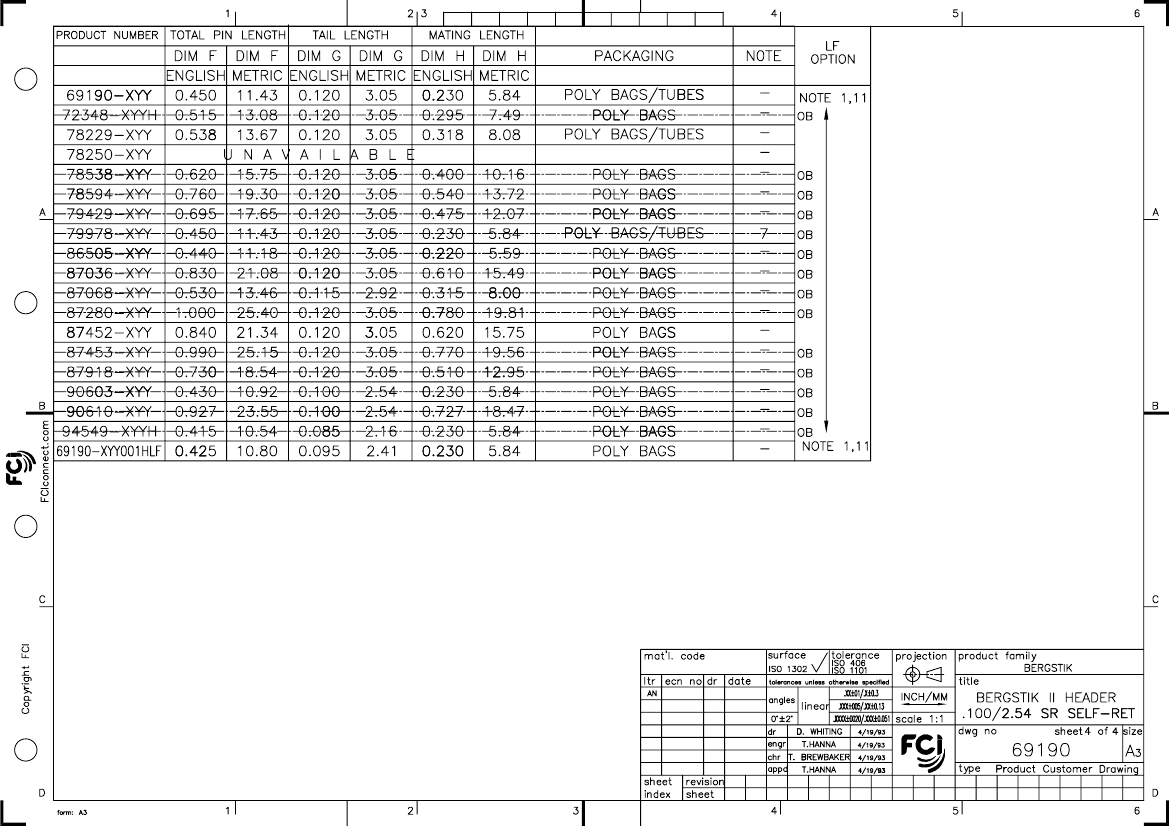

Preview

Download Datasheet

View All

PDS: Rev :AN

STATUS:Released

Printed: Oct 29, 2013

87918-136HLF Related Products

	87918-136HLF	69190-403	69190-405HLF	79429-102HLF
Description	Board Connector, 36 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE	Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator,	BergStik®, Board to Board connector, Unshrouded vertical header, Through Hole, Single Row, 05 Positions, 2.54 mm (0.100in) Pitch.	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, LEAD FREE
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL/NICKEL PALLADIUM GOLD (30) OVER NICKEL	TIN (100) OVER NICKEL (50)	TIN (100) OVER NICKEL (50)	GOLD (30) OVER NICKEL/NICKEL PALLADIUM GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (30) OVER NICKEL/NICKEL PALLADIUM GOLD (30) OVER NICKEL	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	GOLD (30) OVER NICKEL/NICKEL PALLADIUM GOLD (30) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e4	e3	e3	e4
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	36	3	5	2
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Is it lead-free?	Lead free	Contains lead	-	Lead free
Maker	Amphenol	Amphenol	-	Amphenol
package instruction	LEAD FREE	-	LEAD FREE	LEAD FREE
Manufacturer's serial number	87918	-	69190	79429
Base Number Matches	1	1	-	1
