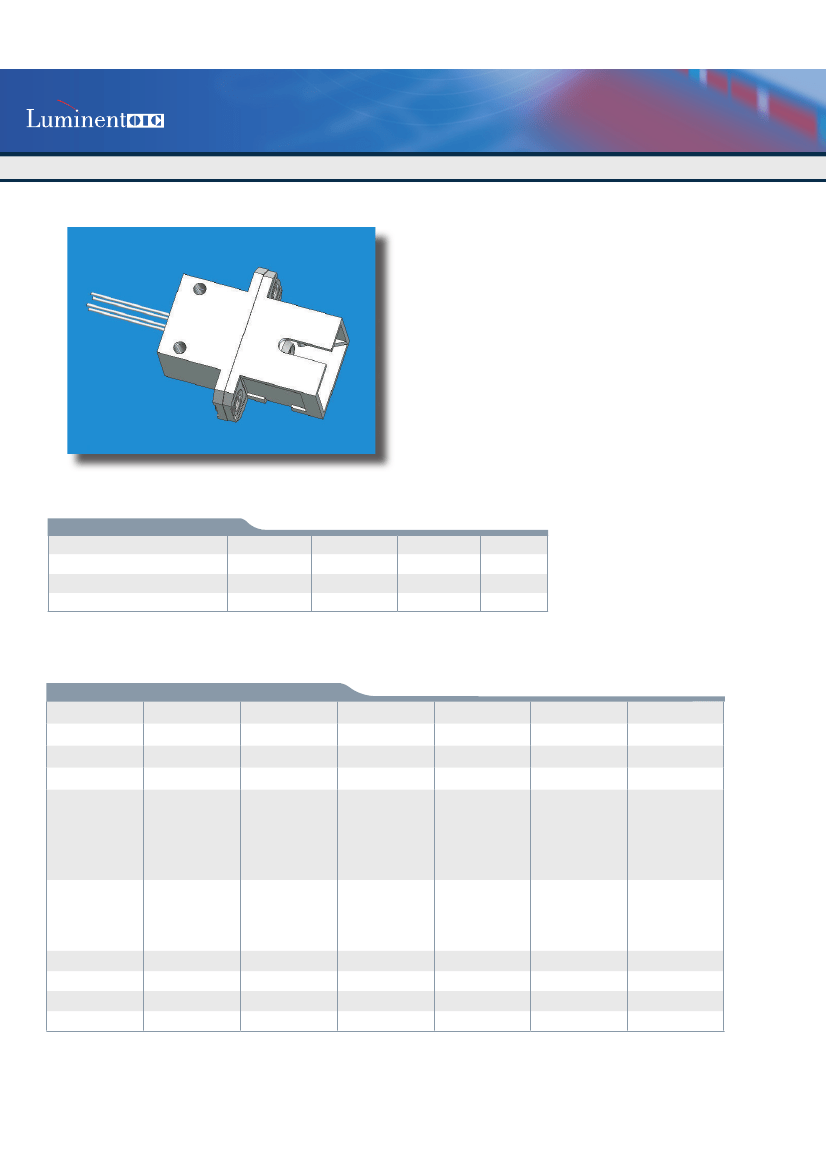

ELED SC Receptacle
EDR-L-XXB-X-XSCH-XX
Features
• 1300nm or 1550nm Wavelength
• High Optical Power
• Low Operating Current
• High Operating Temperature
• High Speed
• Low Modal Noise
• Custom Designed SC Receptacle
• For Singlemode & Multimode use
• RoHS Compliant available
Absolute Maximum Ratings (Tc=25ºC)
Parameter
LED Reverse Voltage
Operating Temperature
Storage Temperature
Symbol
V
r
LED
T
opr
T
stg
Condition
CW
-
-
Rating
2.5
-20 ~ +60
-30 ~ +80
Unit
V
ºC
ºC
(All optical data refer to a coupled 9/125µm SM & 50/125µm MM fiber)
Optical and Electrical Characteristics 1300nm (Tc=25ºC)
Parameter
Wavelength
Spectral Width
Operating Current
Output Power
(SM, 9/125µm)
L
M
H
U
Output Power
(MM, 50/125µm)
L
M
H
Spectral Ripple
Foward Voltage
Rise Time
Fall Time
Symbol
λ
∆λ
I
op
Min
1260
30
-
Typ
1310
-
80
Max
1340
70
100
Unit
nm
nm
mA
Test Condi-
CW
CW(FWHM)
CW
P
O
10
50
100
150
30
75
120
-
-
-
-
-
µW
CW
P
O
50
100
200
-
-
-
-
-
-
-
1.2
1.5
2.5
-
-
-
10
2.0
-
-
µW
CW
%
V
ns
ns
λ±10nm
CW
Vf
T
r
T
f
-
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS805-DEC2805
rev. A.1
1
ELED SC Receptacle
EDR-L-XXB-X-XSCH-XX
(All optical data refer to a coupled 9/125µm SM & 50/125µm MM fiber)
Optical and Electrical Characteristics 1550nm (Tc=25ºC)
Parameter
Wavelength
Spectral Width
Operating Current
Output Power (SM, 9/125µm)
L
M
H
Output Power (MM, 50/125µm)
L
M
H
Spectral Ripple
Foward Voltage
Rise Time
Fall Time
Symbol
λ
∆λ
I
op
Min
1510
45
-
Typ
1550
-
80
Max
1580
100
100
Unit
nm
nm
mA
Test Conditions
CW
CW(FWHM)
CW
P
O
10
20
30
30
50
70
-
-
-
-
-
-
-
-
-
-
1.2
1.5
2.5
-
-
-
-
-
-
10
1.7
-
-
µW
CW
P
O
µW
CW
%
V
ns
ns
λ±10nm
CW
Vf
T
r
T
f
-
Ordering Information
EDR-L-XXB-X-XSCH-XX
Family
EDR=ELED Receptacle
Wavelength
30:1300nm
55:1550nm
Power
L/M/H/U
Connector
SC = SC
Device
L=Long
Tolerance
B=+/- 40nm
S=9/125µm
H=SC-H
M=50/125µm
Fiber
Package Option
-/G5/GR
Blank = RoHS non-compliant product
G5 = RoHS 5/6-compliant product (lead exemption)
GR = Full RoHS compliant product (no exemption)
RoHS Compliant
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS805-DEC2805
rev. A.1
2

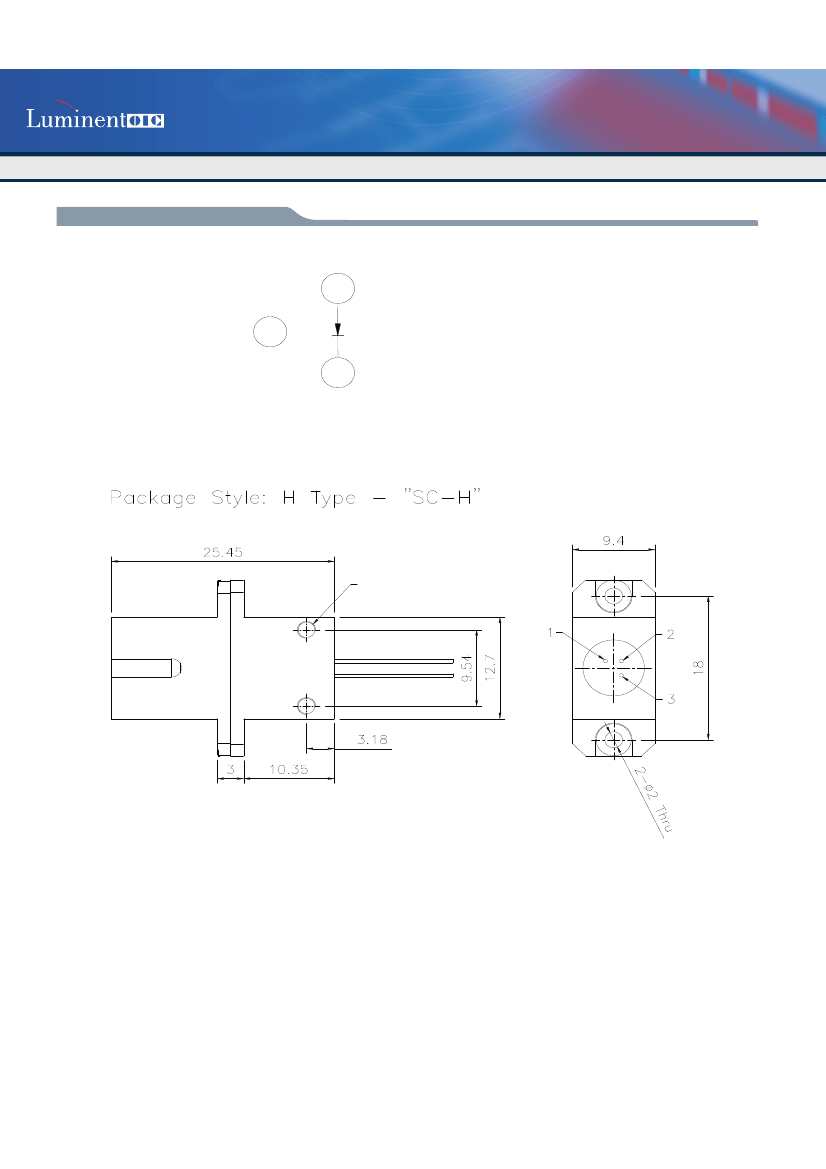

ELED SC Receptacle
EDR-L-XXB-X-XSCH-XX
Warnings
Handling Precautions:
This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Follow
guidelines according to proper ESD procedures.
Laser Safety:
Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.
Legal Notice
IMPORTANT NOTICE!
All information contained in this document is subject to change without notice, at Luminent＇s sole and absolute discretion. Luminent warrants performance of its
productstocurrentspecificationsonlyinaccordancewiththecompany＇sstandardone-yearwarranty;however,specificationsdesignatedas“preliminary＂aregivento
describecomponentsonly,andLuminentexpresslydisclaimsanyandallwarrantiesforsaidproducts,includingexpress,implied,andstatutorywarranties,warranties
ofmerchantability,fitnessforaparticularpurpose,andnon-infringementofproprietaryrights. Pleaserefertothecompany＇sTermsandConditionsofSaleforfurther
warranty information.
Luminentassumesnoliabilityforapplicationsassistance,customerproductdesign,softwareperformance,orinfringementofpatents,services,orintellectualproperty
describedherein. Nolicense,eitherexpressorimplied,isgrantedunderanypatentright,copyright,orintellectualpropertyright,andLuminentmakesnorepresenta-
tionsorwarrantiesthattheproduct(s)describedhereinarefreefrompatent,copyright,orintellectualpropertyrights. ProductsdescribedinthisdocumentareNOT
intended for use in implantation or other life support applications where malfunction may result in injury or death to persons. Luminent customers using or selling
products for use in such applications do so at their own risk and agree to fully defend and indemnify Luminent for any damages resulting from such use or sale.
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS＂ BASIS. Customer agrees that Luminent is not liable for any actual,
consequential, exemplary, or other damages arising directly or indirectly from any use of the information contained in this document. Customer must contact Lumi-
nent to obtain the latest version of this publication to verify, before placing any order, that the information contained herein is current.
© Luminent, Inc. 2005
All rights reserved
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS805-DEC2805
rev. A.1
4
