LX8587A-33CDDT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LX8587A-33CDDT

LX8587A-33CDDT: DescriptionFixed Positive LDO Regulator, 3.3V, 1.2V Dropout, PSSO3, PLASTIC, TO-220, 3 PIN; CategoryPower/power management The power supply circuit; File Size638KB，8 Pages; ManufacturerLinfinity Microelectronics

Download Datasheet Parametric Compare View All

LX8587A-33CDDT Overview

Fixed Positive LDO Regulator, 3.3V, 1.2V Dropout, PSSO3, PLASTIC, TO-220, 3 PIN

LX8587A-33CDDT Parametric

Parameter Name	Attribute value
Maker	Linfinity Microelectronics
package instruction	PLASTIC, TO-220, 3 PIN
Reach Compliance Code	unknown
Maximum drop-back voltage 1	1.2 V
Maximum input voltage	4.75 V
JESD-30 code	R-PSSO-G3
Number of functions	1
Number of terminals	3
Working temperatureTJ-Max	150 °C
Maximum output current 1	3 A
Maximum output voltage 1	3.333 V
Minimum output voltage 1	3.267 V
Nominal output voltage 1	3.3 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
Base Number Matches	1

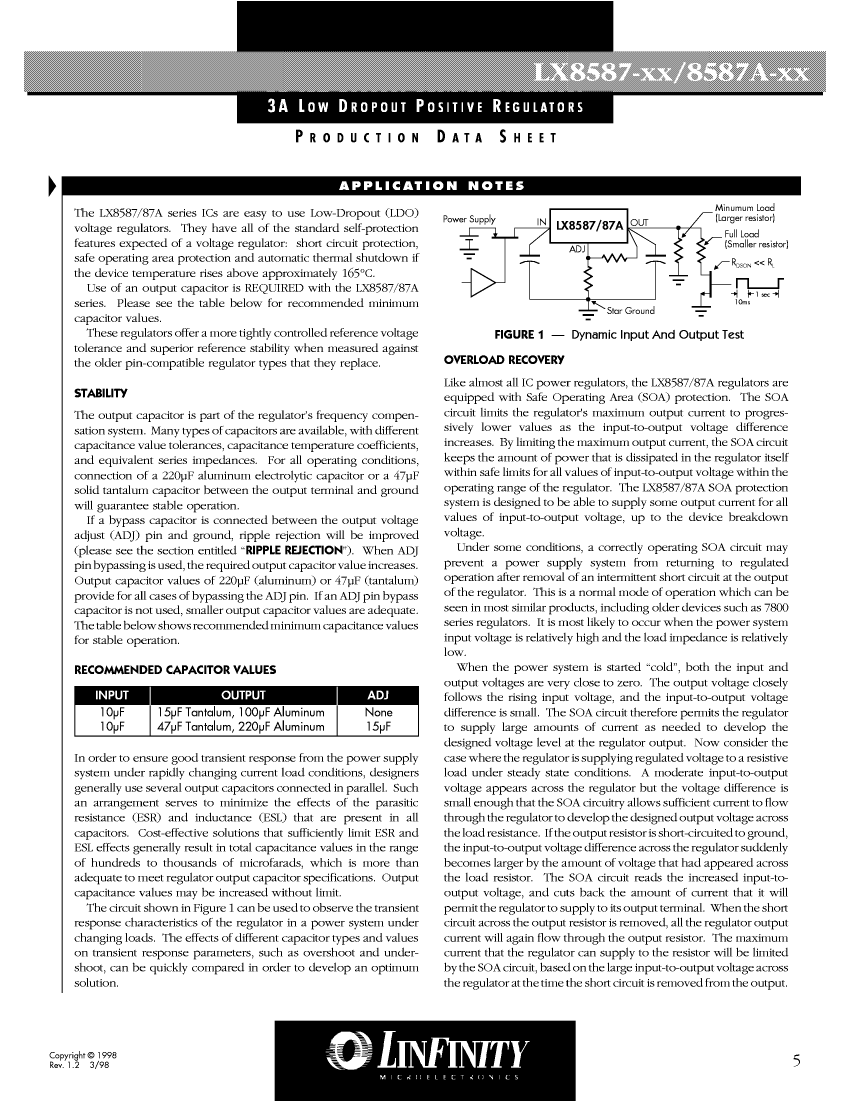

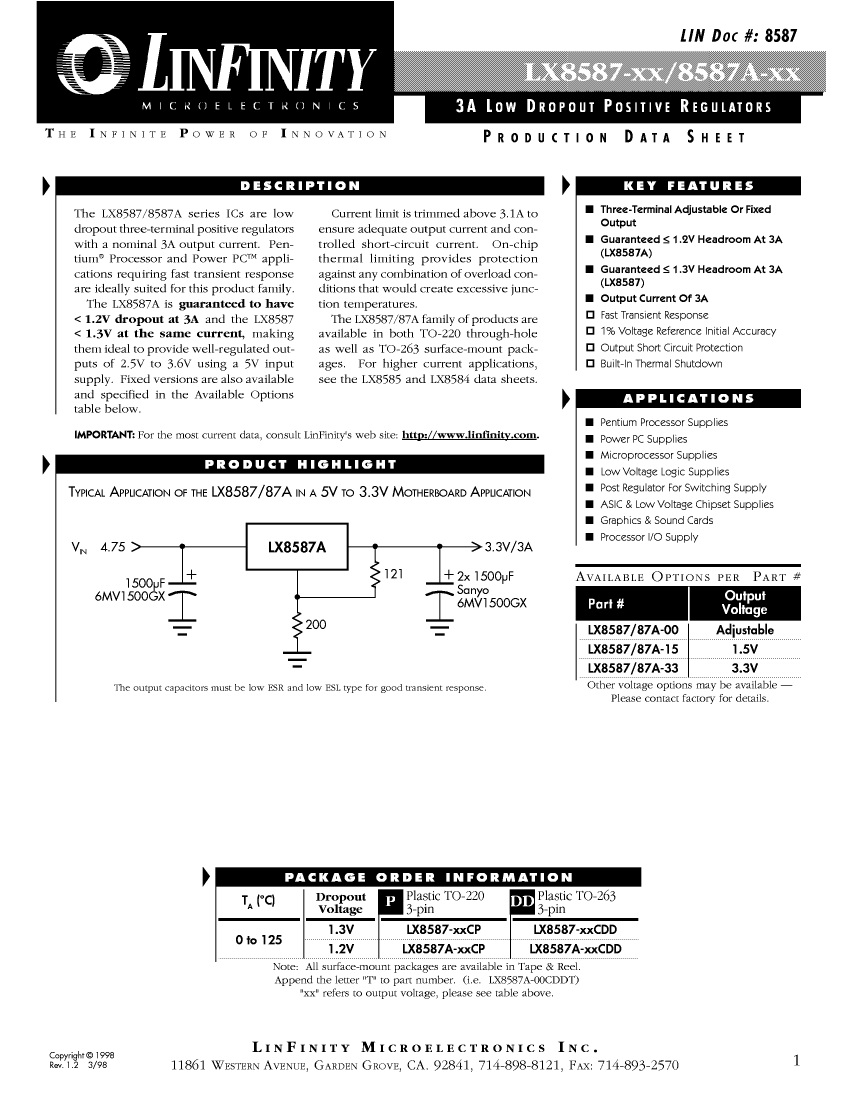

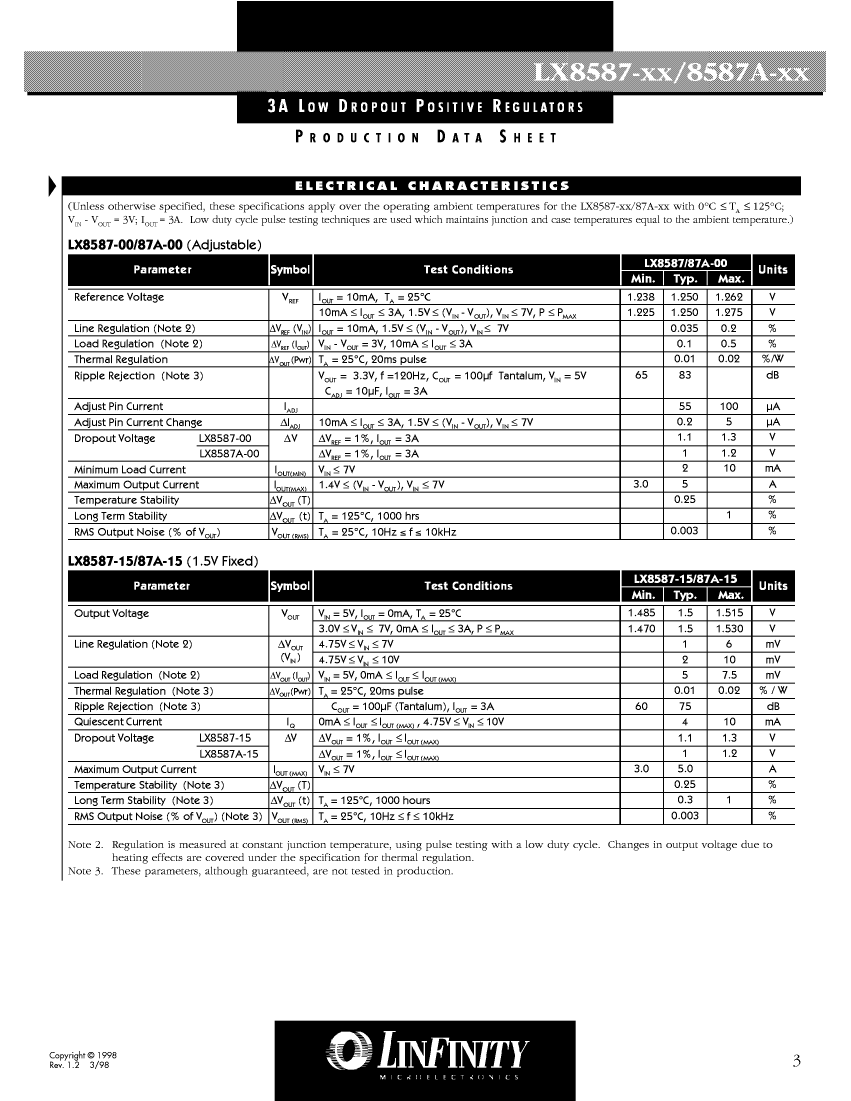

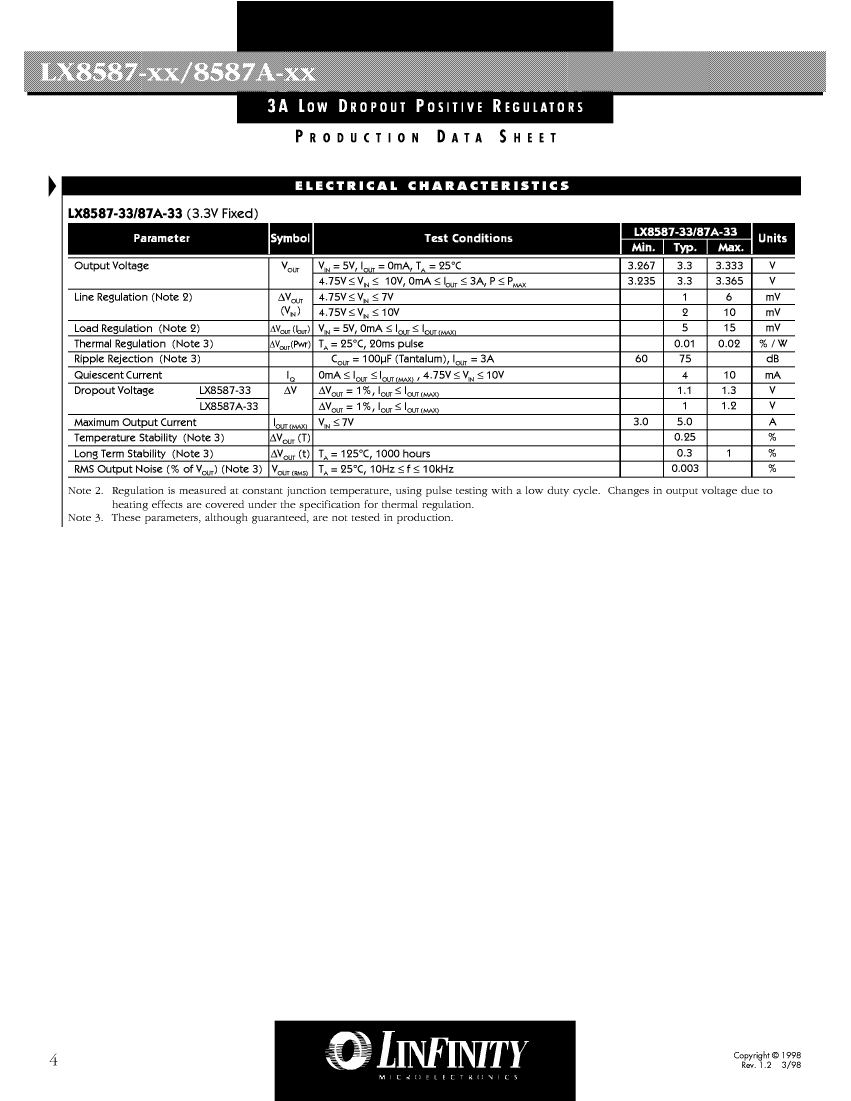

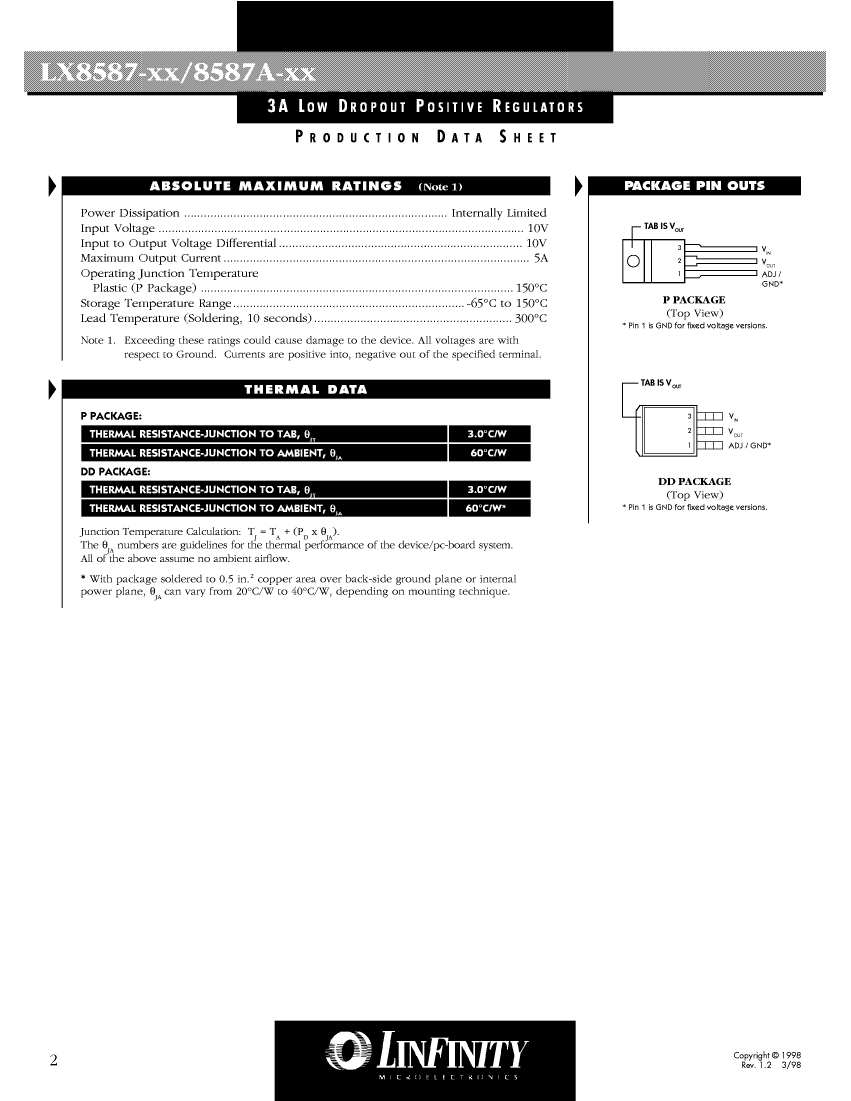

Preview

Download Datasheet

View All

LX8587A-33CDDT Related Products

	LX8587A-33CDDT	LX8587A-00CDDT	LX8587A-15CDDT	LX8587-33CDDT	LX8587-00CDDT	LX8587-15CDDT
Description	Fixed Positive LDO Regulator, 3.3V, 1.2V Dropout, PSSO3, PLASTIC, TO-220, 3 PIN	Adjustable Positive LDO Regulator, 2.5V Min, 3.6V Max, 1.2V Dropout, PSSO3, PLASTIC, TO-220, 3 PIN	Fixed Positive LDO Regulator, 1.5V, 1.2V Dropout, PSSO3, PLASTIC, TO-220, 3 PIN	Fixed Positive LDO Regulator, 3.3V, 1.3V Dropout, PSSO3, PLASTIC, TO-263, 3 PIN	Adjustable Positive LDO Regulator, 2.5V Min, 3.6V Max, 1.3V Dropout, PSSO3, PLASTIC, TO-263, 3 PIN	Fixed Positive LDO Regulator, 1.5V, 1.3V Dropout, PSSO3, PLASTIC, TO-263, 3 PIN
Maker	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics
package instruction	PLASTIC, TO-220, 3 PIN	PLASTIC, TO-220, 3 PIN	PLASTIC, TO-220, 3 PIN	PLASTIC, TO-263, 3 PIN	PLASTIC, TO-263, 3 PIN	PLASTIC, TO-263, 3 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum drop-back voltage 1	1.2 V	1.2 V	1.2 V	1.3 V	1.3 V	1.3 V
JESD-30 code	R-PSSO-G3	R-PSSO-G3	R-PSSO-G3	R-PSSO-G3	R-PSSO-G3	R-PSSO-G3
Number of functions	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Working temperatureTJ-Max	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current 1	3 A	3 A	3 A	3 A	3 A	3 A
Maximum output voltage 1	3.333 V	3.6 V	1.515 V	3.333 V	3.6 V	1.515 V
Minimum output voltage 1	3.267 V	2.5 V	1.485 V	3.267 V	2.5 V	1.485 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum input voltage	4.75 V	-	4.75 V	4.75 V	-	4.75 V
Nominal output voltage 1	3.3 V	-	1.5 V	3.3 V	-	1.5 V
