STLZ950/21-5.08-V-GREEN

Description
Strip Terminal Block, 15A, 1 Row(s), 1 Deck(s),
CategoryThe connector    terminals
File Size234KB，1 Pages
ManufacturerPTR Messtechnik GmbH & Co. KG
Download Datasheet Parametric Compare View All

STLZ950/21-5.08-V-GREEN Overview

Strip Terminal Block, 15A, 1 Row(s), 1 Deck(s),

STLZ950/21-5.08-V-GREEN Parametric

Parameter NameAttribute value
MakerPTR Messtechnik GmbH & Co. KG
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSTANDARD: UL 94V-0, PA66
Fastening methodCONNECTOR
Installation typeBOARD
Number of layers1
Rows1
Number of channels21
Rated current15 A
Rated voltage300 V
safety certificateUL
Terminal and terminal strip typesSTRIP TERMINAL BLOCK
Base Number Matches1

Preview

Download Datasheet

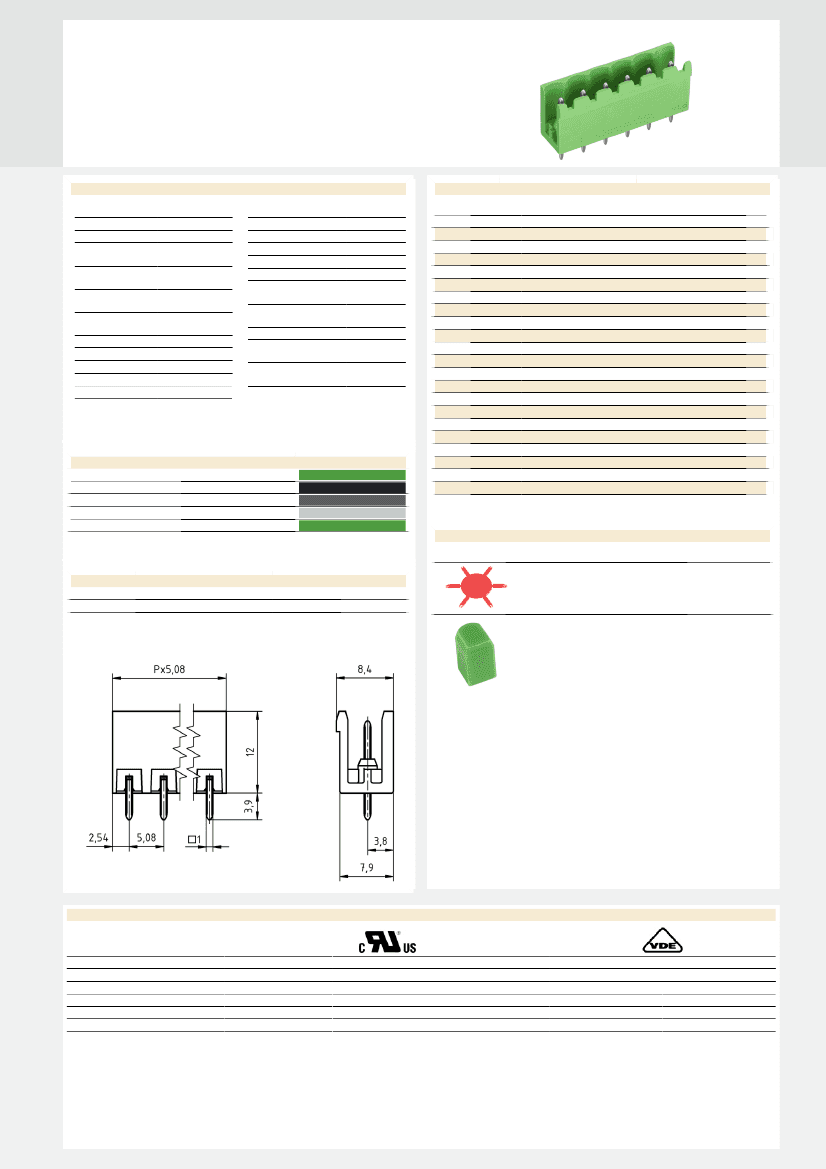

Pin strip |
Spacing 5.08 mm
STLZ950/..-5.08-V-GREEN
Technical Data
Wire Sizes
Solid min
solid max
Stranded (flexible)
min
Stranded (flexible)
max
-
-
-
-
Insulating Material
Material
Flammability Class
Temperatures
Operating Temperature
Wave Soldering Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Reflow Process
Soldering Temperature,
recommended
1.4 mm
Copper Alloy
Peak Soldering Time,
recommended
Leere Zeile
-
-
265 °C
3-4 s
-30 °C - 105 °C
PA 6.6
UL 94 V-0
Order Data (Spacing mm)
Poles
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Width (mm)
10.16
15.24
20.32
25.40
30.48
35.56
40.64
45.72
50.80
55.88
60.96
66.04
71.12
76.20
81.28
86.36
91.44
96.52
101.60
106.68
111.76
116.84
121.92
Article Designation
STLZ950/2-5.08-V-GREEN
STLZ950/3-5.08-V-GREEN
STLZ950/4-5.08-V-GREEN
STLZ950/5-5.08-V-GREEN
STLZ950/6-5.08-V-GREEN
STLZ950/7-5.08-V-GREEN
STLZ950/8-5.08-V-GREEN
STLZ950/9-5.08-V-GREEN
STLZ950/10-5.08-V-GREEN
STLZ950/11-5.08-V-GREEN
STLZ950/12-5.08-V-GREEN
STLZ950/13-5.08-V-GREEN
STLZ950/14-5.08-V-GREEN
STLZ950/15-5.08-V-GREEN
STLZ950/16-5.08-V-GREEN
STLZ950/17-5.08-V-GREEN
STLZ950/18-5.08-V-GREEN
STLZ950/19-5.08-V-GREEN
STLZ950/20-5.08-V-GREEN
STLZ950/21-5.08-V-GREEN
STLZ950/22-5.08-V-GREEN
STLZ950/23-5.08-V-GREEN
STLZ950/24-5.08-V-GREEN
Article Number
50950025131F
50950035131F
50950045131F
50950055131E
50950065131E
50950075131E
50950085131D
50950095131D
50950105131D
50950115131D
50950125131D
50950135131D
50950145131D
50950155131D
50950165131D
50950175131D
50950185131D
50950195131D
50950205131D
50950215131D
50950225131D
50950235131D
50950245131D
PU
200
200
200
100
100
100
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
Stranded with Ferrule -
min
Stranded with Ferrule -
max
Dimensions
Stripped Length
PCB Hole Diameter
Materials
Contact Pin
Colours
GREEN
BLACK
BASALT GREY
LIGHT GREY
LIGHT GREEN
21
RAL6018
RAL9011
RAL7012
RAL7035
similar RAL 6018
RAL6018
22
23
24
RAL9011
RAL7012
RAL7035
similar RAL 6018
Colours according to RAL, there may be variations on colour due to production conditions.
Special colours on request.
Accessories
Figure
Designation
Coding star CS2-5.0/5.08-RED
Article Number
50000000024
Counterparts (Spacing 5.08 mm)
Pin Strip/Terminal Blocks
AKZ950
STLZ950-INV AKZ4951
AKZ1200
AKZ1100
Dividing element SE-STL950-GREEN
50950000002
Ratings
Usegroup
Rated Voltage
Rated Current
Overvoltage Category
Test Voltage
Pollution Degree
B
300 V
15 A
1.6 kV
C
150 V
15 A
1.6 kV
D
300 V
10 A
1.6 kV
250 V
12 A
III
4.0 kV
3

STLZ950/21-5.08-V-GREEN Related Products

STLZ950/21-5.08-V-GREEN STLZ950/24-5.08-V-GREEN STLZ950/9-5.08-V-GREEN STLZ950/10-5.08-V-GREEN STLZ950/23-5.08-V-GREEN
Description Strip Terminal Block, 15A, 1 Row(s), 1 Deck(s), Strip Terminal Block, 15A, 1 Row(s), 1 Deck(s), Strip Terminal Block, 15A, 1 Row(s), 1 Deck(s), Strip Terminal Block, 15A, 1 Row(s), 1 Deck(s), Strip Terminal Block, 15A, 1 Row(s), 1 Deck(s),
Maker PTR Messtechnik GmbH & Co. KG PTR Messtechnik GmbH & Co. KG PTR Messtechnik GmbH & Co. KG PTR Messtechnik GmbH & Co. KG PTR Messtechnik GmbH & Co. KG
Reach Compliance Code compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99
Other features STANDARD: UL 94V-0, PA66 STANDARD: UL 94V-0, PA66 STANDARD: UL 94V-0, PA66 STANDARD: UL 94V-0, PA66 STANDARD: UL 94V-0, PA66
Fastening method CONNECTOR CONNECTOR CONNECTOR CONNECTOR CONNECTOR
Installation type BOARD BOARD BOARD BOARD BOARD
Number of layers 1 1 1 1 1
Rows 1 1 1 1 1
Number of channels 21 24 9 10 23
Rated current 15 A 15 A 15 A 15 A 15 A
Rated voltage 300 V 300 V 300 V 300 V 300 V
safety certificate UL UL UL UL UL
Terminal and terminal strip types STRIP TERMINAL BLOCK STRIP TERMINAL BLOCK STRIP TERMINAL BLOCK STRIP TERMINAL BLOCK STRIP TERMINAL BLOCK
Base Number Matches 1 1 1 1 1
