DC-04PMMP-SS7001 datasheet, PDF

Datasheet> All Categories > The connector> The connector> DC-04PMMP-SS7001

DC-04PMMP-SS7001: DescriptionCircular Connector,; CategoryThe connector The connector; File Size283KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

DC-04PMMP-SS7001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DC-04PMMP-SS7001	-	-	View	Buy Now

DC-04PMMP-SS7001 Overview

Circular Connector,

DC-04PMMP-SS7001 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Connector type	CIRCULAR CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

REV.

ECN NO.

LEN-810124

LEN1730317

LEN1840075

DATE

2007/11/07

2017/03/21

2018-04-14

SIGN

WUFEI

Vicky

Ethan

7.04

DESCRIPTION

Change sidestep

Update Logo

Modify Panel Thickness

24.40

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A

& Note

3.97

.10

0.1

23.2

24.40

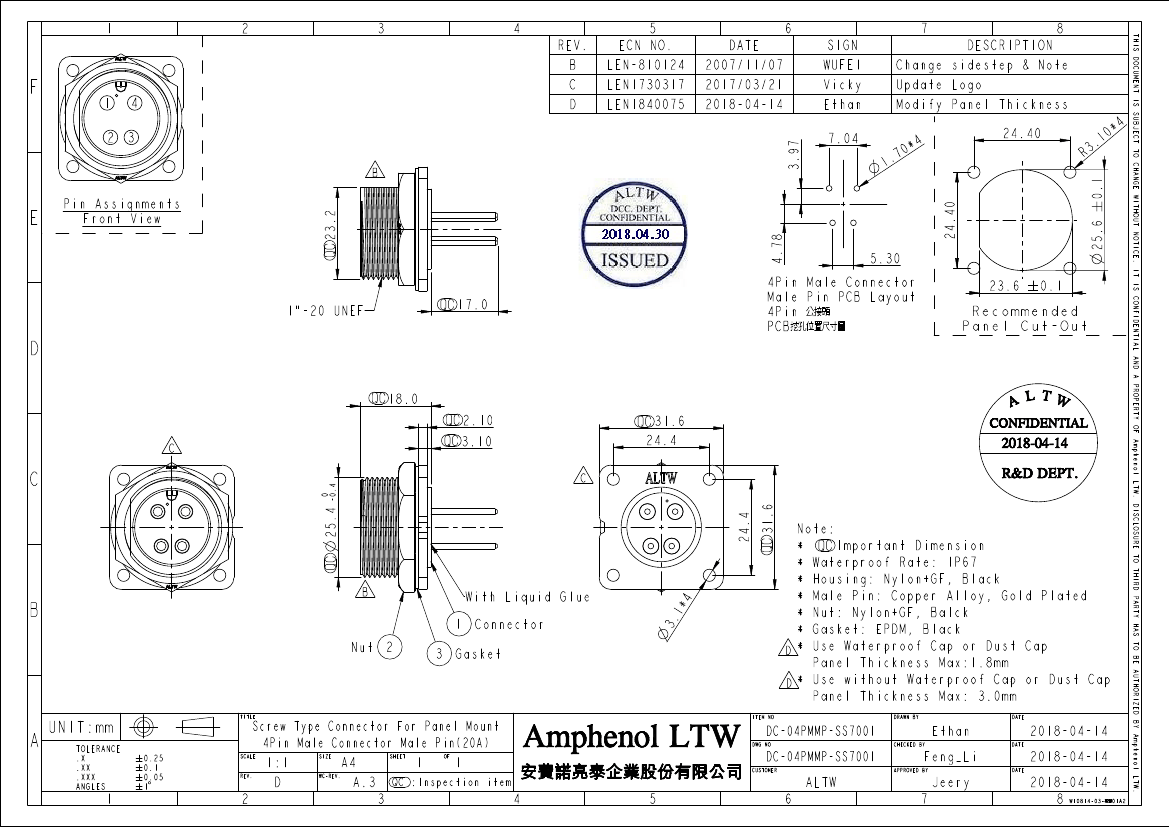

Pin Assignments

Front View

4.78

5.30

23.6

0.1

1"-20 UNEF

17.0

4Pin Male Connector

Male Pin PCB Layout

4Pin 公接頭

PCB挖孔½½尺寸圖

Recommended

Panel Cut-Out

18.0

2.10

3.10

25.6

PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY

31.6

CONFIDENTIAL

24.4

2018-04-14

R&D DEPT.

31.6

25.4

-0.4

24.4

Nut

Connector

Gasket

UNIT:mm

TOLERANCE

# 0.25

.XX

# 0.1

.XXX

# 0.05

ANGLES

# 1 $

TITLE

3.1

With Liquid Glue

Note:

* Important Dimension

* Waterproof Rate: IP67

* Housing: Nylon+GF, Black

* Male Pin: Copper Alloy, Gold Plated

* Nut: Nylon+GF, Balck

* Gasket: EPDM, Black

* Use Waterproof Cap or Dust Cap

Panel Thickness Max:1.8mm

* Use without Waterproof Cap or Dust Cap

Panel Thickness Max: 3.0mm

DRAWN BY

DATE

Screw Type Connector For Panel Mount

4Pin Male Connector Male Pin(20A)

1:1

SIZE

SCALE

A.3

SHEET

Amphenol LTW

ITEM NO

DC-04PMMP-SS7001

DWG NO

CHECKED BY

Ethan

DATE

2018-04-14

DATE

Amphenol LTW.

DC-04PMMP-SS7001

CUSTOMER

Feng_Li

APPROVED BY

REV.

WC-REV.

QC :Inspection item

ALTW

Jeery

2018-04-14

WI0814-03-表單01A2
