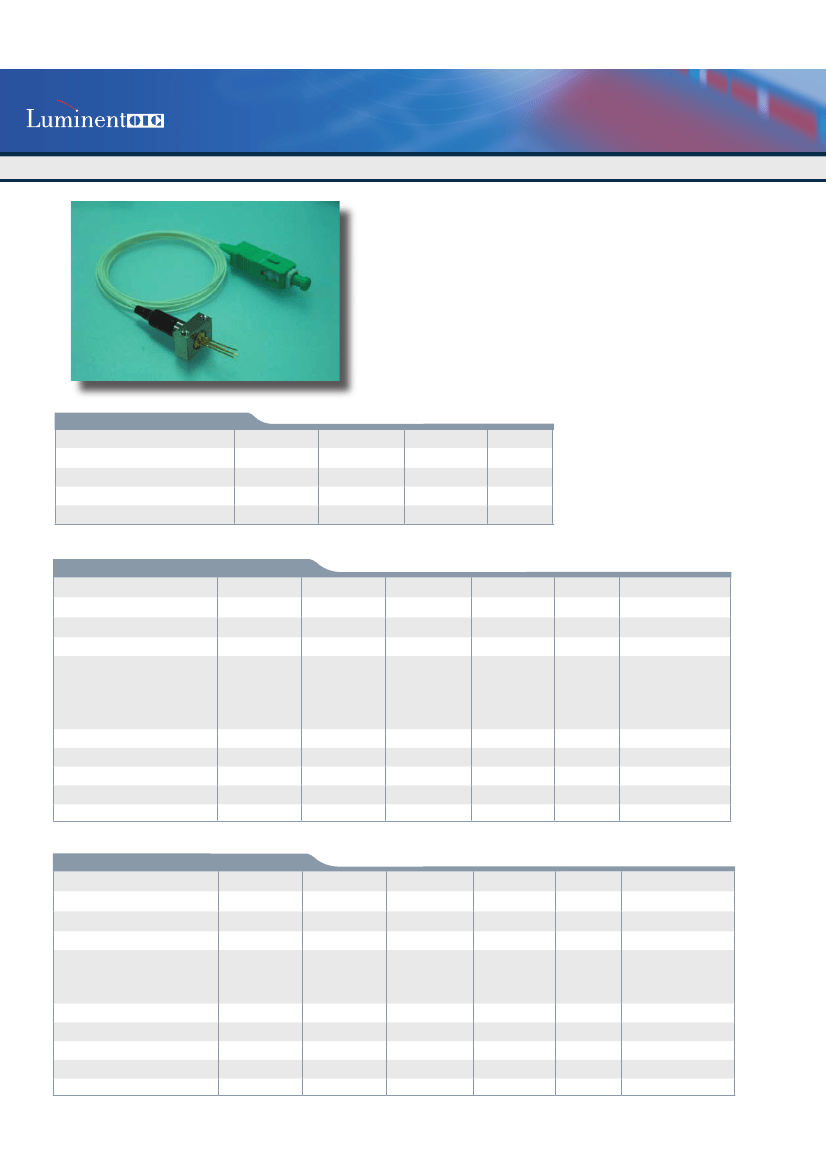

ELED Pigtailed Module
EDP-L-XXB-X-SXXX-XS-XX
Features
• 1300nm or 1550nm Wavelength
• High Optical Power
• High Operating Current
• High Operating Temperature
• Low Modal Noise
• Single mode fiber pigtailed with optional FC/ST/SC/without connector
• For Datacom or Measurement Applications
• RoHS Compliant available
Absolute Maximum Ratings (Tc=25ºC)
Parameter
Reverse Voltage
Forward Current
Operating Temperature
Storage Temperature
Symbol
V
r
I
f
T
opr
T
stg
Condition
CW
CW
-
-
Rating
2.5
150
-20 ~ 70
-40 ~ 85
Unit
V
mA
ºC
ºC
(All optical data refer to a coupled 9/125
µ
m SM fiber)
Optical and Electrical Characteristics 1300nm
Parameter
Wavelength
Spectral Width
Operating Current
Output Power
L
M
H
U
Spectral Ripple
Foward Voltage
Rise Time
Fall Time
Output Power Variation
Symbol
λ
∆λ
I
op
Min
1260
30
-
10
50
100
150
-
-
-
Typ
1300
-
80
-
-
-
-
-
1.2
1.5
2.5
10
Max
1340
70
100
-
-
-
-
10
2.0
-
-
-
Unit
nm
nm
mA
Test Conditions
CW
CW(FWHM)
CW
P
O
µW
CW at Iop=80mA
%
V
ns
ns
dB
λ±10nm
CW
Vf
T
r
T
f
-
-
25ºC to 70ºC
(All optical data refer to a coupled 9/125
µ
m SM fiber)
Optical and Electrical Characteristics 1550nm
Parameter
Wavelength
Spectral Width
Operating Current
Output Power
L
M
H
Spectral Ripple
Foward Voltage
Rise Time
Fall Time
Output Power Variation
LUMINENTOIC.COM
Symbol
λ
∆λ
I
op
P
O
Min
1510
45
-
10
20
30
-
-
-
Typ
1550
-
80
-
-
-
-
1.2
1.5
2.5
10
Max
1580
100
100
-
-
-
10
2.0
-
-
-
Unit
nm
nm
mA
µW
%
V
ns
ns
dB
Test Conditions
CW
CW(FWHM)
CW
CW at Iop=80mA
λ±10nm
CW
Vf
T
r
T
f
-
-
25ºC to 70ºC
LUMNDS702-APR2507
rev. A.3
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
1
ELED Pigtailed Module
EDP-L-XXB-X-SXXX-XS-XX

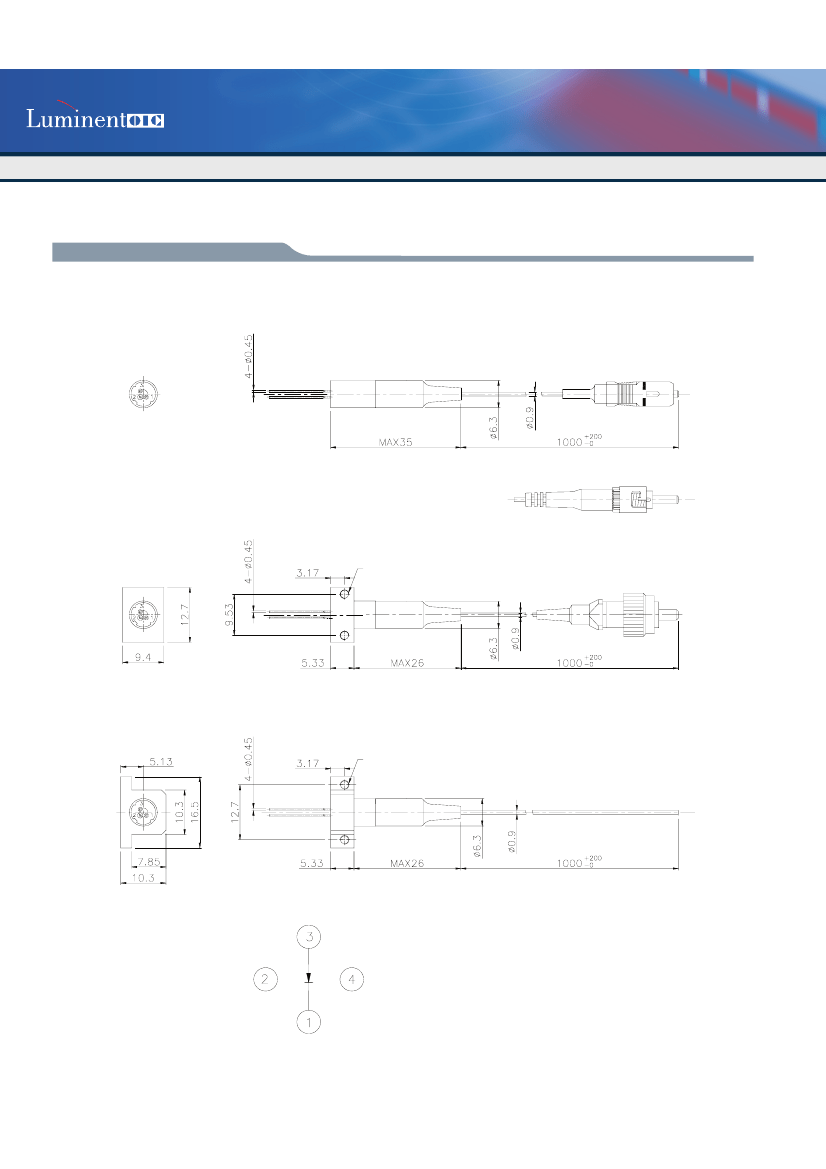

Pin Assignment
Units in mm.
Flange Type : N - NC package
SC:SC/PC
ST:ST/PC
Flange Type : C - SP package
Drill Thru and Tapped 2-56(2 Places)
FC:FC/PC
Flange Type : D - SPF package
Drill Thru and Tapped 2-56(2 Places)
NC: No Connector
CASE
ELED
Pin 1: ELED Cathode
Pin 2: Case
Pin 3: ELED Anode
Pin 4: NC
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS702-APR2507
rev. A.3
2
ELED Pigtailed Module
EDP-L-XXB-X-SXXX-XS-XX
Ordering Information
EDP-L-XXB-X-SXXX-XS-XX
EDP=ELED Pigtail
Family
30:1300nm
55:1550nm
Wavelength
Tolerance
Power
L/M/H/U
Connector
SC/FC/ST/LC/NC
Face
N=NC
P=PC
A=APC
Device
L=Long
B=+/- 40nm
Fiber
S=SM 900um
Package Option
N=NC
C=SP
D=SPF
Lenght
S: 100cm
-/G5/GR
Blank = RoHS non-compliant product
G5 = RoHS 5/6-compliant product (lead exemption)
GR = Full RoHS compliant product (no exemption)
RoHS Compliant
Warnings
Handling Precautions:
This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment
is highly recommended. Follow guidelines according to proper ESD procedures.
Laser Safety:
Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.
Legal Notice
IMPORTANT NOTICE!
All information contained in this document is subject to change without notice, at Luminent＇s sole and absolute discretion.
Luminent warrants performance of its products to current specifications only in accordance with the company＇s standard one-year war-
ranty; however, specifications designated as “preliminary＂ are given to describe components only, and Luminent expressly disclaims
any and all warranties for said products, including express, implied, and statutory warranties, warranties of merchantability, fit-
ness for a particular purpose, and non-infringement of proprietary rights. Please refer to the company＇s Terms and Conditions of
Sale for further warranty information.
Luminent assumes no liability for applications assistance, customer product design, software performance, or infringement of pat-
ents, services, or intellectual property described herein. No license, either express or implied, is granted under any patent right,
copyright, or intellectual property right, and Luminent makes no representations or warranties that the product(s) described herein
are free from patent, copyright, or intellectual property rights. Products described in this document are NOT intended for use in
implantation or other life support applications where malfunction may result in injury or death to persons. Luminent customers using
or selling products for use in such applications do so at their own risk and agree to fully defend and indemnify Luminent for any
damages resulting from such use or sale.
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS＂ BASIS. Customer agrees that Luminent is not liable for any
actual, consequential, exemplary, or other damages arising directly or indirectly from any use of the information contained in this
document. Customer must contact Luminent to obtain the latest version of this publication to verify, before placing any order, that
the information contained herein is current.
© LuminentOIC, Inc. 2007
All rights reserved
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
LUMNDS702-APR2507
rev. A.3
3
