B84111-A-K60 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> B84111-A-K60

B84111-A-K60: Description250V, 50/60Hz, SINGLE PHASE EMI FILTER; CategoryAnalog mixed-signal IC filter; File Size132KB，7 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

B84111-A-K60 Overview

250V, 50/60Hz, SINGLE PHASE EMI FILTER

B84111-A-K60 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EPCOS (TDK)
Reach Compliance Code	compliant
Certification	UL; CSA; VDE
filter type	SINGLE PHASE EMI FILTER
high	32 mm
high potential	2700 V
Maximum leakage current	0.5 mA
length	63.5 mm
Manufacturer's serial number	SIFI-A
Installation type	PANEL MOUNT
working frequency	50/60Hz Hz
physical size	L63.5XB51XH32 (mm)
Rated current	6 A
Rated voltage	250 V
Base Number Matches	1

Preview

Download Datasheet

View All

2-Line Filters

SIFI-A Series

SIFI-A for normal insertion loss

Rated voltage 250 V~, 50/60 Hz

Rated current 1 A to 20 A

Construction

Two-line filter

Metal case

Polyurethane potting (UL 94 V-0)

B84111

Features

Compact design

Low leakage current

All relevant approvals

Cost-optimized construction

Also for assembly on top-hat rails

Applications

Switch-mode power supplies in

– industrial electronics

– telecommunications

– data systems

– medical engineering

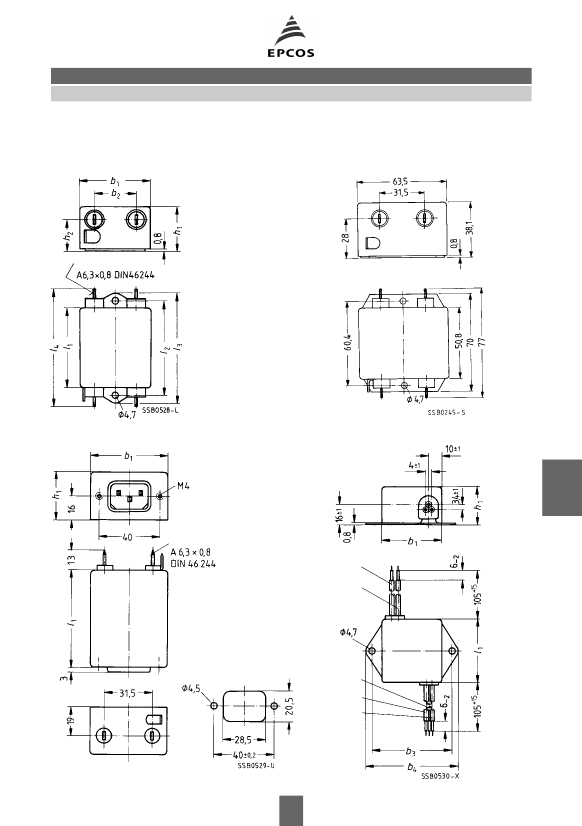

Case styles and terminal styles

Case style A

Case style B

Case style K

Case style L

Marking

Marking on component:

Manufacturer’s logo, ordering code,

rated voltage, rated current,

date code

Minimum marking on packaging:

Manufacturer’s logo, ordering code

Tab connectors on face ends, lateral mounting tabs.

Particularly suitable for mounting on a shielding wall.

Tab connectors on face ends, mounting tabs on face ends.

IEC connector as per IEC 60320 C 14 on line side,

tab connectors on load side, mounting holes with metric thread.

Litz wires on face ends

141

03/01

B84111-A-K60 Related Products

	B84111-A-K60	B84111-A-K30
Description	250V, 50/60Hz, SINGLE PHASE EMI FILTER	250V, 50/60Hz, SINGLE PHASE EMI FILTER
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	EPCOS (TDK)	EPCOS (TDK)
Reach Compliance Code	compliant	compliant
Certification	UL; CSA; VDE	UL; CSA; VDE
filter type	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER
high	32 mm	32 mm
high potential	2700 V	2700 V
Maximum leakage current	0.5 mA	0.5 mA
length	63.5 mm	63.5 mm
Manufacturer's serial number	SIFI-A	SIFI-A
Installation type	PANEL MOUNT	PANEL MOUNT
working frequency	50/60Hz Hz	50/60Hz Hz
physical size	L63.5XB51XH32 (mm)	L63.5XB51XH32 (mm)
Rated current	6 A	3 A
Rated voltage	250 V	250 V
Base Number Matches	1	1
