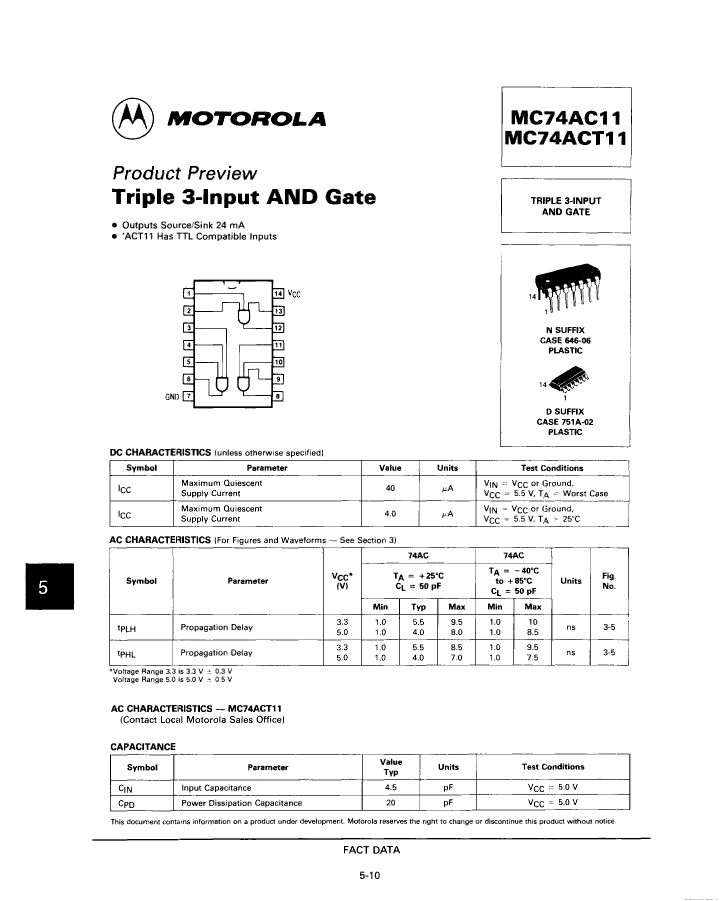

AC SERIES, TRIPLE 3-INPUT AND GATE, PDSO14, PLASTIC, SOIC-14
| Parameter Name | Attribute value |
| Maker | Motorola ( NXP ) |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| series | AC |
| JESD-30 code | R-PDSO-G14 |
| length | 8.65 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | AND GATE |
| Number of functions | 3 |
| Number of entries | 3 |
| Number of terminals | 14 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| propagation delay (tpd) | 7.5 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| Maximum supply voltage (Vsup) | 6 V |
| Minimum supply voltage (Vsup) | 2 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| width | 3.9 mm |
| Base Number Matches | 1 |
| MC74AC11DC | MC74AC11DCR1 | MC74ACT11DC | MC74ACT11DCR1 | MC74AC11NC | MC74ACT11NC | |
|---|---|---|---|---|---|---|
| Description | AC SERIES, TRIPLE 3-INPUT AND GATE, PDSO14, PLASTIC, SOIC-14 | AC SERIES, TRIPLE 3-INPUT AND GATE, PDSO14, PLASTIC, SOIC-14 | ACT SERIES, TRIPLE 3-INPUT AND GATE, PDSO14, PLASTIC, SOIC-14 | ACT SERIES, TRIPLE 3-INPUT AND GATE, PDSO14, PLASTIC, SOIC-14 | AND Gate, AC Series, 3-Func, 3-Input, CMOS, PDIP14, PLASTIC, DIP-14 | ACT SERIES, TRIPLE 3-INPUT AND GATE, PDIP14, PLASTIC, DIP-14 |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| package instruction | SOP, | SOP, | SOP, | SOP, | PLASTIC, DIP-14 | DIP, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| series | AC | AC | ACT | ACT | AC | ACT |
| JESD-30 code | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 | R-PDIP-T14 | R-PDIP-T14 |
| length | 8.65 mm | 8.65 mm | 8.65 mm | 8.65 mm | 18.86 mm | 18.86 mm |
| Logic integrated circuit type | AND GATE | AND GATE | AND GATE | AND GATE | AND GATE | AND GATE |
| Number of functions | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of entries | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of terminals | 14 | 14 | 14 | 14 | 14 | 14 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | SOP | SOP | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.75 mm | 1.75 mm | 1.75 mm | 1.75 mm | 4.69 mm | 4.69 mm |
| Maximum supply voltage (Vsup) | 6 V | 6 V | 6 V | 6 V | 6 V | 6 V |
| Minimum supply voltage (Vsup) | 2 V | 2 V | 2 V | 2 V | 2 V | 2 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| width | 3.9 mm | 3.9 mm | 3.9 mm | 3.9 mm | 7.62 mm | 7.62 mm |
| Parts packaging code | SOIC | SOIC | SOIC | SOIC | - | DIP |
| Contacts | 14 | 14 | 14 | 14 | - | 14 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - |
