Data and signal line chokes
Common-mode chokes, ring core
0.005 … 4.7 mH, 200 … 1000 mA, +60 °C
Series/Type:
Date:
B82790C0/S0
January 2017
a~í~=pÜÉÉí
EPCOS AG 2017. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS’ prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
Data and signal line chokes
Common-mode chokes, ring core
Rated voltage 42 V AC/80 V DC
Rated inductance 0.005 ... 4.7 mH
Rated current 200 ... 1000 mA
Construction
■
■
■
■
■
B82790C0/S0
Current-compensated ring core double choke
Ferrite core
PPS case (UL 94 V-0)
Bifilar winding (B82790C0)
Sector winding (B82790S0)
Features
■
Suitable for reflow soldering
■
Qualified to AEC-Q200
■
RoHS-compatible
Function
■
B82790C0:
Suppression of asymmetrical interference coupled in on lines,
whereas data signals up to some MHz can pass unaffectedly.
■
B82790S0:
Suppression of asymmetrical and symmetrical interference (by L
stray
)
coupled in on lines. The high-frequency portions of the symmetrical
data signal are decreased so far that EMC problems can be significantly reduced.
Applications
■
Automotive applications, e.g. CAN bus
■
Industrial applications
Terminals
■
Base material CuSn6
■
Layer composition Ni, Sn
■
Electro-plated
Marking
■
Marking on component: Manufacturer, process location (coded),
winding method (coded), ordering code (short form),
date of manufacture (YMMD)
■
Minimum data on reel: Manufacturer, ordering code,
L value and tolerance, quantity, date of packing
Delivery mode and packing unit
■
16-mm blister tape, wound on 330-mm
■
Packing unit: 1500 pcs./reel
reel
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
01/17
Data and signal line chokes
Common-mode chokes, ring core

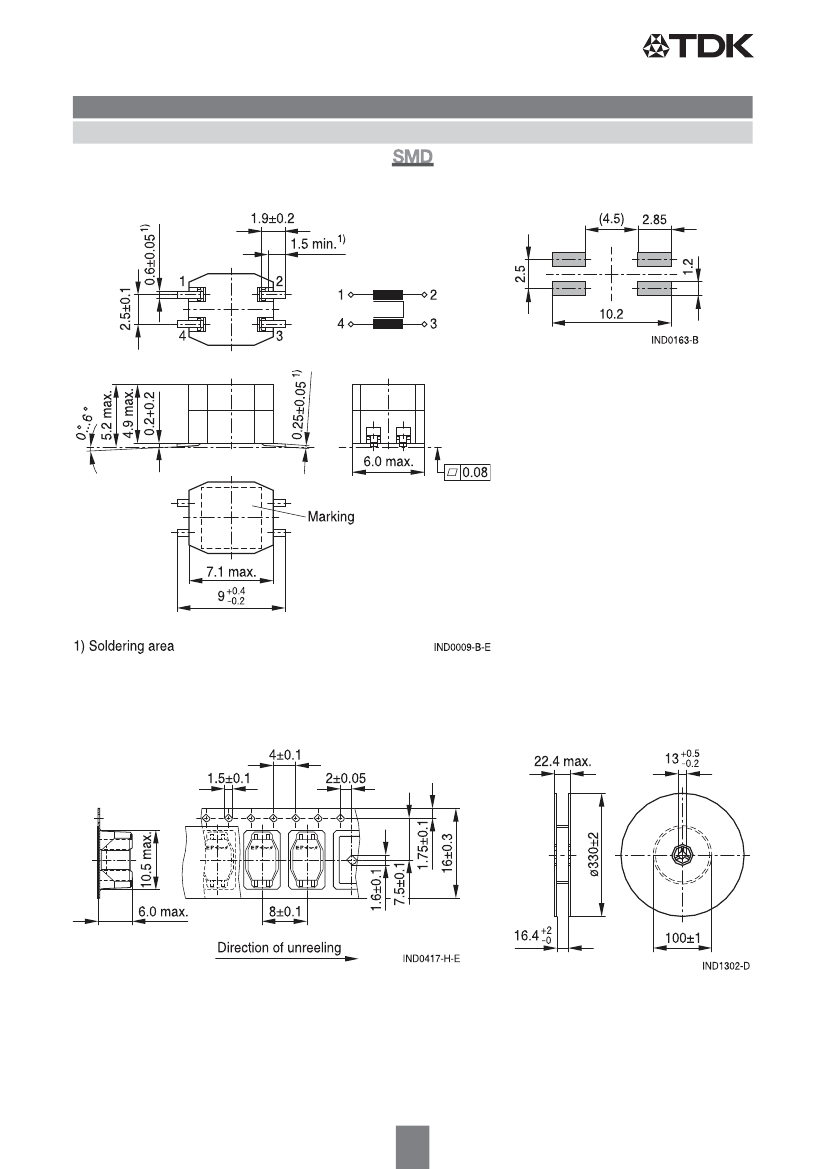

Dimensional drawing and pin configuration
B82790C0/S0
Layout recommendation
No polarity
Dimensions in mm
Taping and packing
Blister tape
Reel
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
01/17
Data and signal line chokes
Common-mode chokes, ring core
Technical data and measuring conditions
Rated voltage V
R
Rated temperature T
R
Rated current I
R
Rated inductance L
R
42 V AC (50/60 Hz) / 80 V DC
+60 °C
B82790C0/S0
Referred to 50 Hz and rated temperature
Measured with Agilent 4284A at 0.1 mA, +20 °C
Measuring frequency: L
R
1 mH = 100 kHz
L
R
1 mH = 10 kHz
Inductance is specified per winding.
30% (L
R
0.47 mH), –30/+50% (L
R
1 mH) at +20 °C
< 10% at DC magnetic bias with I
R
, +20 C
Measured with Agilent 4284A at 5 mA, +20 °C, typ. values
Measuring frequency: L
R
11 H = 1 MHz
L
R
> 11 H = 100 kHz
Inductance tolerance
Inductance decrease L/L
0
Stray inductance L
stray,typ
DC resistance R
typ
Solderability
Measured at +20 C, typical values, specified per winding
SnPb:
+(215 3) °C, (3 0.3) s
Sn96.5Ag3.0Cu0.5: +(245 5) °C, (3 0.3) s
Wetting of soldering area 95%
(to IEC 60068-2-58)
+(260 5) °C, (10 1) s (to IEC 60068-2-58)
40/125/56 (to IEC 60068-1)
–25 °C … +40 °C,
Approx. 0.3 g
75% RH
Resistance to soldering heat
Climatic category
Storage conditions (packaged)
Weight
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
01/17
Data and signal line chokes
Common-mode chokes, ring core
Characteristics and ordering codes
L
R
mH
0.005
0.011
0.025
0.025
0.051
0.051
0.470
1.0
2.2
4.7
L
stray,typ
nH
40
50
60
1400
70
2100
100
100
200
300
I
R
mA
1000
500
500
500
500
500
500
500
400
200
R
typ
m
60
80
110
110
140
140
170
170
400
510
V
test
V DC, 2 s
250
250
250
250
250
250
250
250
250
250
B82790C0/S0
Ordering code
B82790C0502N201
B82790C0113N201
B82790C0253N201
B82790S0253N201
B82790C0513N201
B82790S0513N201
B82790C0474N215
B82790C0105N240
B82790C0225N265
B82790C0475N265
Types with L
R
0.47 mH:
750 V DC possible for soldering process with Pb containing solder material.
For lead-free soldering please use series B82793.
