5910226X9020U2W datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 5910226X9020U2W

5910226X9020U2W: DescriptionCAPACITOR, TANTALUM, SOLID, POLARIZED, 20 V, 22 uF, SURFACE MOUNT, 2813, CHIP; CategoryPassive components capacitor; File Size99KB，10 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

5910226X9020U2W Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 20 V, 22 uF, SURFACE MOUNT, 2813, CHIP

5910226X9020U2W Parametric

Parameter Name	Attribute value
package instruction	, 2813
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	22 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
JESD-609 code	e0
leakage current	0.0044 mA
Manufacturer's serial number	591D
Installation features	SURFACE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, EMBOSSED PLASTIC, 13 INCH
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	20 V
ripple current	540 mA
size code	2813
surface mount	YES
Delta tangent	0.06
Terminal surface	TIN LEAD
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

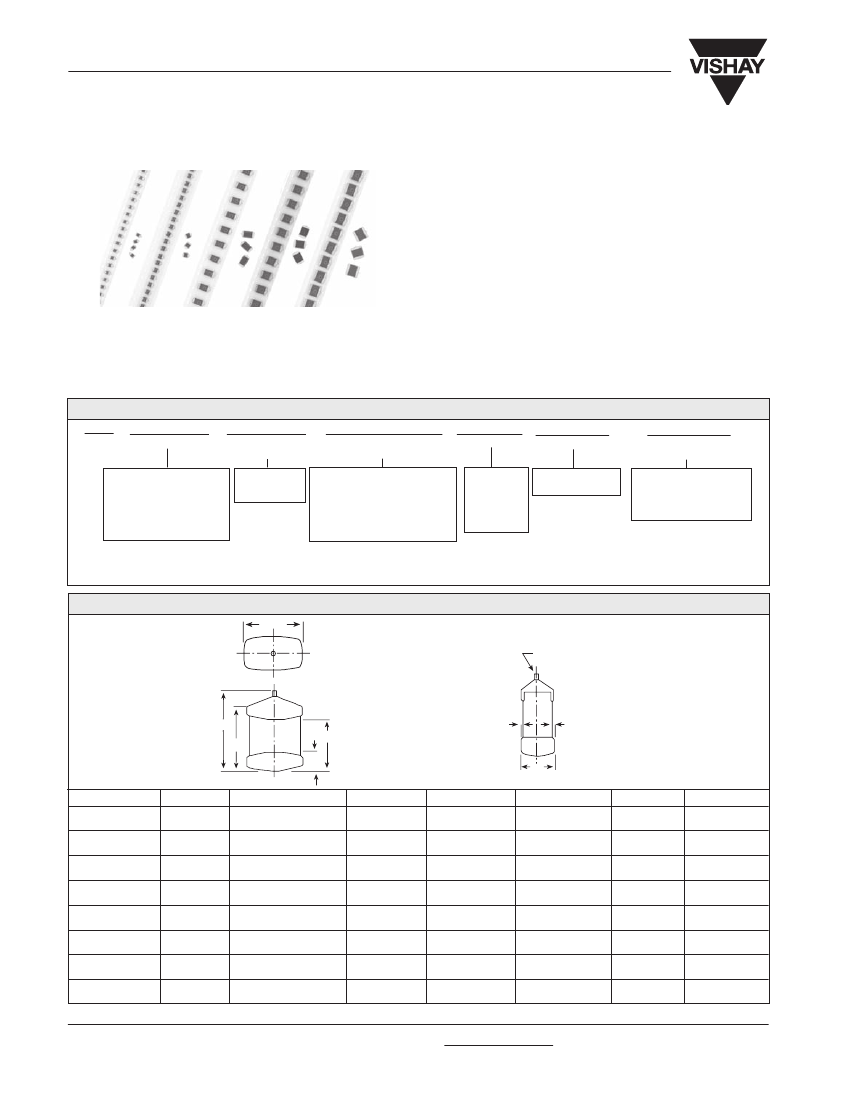

591D

Vishay Sprague

Solid Tantalum Chip Capacitors

ANTAMOUNT

, Low Profile, Low ESR, Conformal Coated, Maximum CV

FEATURES

•

New case size offerings.

1.2mm to 2mm height

Terminations: Lead (Pb)-free (2) standard.

Very low ESR

8mm, 12mm tape and reel packaging available per EIA-

481-1 and reeling per IEC 286-3. 7” [178mm] standard.

13” [330mm] available.

•

Footprint compatible with EIA 535BAAC and

CECC 30801 molded chips.

PERFORMANCE CHARACTERISTICS

Operating Temperature:

- 55°C to + 85°C. (To + 125°C

with voltage derating.)

Capacitance Range:

1µF to 1000µF

Capacitance Tolerance:

±10%, ±20%

standard.

Voltage Rating:

4WVDC to 10WVDC, (16WVDC,

20WVDC, and 25WVDC under development)

CASE CODE

See

Ratings

and Case

Codes

Table.

TERMINATION

2 = Solderable

Coating.

REEL SIZE AND

PACKAGING

T = Tape and Reel

7" [178mm] Reel

W = 13” [330mm]

Reel

ORDERING INFORMATION

591D

TYPE

477

CAPACITANCE

TOLERANCE

X0 =

20%

X9 =

10%

6R3

DC VOLTAGE RATING

@ + 85°C

This is expressed in volts.

To complete the three-digit

block, zeros precede the

voltage rating. A decimal

point is indicated by an "R"

(6R3 = 6.3 volts).

This is expressed in

picofarads. The first

two digits are the

significant figures. The

third is the number of

zeros to follow.

Note:

Preferred Tolerance and reel sizes are in bold.

We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size. Voltage

substitutions will be marked with the higher voltage rating

DIMENSIONS

in inches [millimeters]

Note:

U, V and W are similar to C, D and R footprint (592D) with a 2mm height

Tantalum Wire

Nib Identifies

Anode (+)

Terminal

L (MAX.)

0.147

0.072

0.012

0.047

0.012

0.031

0.012

[3.7]

[1.8

0.3]

[1.2

0.3]

[0.80

0.30]

0.159

0.110 + 0.012 - 0.016 0.047

0.012

0.031

0.012

[4.0]

[2.8 + 0.3 - 0.4]

[1.2

0.3]

[0.80

0.30]

0.282

0.126

0.012

0.047

0.012

0.051

0.012

[7.1]

[3.2

0.3]

[1.2

0.3]

[1.3

0.3]

0.298

0.170

0.012

0.047

0.012

0.051

0.012

[7.5]

[4.3

0.3]

[1.2

0.3]

[1.3

0.3]

0.286

0.235

0.012

0.047

0.012

0.051

0.012

[7.2]

[6.0

0.3]

[1.2

0.3]

[1.3

0.3]

0.282

0.126

0.012

0.079

0.051

0.012

[7.1]

[3.2

0.3]

[2.0] Max.

[1.3

0.3]

0.298

0.170

0.012

0.079

0.051

0.012

[7.5]

[4.3

0.3]

[2.0] Max.

[1.3

0.3]

0.286

0.235

0.012

0.079

0.051

0.012

[7.2]

[6.0

0.3]

[2.0] Max.

[1.3

0.3]

Note:

The anode termination (D less B) will be a minimum of .012" [0.3mm].

www.vishay.com

CASE CODE

0.085

0.016

[2.2

0.4]

0.097

0.016

[2.5

0.4]

0.180

0.024

[4.6

0.6]

0.180

0.024

[4.6

0.6]

0.180

0.024

[4.6

0.6]

0.180

0.024

[4.6

0.6]

0.180

0.024

[4.6

0.6]

0.180

0.024

[4.6

0.6]

D (REF.)

0.115

[2.9]

0.127

[3.2]

0.238

[6.0]

0.254

[6.4]

0.246

[6.2]

0.238

[6.0]

0.254

[6.4]

0.246

[6.2]

J (MAX.)

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

For technical questions, contact tantalum@vishay.com

Document Number 40012

Revision 12-Aug-03

5910226X9020U2W Related Products

	5910226X9020U2W	5910226X9020U2T	5910226X0020U2W	591D156X9016B2T	591D156X9016B2W
Description	CAPACITOR, TANTALUM, SOLID, POLARIZED, 20 V, 22 uF, SURFACE MOUNT, 2813, CHIP	CAPACITOR, TANTALUM, SOLID, POLARIZED, 20 V, 22 uF, SURFACE MOUNT, 2813, CHIP	CAPACITOR, TANTALUM, SOLID, POLARIZED, 20 V, 22 uF, SURFACE MOUNT, 2813, CHIP	CAPACITOR, TANTALUM, SOLID, POLARIZED, 16V, 15uF, SURFACE MOUNT, 1611, CHIP	CAPACITOR, TANTALUM, SOLID, POLARIZED, 16V, 15uF, SURFACE MOUNT, 1611, CHIP
package instruction	, 2813	, 2813	, 2813	, 1611	, 1611
Reach Compliance Code	unknow	unknow	unknow	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	22 µF	22 µF	22 µF	15 µF	15 µF
Capacitor type	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)
JESD-609 code	e0	e0	e0	e3	e3
leakage current	0.0044 mA	0.0044 mA	0.0044 mA	0.0024 mA	0.0024 mA
Manufacturer's serial number	591D	591D	591D	591D	591D
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	10%	10%	20%	10%	10%
Number of terminals	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR, EMBOSSED PLASTIC, 13 INCH	TR, EMBOSSED PLASTIC, 7 INCH	TR, EMBOSSED PLASTIC, 13 INCH	TR, EMBOSSED PLASTIC, 7 INCH	TR, EMBOSSED PLASTIC, 13 INCH
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	10%	10%	20%	10%	10%
Rated (DC) voltage (URdc)	20 V	20 V	20 V	16 V	16 V
ripple current	540 mA	540 mA	540 mA	340 mA	340 mA
size code	2813	2813	2813	1611	1611
surface mount	YES	YES	YES	YES	YES
Delta tangent	0.06	0.06	0.06	0.06	0.06
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Base Number Matches	1	1	1	-	-
