ATT-0294-16-HEX-02 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ATT-0294-16-HEX-02

ATT-0294-16-HEX-02: DescriptionRF/Microwave Attenuator, 0 MHz - 2000 MHz RF/MICROWAVE FIXED ATTENUATOR, STAINLESS STEEL; CategoryWireless rf/communication Radio frequency and microwave; File Size291KB，9 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

ATT-0294-16-HEX-02 Overview

RF/Microwave Attenuator, 0 MHz - 2000 MHz RF/MICROWAVE FIXED ATTENUATOR, STAINLESS STEEL

ATT-0294-16-HEX-02 Parametric

Parameter Name	Attribute value
Maker	Artysen Embedded Technologies
Reach Compliance Code	unknown
Other features	SMA-F; SMA-M
Nominal attenuation	16 dB
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	2000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.1
Base Number Matches	1

Preview

Download Datasheet

View All

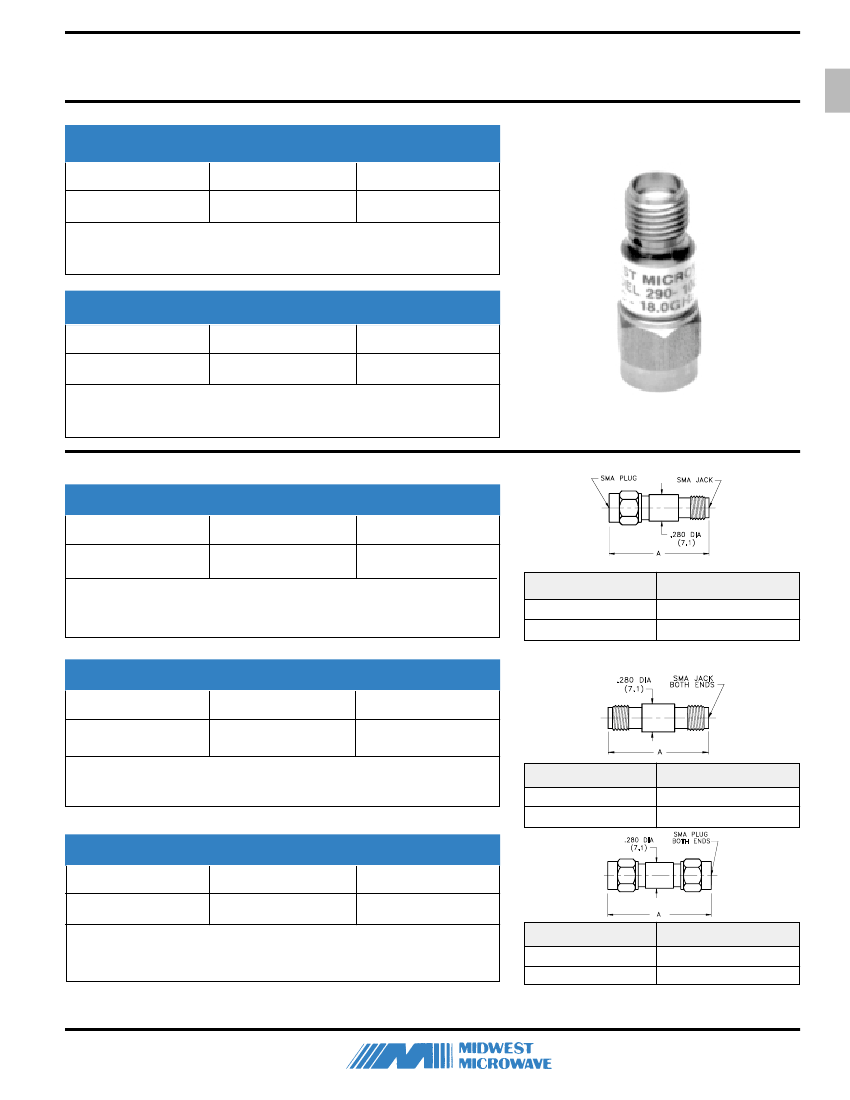

Attenuators

DC - 8.0 GHz

Male/Female

292 Series

Female/Female

ATT-0292-XX-SMA-02 ATT-292F-XX-SMA-02

SMA Subminiature "MINIPAD"

Model Numbers

Male/Male

ATT-292M-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

(.5 dB increments available)

HIGH PERFORMANCE

DC - 2.0 GHz

Male/Female

ATT-0294-XX-SMA-02

294 Series

Female/Female

ATT-294F-XX-SMA-02

Model Numbers

Male/Male

ATT-294M-XX-SMA-02

HIGH PERFORMANCE

XX = Attenuation Value: Select 01-30dB in 1dB increments

(.5 dB increments available)

LOW VSWR

Type II High Performance Attenuators

DC - 18.0 GHz

Male/Female

451 Series

Female/Female

Model Numbers

Male/Male

ATT-451M-XX-SMA-02

Attenuation Value

1-12 dB

13-30 dB

Length A

0.86

1.02

ATT-0451-XX-SMA-02 ATT-451F-XX-SMA-02

XX = Attenuation Value: Select 01-30dB in 1dB increments

LOW VSWR -

see improved performance specifications on page 10.

DC - 12.4 GHz

Male/Female

ATT-0452-XX-SMA-02

452 Series Model Numbers

Female/Female

ATT-452F-XX-SMA-02

Male/Male

ATT-452M-XX-SMA-02

Attenuation Value

1-12 dB

13-30 dB

Length A

0.90

1.03

XX = Attenuation Value: Select 01-30dB in 1dB increments

LOW VSWR -

see improved performance specifications on page 10.

DC - 4.0 GHz

Male/Female

ATT-0454-XX-SMA-02

454 Series Model Numbers

Female/Female

ATT-454F-XX-SMA-02

Male/Male

ATT-454M-XX-SMA-02

Attenuation Value

1-12 dB

13-30 dB

Length A

0.98

1.12

XX = Attenuation Value: Select 01-30dB in 1dB increments

LOW VSWR

see improved performance specifications on page 10.

Notes:

1. Low VSWR Models are available in Hex Body - Designate by subsituting "HEX" for "SMA" in Model No.

2. U.S. Patent No. 3,824,506 applies to all "MINIPAD"

Fixed Attenuators
