591D107X06W3C4T15H

Description
CAPACITOR, TANTALUM, SOLID, POLARIZED, 6.3 V, 100 uF, SURFACE MOUNT, 2813, CHIP, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size102KB,8 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

591D107X06W3C4T15H Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 6.3 V, 100 uF, SURFACE MOUNT, 2813, CHIP, ROHS COMPLIANT

591D107X06W3C4T15H Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instruction, 2813
Reach Compliance Codecompli
ECCN codeEAR99
capacitance100 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
ESR190 mΩ
high1.2 mm
JESD-609 codee4
leakage current0.0063 mA
length7.1 mm
Manufacturer's serial number591D
Installation featuresSURFACE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formSMT
method of packingTR, 7 INCH
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)6.3 V
ripple current730 mA
series591D
size code2813
surface mountYES
Delta tangent0.08
Terminal surfaceGold (Au)
Terminal shapeWRAPAROUND
width3.2 mm
Base Number Matches1

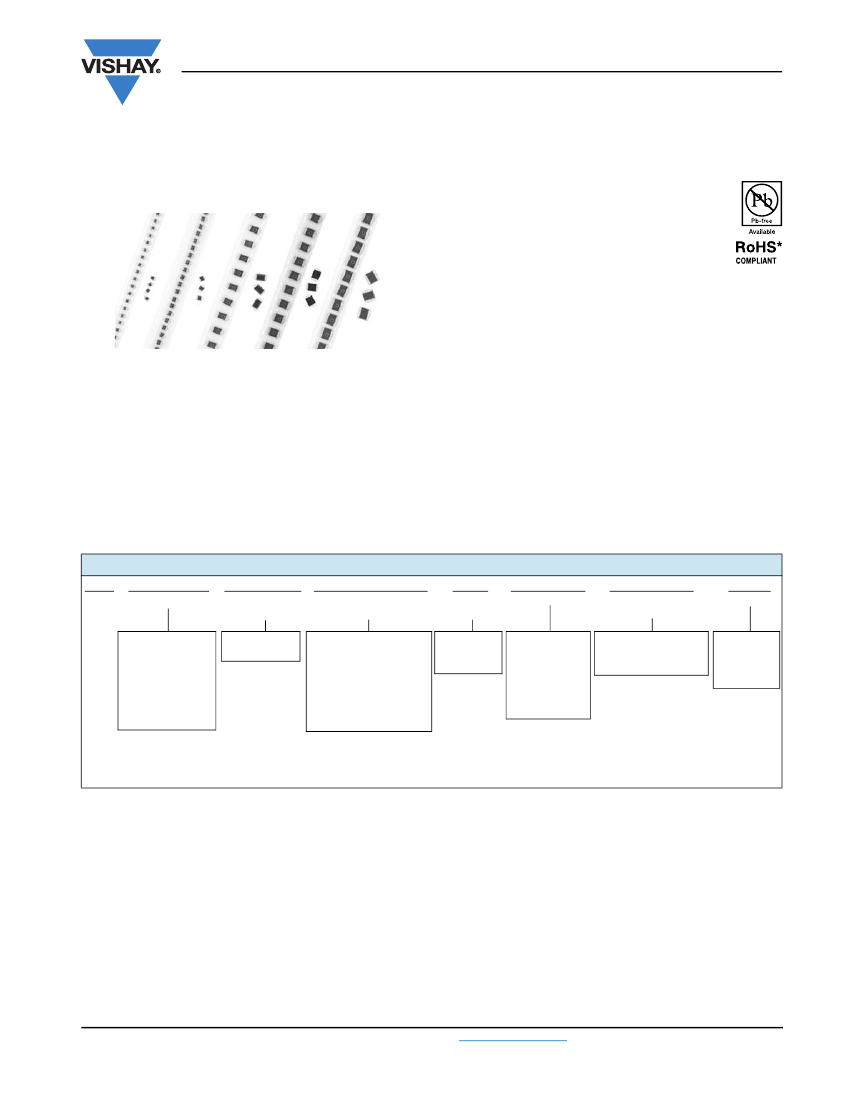

591D
Vishay Sprague
Solid Tantalum Chip Capacitors T
ANTAMOUNT®
,
Low Profile, Low ESR, Conformal Coated, Maximum CV
FEATURES
New robust 6.3 V ratings for battery
operated wireless applications
New case size offerings
1.2 mm to 2 mm height
Terminations: Lead (Pb)-free (2) standard
Very low ESR
8 mm, 12 mm tape and reel packaging available per
EIA-481-1 and reeling per IEC 286-3
7" [178 mm] standard
13" [330 mm] available
Footprint compatible with EIA 535BAAC and CECC 30801
molded chips
Compliant to RoHS Directive 2002/95/EC
PERFORMANCE CHARACTERISTICS
Operating Temperature:
- 55 °C to + 85 °C
(To + 125 °C with voltage derating)
Note
• Refer to Doc. 40088
Capacitance Range:
1 µF to 1000 µF
Capacitance Tolerance:
± 10 %, ± 20 % standard
Voltage Rating:
4 WV
DC
to 35 WV
DC
ORDERING INFORMATION
591D
TYPE
106
CAPACITANCE
X0
010
CAPACITANCE DC VOLTAGE RATING
TOLERANCE
AT + 85 °C
X0 =
±
20 %
X9 = ± 10 %
This is expressed in
volts. To complete the
three-digit block, zeros
precede the voltage
rating. A decimal point
is indicated by an “R”
(6R3 = 6.3 V).
B
CASE
CODE
See ratings
and case
codes table
2
TERMINATION
T
REEL SIZE AND
PACKAGING
T = Tape and reel
7" [178 mm] reel
W = 13" [330 mm] reel
15H
SUFFIX
This is expressed
in picofarads. The
first two digits are
the significant
figures. The third
is the number of
zeros to follow.
2 = 100 % Tin
4 = Gold plated
8 = Solder
plated
60/40
Special order
Maximum
height (mm)
see
dimensions
Notes
• Preferred Tolerance and reel sizes are in bold.
• We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.
• Voltage substitutions will be marked with the higher voltage rating.
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 40012
Revision: 21-Dec-10
For technical questions, contact:
tantalum@vishay.com
www.vishay.com
97
