AC-DC
40-100 Watts
ECM Series
•
•
•
•
•
•
•
xppower.com

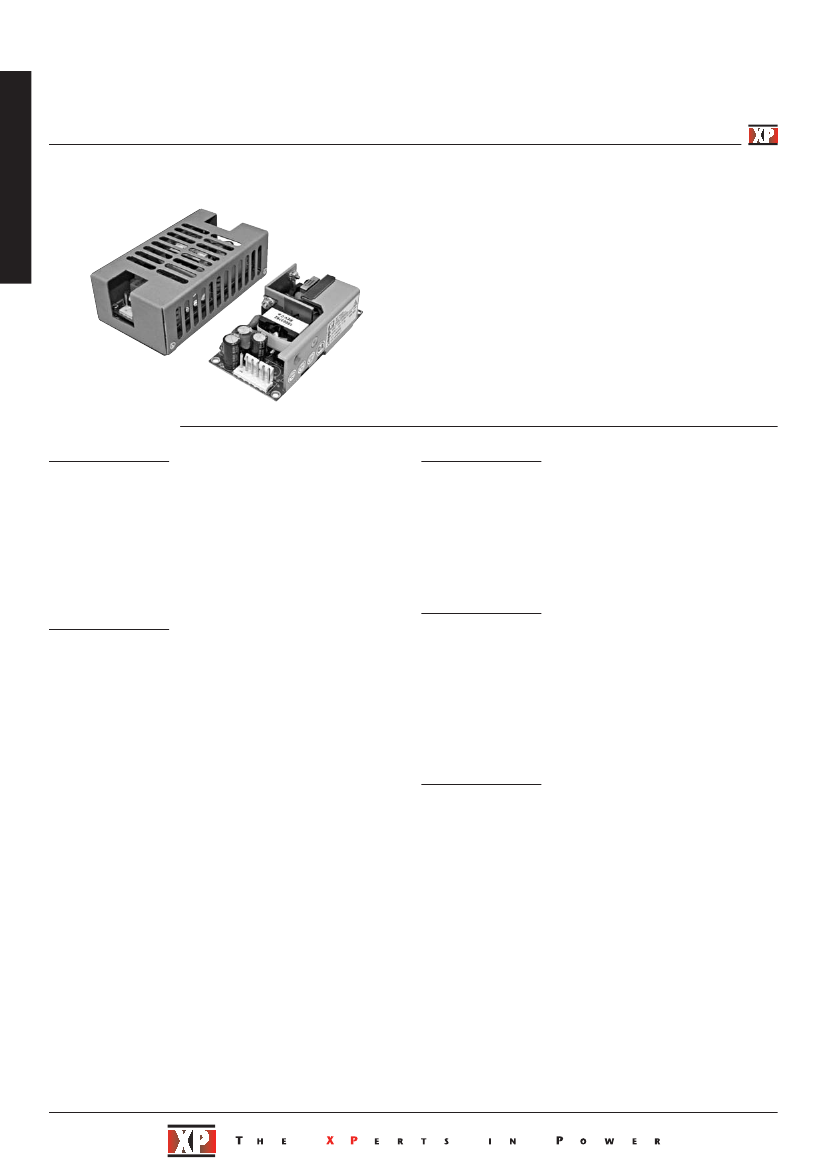

Compact Size - High Power Density
Industrial & Medical Approvals
Low Leakage Current
Level B Conducted Emissions
EN61000-3-2, -3 Compliant
Convection-cooled
Class II Approved 40-60 W Models
Specification
Input
• 90-264 VAC (120-370 VDC)
• 47-63 Hz; 440 Hz
• 40 W: 0.4 A max at 230 VAC
60 W: 0.6 A max at 230 VAC
100 W: 0.9 A max at 230 VAC
Inrush
Current
• 40 A max at 230 VAC
Earth Leakage Current
• <125 µA at 115 VAC/60 Hz
<210 µA at 230 VAC/50 Hz
Input Protection
• Internal 3.15 A fuse in line and neutral
Input Voltage
Input Frequency
Input Current
General
Efficiency
Isolation
• 80-85% depending on model
• 4000 VAC Input to Output
1500 VAC Input to Ground
500 VAC Output to Ground
• 70 kHz typical
• 60 W: 6.25 W/In
3
100 W: 7.40 W/In
3
• 250 kHrs per MIL-HDBK-217F
Switching Frequency
Power Density
MTBF
Environmental
Operating Temperature
• 0 °C to +70 °C. Refer to derating curves
for specific operating limitations.
Cooling
• Convection & fan-cooled ratings
(see derating curves)
Operating Humidity
• 95% RH, non-condensing
Storage Temperature
• -20 °C to +85 °C
Operating Altitude
• 3000 m
Shock
• 30 g pk, half sine, 6 axes
Vibration
• 2 g rms, 5 Hz to 500 kHz, 3 axes
Output
Output Voltage
Output Voltage Trim
• See tables
• ±5% on 3.3 V & 5 V versions, ±10% on
other single output models and V1 of
multi-output models. See note 1 for
ECM40/60 models
Initial Set Accuracy
• ±1.0% V1, ±5% V2, V3 & V4
Minimum Load
• See tables
Start Up Delay
• 2 s max
Start Up Rise Time
• 50 ms
Hold Up Time
• 16/75 ms min at 115/230 VAC
Line Regulation
• ±0.5%
Load Regulation
• ±1% single output models;
±3% V1, ±5% V2 & V3 ECM40/60
multi-output models.
±1% V1 & V2, ±5% V3 & V4 ECM100
Cross Regulation
• 2% on ECM40/60 only
Over/Undershoot
• None at turn on/off
Transient Response
• 4% max. deviation, recovery to within
1% in 500 µs for a 25% load change
Ripple & Noise
• 1% pk-pk, 20 MHz bandwidth
Overvoltage Protection
• 115-135% Vnom, recycle input to reset
Overload Protection
• 110-150% on primary power limit,
auto recovery
Short Circuit Protection
• Trip and restart (Hiccup mode)
Temperature
• 0.05%/°C
Coefficient
EMC & Safety
Emissions
Harmonic Currents
Voltage Flicker
ESD Immunity
Radiated Immunity
EFT/Burst
Surge
Conducted Immunity
Dips & Interruptions
• EN60601-1-2, EN61204-3, FCC 20780,
EN55022 & EN55011, level B conducted
• EN61000-3-2
• EN61000-3-3
• EN61000-4-2, level 2 Perf Criteria A
• EN61000-4-3, 10 V/m Perf Criteria A
• EN61000-4-4, level 3 Perf Criteria A
• EN61000-4-5, level 3 Perf Criteria A
• EN61000-4-6, 10 V Perf Criteria A
• EN61000-4-11, 30% 10 ms,
60% 100 ms, 100% 5000 ms
Perf Criteria A, B, B
• EN60950, UL60950, CSA 22.2 601.1,
EN60601-1, UL60601-1,
CCC pending, contact sales
Safety Approvals
AC-DC
Models and Ratings
Max
Power
Output 1
Voltage
+5.0
+7.0
+9.0
+12.0
+15.0
+18.0
+24.0
+33.0
+48.0
+5.0
+5.0
+5.0
+5.0
+5.0
+3.3
+5.0
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
Current
Min/Max
(3)
0.0 A/8.0 A
0.0 A/5.7 A
0.0 A/4.4 A
0.0 A/3.5 A
0.0 A/2.7 A
0.0 A/2.2 A
0.0 A/1.7 A
0.0 A/1.2 A
0.0 A/0.9 A
0.5 A/6.0 A
0.5 A/6.0 A
0.5 A/6.0 A
0.5 A/6.0 A
0.5 A/6.0 A
0.5 A/6.0 A
0.5 A/6.0 A
Voltage
Output 2
Current
Min/Max
Voltage
Output 3
ECM40
Current
Min/Max
Model
Number
(2)
ECM40US05†^
ECM40US07
ECM40US09^
ECM40US12†^
ECM40US15†^
ECM40US18
ECM40US24†^
ECM40US33
ECM40US48†^
ECM40UD21
ECM40UD22
ECM40UT31†^
ECM40UT32†
ECM40UT33†^
ECM40UT34†^
ECM40UT35†
40 W
+12.0
+15.0
+12.0
+24.0
+15.0
+5.0
+3.3
V
V
V
V
V
V
V
0.1
0.1
0.1
0.1
0.1
0.1
0.1
A/2.0
A/1.5
A/2.0
A/1.0
A/1.5
A/1.5
A/1.5
A
A
A
A
A
A
A
-12.0
-12.0
-15.0
+12.0
+12.0
V
V
V
V
V
0.0
0.0
0.0
0.0
0.0
A/0.5
A/0.5
A/0.5
A/0.5
A/0.5
A
A
A
A
A
Notes
1. V2 will track a change in V1 by the same percentage change in voltage as V1 is trimmed.
2. To receive unit with cover fitted, add suffix ‘-C’ to model number. For Class I operation only.
3. A 120% peak load can be taken for up to 100 ms with a 25% duty cycle. Average load not to exceed 40 W.
†
Available from Farnell. See pages 204-206.
^
Available from Newark. See pages 207-208.

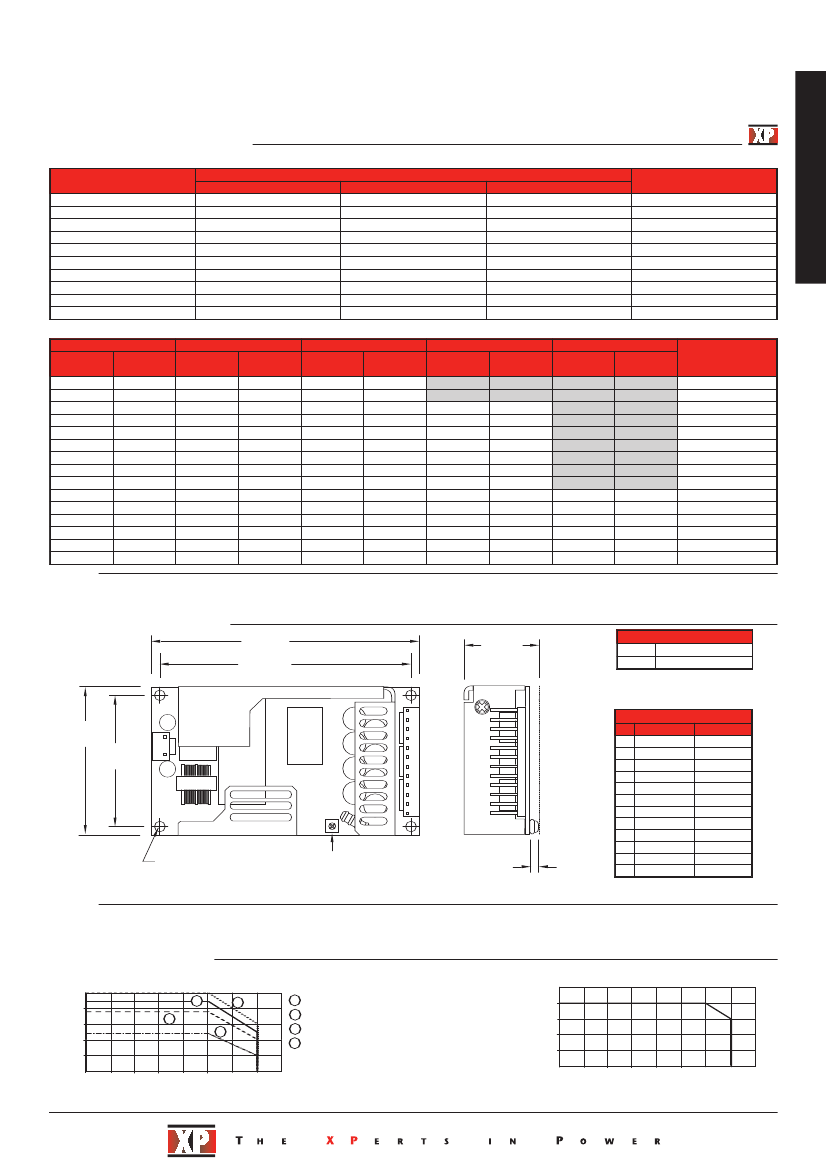

Mechanical Details
4.00 (101.6)
3.75 (95.25)
1.20
(30.5)
Input Connector J1
Pin 1
Line
Pin 2
Neutral
1
J1
2
2.00
(50.8)
1.75
(44.45)
1
J1 mates with
Molex housing 43061-0003 &
Molex series 5194 crimp terminals
Output Connector J2
Single
Multi
+V1
+V1
+V1
+V1
RTN
RTN
RTN
RTN
NC
-V3
NC
+V2
J2
6
V Adj.
4X ø0.156 (3.96) mounting holes
ø0.312 (7.92) clearance top and bottom
0.14 (3.5)
SMD component height
Pin
1
2
3
4
5
6
J2 mates with
Molex housing 43061-0006 &
Molex series 5194 crimp terminals
Weight: approx. 0.33 lb (150 g)
Notes
1. All dimensions in inches (mm). Tolerance .xx = ±0.02 (0.50); .xxx = ±0.01 (0.25)
2. Cable harnessess with 300 mm wire available.
For single output models, order part number ECM40/60S LOOM†.
For multi-output models, order part number ECM40/60DT LOOM†.
3. Mating connector kit available. Order part number ECM40/60 CONKIT†.
4. Covers available. Order part number ECM40/60 COVER^†. Cover dimensions
are 4.49 x 2.52 x 1.52 (114 x 64 x 38.5)
Derating Curves
All ECM40 models convection-cooled
All ECM40 models with 5 CFM
Output Power
Output Power
100%
75%
50%
25%
0%
0
10
20
50
60
30
40
Ambient Temp (°C)
70
80
100%
75%
50%
25%
0%
0
10
20
50
60
30
40
Ambient Temp (°C)
70
80
Note: Derate by 10% if cover is fitted
Consult longform datasheet for installation information regarding optimum thermal ratings in convection-cooled applications.
AC-DC
Models and Ratings
Max
Power
Output 1
Voltage
+5.0
+7.0
+9.0
+12.0
+15.0
+18.0
+20.0
+24.0
+33.0
+48.0
+5.0
+5.0
+5.0
+5.0
+5.0
+3.3
+5.0
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
Current
Min/Max
(3)
0.0 A/12.00 A
0.0 A/8.60 A
0.0 A/6.70 A
0.0 A/5.00 A
0.0 A/4.00 A
0.0 A/3.30 A
0.0 A/3.00 A
0.0 A/2.50 A
0.0 A/1.80 A
0.0 A/1.25 A
0.5 A/8.00 A
0.5 A/8.00 A
0.5 A/8.00 A
0.5 A/8.00 A
0.5 A/8.00 A
0.5 A/8.00 A
0.5 A/8.00 A
Voltage
Output 2
Current
Min/Max
Voltage
Output 3
ECM60
Current
Min/Max
Model
Number
(2)
ECM60US05†^
ECM60US07
ECM60US09^
ECM60US12†^
ECM60US15†^
ECM60US18
ECM60US20
ECM60US24†^
ECM60US33
ECM60US48†^
ECM60UD21
ECM60UD22
ECM60UT31†^
ECM60UT32†
ECM60UT33†^
ECM60UT34†^
ECM60UT35†
60 W
+12.0
+15.0
+12.0
+24.0
+15.0
+5.0
+3.3
V
V
V
V
V
V
V
0.1
0.1
0.1
0.1
0.1
0.1
0.1
A/3.0
A/2.5
A/3.0
A/1.5
A/2.5
A/1.5
A/1.5
A
A
A
A
A
A
A
-12.0 V
-12.0 V
-15.0 V
+12.0 V
+12.0 V
0.0
0.0
0.0
0.0
0.0
A/0.5
A/0.5
A/0.5
A/0.5
A/0.5
A
A
A
A
A
Notes
1.
2.
3.
4.
V2 will track a change in V1 by the same percentage change in voltage as V1 is trimmed.
To receive unit with cover fitted, add suffix ‘-C’ to model number. For Class I operation only.
A 120% peak load can be taken for up to 100 ms with a 25% duty cycle. Average load not to exceed 60 W.
48 V DC input version of 12 V single output model available in OEM quantities (DCM6048S12). Contact sales for details.
^
Available from Newark. See pages 207-208.
†
Available from Farnell. See pages 204-206.
Mechanical Details
4.00 (101.6)
3.75 (95.25)
1.20
(30.5)
Input Connector J1
Pin 1
Line
Pin 2
Neutral
J1 mates with
Molex housing 43061-0003 &
Molex series 5194 crimp terminals.
Optional ground (0.25 faston) tab
available, contact sales.
Output Connector J2
Single
Multi
+V1
+V1
+V1
+V1
RTN
RTN
RTN
RTN
NC
-V3
NC
+V2
J1
2
1
2.00
(50.8)
1.75
(44.45)
1
J2
6
Pin
1
2
3
4
5
6
V Adj.
4X ø0.156 (3.96) mounting holes
ø0.312 (7.92) clearance top and bottom
0.14 (3.5)
SMD component height
J2 mates with
Molex housing 43061-0006 &
Molex series 5194 crimp terminals.
Weight: approx. 0.33 lb (150 g)
Notes
1. All dimensions in inches (mm). Tolerance .xx = ±0.02 (0.50); .xxx = ±0.01 (0.25)
2. Cable harnesses with 300 mm wire available.
For single output models, order part number ECM40/60S LOOM†.
For multi-output models, order part number ECM40/60DT LOOM†.
3. Mating connector kit available. Order part number ECM40/60 CONKIT†.
4. Covers available. Order part number ECM40/60 COVER^†. Cover dimensions
are 4.49 x 2.52 x 1.52 (114 x 64 x 38.5).
5. Selected single output models available in a 3” x 5” footprint for OEM
quantities. Contact sales for details.
Derating Curves
All ECM60 models convection-cooled
All ECM60 models with 5 CFM
Output Power
Output Power
100%
75%
50%
25%
0%
0
10
20
50
60
30
40
Ambient Temp (°C)
70
80
100%
75%
50%
25%
0%
0
10
20
50
60
30
40
Ambient Temp (°C)
70
80
Note: Derate by 10% if cover is fitted
Consult longform datasheet for installation information regarding optimum thermal ratings in convection-cooled applications.
AC-DC
Models and Ratings
Single Output Models
Output
Voltage
+3.3 V
+5.0 V
+7.0 V
+9.0 V
+12.0 V
+15.0 V
+18.0 V
+24.0 V
+33.0 V
+48.0 V
Minimum
0.0 A
0.0 A
0.0 A
0.0 A
0.0 A
0.0 A
0.0 A
0.0 A
0.0 A
0.0 A
Output 1
Current
Voltage
Min/Max
+5.0 V
0.0 A/12.0 A
+5.0 V
0.0 A/12.0 A
+5.0 V
0.5 A/10.0 A
+5.0 V
0.5 A/10.0 A
+5.0 V
0.5 A/10.0 A
+3.3 V
0.5 A/10.0 A
+5.0 V
0.5 A/10.0 A
+5.0 V
0.5 A/10.0 A
+5.0 V
0.5 A/10.0 A
+5.0 V
0.5 A/10.0 A
+3.3 V
0.5 A/10.0 A
+5.0 V
0.5 A/10.0 A
+5.0 V
0.5 A/10.0 A
+5.0 V
0.5 A/10.0 A
+5.0 V
0.5 A/10.0 A
Output Current
Maximum
15.0 A
15.0 A
11.4 A
8.8 A
7.5 A
6.0 A
5.0 A
4.1 A
3.0 A
2.1 A
Output 2
Current
Voltage
Min/Max
+12.0 V
0.0 A/3.0 A
+15.0 V
0.0 A/3.0 A
+12.0 V
0.0 A/3.0 A
+24.0 V
0.0 A/2.0 A
+15.0 V
0.0 A/3.0 A
+5.0 V
0.0 A/5.0 A
+3.3 V
0.0 A/5.0 A
+12.0 V
0.0 A/3.0 A
+15.0 V
0.0 A/3.0 A
+3.3 V
0.1 A/5.0 A
+5.0 V
0.1 A/5.0 A
+24.0 V
0.1 A/2.0 A
+24.0 V
0.1 A/2.0 A
+12.0 V
0.1 A/3.0 A
+15.0 V
0.1 A/3.0 A
with 5 CFM Cooling
20.0 A
20.0 A
14.3 A
11.1 A
8.3 A
6.6 A
5.5 A
4.1 A
3.0 A
2.1 A
ECM100
Model
Number
(1,3)
ECM100US03*†^
ECM100US05*†^
ECM100US07*
ECM100US09*†
ECM100US12*†^
ECM100US15*†^
ECM100US18*
ECM100US24*†^
ECM100US33*
ECM100US48*†^
Multi Output Models
Output Power
Convection Forced Air
Cooled
5 CFM
80 W
100 W
80 W
100 W
75 W
100 W
80 W
100 W
80 W
100 W
65 W
100 W
70 W
100 W
80 W
100 W
70 W
100 W
65 W
100 W
60 W
100 W
80 W
100 W
80 W
100 W
80 W
100 W
80 W
100 W
Output 3
Current
Voltage
Min/Max
Output 4
Current
Voltage
Min/Max
Model
Number
(1,3)
ECM100UD21*
ECM100UD22*
ECM100UT31*†^
ECM100UT32*
ECM100UT33*†^
ECM100UT34*^
ECM100UT35*
ECM100UT36*
ECM100UT37*
ECM100UQ41*†
ECM100UQ42*†^
ECM100UQ43*†^
ECM100UQ44*†
ECM100UQ45*^
ECM100UQ46*
-12.0
-12.0
-15.0
+12.0
+12.0
-5.0
-5.0
+12.0
+12.0
+12.0
+15.0
-12.0
-15.0
V
V
V
V
V
V
V
V
V
V
V
V
V
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
A/0.8
A/0.8
A/0.8
A/0.8
A/0.8
A/0.8
A/0.8
A/0.8
A/0.8
A/0.8
A/0.8
A/0.8
A/0.8
A
A
A
A
A
A
A
A
A
A
A
A
A
-12.0
-12.0
-12.0
-15.0
-5.0
-5.0
V
V
V
V
V
V
0.0
0.0
0.0
0.0
0.0
0.0
A/0.5
A/0.5
A/0.5
A/0.5
A/0.5
A/0.5
A
A
A
A
A
A
Notes
1. To receive unit with cover fitted, add suffix ‘-C’ to model number.
2. Output 3 available with opposite polarity for OEM quantities.
3. ‘*’ denotes ECM100 models are class I only, contact sales for class II.
4. 48 VDC input version of 12 V single output model available in OEM quantities
(DCM10048S12).
†
Available from Farnell.
^
Available from Newark. See pages 204-208.
Input Connector J1
Pin 1
Line
Pin 2
Neutral
J1 mates with Molex housing 43061-0003
and Molex series 5194 crimp terminals.
Optional ground (0.25 faston) tab available.
1
Mechanical Details
Weight: approx.
0.4 lb (180g)
4.50 (114.3)
4.25 (107.95)
1.20 (30.5)
2.50
(63.5)
2.25
(57.15)
2
J1
1
J2
12
4X ø0.156 [3.96] mounting holes
ø0.312 [7.92] clearance top and bottom
V Adj.
Cover dimensions are 4.98 x 3.01 x 1.54 (126.5 x 76.4 x 39.0)
0.14 [3.5]
SMD component height
Pin
1
2
3
4
5
6
7
8
9
10
11
12
Output Connector J2
Single
Multi
+V1
+V1
+V1
+V1
+V1
+V1
+V1
+V1
V1 RTN
RTN
V1 RTN
RTN
V1 RTN
RTN
V1 RTN
RTN
NOT USED
+V2
NOT USED
+V2
NOT USED
±V3
NOT USED
-V4
Notes
1. All dimensions in inches (mm). Tolerance .xx = ±0.02 (0.50); .xxx = ±0.01 (0.25)
2. Cable harnessess with 300 mm wire available. For single output models, order
part number ECM100S LOOM†. For multi-outputs, p/n ECM100DT LOOM†.
J2 mates with Molex housing 43061-0012 and
Molex series 5194 crimp terminals.
Derating Curves
All ECM100 single output models convection-cooled
Output Power (W)
100
80
60
40
20
0
0
10
20
50
60
30
40
Ambient Temp (°C)
70
80
3. Mating connector kit available for single output models. Order part number
ECM100S CONKIT†.
4. Covers available. Order part number ECM100 COVER†^.
5. Available in a 3” x 5” footprint for OEM quantities. Contact sales for details.
All ECM100 models with 5 CFM
Note:
1. Derate by 10% if cover is fitted.
2. For multi output convection-
cooled operation above +50 ºC
derate linearly to 50% at +70 ºC.
100%
Output Power
B
C
D
A
A
B
C
D
US24-48
US12-18
US05
US03
75%
50%
25%
0%
0
10
20
50
60
30
40
Ambient Temp (°C)
70
80
Consult longform datasheet for installation information regarding optimum thermal ratings in convection-cooled applications.
22-Oct-07
京公网安备 11010802033920号
EEWORLD
