ECKTBC472MF Overview

CAPACITOR, CERAMIC, Y5V, 0.0047 uF, SURFACE MOUNT, 2825

ECKTBC472MF Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerPanasonic
package instructionCHIP
Reach Compliance Codeunknow
ECCN codeEAR99
capacitance0.0047 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
JESD-609 codee2
Installation featuresSURFACE MOUNT
multi-layerN
negative tolerance20%
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Package shapeRECTANGULAR PACKAGE
method of packingTR, EMBOSSED, 13 INCH
positive tolerance20%
Rated (AC) voltage (URac)250 V
size code2825
surface mountYES
Temperature characteristic codeY5V
Temperature Coefficient-80/+30% ppm/°C
Terminal surfaceTin/Silver (Sn/Ag)
Terminal shapeWRAPAROUND
Ceramic Capacitors (Safety Regulation SMD)
Ceramic Capacitors (Safety Regulations)
For Surface Mounting Types BC and FC
Resin molded SMD type for reflow soldering
High reliability
Safety requirement approved by UL, SEMKO, NEMKO,
FIMKO, DEMKO and KTL (for Type FC)
Features

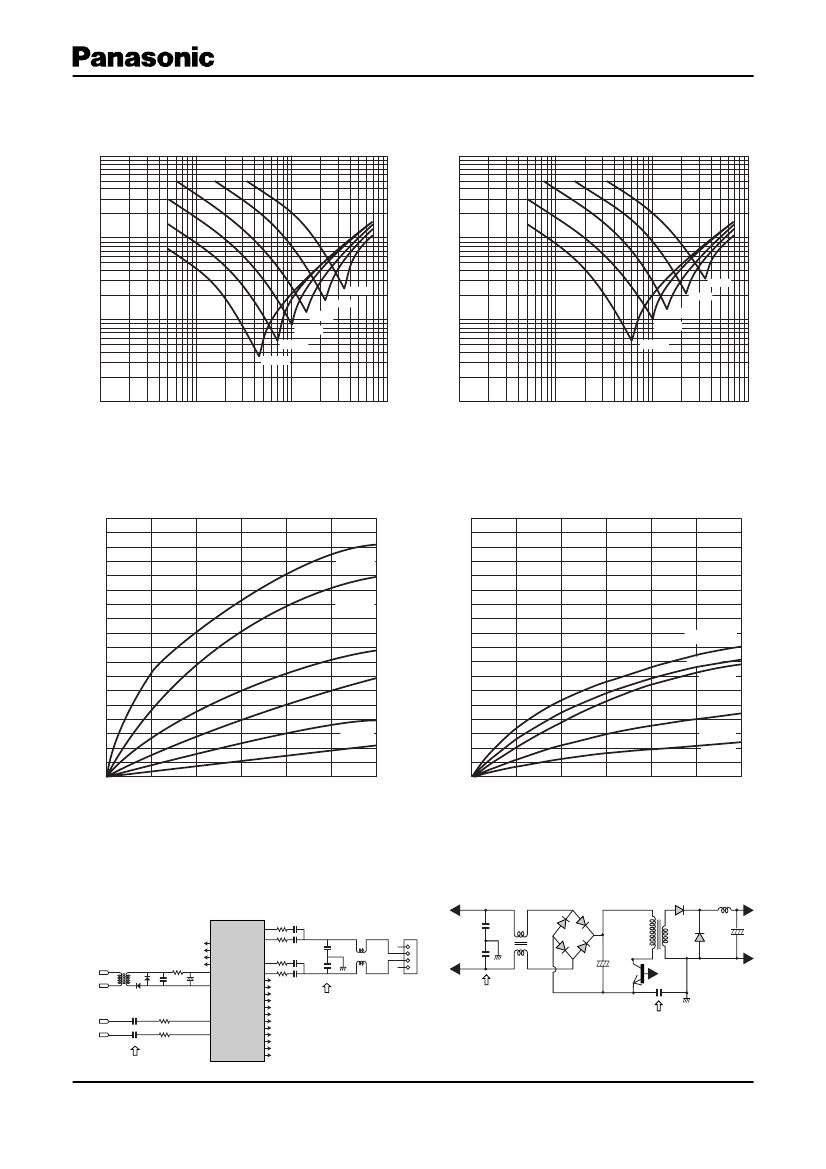

Recommended Application
Interference suppressors circuit and Isolation circuit of
IT equipment such as MODEM.
Interference suppressors circuit of small power supply
machinery such as DC-DC converters and power modules.
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
E
C
K
T
B
C
1
0
2
M
E
Product Code
Code
Class
ECC
Class1
ECK
Class2
Packaging Style
Code Style
T
Taped type
Code
BC
FC
Type
Type
Type BC
Type FC
Nominal Capacitance
(Ex.) Capacitance
050
5 pF
100
10 pF
470
47 pF
101
100 pF
221
220 pF
102
1000 pF
Cap. Tolerance
Code
Tol.
C
±0.25
pF
D
±0.5
pF
F
±1
pF
J
±5
%
K
±10
%
M
±20
%
Temp. Char.
Code Temp. Char.
G
SL/GP
B
B/Y5P
E
E/Y5U
F
F/Y5V
Suffix

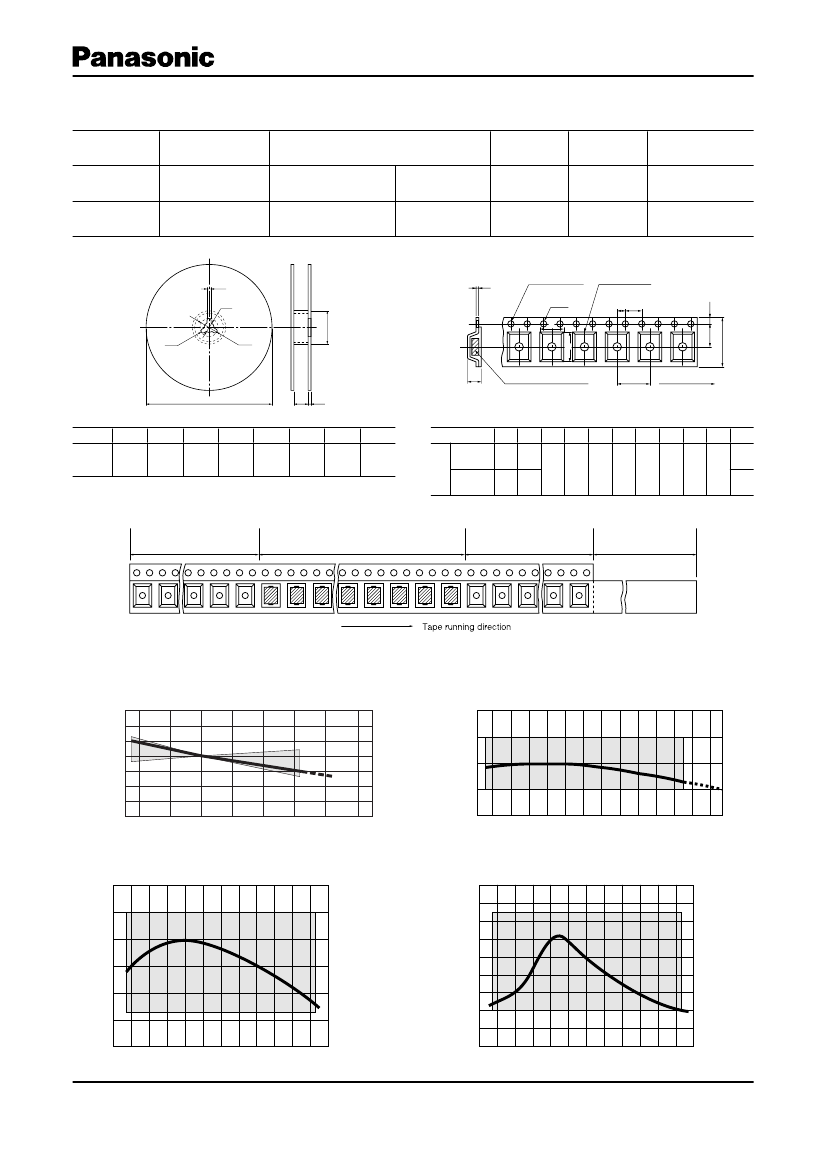

Construction
Type BC, FC
Electrode
Molded Resin
Terminal
Ceramic Element
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Mar. 2008

ECKTBC472MF Related Products

ECKTBC472MF ECCTBC100DG ECKTBC332MF
Description CAPACITOR, CERAMIC, Y5V, 0.0047 uF, SURFACE MOUNT, 2825 CAPACITOR, CERAMIC, Y5P, 0.00022 uF, SURFACE MOUNT CAPACITOR, CERAMIC, Y5P, 0.00022 uF, SURFACE MOUNT
Is it lead-free? Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to
package instruction CHIP , 2825 , 2825
Reach Compliance Code unknow unknow unknow
ECCN code EAR99 EAR99 EAR99
capacitance 0.0047 µF 0.00001 µF 0.0033 µF
Capacitor type CERAMIC CAPACITOR CERAMIC CAPACITOR CERAMIC CAPACITOR
dielectric materials CERAMIC CERAMIC CERAMIC
JESD-609 code e2 e2 e2
Installation features SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
multi-layer N N N
negative tolerance 20% 5% 20%
Number of terminals 2 2 2
Maximum operating temperature 85 °C 85 °C 85 °C
Minimum operating temperature -25 °C 20 °C -25 °C
Package shape RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE
method of packing TR, EMBOSSED, 13 INCH TR, EMBOSSED, 13 INCH TR, EMBOSSED, 13 INCH
positive tolerance 20% 5% 20%
size code 2825 2825 2825
surface mount YES YES YES
Temperature characteristic code Y5V SL Y5V
Temperature Coefficient -80/+30% ppm/°C -1000/+350ppm/Cel ppm/°C -80/+30% ppm/°C
Terminal surface Tin/Silver (Sn/Ag) Tin/Silver (Sn/Ag) Tin/Silver (Sn/Ag)
Terminal shape WRAPAROUND WRAPAROUND WRAPAROUND
Rated (AC) voltage (URac) 250 V 250 V -
Other features - RATED AC VOLTAGE: 250V RATED AC VOLTAGE: 250V
Manufacturer's serial number - ECC ECK
Base Number Matches - 1 1
