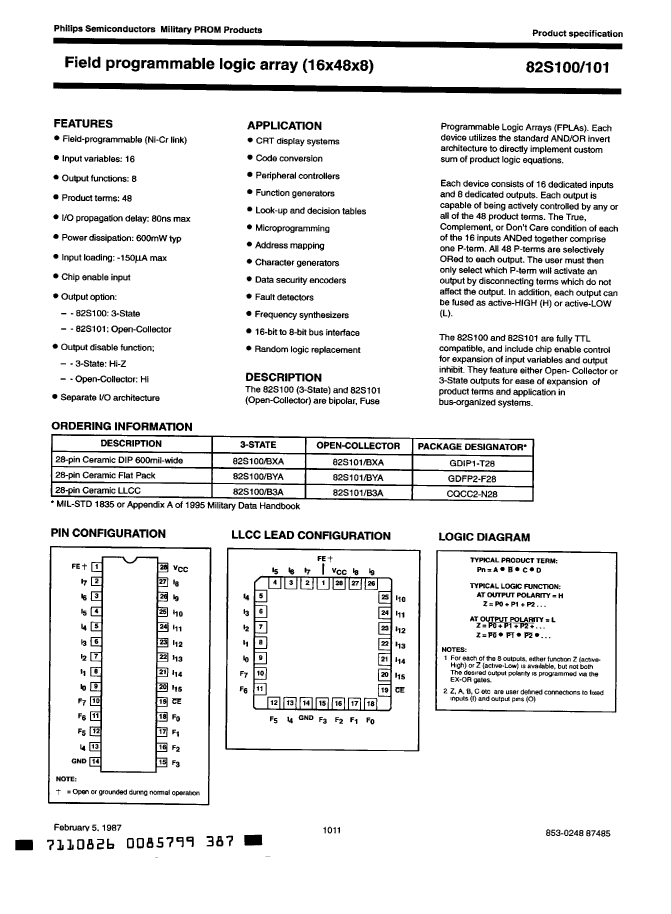

OT PLD, 80ns, PLA-Type, TTL, CQCC28,

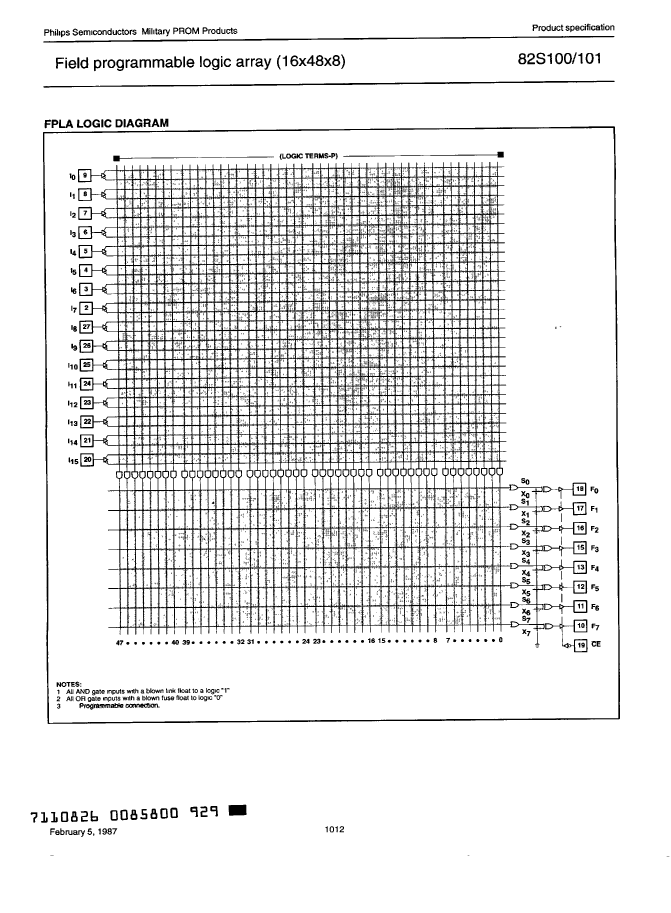

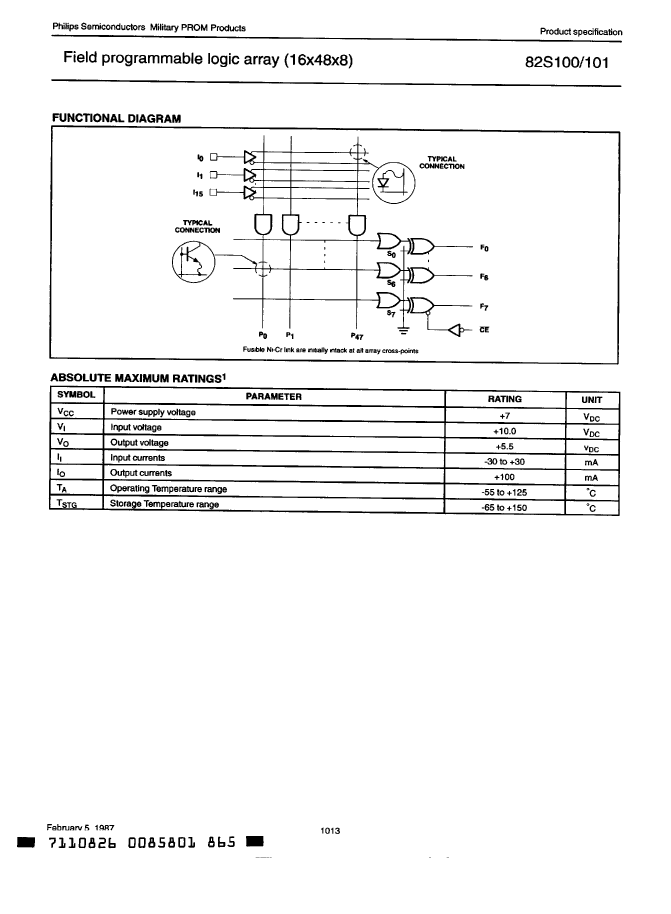

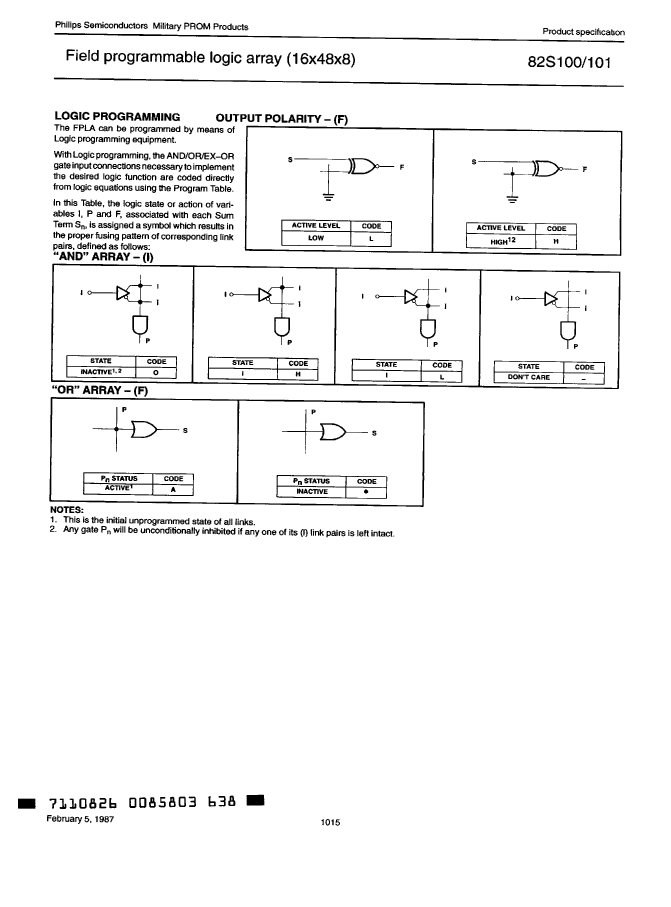

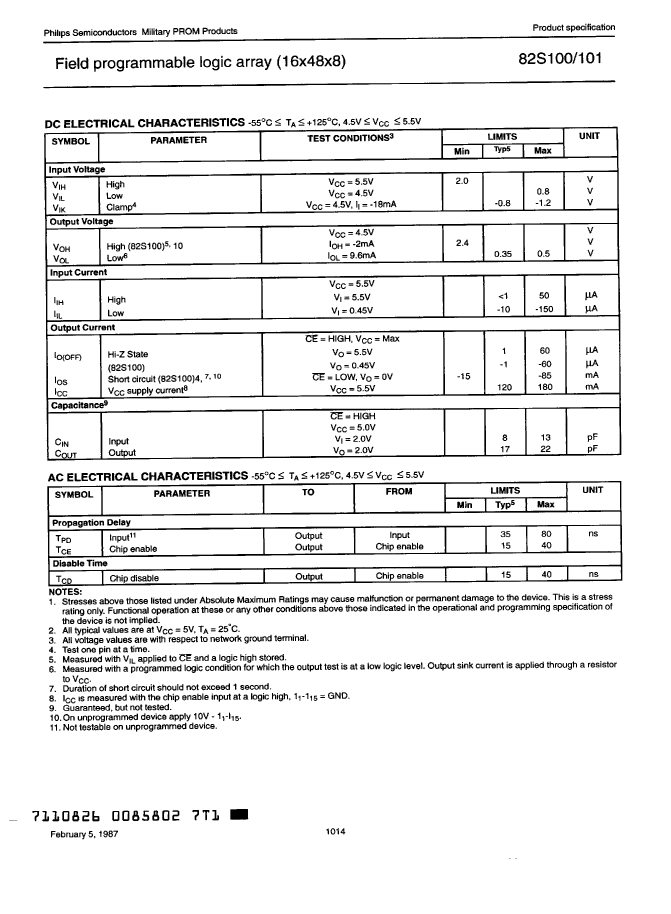

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Philips Semiconductors (NXP Semiconductors N.V.) |
| package instruction | QCCN, LCC28,.45SQ |
| Reach Compliance Code | unknown |
| Architecture | PLA-TYPE |
| JESD-30 code | S-XQCC-N28 |
| JESD-609 code | e0 |
| Number of entries | 16 |
| Output times | 8 |
| Number of product terms | 48 |
| Number of terminals | 28 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC |
| encapsulated code | QCCN |
| Encapsulate equivalent code | LCC28,.45SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| power supply | 5 V |
| Programmable logic type | OT PLD |
| propagation delay | 80 ns |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Base Number Matches | 1 |
| 82S100/B3A | 82S100/BYA | 82S100/BXA | 82S101/B3A | 82S101/BXA | 82S101/BYA | |
|---|---|---|---|---|---|---|
| Description | OT PLD, 80ns, PLA-Type, TTL, CQCC28, | OT PLD, 80ns, PLA-Type, TTL, CDFP28, | OT PLD, 80ns, PLA-Type, TTL, CDIP28, | OT PLD, 80ns, PLA-Type, TTL, CQCC28, | OT PLD, 80ns, PLA-Type, TTL, CDIP28, | OT PLD, 80ns, PLA-Type, TTL, CDFP28, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Architecture | PLA-TYPE | PLA-TYPE | PLA-TYPE | PLA-TYPE | PLA-TYPE | PLA-TYPE |
| JESD-30 code | S-XQCC-N28 | R-XDFP-F28 | R-XDIP-T28 | S-XQCC-N28 | R-XDIP-T28 | R-XDFP-F28 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| Number of entries | 16 | 16 | 16 | 16 | 16 | 16 |
| Output times | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of product terms | 48 | 48 | 48 | 48 | 48 | 48 |
| Number of terminals | 28 | 28 | 28 | 28 | 28 | 28 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC | CERAMIC | CERAMIC | CERAMIC | CERAMIC | CERAMIC |
| encapsulated code | QCCN | DFP | DIP | QCCN | DIP | DFP |
| Encapsulate equivalent code | LCC28,.45SQ | FL28,.4 | DIP28,.6 | LCC28,.45SQ | DIP28,.6 | FL28,.4 |
| Package shape | SQUARE | RECTANGULAR | RECTANGULAR | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | CHIP CARRIER | FLATPACK | IN-LINE | CHIP CARRIER | IN-LINE | FLATPACK |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Programmable logic type | OT PLD | OT PLD | OT PLD | OT PLD | OT PLD | OT PLD |
| propagation delay | 80 ns | 80 ns | 80 ns | 80 ns | 80 ns | 80 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Filter level | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO | YES | NO | YES |
| technology | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD | FLAT | THROUGH-HOLE | NO LEAD | THROUGH-HOLE | FLAT |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm | 1.27 mm | 2.54 mm | 1.27 mm |
| Terminal location | QUAD | DUAL | DUAL | QUAD | DUAL | DUAL |
| package instruction | QCCN, LCC28,.45SQ | - | DIP, DIP28,.6 | QCCN, LCC28,.45SQ | DIP, DIP28,.6 | - |
