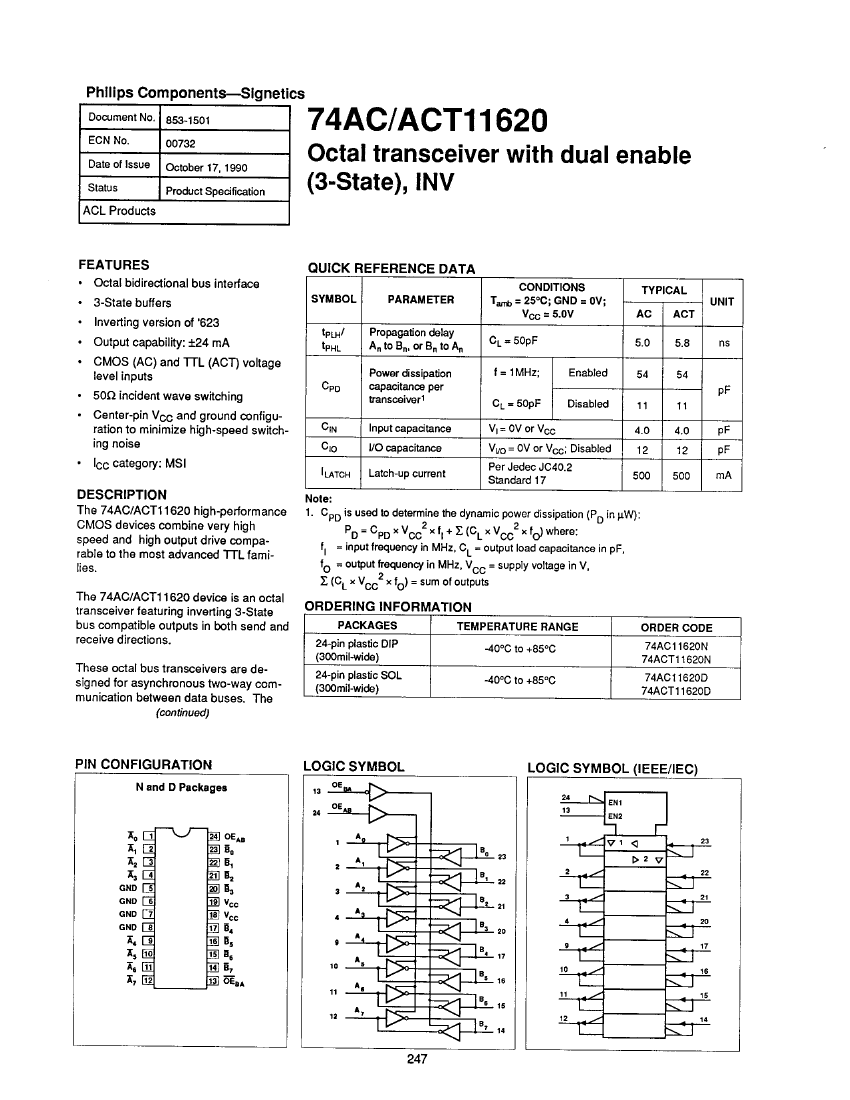

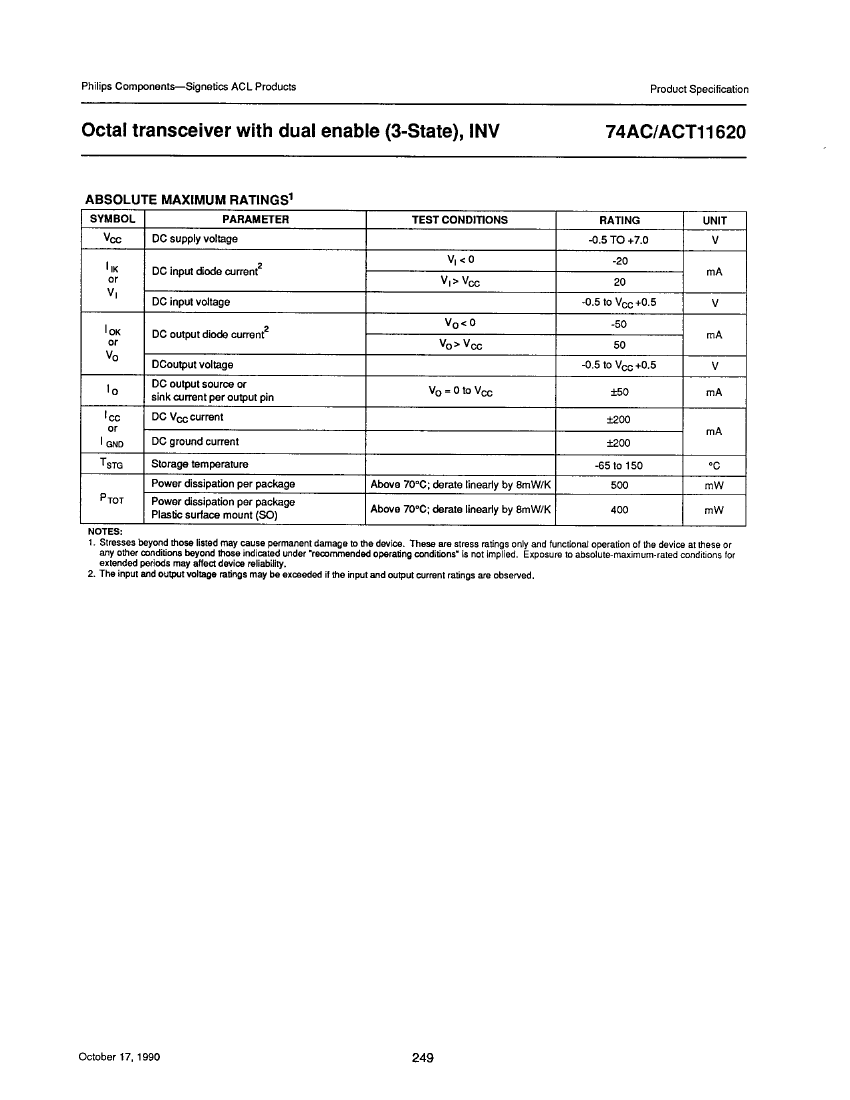

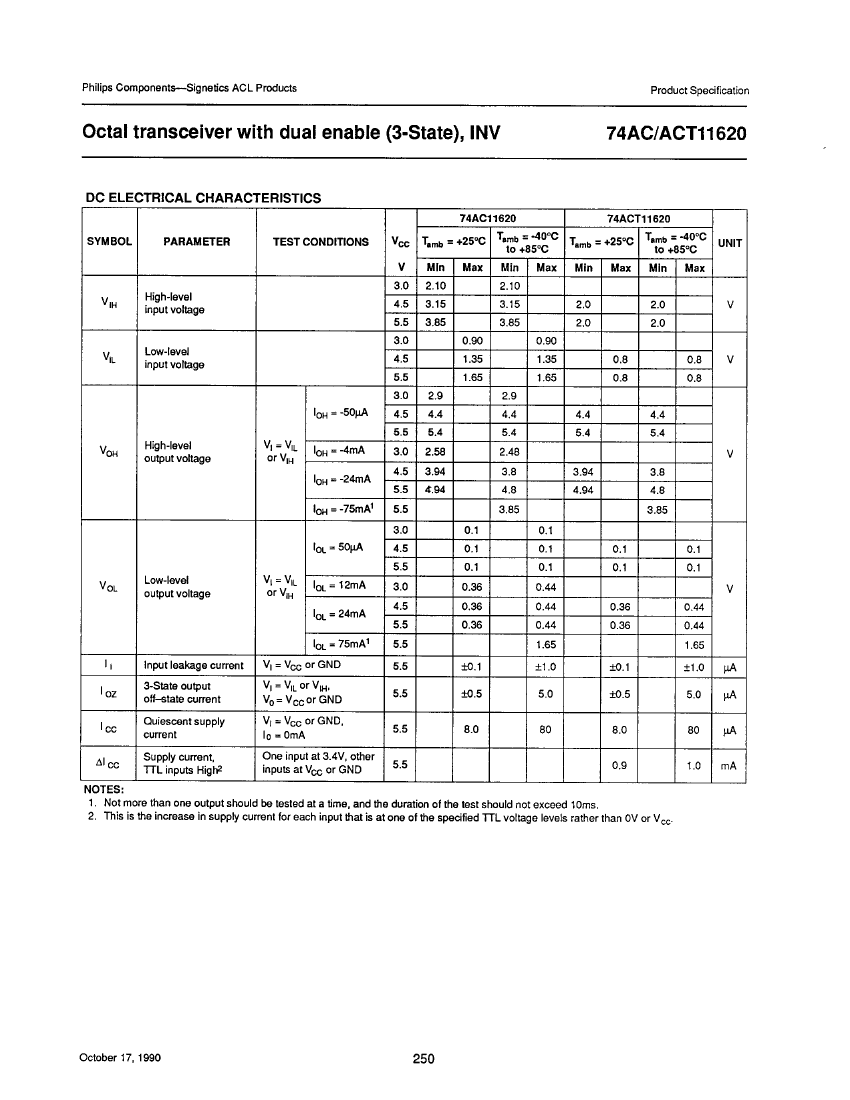

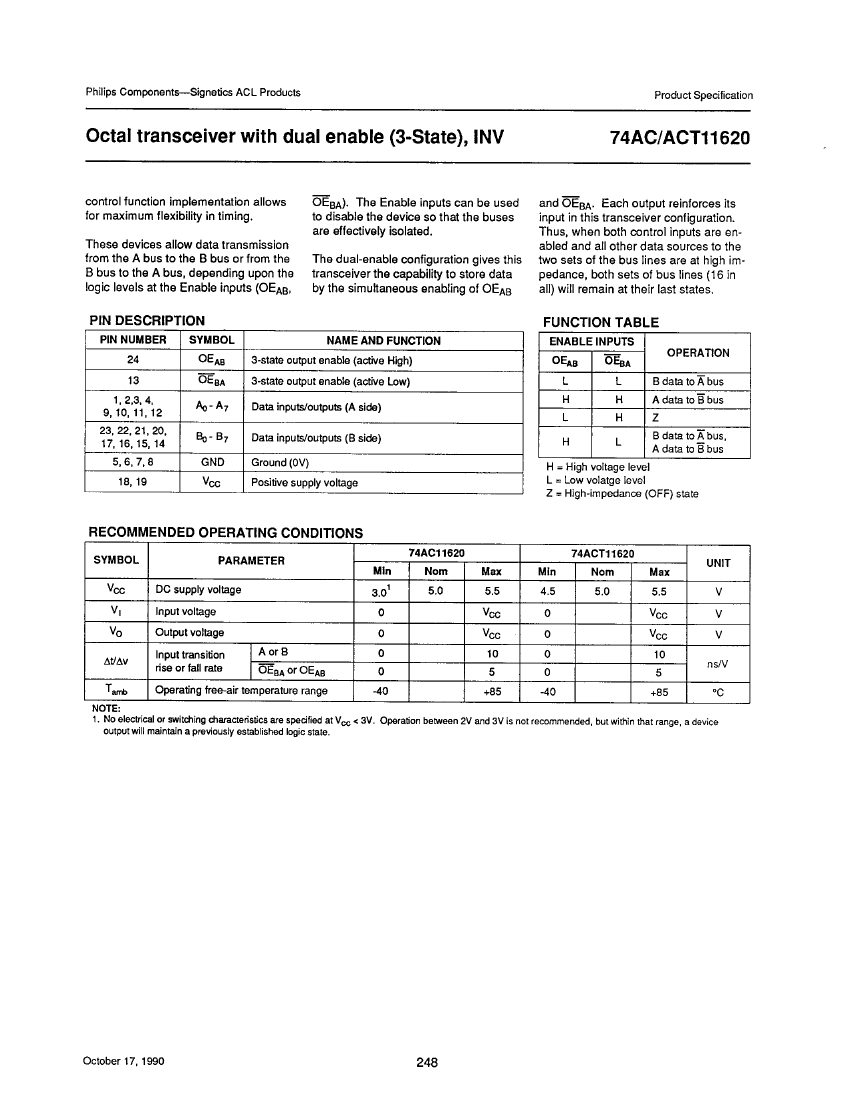

Bus Driver/Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, PDIP24

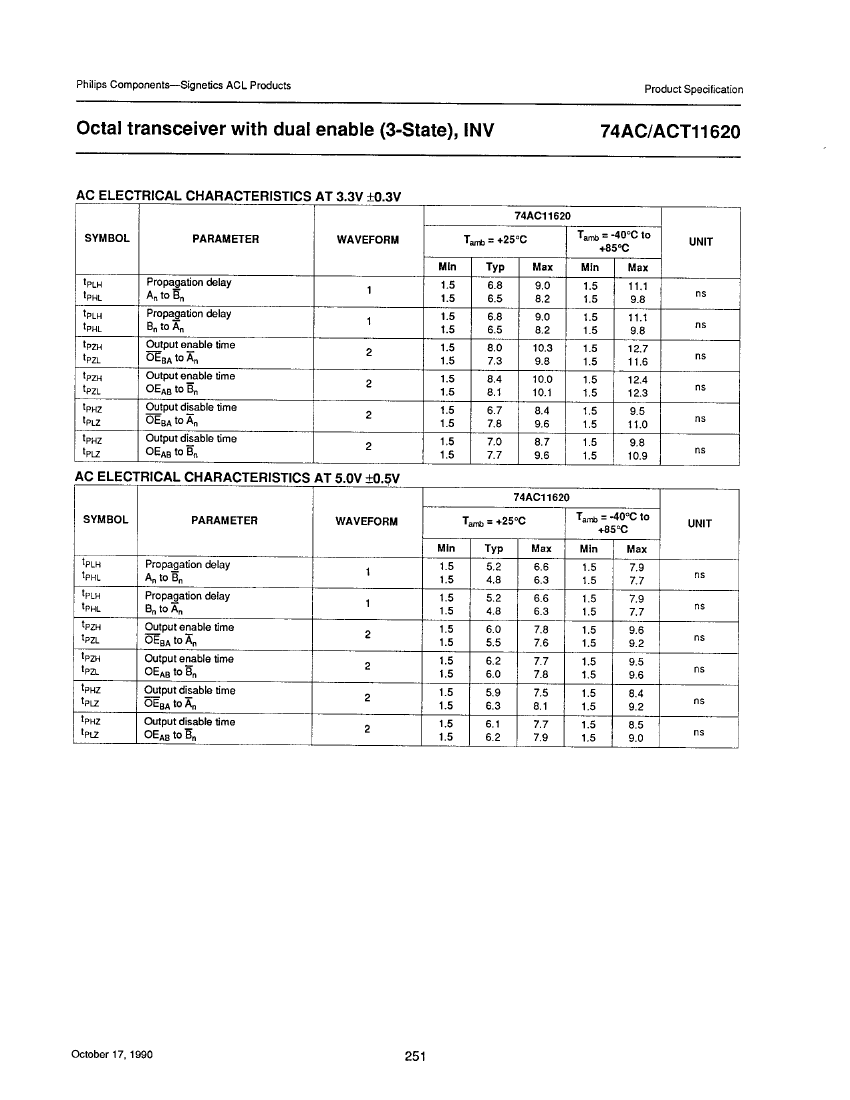

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Philips Semiconductors (NXP Semiconductors N.V.) |
| Reach Compliance Code | unknown |
| Control type | INDEPENDENT CONTROL |
| Counting direction | BIDIRECTIONAL |
| JESD-30 code | R-PDIP-T24 |
| JESD-609 code | e0 |
| MaximumI(ol) | 0.024 A |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of terminals | 24 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output characteristics | 3-STATE |
| Output polarity | INVERTED |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP24,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5 V |
| Prop。Delay @ Nom-Sup | 10 ns |
| Certification status | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| 74ACT11620N | 74AC11620D | 74AC11620N | 74ACT11620D | |
|---|---|---|---|---|
| Description | Bus Driver/Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, PDIP24 | Bus Driver/Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, PDSO24 | Bus Driver/Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, PDIP24 | Bus Driver/Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, PDSO24 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Maker | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Control type | INDEPENDENT CONTROL | COMMON CONTROL | COMMON CONTROL | INDEPENDENT CONTROL |
| Counting direction | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL |
| JESD-30 code | R-PDIP-T24 | R-PDSO-G24 | R-PDIP-T24 | R-PDSO-G24 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| MaximumI(ol) | 0.024 A | 0.024 A | 0.024 A | 0.024 A |
| Number of digits | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 24 | 24 | 24 | 24 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | INVERTED | INVERTED | INVERTED | INVERTED |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | SOP | DIP | SOP |
| Encapsulate equivalent code | DIP24,.3 | SOP24,.4 | DIP24,.3 | SOP24,.4 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | IN-LINE | SMALL OUTLINE |
| power supply | 5 V | 3.3/5 V | 3.3/5 V | 5 V |
| Prop。Delay @ Nom-Sup | 10 ns | 11.1 ns | 11.1 ns | 10 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | YES | NO | YES |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | GULL WING | THROUGH-HOLE | GULL WING |
| Terminal pitch | 2.54 mm | 1.27 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Base Number Matches | 1 | 1 | 1 | 1 |
| Is Samacsys | - | N | N | N |
