BUX77AR1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BUX77AR1

BUX77AR1: Description8A, 80V, NPN, Si, POWER TRANSISTOR, TO-213AA, HERMETIC SEALED, METAL, TO66, 2 PIN; CategoryDiscrete semiconductor The transistor; File Size92KB，3 Pages; ManufacturerSEMELAB; Environmental Compliance

Download Datasheet Parametric Compare View All

BUX77AR1 Overview

8A, 80V, NPN, Si, POWER TRANSISTOR, TO-213AA, HERMETIC SEALED, METAL, TO66, 2 PIN

BUX77AR1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEMELAB
Parts packaging code	TO-66
package instruction	FLANGE MOUNT, O-MBFM-P2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	8 A
Collector-emitter maximum voltage	80 V
Configuration	SINGLE
Minimum DC current gain (hFE)	30
JEDEC-95 code	TO-213AA
JESD-30 code	O-MBFM-P2
JESD-609 code	e1
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN SILVER COPPER
Terminal form	PIN/PEG
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	2.5 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

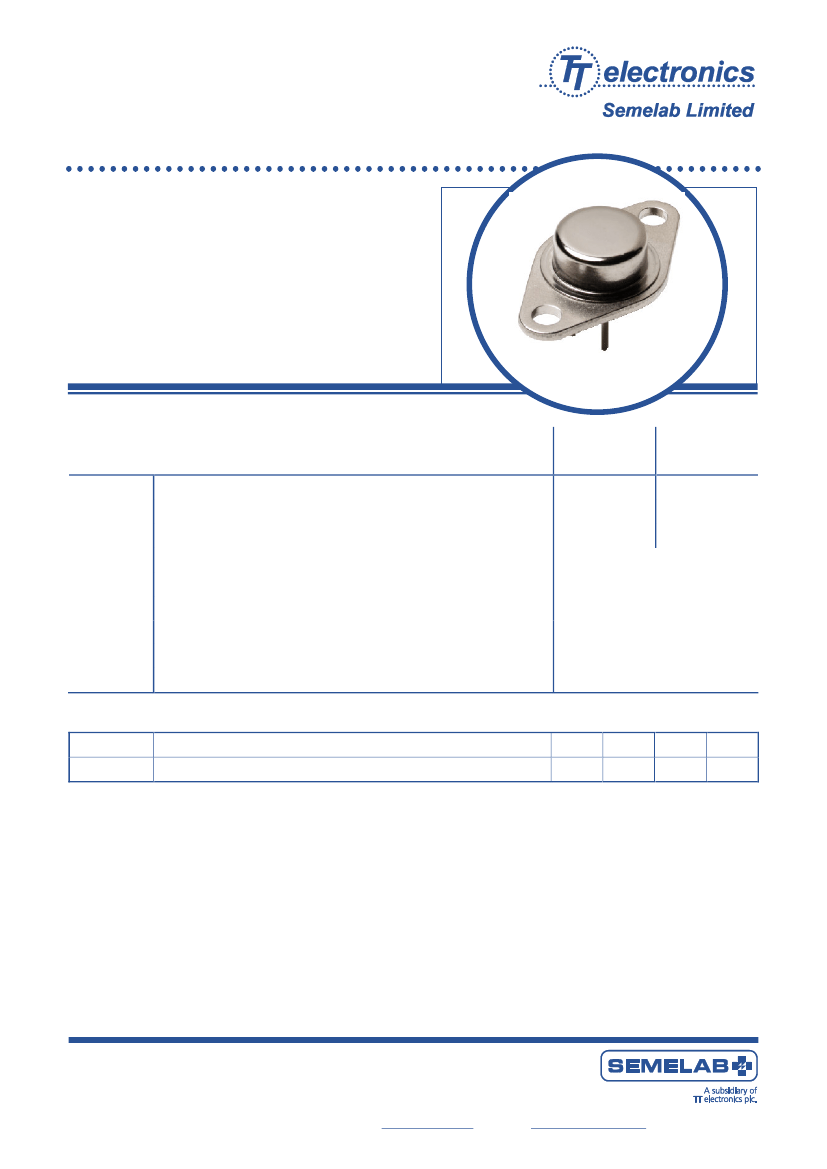

SILICON PLANAR EPITAXIAL

NPN/PNP TRANSISTORS

BUX77A / BUX78A

•

High Power

Hermetic TO-66 Metal Package

Ideally suited for Driver Circuits, Switching

and Amplifier Applications

Screening Options Available

•

ABSOLUTE MAXIMUM RATINGS

(TC = 25°C unless otherwise stated)

BUX77A

NPN

100V

80V

BUX78A

PNP

-100V

-80V

-6V

VCBO

VCEO

VEBO

Tstg

Collector – Base Voltage

Collector – Emitter Voltage

Emitter – Base Voltage

Continuous Collector Current

Base Current

TC = 25°C

Total Power Dissipation at

Derate Above 25°C

Junction Temperature Range

Storage Temperature Range

40W

0.23W/°C

-65 to +200°C

THERMAL PROPERTIES

Symbols

θJC

Parameters

Thermal Resistance, Junction To Case

Min.

Typ.

Max.

4.4

Units

°C/W

Semelab Limited reserves the right to change test conditions, parameter limits and package dimensions without notice.

Information furnished by Semelab is believed to be both accurate and reliable at the time of going to press. However

Semelab assumes no responsibility for any errors or omissions discovered in its use. Semelab encourages customers to

verify that datasheets are current before placing orders.

Semelab Limited

Coventry Road, Lutterworth, Leicestershire, LE17 4JB

Telephone +44 (0) 1455 556565

Fax +44 (0) 1455 552612

Email:

sales@semelab-tt.com

Document Number 7743

Issue 2

Page 1 of 3

Website:

http://www.semelab-tt.com

BUX77AR1 Related Products

	BUX77AR1	BUX78AR1
Description	8A, 80V, NPN, Si, POWER TRANSISTOR, TO-213AA, HERMETIC SEALED, METAL, TO66, 2 PIN	8A, 80V, PNP, Si, POWER TRANSISTOR, TO-213AA, HERMETIC SEALED, METAL, TO66, 2 PIN
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	SEMELAB	SEMELAB
Parts packaging code	TO-66	TO-66
package instruction	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2
Contacts	2	2
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR
Maximum collector current (IC)	8 A	8 A
Collector-emitter maximum voltage	80 V	80 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	30	30
JEDEC-95 code	TO-213AA	TO-213AA
JESD-30 code	O-MBFM-P2	O-MBFM-P2
JESD-609 code	e1	e1
Number of components	1	1
Number of terminals	2	2
Maximum operating temperature	200 °C	200 °C
Package body material	METAL	METAL
Package shape	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	NPN	PNP
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal surface	TIN SILVER COPPER	TIN SILVER COPPER
Terminal form	PIN/PEG	PIN/PEG
Terminal location	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	2.5 MHz	2.5 MHz
Base Number Matches	1	1
