5962-8876801PX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 5962-8876801PX

5962-8876801PX: DescriptionHermetically Sealed, Low IF, Wide VCC, Logic Gate Optocouplers; CategoryLED optoelectronic/LED photoelectric; File Size257KB，12 Pages; ManufacturerHP（Keysight）; Websitehttp://www.semiconductor.agilent.com/

Download Datasheet Parametric View All

5962-8876801PX Overview

Hermetically Sealed, Low IF, Wide VCC, Logic Gate Optocouplers

5962-8876801PX Parametric

Parameter Name	Attribute value
package instruction	HERMETIC SEALED, CERAMIC, DIP-8
Reach Compliance Code	unknow
ECCN code	3A001.A.2.C
Other features	CMOS COMPATIBLE, HIGH RELIABILITY
Configuration	COMPLEX
Nominal data rate	5 MBps
Maximum forward current	0.008 A
Maximum insulation voltage	1500 V
Number of components	1
Maximum on-state current	0.015 A
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	LOGIC IC OUTPUT OPTOCOUPLER
Minimum supply voltage	4.5 V
Base Number Matches	1

Preview

Download Datasheet

View All

Hermetically Sealed,

Low I

, Wide V

Logic Gate Optocouplers

Technical Data

HCPL-520x*

5962-88768

HCPL-523x

HCPL-623x

HCPL-625x

5962-88769

*See matrix for available extensions.

Features

• Dual Marked with Device

Part Number and DSCC

Standard Microcircuit

Drawing

• Manufactured and Tested on

a MIL-PRF-38534 Certified

Line

• QML-38534, Class H and K

• Four Hermetically Sealed

Package Configurations

• Performance Guaranteed

over -55

C to +125

• Wide V

Range (4.5 to 20 V)

• 350 ns Maximum Propaga-

tion Delay

• CMR: > 10,000 V/

s Typical

• 1500 Vdc Withstand Test

Voltage

• Three State Output Available

• High Radiation Immunity

• HCPL-2200/31 Function

Compatibility

• Reliability Data Available

• Compatible with LSTTL,

TTL, and CMOS Logic

• Isolated Bus Driver (Single

Channel)

• Pulse Transformer

Replacement

• Ground Loop Elimination

• Harsh Industrial

Environments

• Computer-Peripheral

Interfaces

eliminates the potential for

output signal chatter. The

detector in the single channel

units has a tri-state output stage

Truth Tables

(Positive Logic)

Multichannel Devices

Input

Output

On (H)

Off (L)

Description

These units are single, dual and

quad channel, hermetically sealed

optocouplers. The products are

capable of operation and storage

over the full military temperature

range and can be purchased as

either standard product or with

full MIL-PRF-38534 Class Level

H or K testing or from the

appropriate DSCC Drawing. All

devices are manufactured and

tested on a MIL-PRF-38534

certified line and are included in

the DSCC Qualified Manufac-

turers List QML-38534 for Hybrid

Microcircuits.

Each channel contains an AlGaAs

light emitting diode which is

optically coupled to an integrated

high gain photon detector. The

detector has a threshold with

hysteresis which provides differ-

ential mode noise immunity and

Single Channel DIP

Input

Enable

On (H)

Off (L)

On (H)

Off (L)

Output

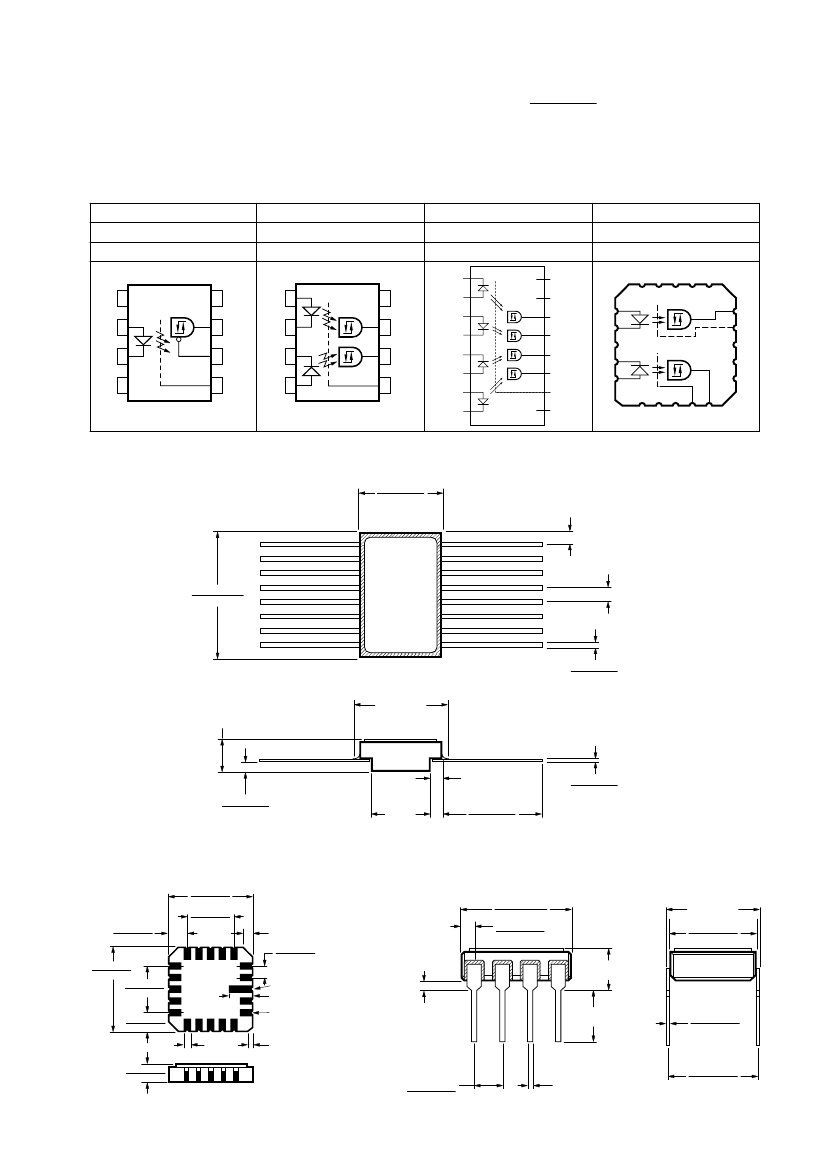

Functional Diagram

Multiple Channel Devices

Available

Applications

• Military and Space

• High Reliability Systems

• Transportation and Life

Critical Systems

• High Speed Line Receiver

GND

A 0.1

µF

bypass capacitor must be connected between V

and GND pins.

CAUTION: It is advised that normal static precautions be taken in handling and assembly of this component to

prevent damage and/or degradation which may be induced by ESD.
