3KBP005M

Description
Bridge Rectifier Diode,
CategoryDiscrete semiconductor    diode
File Size89KB,2 Pages
ManufacturerGulf Semiconductor
Websitehttp://www.gulfsemi.com/
Download Datasheet Parametric Compare View All

3KBP005M Overview

Bridge Rectifier Diode,

3KBP005M Parametric

Parameter NameAttribute value
MakerGulf Semiconductor
Reach Compliance Codeunknown
ECCN codeEAR99
Diode typeBRIDGE RECTIFIER DIODE
Base Number Matches1

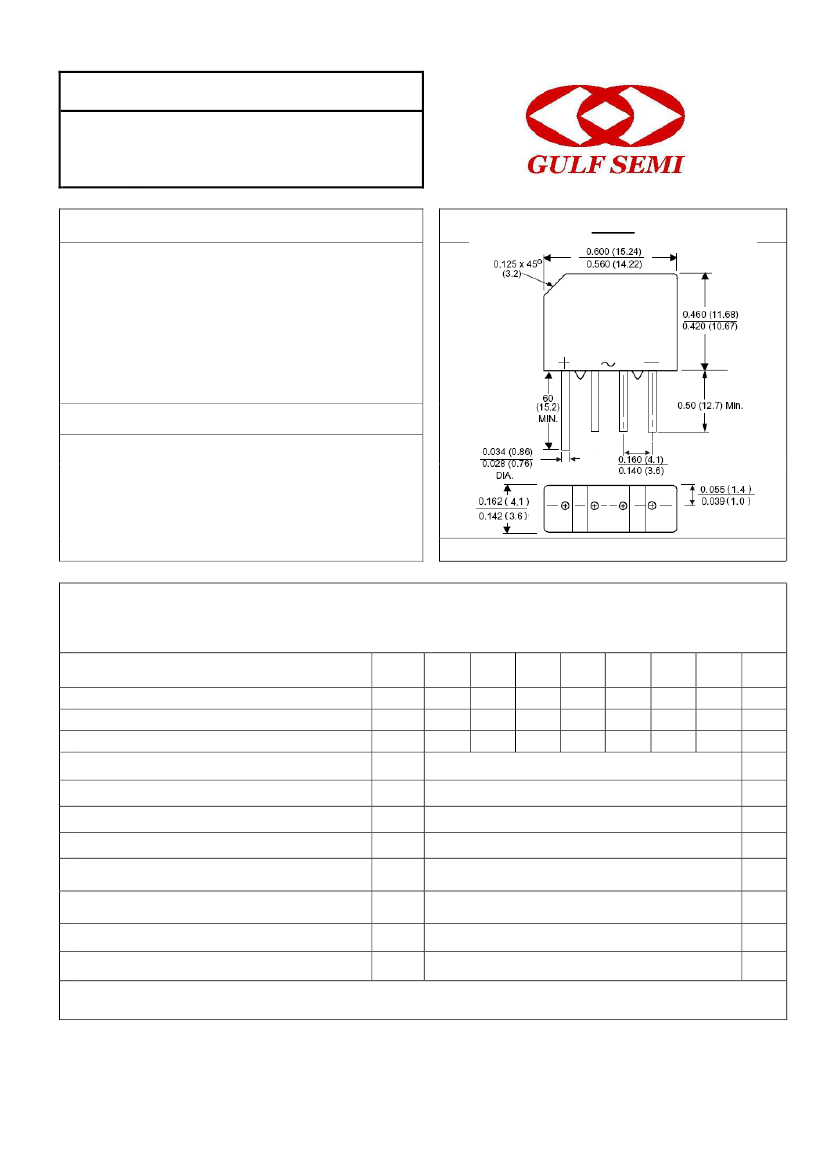

3KBP005M THRU 3KBP10M
SINGLE PHASE GLASS
PASSIVATED BRIDGE RECTIFIER
Voltage: 50
to
1000V
Current:3.0A
Features
Glass passivated chip junction
High case dielectric strength
High surge current capability
Ideal for printed circuit board
KBPM
Mechanical Data
Terminal: Plated leads solderable per MIL-STD 202E,
Method 208C
Case: UL-94 Class V-0 recognized Flame Retardant Epoxy
Polarity: As marked on body
Dimensions in inches and (millimeters)
MAXIMUM
RATINGS
AND
ELECTRICAL
CHARACTERISTICS
(single-phase, half -wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated,
for capacitive load, derate current by 20%)
Symbol
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified output current
Ta =55℃
Peak forward surge current 50 Hz single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage drop per diode
at 3.0A
Rating for fusing (t < 10ms)
Maximum DC reverse current at
rated DC blocking voltage per leg
Maximum thermal resistance per leg
Ta = 25°
C
Ta = 125°
C
(Note1)
Vrrm
Vrms
Vdc
If(av)
Ifsm
Vf
I
2
t
Ir
Rth(ja)
Rth(jc)
Cj
Tj, Tstg
3KBP
005M
50
35
50
3KBP
01M
100
70
100
3KBP
02M
200
140
200
3KBP
04M
400
280
400
3.0
80
1.05
32
5.0
500
30
11
25
-55 to +150
3KBP
06M
600
420
600
3KBP
08M
800
560
800
3KBP
10M
1000
700
1000
units
V
V
V
A
A
V
A
2
Sec
µA
℃/W
pF
Typical junction capacitance per leg at 4.0V,1MHz
Operating junction and storage temperature range
Note:
1. Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.47 x 047" (12 x 12mm) copper pads

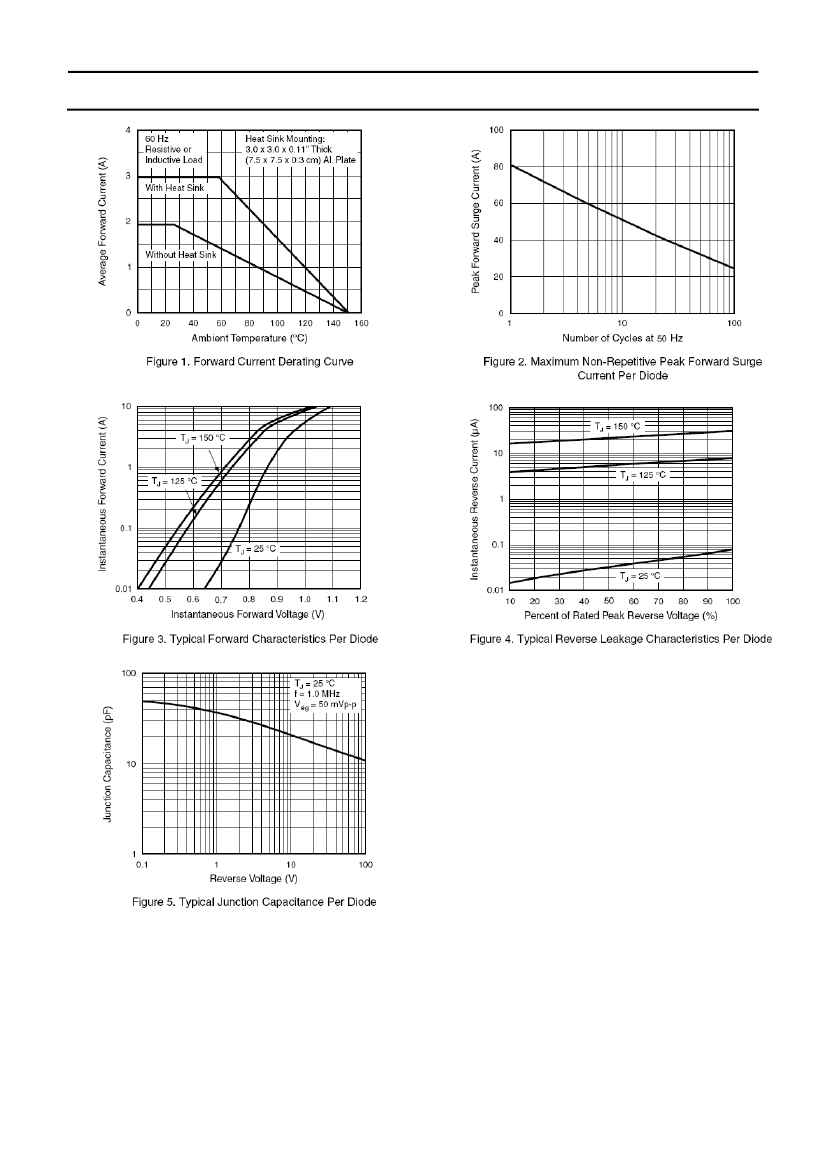

Rev.A1
www.gulfsemi.com

3KBP005M Related Products

3KBP005M 3KBP02M 3KBP06M 3KBP01M 3KBP08M
Description Bridge Rectifier Diode, Bridge Rectifier Diode, Bridge Rectifier Diode, Bridge Rectifier Diode, Bridge Rectifier Diode,
Reach Compliance Code unknown unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99
Diode type BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE BRIDGE RECTIFIER DIODE
Base Number Matches 1 1 1 1 1
