D681K25X5FL6UJ5 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> D681K25X5FL6UJ5

D681K25X5FL6UJ5: DescriptionCAPACITOR, CERAMIC, 500 V, X5F, 0.00068 uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size272KB，6 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

D681K25X5FL6UJ5 Overview

CAPACITOR, CERAMIC, 500 V, X5F, 0.00068 uF, THROUGH HOLE MOUNT, RADIAL LEADED

D681K25X5FL6UJ5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	, 2616
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	0.00068 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	10.5 mm
length	6.5 mm
Installation features	THROUGH HOLE MOUNT
multi-layer	N
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	DISK PACKAGE
Package form	Radial

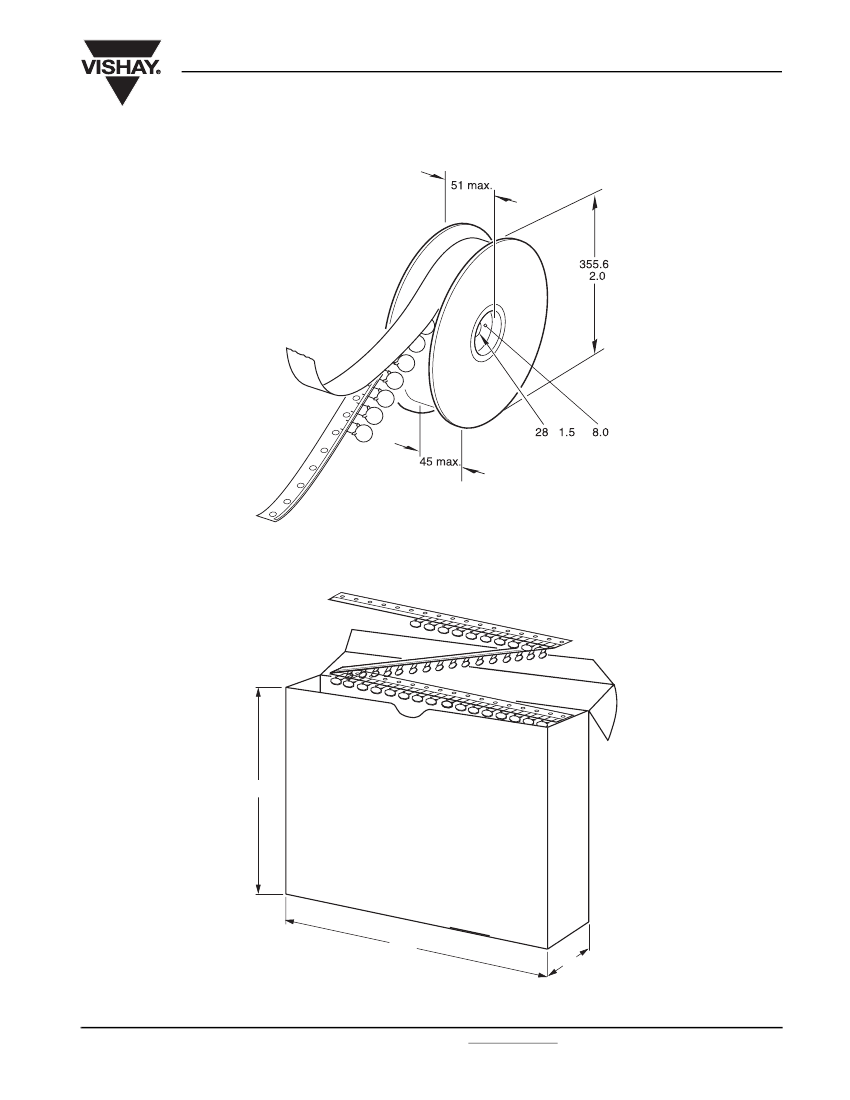

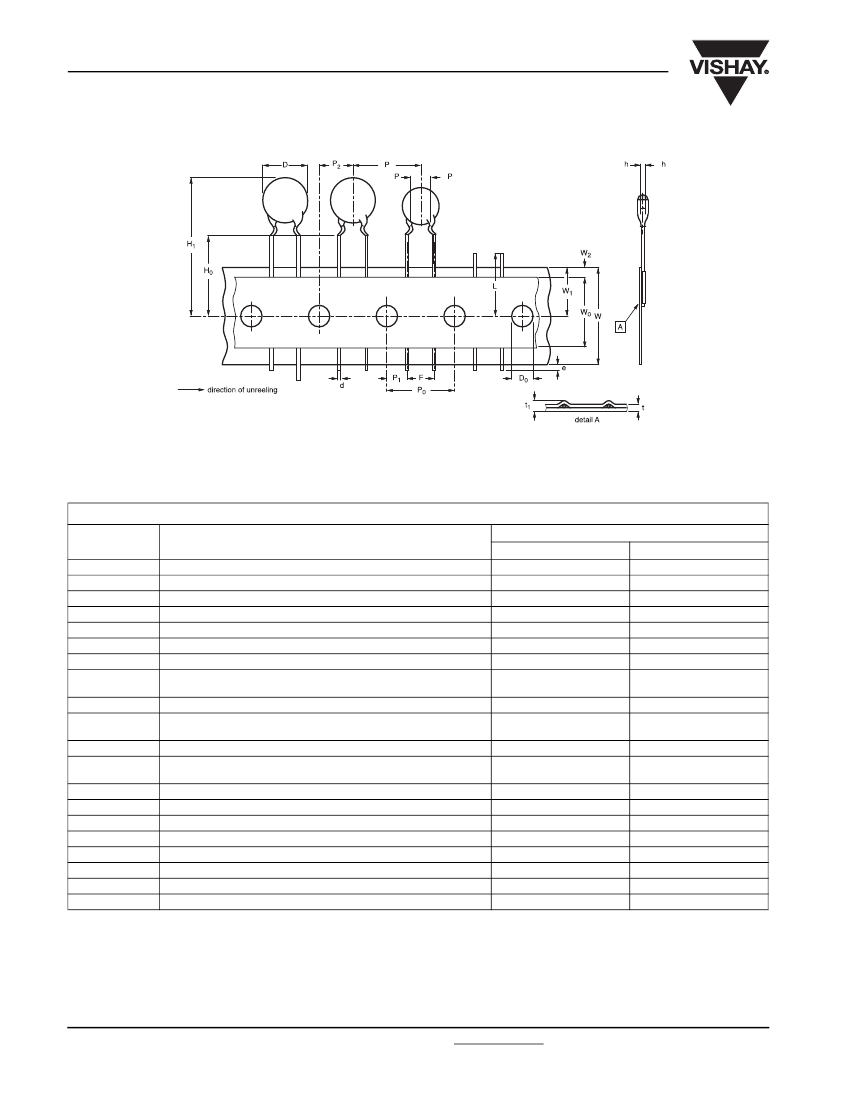

method of packing	AMMO PACK
positive tolerance	10%
Rated (DC) voltage (URdc)	500 V
series	HV 500V
size code	2616
surface mount	NO
Temperature characteristic code	X5F
Temperature Coefficient	7.5% ppm/°C
Terminal pitch	5 mm
Terminal shape	WIRE
width	4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

HV 500 V

Vishay BCcomponents

Ceramic Disc Capacitors

Class 1 and 2, 500 V (DC) General Purpose

FEATURES

•

Low losses

•

High stability

•

High capacitance in small size

tangent

line

•

Kinked (preferred) or straight leads

•

Lead (Pb)-free available

APPLICATIONS

•

Bypassing

•

Coupling

•

Resonant circuit

Capacitors with 5 mm (0.20") lead spacing

DESIGN

The capacitors consist of a ceramic disc both sides of which

are silver-plated. Connection leads are made of tinned

copper having a diameter of 0.6 mm.

The capacitors have inward kinked leads with a spacing of

5 mm (0.200") or 7.5 mm (0.300") and a lead length from

4 to 30 mm. Encapsulation is made of phenolic resin.

tangent

line

CAPACITANCE RANGE:

Class 1, at 1 MHz, 1.2 V (RMS); 10 to 82 pF

1 kHz, 1 ± 0.2 V (RMS) for capacitance values higher than

1000 pF

Class 2, at 1 kHz, 1 ± 0.2 V (RMS); 100 to 22 000 pF

RATED DC VOLTAGE:

Capacitors with 7.5 mm (0.30") lead spacing

500 V

SECTIONAL SPECIFICATIONS:

Class 1 IEC 60 384-8

Class 2 IEC 60 384-9

EIA 198

DIELECTRIC STRENGTH:

250 % of rated voltage

INSULATION RESISTANCE AT 500 V (DC):

≥

10 000 MΩ

CLIMATIC CATEGORY:

Class 1 55/125/21

Class 2 10/85/21, 30/85/21 and 55/85/21

TOLERANCE ON CAPACITANCE:

± 5 %; ± 10 %; ± 20 %; + 80/- 20 %

DISSIPATION FACTOR:

Class 1, C

≤

30 pF;

≤

20 x (10/C + 0.7) x 10

-4

maximum

Class 1, C > 30 pF;

≤

0.2 %

Class 2,

≤

3.0 %

OPERATING TEMPERATURE RANGE:

Class 1 - 55 to + 125 °C

Class 2 - 55 to + 85 °C

TEMPERATURE COEFFICIENTS:

MARKING

Marking indicates capacitance value and tolerance in

accordance with “EIA 198”

Class 1 C0G (NP0); SL0

Class 2 Y5P; Z5U; Y5V; X5F

The capacitors meet the essential requirements of “EIA 198”. Unless stated otherwise all electrical values apply at an ambient

temperature of 25 ± 3 °C, at normal atmospheric conditions.

Document Number 28513

Revision 19-Jan-07

For technical questions, contact: CDC@vishay.com

www.vishay.com
