94152-184 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 94152-184

94152-184: DescriptionTelecom and Datacom Connector, 4 Contact(s), Female, Straight, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size60KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

94152-184 Overview

Telecom and Datacom Connector, 4 Contact(s), Female, Straight, Solder Terminal, Locking, Jack

94152-184 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SNAP STYLE PEG, PANEL STOP
Board mount options	SPLIT BOARD LOCK
body width	0.665 inch
subject depth	0.623 inch
body length	0.7 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	250 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	19.5712 N
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	COPPER
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

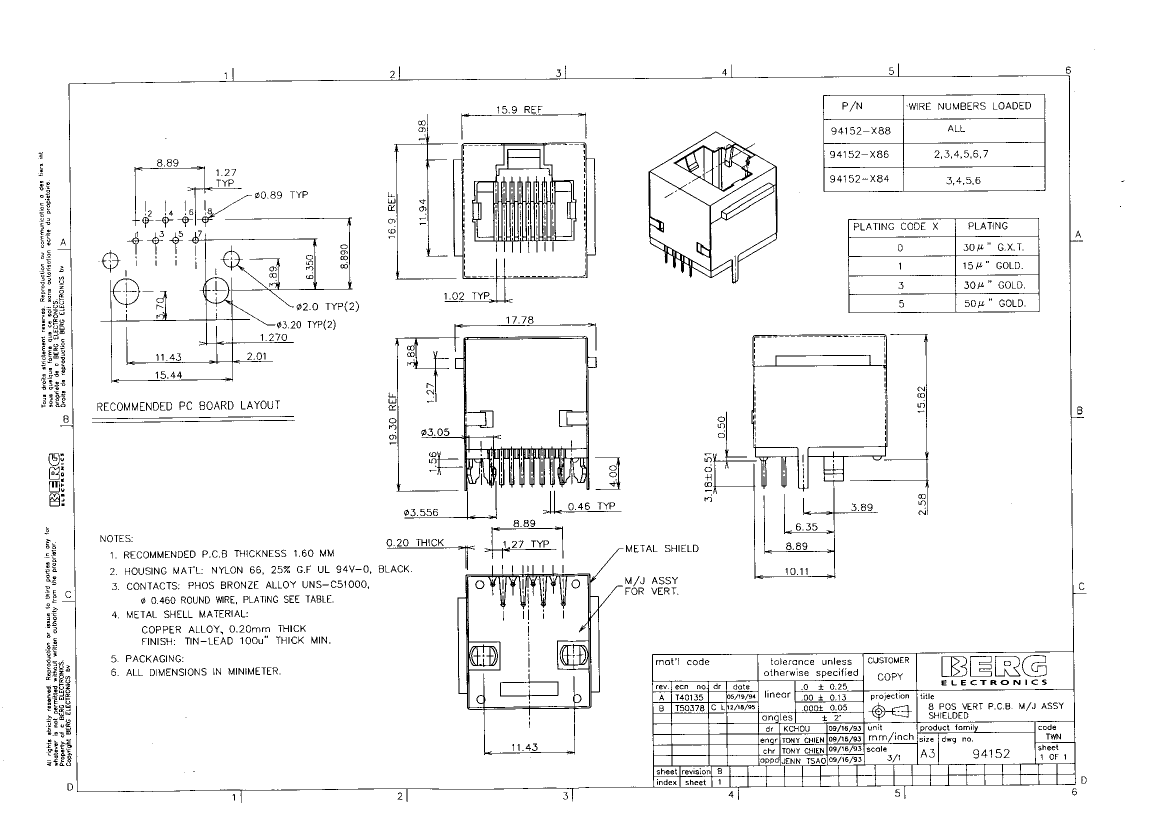

Preview

Download Datasheet

View All

94152-184 Related Products

	94152-184	94152-186	94152-586	94152-386	94152-188	94152-584	94152-588
Description	Telecom and Datacom Connector, 4 Contact(s), Female, Straight, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 6 Contact(s), Female, Straight, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 6 Contact(s), Female, Straight, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 6 Contact(s), Female, Straight, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Female, Straight, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 4 Contact(s), Female, Straight, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Female, Straight, Solder Terminal, Locking, Jack
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	SNAP STYLE PEG, PANEL STOP	SNAP STYLE PEG, PANEL STOP	SNAP STYLE PEG, PANEL STOP	SNAP STYLE PEG, PANEL STOP	SNAP STYLE PEG, PANEL STOP	SNAP STYLE PEG, PANEL STOP	SNAP STYLE PEG, PANEL STOP
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.665 inch	0.665 inch	0.665 inch	0.665 inch	0.665 inch	0.665 inch	0.665 inch
subject depth	0.623 inch	0.623 inch	0.623 inch	0.623 inch	0.623 inch	0.623 inch	0.623 inch
body length	0.7 inch	0.7 inch	0.7 inch	0.7 inch	0.7 inch	0.7 inch	0.7 inch
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Durability	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles
empty shell	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	19.5712 N	19.5712 N	19.5712 N	19.5712 N	19.5712 N	19.5712 N	19.5712 N
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of ports	1	1	1	1	1	1	1
Plating thickness	15u inch	15u inch	50u inch	30u inch	15u inch	50u inch	50u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER
Terminal length	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	6	6	6	8	4	8
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Amphenol	-	-	-	Amphenol	Amphenol	Amphenol
Base Number Matches	1	1	1	1	-	-	-
