D180J25C0GL6TJ5 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> D180J25C0GL6TJ5

D180J25C0GL6TJ5: DescriptionCAPACITOR, CERAMIC, 500 V, C0G, 0.000018 uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size130KB，6 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Related ProductsFound5parts with similar functions to D180J25C0GL6TJ5

Download Datasheet Parametric Compare View All

D180J25C0GL6TJ5 Overview

CAPACITOR, CERAMIC, 500 V, C0G, 0.000018 uF, THROUGH HOLE MOUNT, RADIAL LEADED

D180J25C0GL6TJ5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	, 2616
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	0.000018 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	10.5 mm
length	6.5 mm
Manufacturer's serial number	HV500V
Installation features	THROUGH HOLE MOUNT
multi-layer	N
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	DISK PACKAGE
Package form	Radial

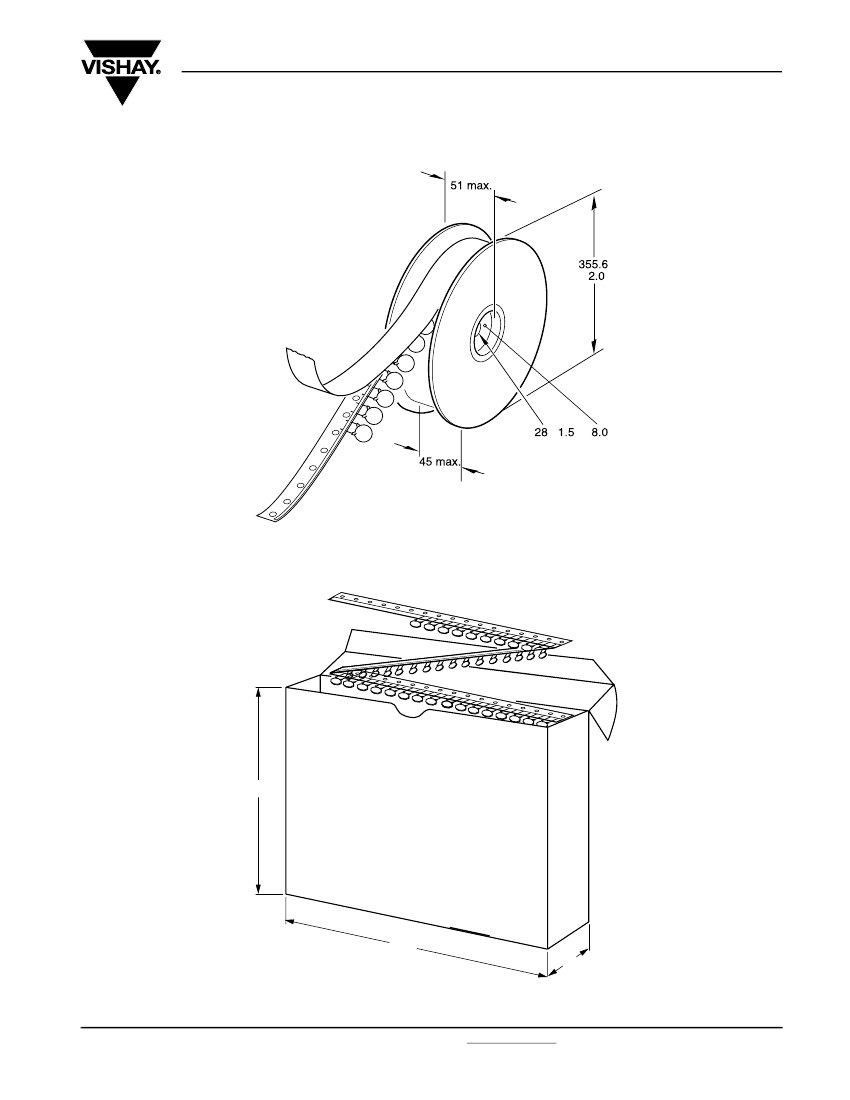

method of packing	TR, 14 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	500 V
series	HV 500V
size code	2616
surface mount	NO
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal pitch	5 mm
Terminal shape	WIRE
width	4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

HV 500 V

Vishay BCcomponents

Ceramic Disc Capacitors

Class 1 and 2, 500 V (DC) General Purpose

FEATURES

•

Low losses

•

High stability

•

High capacitance in small size

RoHS

COMPLIANT

tangent

line

•

Kinked (preferred) or straight leads

•

Lead (Pb)-free available

APPLICATIONS

•

Bypassing

•

Coupling

•

Resonant circuit

Capacitors with 5 mm (0.20") lead spacing

DESIGN

The capacitors consist of a ceramic disc both sides of which

are silver-plated. Connection leads are made of tinned

copper having a diameter of 0.6 mm.

The capacitors have inward kinked leads with a spacing of

5 mm (0.200") or 7.5 mm (0.300") and a lead length from

4 to 30 mm. Encapsulation is made of phenolic resin.

tangent

line

CAPACITANCE RANGE:

Class 1, at 1 MHz, 1.2 V (RMS); 10 to 82 pF

1 kHz, 1 ± 0.2 V (RMS) for capacitance values higher than

1000 pF.

Class 2, at 1 kHz, 1 ± 0.2 V (RMS); 100 to 22 000 pF

RATED DC VOLTAGE:

Capacitors with 7.5 mm (0.30") lead spacing

500 V

SECTIONAL SPECIFICATIONS:

Class 1 IEC 60 384-8,

Class 2 IEC 60 384-9,

EIA 198

DIELECTRIC STRENGTH:

250 % of rated voltage

INSULATION RESISTANCE AT 500 V (DC):

≥

10 000 MΩ

CLIMATIC CATEGORY:

Class 1 55/125/21

Class 2 10/85/21, 30/85/21 and 55/85/21

TOLERANCE ON CAPACITANCE:

± 5 %; ± 10 %; ± 20 %; + 80/- 20 %

DISSIPATION FACTOR:

Class 1, C

≤

30 pF;

≤

20 x (10/C + 0.7) x 10

-4

maximum

Class 1, C > 30 pF;

≤

0.2 %

Class 2,

≤

3.0 %

OPERATING TEMPERATURE RANGE:

Class 1 - 55 to + 125 °C

Class 2 - 55 to + 85 °C

MARKING

Marking indicates capacitance value and tolerance in

accordance with “EIA 198”.

TEMPERATURE COEFFICIENTS:

Class 1 C0G (NP0); SL0

Class 2 Y5P; Z5U; Y5V; X5F

The capacitors meet the essential requirements of “EIA 198”. Unless stated otherwise all electrical values apply at an ambient

temperature of 25 ± 3 °C, at normal atmospheric conditions.

Document Number 28513

Revision 26-Apr-06

For technical questions contact: CDC@vishay.com

www.vishay.com

D180J25C0GL6TJ5 Related Products

	D180J25C0GL6TJ5	D180J25C0GL63J5	D180J25C0GL6UJ5
Description	CAPACITOR, CERAMIC, 500 V, C0G, 0.000018 uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, CERAMIC, 500 V, C0G, 0.000018 uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, CERAMIC, 500 V, C0G, 0.000018 uF, THROUGH HOLE MOUNT, RADIAL LEADED
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	, 2616	, 2616	, 2616
Reach Compliance Code	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99
capacitance	0.000018 µF	0.000018 µF	0.000018 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC
high	10.5 mm	10.5 mm	10.5 mm
length	6.5 mm	6.5 mm	6.5 mm
Manufacturer's serial number	HV500V	HV500V	HV500V
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
multi-layer	N	N	N
negative tolerance	5%	5%	5%
Number of terminals	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package shape	DISK PACKAGE	DISK PACKAGE	DISK PACKAGE
Package form	Radial	Radial	Radial
method of packing	TR, 14 INCH	BULK	AMMO PACK
positive tolerance	5%	5%	5%
Rated (DC) voltage (URdc)	500 V	500 V	500 V
series	HV 500V	HV 500V	HV 500V
size code	2616	2616	2616
surface mount	NO	NO	NO
Temperature characteristic code	C0G	C0G	C0G
Temperature Coefficient	30ppm/Cel ppm/°C	30ppm/Cel ppm/°C	30ppm/Cel ppm/°C
Terminal pitch	5 mm	5 mm	5 mm
Terminal shape	WIRE	WIRE	WIRE
width	4 mm	4 mm	4 mm
Base Number Matches	1	1	1
