1N821
(AUR),(UR-1)
-
1N829
(AUR),(UR-1)
TC Zener Reference Diode Series
Rev. V1
Features
Metallurgically Bonded, Double Plugged
Construction
Electrically Equivalent to CD821 - CD829
Available in JAN, JANTX, JANTXV and JANS
Description
These 0.5 W zener diodes are electrically equivalent
to the CD821 - CD829 series diodes.
Electrical Specifications: T
A
= +25°C (unless otherwise specified)
Nominal
Zener
Voltage
V
ZT
@ I
ZT1
V
1N821UR
1N821AUR
1N823UR
1N823AUR
1N825UR
1N825AUR
1N826UR
1N827UR
1N827AUR
1N828UR
1N829UR
1N829AUR
5.9 - 6.5
5.9 - 6.5
5.9 - 6.5
5.9 - 6.5
6.2 - 6.9
5.9 - 6.5
5.9 - 6.5
6.2 - 6.9
5.9 - 6.5
Zener
Test
Current
I
ZT
mA
7.5
7.5
7.5
7.5
7.5
Maximum
Zener
Impedance
1
Z
ZT
@ I
ZT
Ω
15
10
15
10
15
10
15
15
10
15
15
10
-55°C to +100°C
Voltage
Temperature
Stability
2
3V
ZT
@ I
ZT
mV
96
48
19
19
20
9
9
10
5
Effective
Temperature
Coefficient
% / °C
0.01
0.005
0.002
0.001
0.0005
Part #
1. Zener impedance is derived by superimposing on I
ZT
at 60 HZ RMS AC current equal to 10% of I
ZT
.
2.
The maximum allowable change observed over the entire temperature range i.e., the diode voltage will not exceed the specialized mV at
any discrete temperature between the established limits, per JEDEC standard No.5.
Absolute Maximum Ratings
3,4
Parameter
DC Power Dissipation
Power Derating
Reverse Leakage Current
Operating Temperature
Storage Temperature
Absolute Maximum
500 mW @ +50°C
4 mW / °C above +50°C
I
R
= 2 µA, V
R
= 3 V
DC
-65°C to +175°C
-65°C to +175°C
3. Exceeding any one or combination of these limits may cause permanent damage to this device.
4.
MACOM does not recommend sustained operation near these survivability limits.
* Restrictions on Hazardous Substances, European Union Directive 2011/65/EU.
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
1
1N821
(AUR),(UR-1)
-
1N829
(AUR),(UR-1)
TC Zener Reference Diode Series
Rev. V1

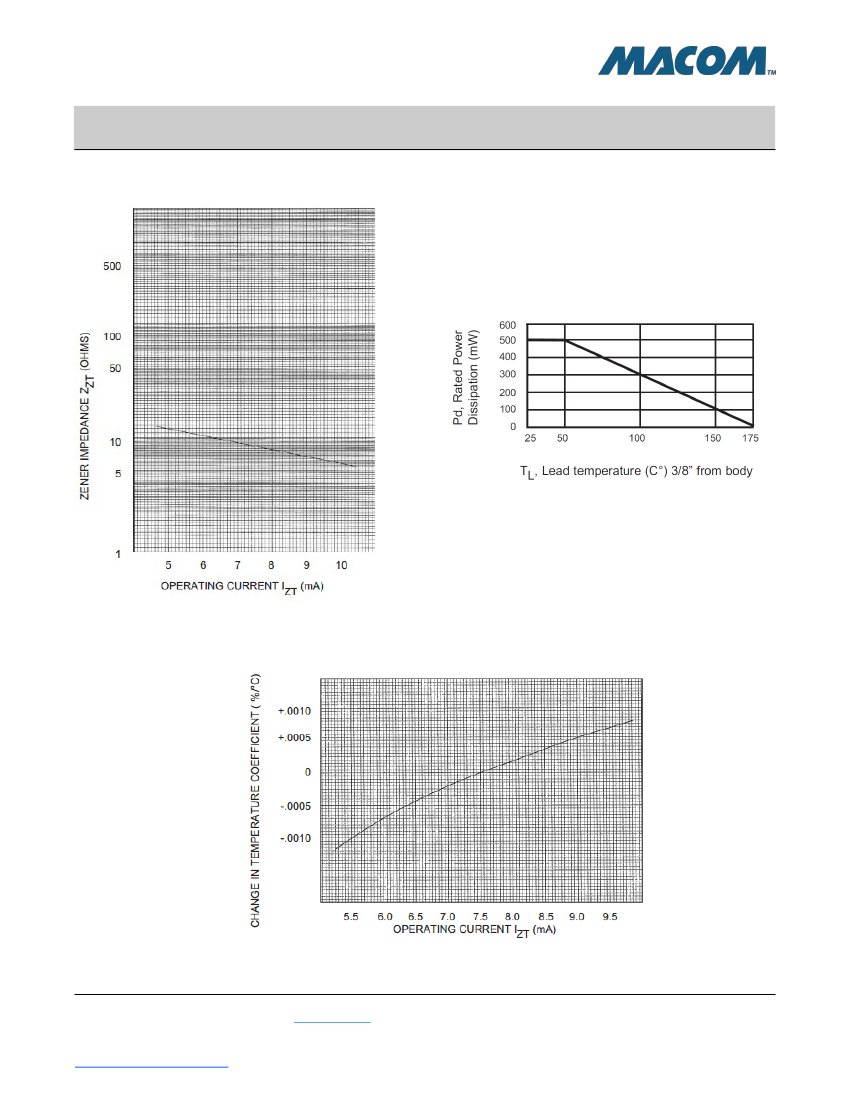

Zener Impedance vs. Operating Current
