SN74LS92NS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SN74LS92NS

SN74LS92NS: DescriptionLS SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP BINARY COUNTER, PDIP14, PLASTIC, DIP-14; Categorylogic logic; File Size166KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

SN74LS92NS Overview

LS SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP BINARY COUNTER, PDIP14, PLASTIC, DIP-14

SN74LS92NS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknown
Counting direction	UP
series	LS
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
length	18.86 mm
Load/preset input	NO
Logic integrated circuit type	BINARY COUNTER
Operating mode	ASYNCHRONOUS
Number of digits	3
Number of functions	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	50 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	NEGATIVE EDGE
width	7.62 mm
minfmax	32 MHz
Base Number Matches	1

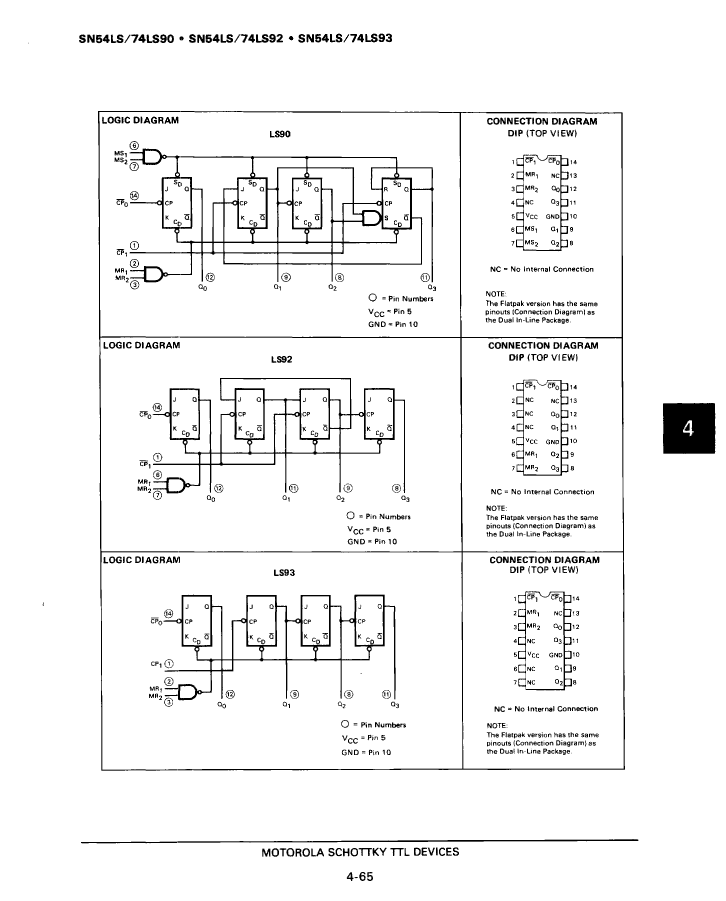

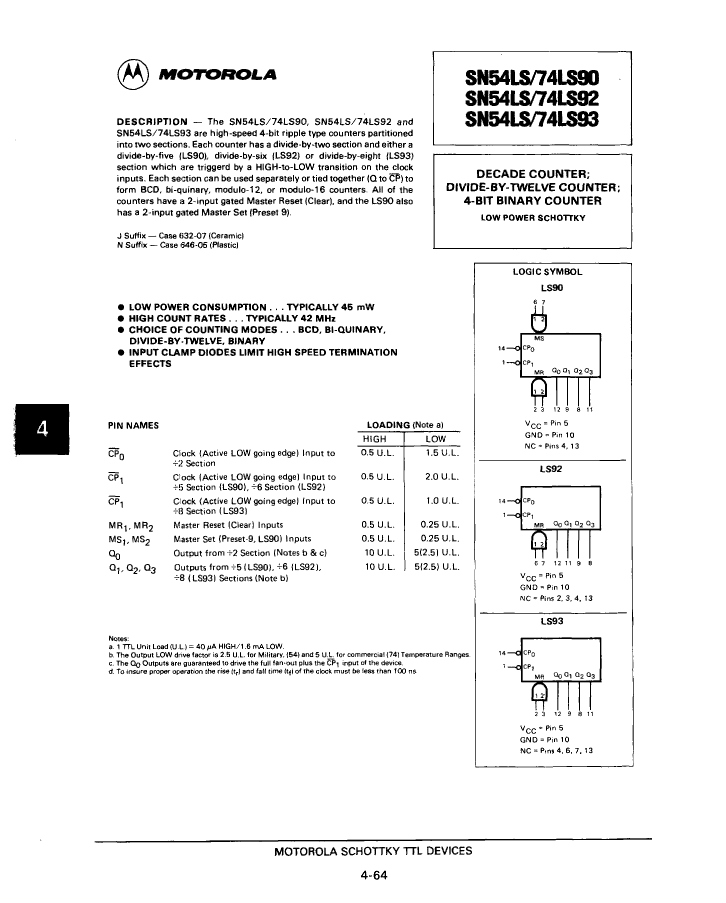

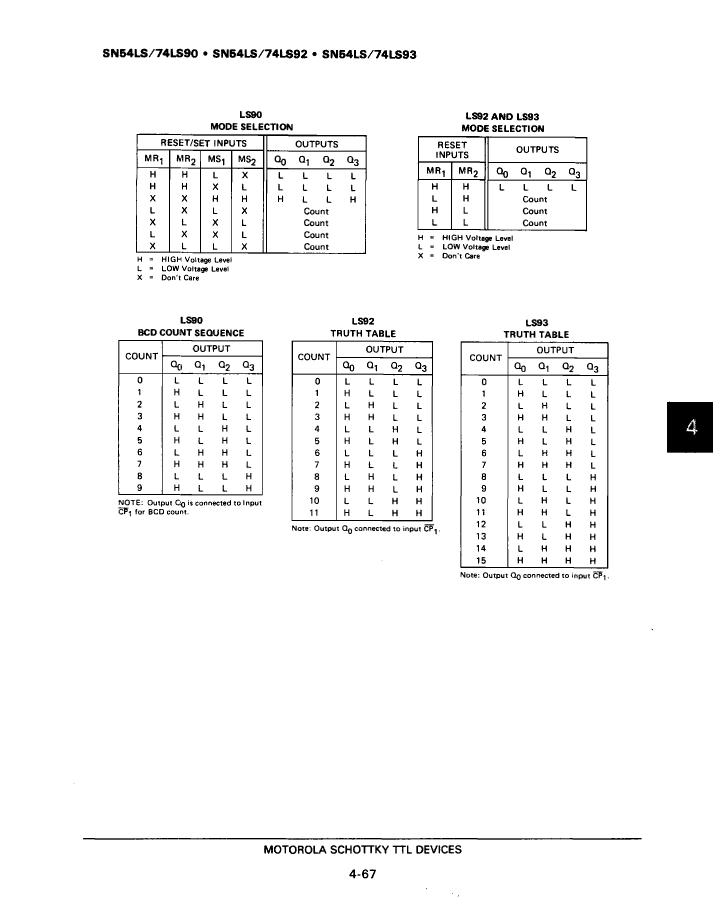

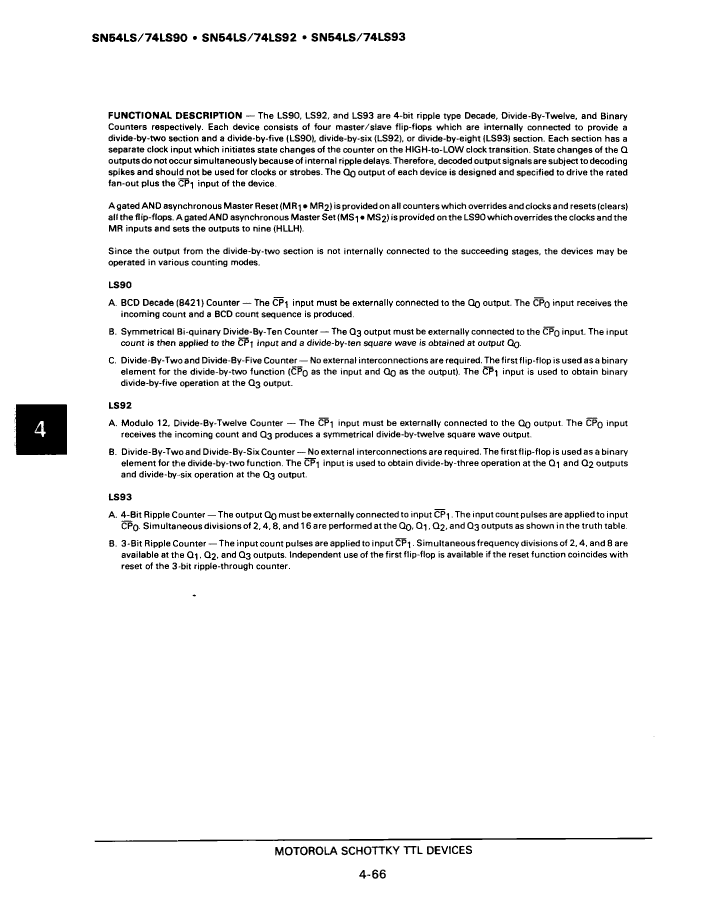

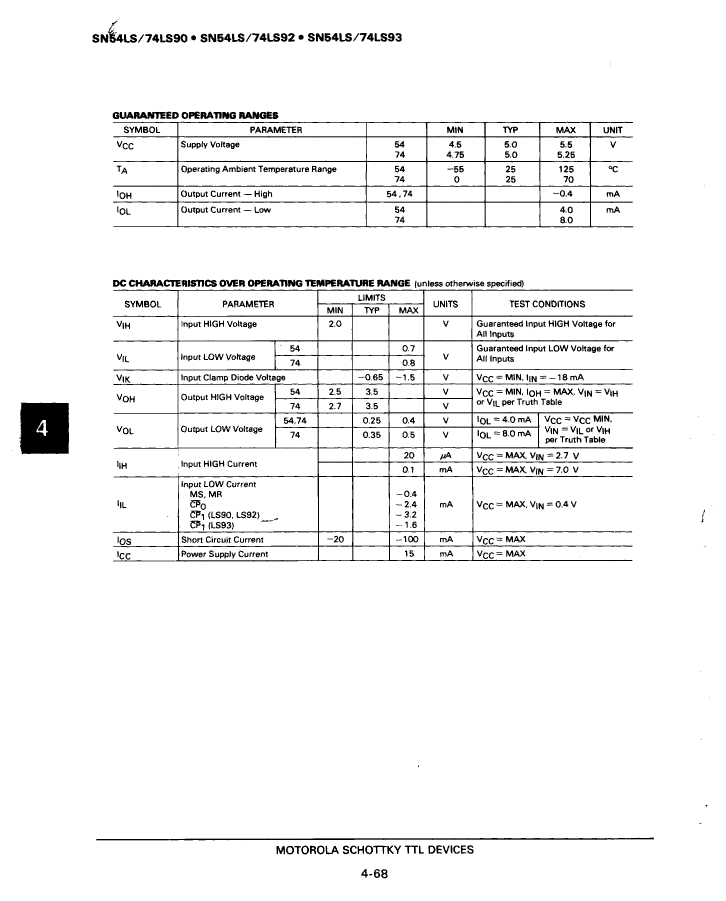

Preview

Download Datasheet

View All

SN74LS92NS Related Products

	SN74LS92NS	SN74LS93JS	SN74LS93NS	SN74LS90NS
Description	LS SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP BINARY COUNTER, PDIP14, PLASTIC, DIP-14	LS SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP BINARY COUNTER, CDIP14, CERAMIC, DIP-14	LS SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP BINARY COUNTER, PDIP14, PLASTIC, DIP-14	LS SERIES, ASYN NEGATIVE EDGE TRIGGERED 3-BIT UP DECADE COUNTER, PDIP14, PLASTIC, DIP-14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	DIP, DIP14,.3	CERAMIC, DIP-14	PLASTIC, DIP-14	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown	unknown
Counting direction	UP	UP	UP	UP
series	LS	LS	LS	LS
JESD-30 code	R-PDIP-T14	R-GDIP-T14	R-PDIP-T14	R-PDIP-T14
JESD-609 code	e0	e0	e0	e0
length	18.86 mm	19.495 mm	18.86 mm	18.86 mm
Load/preset input	NO	NO	NO	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	DECADE COUNTER
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Number of digits	3	3	3	3
Number of functions	2	2	2	2
Number of terminals	14	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V
propagation delay (tpd)	50 ns	70 ns	70 ns	50 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE	NEGATIVE EDGE
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm
minfmax	32 MHz	32 MHz	32 MHz	32 MHz
Base Number Matches	1	1	1	-
