D681K25X5FL6TJ5R datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> D681K25X5FL6TJ5R

D681K25X5FL6TJ5R: DescriptionCAPACITOR, CERAMIC, 500 V, X5F, 0.00068 uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size290KB，6 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance; Related ProductsFound2parts with similar functions to D681K25X5FL6TJ5R

Download Datasheet Parametric Compare View All

D681K25X5FL6TJ5R Overview

CAPACITOR, CERAMIC, 500 V, X5F, 0.00068 uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

D681K25X5FL6TJ5R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	, 2616
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	0.00068 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	6.5 mm
JESD-609 code	e3
length	6.5 mm
Installation features	THROUGH HOLE MOUNT
multi-layer	N
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	DISK PACKAGE
Package form	Radial

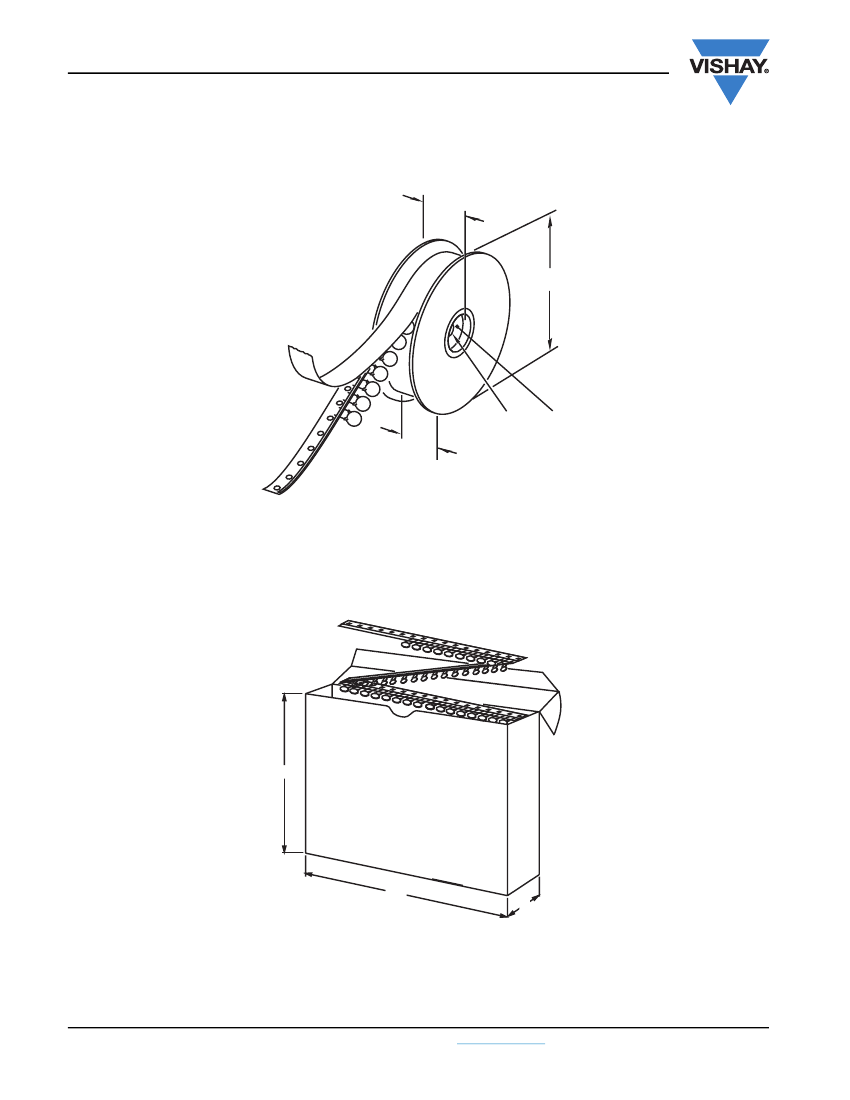

method of packing	TR, 14 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	500 V
size code	2616
surface mount	NO
Temperature characteristic code	X5F
Temperature Coefficient	7.5% ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal pitch	5 mm
Terminal shape	WIRE
width	4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

D Series

Vishay BCcomponents

Ceramic Disc Capacitors

Class 1 and 2, 500 V

, General Purpose

FEATURES

• Low losses

• High stability

• High capacitance in small size

Tangent

line

Tangent

line

• Kinked (preferred) or straight leads

• Compliant to RoHS directive 2002/95/EC

APPLICATIONS

• Bypassing

• Coupling

• Resonant circuit

Capacitors with 5 mm (0.20"

)

and 7.5 mm (0.30"

)

lead spacing

QUICK REFERENCE DATA

DESCRIPTION

Voltage (V

)

Min. Capacitance (pF)

Max. Capacitance (pF)

Mounting

CLASS 1

(C0G (NP0),

SL0)

CLASS 2

(YP5, Z5U, Y5V, X5F)

500

100

22 000

Through hole

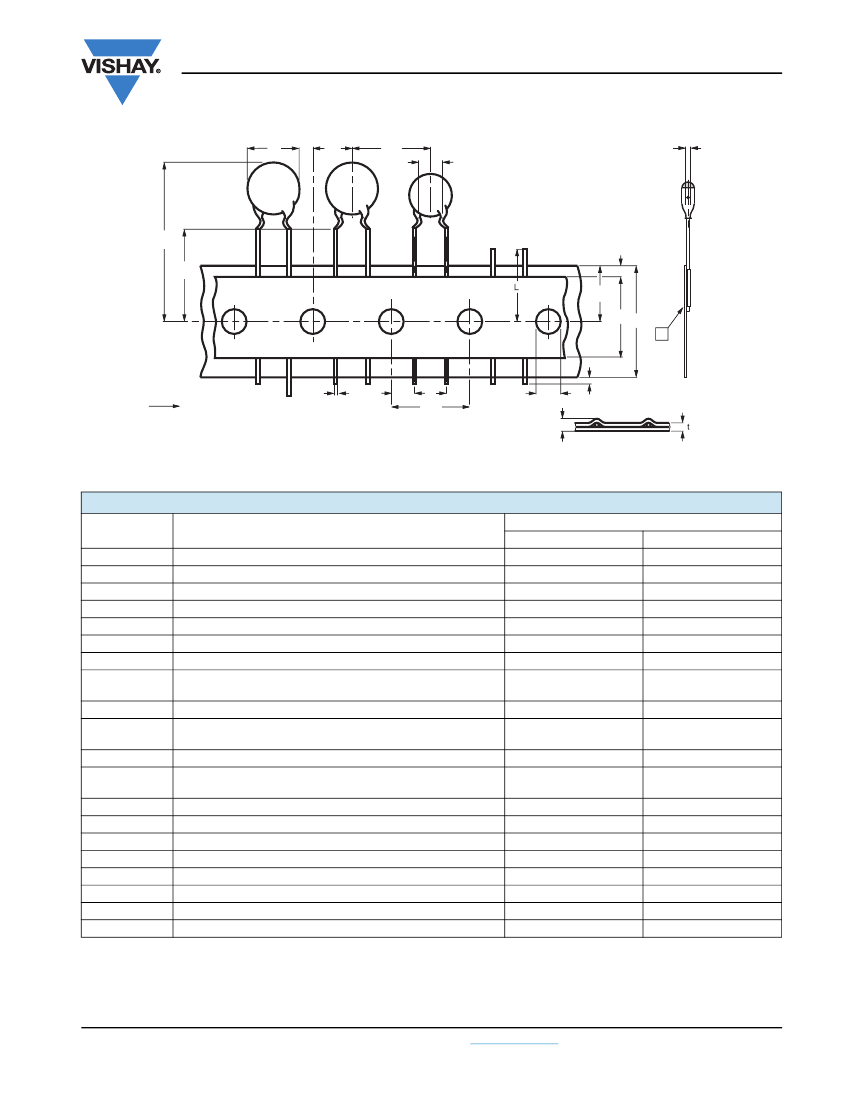

DESIGN

The capacitors consist of a ceramic disc both sides of which

are silver-plated. Connection leads are made of tinned

copper having a diameter of 0.6 mm.

The capacitors have inward kinked leads with a spacing of

5 mm (0.200") or 7.5 mm (0.300") and a lead length from

4 mm to 30 mm. Encapsulation is made of phenolic resin.

CAPACITANCE RANGE

Class 1, at 1 MHz, 1.2 V

RMS

; 10 pF to 82 pF

Class 2, at 1 kHz, 1 ± 0.2 V

RMS

; 100 pF to 22 000 pF

1 kHz, 1 V

RMS

± 0.2 V

RMS

for capacitance values higher than

1000 pF

MARKING

Marking indicates capacitance value and tolerance in

accordance with “EIA 198”.

The capacitors meet the essential requirements of

“EIA 198”. Unless stated otherwise all electrical values apply

at an ambient temperature of 25 °C ± 3 °C, at normal

atmospheric conditions.

RATED DC VOLTAGE

500 V

OPERATING TEMPERATURE RANGE

Class 1, - 55 °C to + 125 °C

Class 2, - 55 °C to + 85 °C

DIELECTRIC STRENGTH

250 % of rated voltage

INSULATION RESISTANCE AT 500 V

≥

10 000 MΩ

TEMPERATURE COEFFICIENTS

Class 1, C0G (NP0); SL0

Class 2, Y5P; Z5U; Y5V; X5F

TOLERANCE ON CAPACITANCE

± 5 %; ± 10 %; ± 20 %; + 80/- 20 %

SECTIONAL SPECIFICATIONS

Class 1, IEC 60 384-8

Class 2, IEC 60 384-9

EIA 198

DISSIPATION FACTOR

Class 1, C

≤

30 pF;

≤

20 x (10/C + 0.7) x 10

-4

maximum

Class 1, C > 30 pF;

≤

0.2 %

Class 2,

≤

3.0 %

CLIMATIC CATEGORY

Class 1, 55/125/21

Class 2, 10/85/21, 30/85/21 and 55/85/21

www.vishay.com

For technical questions, contact:

CDC@vishay.com

Document Number: 28513

Revision: 07-Jan-10

D681K25X5FL6TJ5R Related Products

	D681K25X5FL6TJ5R	HM4205	HJL36025SA	HGP36015	D681K25X5FL6UJ5R	D471K25X5FL6TJ5R	D681K25X5FL63J5R	D153M53Z5UL6UJ7R	D153M53Z5UL6TJ7R	D223M59Z5UL6UJ7R
Description	CAPACITOR, CERAMIC, 500 V, X5F, 0.00068 uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	Solar lithium battery charge and discharge management chip	POWERPACT H-FRAME, CIRCUIT BREAKER, THERMAL-MAGNETIC, 25A, 3P, 600V, 25kA	Circuit breaker, PowerPact H, thermal magnetic, 15A, 3 pole, 600V, 18kA	CAPACITOR, CERAMIC, 500 V, X5F, 0.00068 uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	CAPACITOR, CERAMIC, 500 V, X5F, 0.00047 uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	CAPACITOR, CERAMIC, 500 V, X5F, 0.00068 uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	CAPACITOR, CERAMIC, 500 V, Z5U, 0.015 uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	CAPACITOR, CERAMIC, 500 V, Z5U, 0.015 uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT	CAPACITOR, CERAMIC, 500 V, Z5U, 0.022 uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT
Is it lead-free?	Lead free	-	-	-	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	-	-	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	, 2616	-	-	-	, 2616	, 2616	, 2616	, 5314	, 5314	, 5914
Reach Compliance Code	unknow	-	-	-	unknow	unknow	unknow	unknown	unknown	unknown
ECCN code	EAR99	-	-	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	0.00068 µF	-	-	-	0.00068 µF	0.00047 µF	0.00068 µF	0.015 µF	0.015 µF	0.022 µF
Capacitor type	CERAMIC CAPACITOR	-	-	-	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	-	-	-	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
high	6.5 mm	-	-	-	6.5 mm	6.5 mm	6.5 mm	13.5 mm	13.5 mm	15 mm
JESD-609 code	e3	-	-	-	e3	e3	e3	e3	e3	e3
length	6.5 mm	-	-	-	6.5 mm	6.5 mm	6.5 mm	13.5 mm	13.5 mm	15 mm
Installation features	THROUGH HOLE MOUNT	-	-	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
multi-layer	N	-	-	-	N	N	N	No	No	No
negative tolerance	10%	-	-	-	10%	10%	10%	20%	20%	20%
Number of terminals	2	-	-	-	2	2	2	2	2	2
Maximum operating temperature	85 °C	-	-	-	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-	-	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	DISK PACKAGE	-	-	-	DISK PACKAGE	DISK PACKAGE	DISK PACKAGE	DISK PACKAGE	DISK PACKAGE	DISK PACKAGE
Package form	Radial	-	-	-	Radial	Radial	Radial	Radial	Radial	Radial
method of packing	TR, 14 INCH	-	-	-	AMMO PACK	TR, 14 INCH	BULK	AMMO PACK	TR, 14 INCH	AMMO PACK
positive tolerance	10%	-	-	-	10%	10%	10%	20%	20%	20%
Rated (DC) voltage (URdc)	500 V	-	-	-	500 V	500 V	500 V	500 V	500 V	500 V
size code	2616	-	-	-	2616	2616	2616	5314	5314	5914
surface mount	NO	-	-	-	NO	NO	NO	NO	NO	NO
Temperature characteristic code	X5F	-	-	-	X5F	X5F	X5F	Z5U	Z5U	Z5U
Temperature Coefficient	7.5% ppm/°C	-	-	-	7.5% ppm/°C	7.5% ppm/°C	7.5% ppm/°C	-56/+22% ppm/°C	-56/+22% ppm/°C	-56/+22% ppm/°C
Terminal surface	Matte Tin (Sn)	-	-	-	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal pitch	5 mm	-	-	-	5 mm	5 mm	5 mm	7.5 mm	7.5 mm	7.5 mm
Terminal shape	WIRE	-	-	-	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
width	4 mm	-	-	-	4 mm	4 mm	4 mm	3.5 mm	3.5 mm	3.5 mm
Base Number Matches	1	-	-	-	1	1	1	1	1	-
