CX2520SHFREQ2B0FLJZ1 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> CX2520SHFREQ2B0FLJZ1

CX2520SHFREQ2B0FLJZ1: DescriptionQuartz Crystal, QUARTZ CRYSTAL RESONATOR, 30 MHz - 60 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4; CategoryPassive components Crystal/resonator; File Size45KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric View All

CX2520SHFREQ2B0FLJZ1 Overview

Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 30 MHz - 60 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4

CX2520SHFREQ2B0FLJZ1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kyocera
package instruction	ROHS COMPLIANT, CERAMIC PACKAGE-4
Reach Compliance Code	unknown
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.0015%
frequency tolerance	10 ppm
load capacitance	6 pF
Manufacturer's serial number	CX2520SH
Installation features	SURFACE MOUNT
Maximum operating frequency	60 MHz
Minimum operating frequency	30 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
physical size	L2.5XB2.0XH0.55 (mm)/L0.098XB0.079XH0.022 (inch)
Series resistance	50 Ω
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

Crystal Units

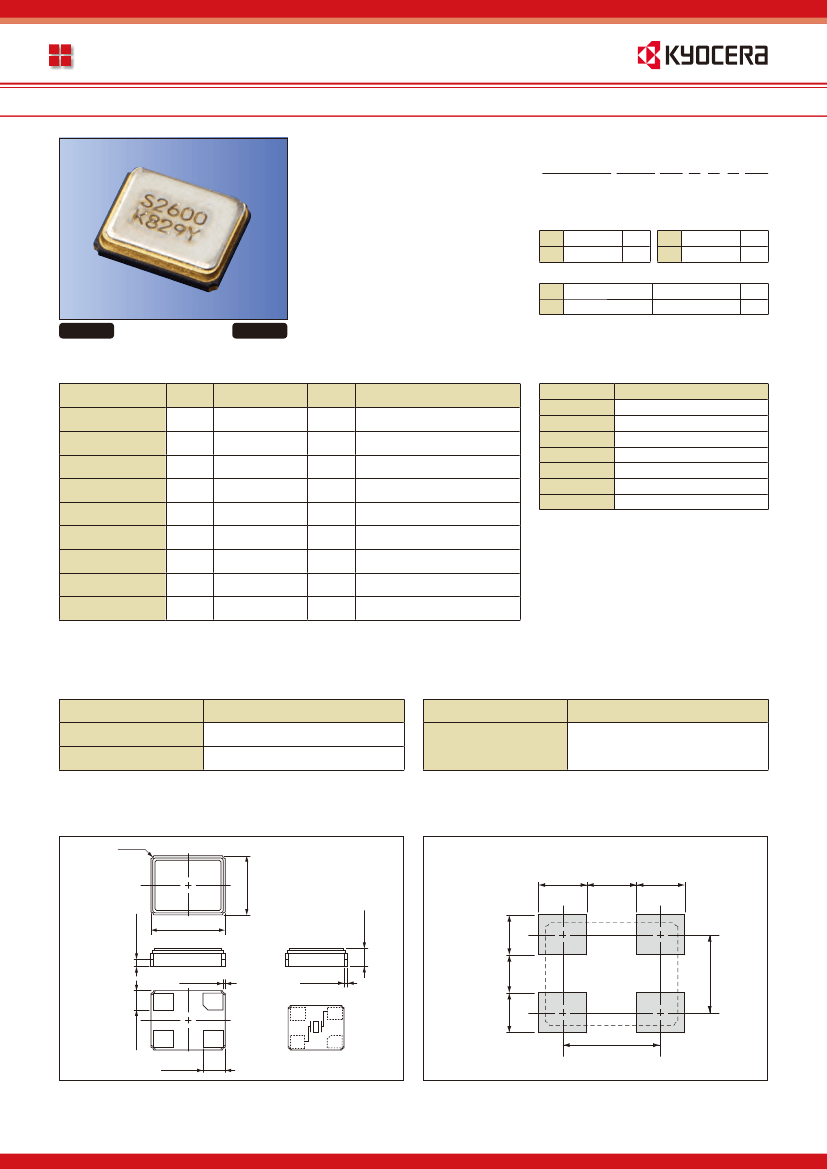

Surface Mount Type CX2520SH

2.5×2.0mm for Mobile Communications

Features

• Reference frequency for

telecommunication systems

• Reﬂow compatible

• Using ceramic package resulting in high

reliability

• Small and low proﬁle

How to Order

CX2520SH 26000

□□ □ □ □ □□

①

②

③ ④⑤⑥ ⑦

②

Frequency

④

Frequency Stability

±10×10

−6

±15×10

−6

±10×10

−6

±15×10

−6

Std.

—

Std.

①

Series

③

Load Capacitance

6 pF

8 pF

—

Std.

Applications

• Mobile Communications, Bluetooth,

Wireless LAN

⑤

Operating Temp. Range

⑥

Frequency Temp. Stability

−20

+70°C

−30

+85°C

Pb Free

RoHS Compliant

⑦

Individual Speciﬁcation

Speciﬁcations

Item

Frequency Range

Overtone Order

Load Capacitance

Frequency Stability

Motional Series Resistance

Drive Level

Operating Temp. Range

Storage Temp. Range

Frequency Temp. Characteristics

Symbol

_nom

_tol

_use

_stg

_tem

Speciﬁcation

26000 to 60000

Fundamental

±10

Table 1

Table 2

−30

+85

−40

+85

±15

Units

kHz

―

×10

−6

ohm

μW

°C

×10

−6

Freq. deviation from the value at 25°C

25°C±3°C

Remarks

Typical Frequencies and Part Numbers

Frequency (kHz)

26000.000

27120.000

32000.000

38400.000

40000.000

44000.000

54000.000

Part Number

CX2520SH26000D0FLJZ1

CX2520SH27120D0FLJZ1

CX2520SH32000D0FLJZ1

CX2520SH38400D0FLJZ1

CX2520SH40000D0FLJZ1

CX2520SH44000D0FLJZ1

CX2520SH54000D0FLJZ1

∗

Please contact us for other specifications.

Table1 Motional Series Resistance

Frequency Range

26000 to 29999kHz

30000 to 60000kHz

Motional Series Resistance

60Ω max.

Table2 Level of Drive

Frequency Range

26000 to 60000kHz

Level of Drive

10μW (100μW max.)

50Ω max.

Dimensions

4 R0.15

(Unit: mm)

Recommended Land Pattern

(Unit: mm)

2.0 0.1

1.2

0.5

1.2

0.165 0.05

2.5 0.1

0.55 0.05

0.3

1.0

8 0.10 0.1

GND

4 0.15 0.1

HOT

4-0.65 0.1

HOT

4 0.75 0.1

CONNECTION

(TOP VIEW)

GND

1.7

1.0

1.3
