50950035389F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 50950035389F

50950035389F: DescriptionStrip Terminal Block,; CategoryThe connector terminals; File Size864KB，1 Pages; ManufacturerPTR Messtechnik GmbH & Co. KG

Download Datasheet Parametric Compare View All

50950035389F Overview

Strip Terminal Block,

50950035389F Parametric

Parameter Name	Attribute value
Maker	PTR Messtechnik GmbH & Co. KG
Reach Compliance Code	compliant
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

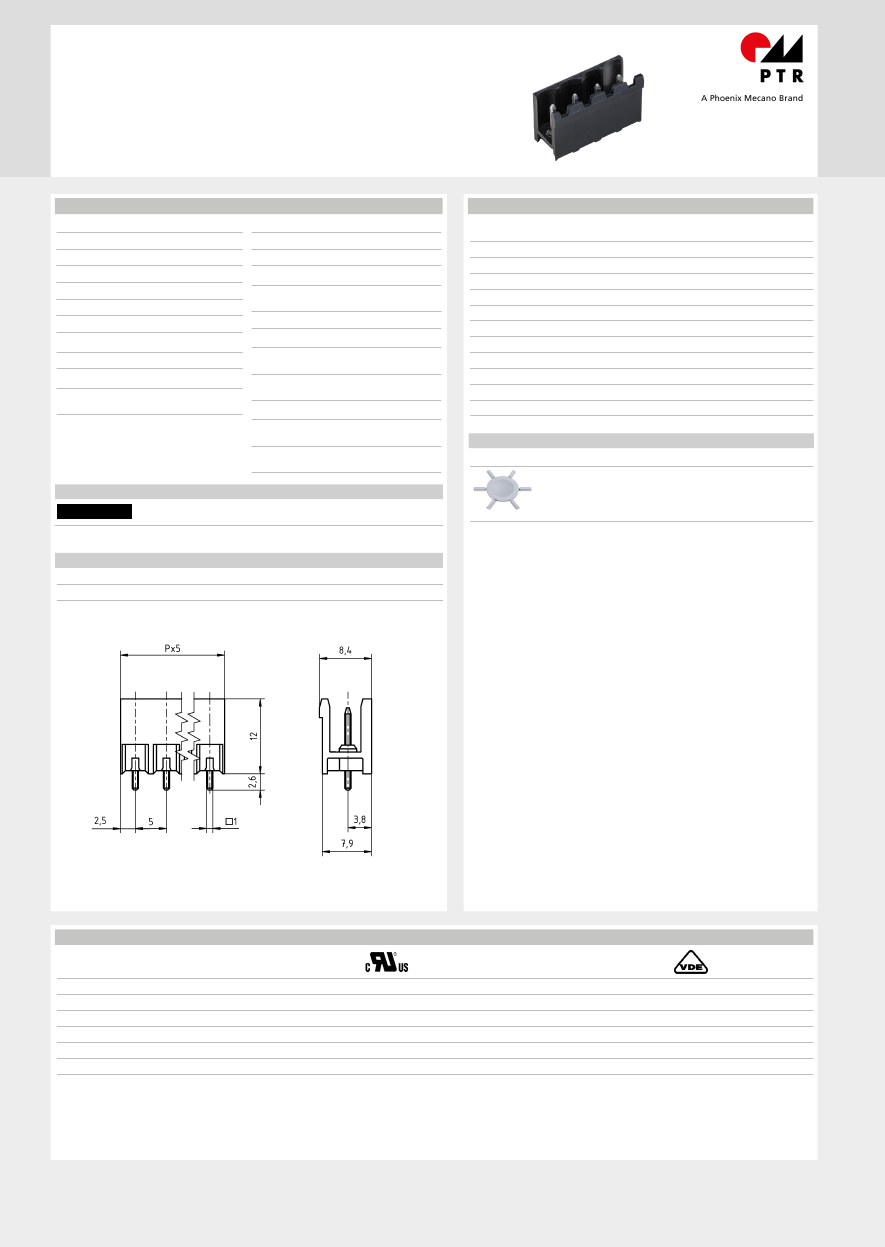

Pin Strip |

Spacing 5.0 mm

STL950/..-5.0-V-P2.6-BK-HC-HT

Technical Data

Wire sizes

Solid min

Solid max

Stranded (flexible) min

Stranded (flexible) max

Stranded with Ferrule min

Stranded with Ferrule max

Order Data (Spacing 5.0 mm)

Insulating Material

Material

Flammability Class

PPA

10.00

15.00

20.00

25.00

30.00

35.00

40.00

45.00

50.00

55.00

60.00

STL950/2-5.0-V-P2.6-BK-HC-HT

STL950/3-5.0-V-P2.6-BK-HC-HT

STL950/4-5.0-V-P2.6-BK-HC-HT

STL950/5-5.0-V-P2.6-BK-HC-HT

STL950/6-5.0-V-P2.6-BK-HC-HT

STL950/7-5.0-V-P2.6-BK-HC-HT

STL950/8-5.0-V-P2.6-BK-HC-HT

STL950/9-5.0-V-P2.6-BK-HC-HT

STL950/10-5.0-V-P2.6-BK-HC-HT

STL950/11-5.0-V-P2.6-BK-HC-HT

STL950/12-5.0-V-P2.6-BK-HC-HT

Poles

Width (mm)

Article Designation

Article

Number

50950025389 F

50950035389 F

50950045389 F

50950055389 E

50950065389 E

50950075389 E

50950085389 D

50950095389 D

50950105389 D

50950115389 D

50950125389 D

200

100

UL 94 V-0

Temperatures

Operating Temperature

(without mech. load)

Store Temperature

-40 °C - 105 °C

Dimensions

PCB Hole Diameter

1.4 mm

Wave Soldering Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

260 °C

3-4 s

Materials

Contact Pin

Copper

Alloy

Reflow Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

217 - 245 °C

Accessoires

60 s

Figure

Designation

Article Number

Colours

BLACK, RAL 9011

Colours according to RAL, there may be variations on colour due to production conditions.

Coding Star CS2-5.0/5.08-LIGHT Order Data: 50000000028

GREY-HT

Counterparts (Spacing 5.0 mm)

Terminal Block

AK950

In combination of connectors with different admission data, the lower value is valid.

Ratings

UseGroup

Rated Voltage

Rated Current

Overvoltage Category

Test Voltage

Pollution Degree

300 V

16 A

150 V

16 A

300 V

10 A

250 V

16 A

III

1.60 kV

1.30 kV

1.60 kV

4.0 kV

PTR HARTMANN GmbH

• Gewerbehof 38 • 59368 Werne / Germany

Telefon: +49 (0)2389/7988-0 •

E-Mail: info@ptr-hartmann.com

www.ptr.eu
