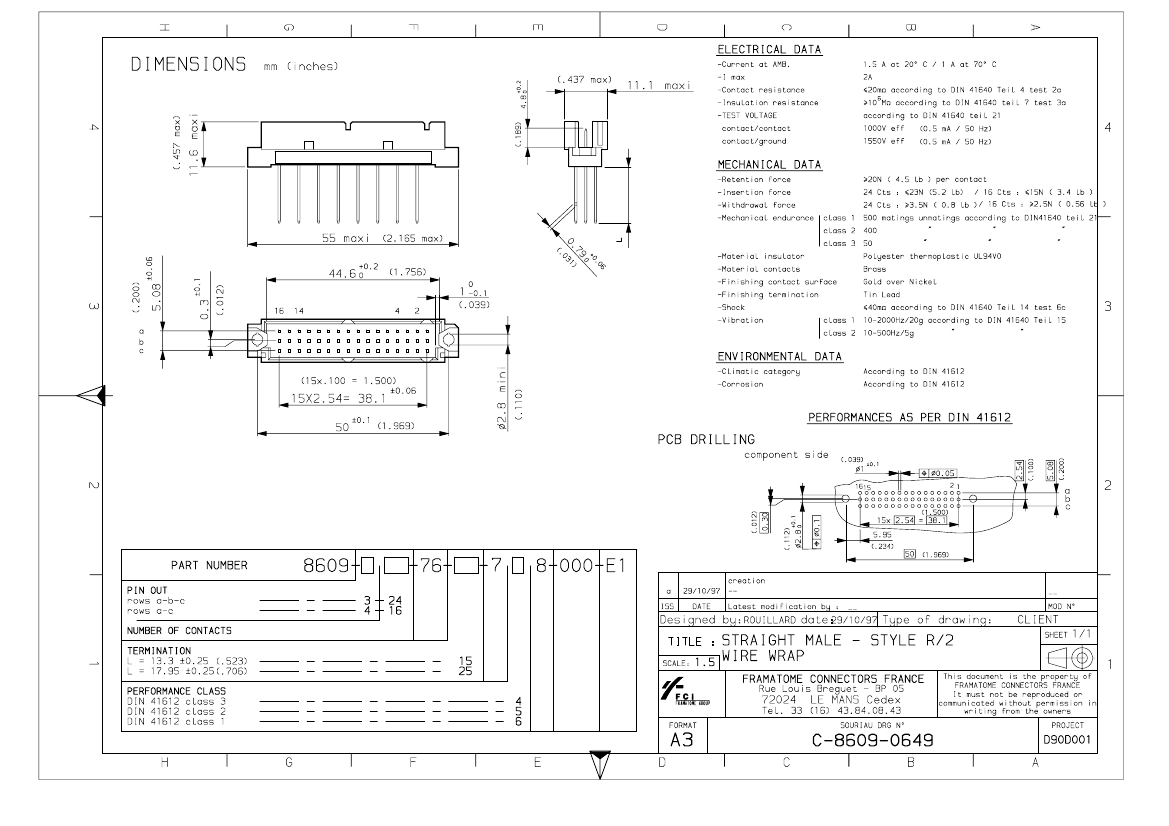

Board Euro Connector, 24 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Gray Insulator, Receptacle
| Parameter Name | Attribute value |
| Maker | Amphenol |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| body width | 0.343 inch |
| subject depth | 0.457 inch |
| body length | 2.165 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD EURO CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | TIN LEAD |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| Contact style | SQ PIN-SKT |
| DIN compliance | YES |
| Filter function | NO |
| IEC compliance | NO |
| Insulator color | GRAY |
| insulator material | THERMOPLASTIC |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | 8609 |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Loaded row name | A,B,C |
| PCB row number | 3 |
| Number of rows loaded | 3 |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 16u inch |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.531 inch |
| Terminal pitch | 5.08 mm |
| Termination type | WIRE WRAP |
| Total number of contacts | 24 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 8609-324-76-15-758-000-E1 | 8609-324-76-25-768-000-E1 | 8609-324-76-25-758-000-E1 | 8609-324-76-25-748-000-E1 | 8609-324-76-15-748-000-E1 | 8609-324-76-15-768-000-E1 | |
|---|---|---|---|---|---|---|
| Description | Board Euro Connector, 24 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Gray Insulator, Receptacle | Board Euro Connector, 24 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Gray Insulator, Receptacle | Board Euro Connector, 24 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Gray Insulator, Receptacle | Board Euro Connector, 24 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Gray Insulator, Receptacle | Board Euro Connector, 24 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Gray Insulator, Receptacle | Board Euro Connector, 24 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Gray Insulator, Receptacle |
| Maker | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant |
| body width | 0.343 inch | 0.343 inch | 0.343 inch | 0.343 inch | 0.343 inch | 0.343 inch |
| subject depth | 0.457 inch | 0.457 inch | 0.457 inch | 0.457 inch | 0.457 inch | 0.457 inch |
| body length | 2.165 inch | 2.165 inch | 2.165 inch | 2.165 inch | 2.165 inch | 2.165 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR |
| Contact to complete cooperation | AU ON NI | AU ON NI | AU ON NI | AU ON NI | AU ON NI | AU ON NI |
| Contact completed and terminated | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | YES | YES | YES | YES | YES | YES |
| Filter function | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO |
| Insulator color | GRAY | GRAY | GRAY | GRAY | GRAY | GRAY |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| MIL compliance | NO | NO | NO | NO | NO | NO |
| Manufacturer's serial number | 8609 | 8609 | 8609 | 8609 | 8609 | 8609 |
| Plug contact pitch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch |
| Match contact row spacing | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch |
| Mixed contacts | NO | NO | NO | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Loaded row name | A,B,C | A,B,C | A,B,C | A,B,C | A,B,C | A,B,C |
| PCB row number | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of rows loaded | 3 | 3 | 3 | 3 | 3 | 3 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Plating thickness | 16u inch | 30u inch | 16u inch | 10u inch | 10u inch | 30u inch |
| Guideline | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.531 inch | 0.697 inch | 0.697 inch | 0.697 inch | 0.531 inch | 0.531 inch |
| Terminal pitch | 5.08 mm | 5.08 mm | 5.08 mm | 5.08 mm | 5.08 mm | 5.08 mm |
| Termination type | WIRE WRAP | WIRE WRAP | WIRE WRAP | WIRE WRAP | WIRE WRAP | WIRE WRAP |
| Total number of contacts | 24 | 24 | 24 | 24 | 24 | 24 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
| ECCN code | EAR99 | EAR99 | - | EAR99 | EAR99 | EAR99 |
