SAW Components
Low Loss Filter for Mobile Communication
Data Sheet
B4038
465,14 MHz
Ceramic package
DCC6
Features
Low loss RF filter for US family radio system
Low amplitude ripple
High image frequency suppression
Package for
Surface Mounted Technology
(SMT)
q
No matching network required for operation
at 50
Ω
q
q
q
q
Terminals
q
Ni, gold-plated
Dimensions in mm, approx. weight 0,13 g
Pin configuration
2
5
1, 3, 4, 6
Input
Output
To be grounded
Type
B4038
Ordering code
B39471-B4038-Z610
Marking and Package
according to
C61157-A7-A41
Packing
according to
F61074-V8030-Z000
Electrostatic Sensitive Device
(ESD)
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
Source power
T
T
stg
V
DC
P
s
–20 / +60
–40 / +85
0
10
˚C
˚C
V
dBm
Preliminary format of data sheet
Terms of delivery and rights to change design reserved.
Page 1 of 3
SMAP PR SAW DC
Jan 18, 1999
SAW Components
Low Loss Filter for Mobile Communication
Data Sheet
Characteristics
Operating temperature range:
Terminating source impedance:
Terminating load impedance:
B4038
465,14 MHz
T
= -20 to +60 ˚C
Z
S
= 50
Ω
Z
L
= 50
Ω
min.
typ.
465,14
max.
—
MHz
Center frequency
Maximum insertion attenuation
462,5625 ... 467,7125 MHz
Amplitude ripple
(p-p)
462,5625 ... 467,7125 MHz
Attenuation
365,00
419,16
424,31
455,70
530,00
...
...
...
...
...
419,16 MHz
424,31 MHz
455,70 MHz
456,86 MHz
565,00 MHz
f
c
α
max
—
—
∆α
—
α
min
50,0
55,0
8,0
4,0
50,0
2,2
2,8
dB
0,3
1,0
dB
60,0
62,0
12,0
8,0
60,0
—
—
—
—
—
dB
dB
dB
dB
dB
Impedance
at 465,14 MHz
Input:
Z
IN
=
R
IN
||
C
IN
Output:
Z
OUT
=
R
OUT
||
C
OUT
Temperature coefficient of frequency
—
—
50 || 0,5
50 || 0,5
–70
—
—
—
Ω
|| pF
Ω
|| pF
ppm/K
TC
f
—
Preliminary format of data sheet
Terms of delivery and rights to change design reserved.
Page 2 of 3
SMAP PR SAW DC
Jan 18, 1999
SAW Components
Low Loss Filter for Mobile Communication
Data Sheet
B4038
465,14 MHz

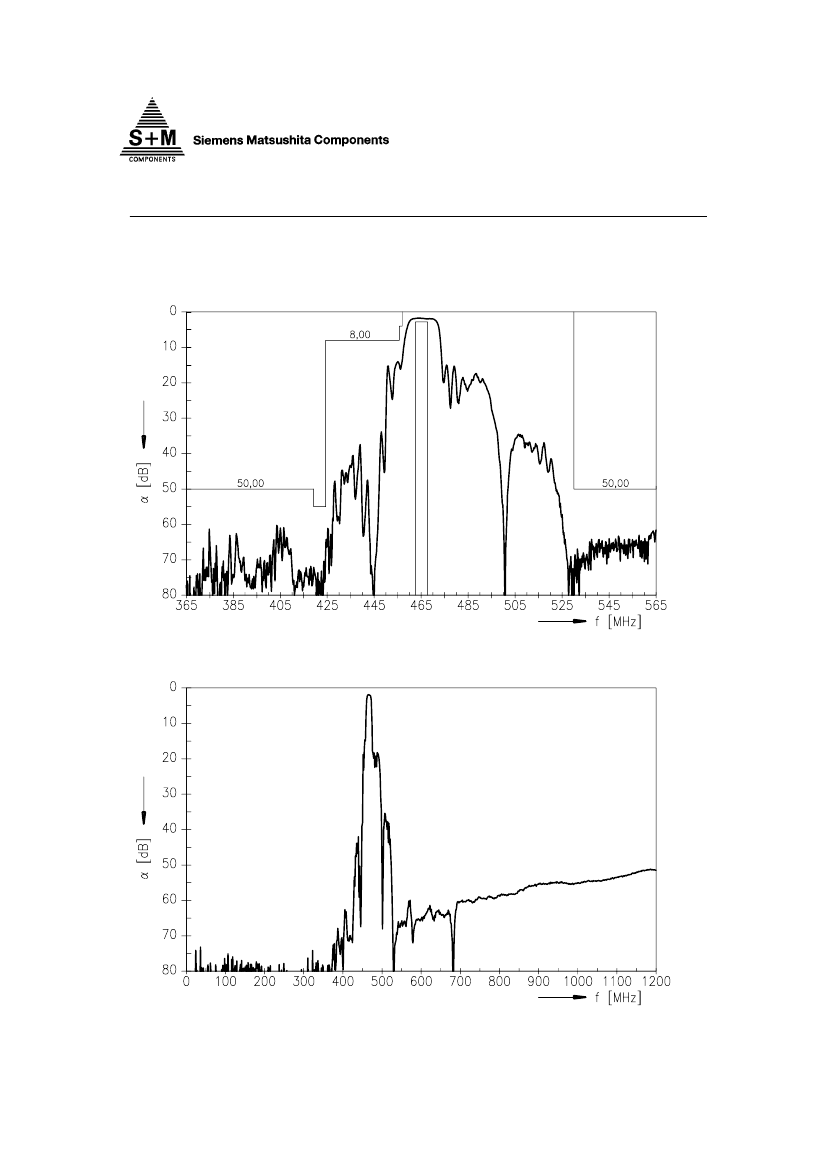

Transfer function
Transfer function
(wideband)
Preliminary format of data sheet
Terms of delivery and rights to change design reserved.
Page 3 of 3
SMAP PR SAW DC
Jan 18, 1999
