50381-00511-001 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 50381-00511-001

50381-00511-001: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Female, 0.039 inch Pitch, IDC Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size120KB，1 Pages; ManufacturerAces Electronics Co., Ltd.

Download Datasheet Parametric Compare View All

50381-00511-001 Overview

Board Connector, 5 Contact(s), 1 Row(s), Female, 0.039 inch Pitch, IDC Terminal, Locking, Black Insulator, Plug

50381-00511-001 Parametric

Parameter Name	Attribute value
Maker	Aces Electronics Co., Ltd.
Reach Compliance Code	unknown
body width	0.116 inch
subject depth	0.142 inch
body length	0.276 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
maximum insertion force	9.7856 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	50381
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.7 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	5
Maximum wire diameter	32 AWG
Minimum wire diameter	32 AWG
Base Number Matches	1

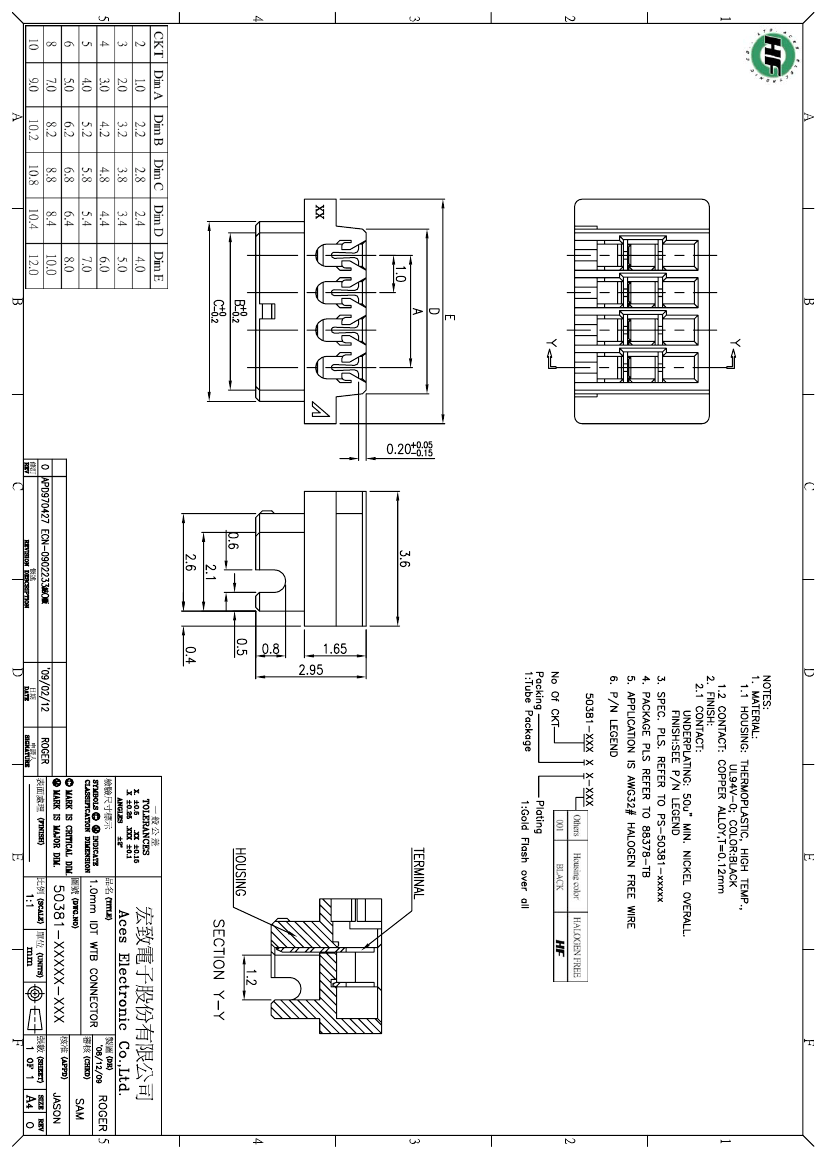

Preview

Download Datasheet

View All

50381-00511-001 Related Products

	50381-00511-001	50381-01011-001	50381-00311-001	50381-00611-001
Description	Board Connector, 5 Contact(s), 1 Row(s), Female, 0.039 inch Pitch, IDC Terminal, Locking, Black Insulator, Plug	Board Connector, 10 Contact(s), 1 Row(s), Female, 0.039 inch Pitch, IDC Terminal, Locking, Black Insulator, Plug	Board Connector, 3 Contact(s), 1 Row(s), Female, 0.039 inch Pitch, IDC Terminal, Locking, Black Insulator, Plug	Board Connector, 6 Contact(s), 1 Row(s), Female, 0.039 inch Pitch, IDC Terminal, Locking, Black Insulator, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown
body width	0.116 inch	0.116 inch	0.116 inch	0.116 inch
subject depth	0.142 inch	0.142 inch	0.142 inch	0.142 inch
body length	0.276 inch	0.472 inch	0.197 inch	0.315 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	40 mΩ	40 mΩ
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V
Durability	30 Cycles	30 Cycles	30 Cycles	30 Cycles
maximum insertion force	9.7856 N	9.7856 N	9.7856 N	9.7856 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	50381	50381	50381	50381
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.7 A	0.7 A	0.7 A	0.7 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	IDC	IDC
Total number of contacts	5	10	3	6
Maximum wire diameter	32 AWG	32 AWG	32 AWG	32 AWG
Minimum wire diameter	32 AWG	32 AWG	32 AWG	32 AWG
Base Number Matches	1	1	1	1
Maker	Aces Electronics Co., Ltd.	-	Aces Electronics Co., Ltd.	Aces Electronics Co., Ltd.
