TO17.7344750M08021AH datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> TO17.7344750M08021AH

TO17.7344750M08021AH: DescriptionTCXO, Clock, TCXO, CLOCK, 17.734475 MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-3; CategoryPassive components oscillator; File Size94KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric View All

TO17.7344750M08021AH Overview

TCXO, Clock, TCXO, CLOCK, 17.734475 MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-3

TO17.7344750M08021AH Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kyocera
package instruction	DIP3/14,.3
Reach Compliance Code	unknown
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	YES
frequency stability	1%
Manufacturer's serial number	TCXO-155CB
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
Maximum operating frequency	40 MHz
Minimum operating frequency	10 MHz
Nominal operating frequency	17.734475 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	15 pF
Package body material	METAL
Encapsulate equivalent code	DIP3/14,.3
physical size	18.5mm x 12.0mm x 7.5mm
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	20 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	60/40 %
Base Number Matches	1

Preview

Download Datasheet

View All

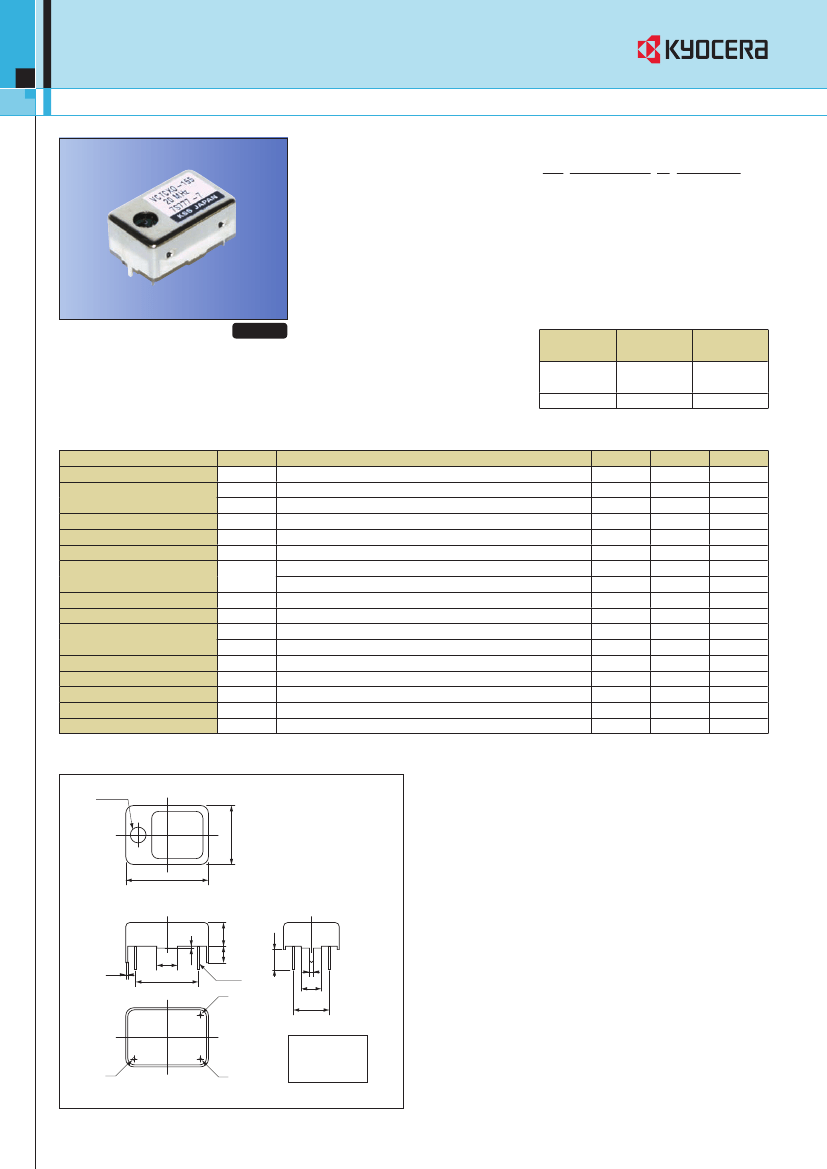

Temperature Compensated Crystal Oscillators

TCXO-155 Series

Features

• Analog signal processing temperature

compensated crystal oscillator

• Small package & Lower noises

How to Order

TO 14.3181800 M 04016AH

①

②

③

④

①

Function

Standard frequency

• 14.31818MHz

• 17.734475MHz

• 28.63636MHz

②

Output Frequency

③

Frequency Unit

M→MHz

④

Individual Specification

TCXO

→

RoHS Compliant

Table 1

Model

TCXO-155

TCXO-155CB

Output

waveform

clipped sin-

soidal wave

CMOS

Individual

Specification

04016AH

08021AH

Specifications

Item

Frequency Range

Frequency tolerance

Storage Temperature Range

Operating Temperature Range

Supply Voltage

Current consumption

Frequency Aging

Frequency Adjustment Range

Load

Output Level

CMOS Load

Low Level Output Voltage

High Level Output Voltage

Symmetry

Symbol

-T

-V

_stg

_use

Conditions

—

vs Temperature

vs Voltage

—

Min.

-1.0

-0.2

-40

-10

4.75

—

-1.0

-3.0

100000

-10

—

10% V

Max.

+1.0

+0.2

+85

+60

5.25

+1.0

+3.0

100000

—

90% V

—

Units

MHz

×10

-6

×10

-6

°C

×10

-6

×10

-6

ohm

dBm

TCXO-155

TCXO-155CB

_age

1 year

_adjust

Internal Trimmer

Load_R TCXO-155

Load_C TCXO-155

Output Level TCXO-155

Load_C TCXO-155CB

TCXO-155CB

Symmetry TCXO-155CB, @50% Vcc

(Unit: mm)

Dimensions

FREQ. ADJ

N.P.

18.5 0.5

2.5 7.5 max.

12.0 0.5

0.3

15.24 0.5

3 0.5

0.5

7.62 0.5

Pin Connection

1 : V

2 : OUTPUT

3 : GND
