Datasheet> All Categories > Discrete semiconductor> The transistor> J112RLRP

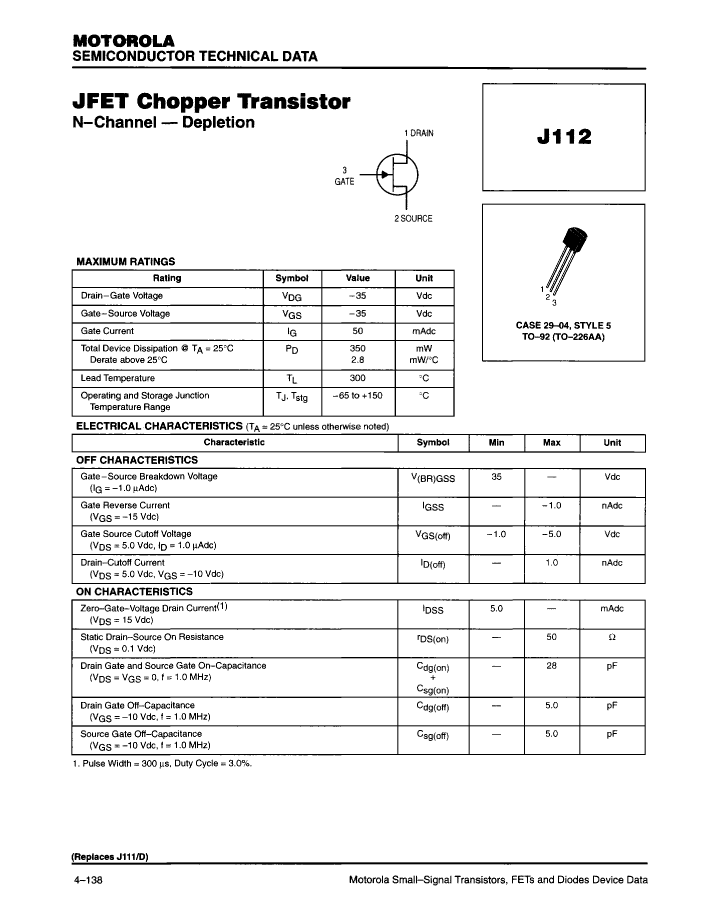

Preview

J112RLRP: DescriptionSmall Signal Field-Effect Transistor, 1-Element, N-Channel, Silicon, Junction FET, TO-92; CategoryDiscrete semiconductor The transistor; File Size127KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

J112RLRP Overview

Small Signal Field-Effect Transistor, 1-Element, N-Channel, Silicon, Junction FET, TO-92

J112RLRP Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown
Configuration	SINGLE
Maximum drain-source on-resistance	50 Ω
FET technology	JUNCTION
Maximum feedback capacitance (Crss)	5 pF
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Operating mode	DEPLETION MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	CHOPPER
Transistor component materials	SILICON
Base Number Matches	1

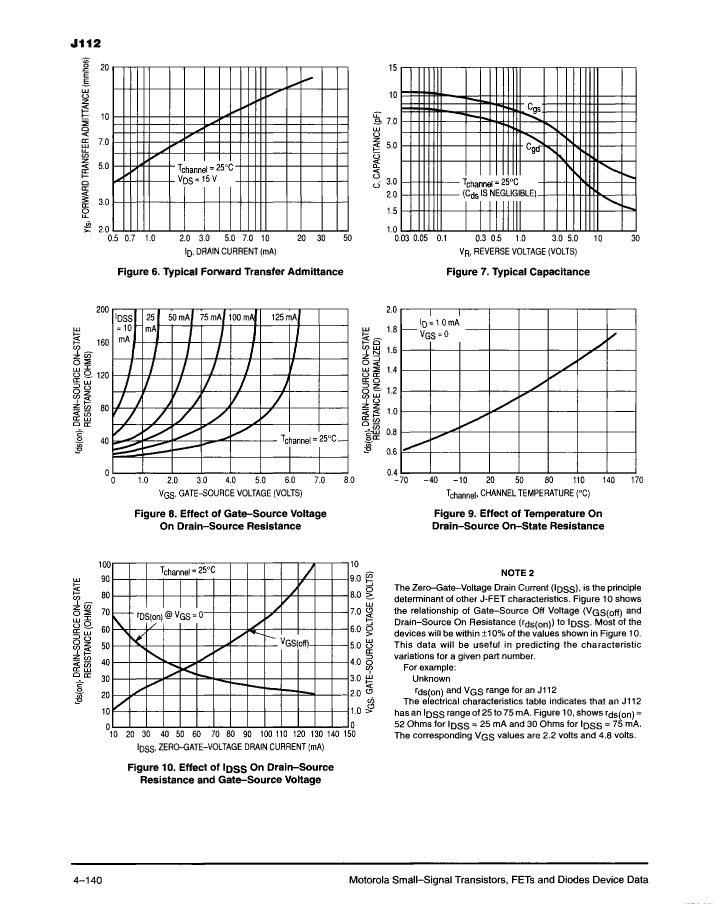

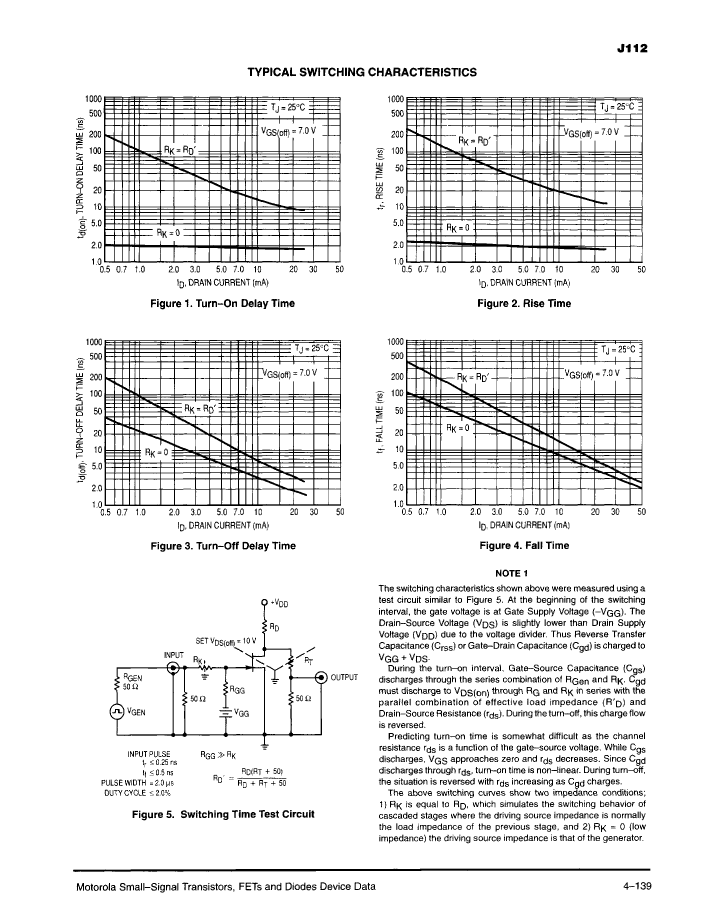

Preview

Download Datasheet

View All

J112RLRP Related Products

	J112RLRP	J112RLRF	J112RLRE	J112RLRA	J112RL	J112RL1	J112RLRM	J112ZL1	J112RLRB
Description	Small Signal Field-Effect Transistor, 1-Element, N-Channel, Silicon, Junction FET, TO-92	Small Signal Field-Effect Transistor, 1-Element, N-Channel, Silicon, Junction FET, TO-92	Small Signal Field-Effect Transistor, 1-Element, N-Channel, Silicon, Junction FET, TO-92	N-CHANNEL, Si, SMALL SIGNAL, JFET, TO-92	Small Signal Field-Effect Transistor, 1-Element, N-Channel, Silicon, Junction FET, TO-92	N-CHANNEL, Si, SMALL SIGNAL, JFET, TO-92	N-CHANNEL, Si, SMALL SIGNAL, JFET, TO-92	N-CHANNEL, Si, SMALL SIGNAL, JFET, TO-92	N-CHANNEL, Si, SMALL SIGNAL, JFET, TO-92
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum drain-source on-resistance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
FET technology	JUNCTION	JUNCTION	JUNCTION	JUNCTION	JUNCTION	JUNCTION	JUNCTION	JUNCTION	JUNCTION
Maximum feedback capacitance (Crss)	5 pF	5 pF	5 pF	5 pF	5 pF	5 pF	5 pF	5 pF	5 pF
JEDEC-95 code	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92
JESD-30 code	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
Number of components	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3
Operating mode	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
transistor applications	CHOPPER	CHOPPER	CHOPPER	CHOPPER	CHOPPER	CHOPPER	CHOPPER	CHOPPER	CHOPPER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maker	Motorola ( NXP )	-	-	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
